Swans 2.8B Deluxe Cinema System 7.2 Channel home theater 7.1/9.1 Front main speaker+Subwoofer+middle speaker+Surround Speaker

Attention: Because this home theater is customized , so If you want to , please wait for 7-15 days .

Because this home theater is too big , so the shipping freight is not inaccurate , if you are interested in this

one, and want to purchase , please contact us to confirm the actual shipping cost .

Parameters

Front main channel speaker : HiVi 2.8B

System form: Four-way four-order inverted speaker system

Unit configuration: Professional 8-inch bass 2

Professional 6.5 inch bass

Professional 50mm midrange 4

Equal magnetic field tweeter 4

Frequency range: 35Hz - 20kHz

Distortion: 55Hz - 20kHz 1% (2.83V/1m)

Sensitivity (2.83V/1m): 88dB

Rated impedance: 4

Power range: 10W - 300W

Dimensions (W D H): 387 540 1236mm

Net weight (each): 55kg

Active Subwoofer: HiVi 2.8B-SUB

System form: One way closed active subwoofer

Unit configuration: 15-inch professional subwoofer

Frequency range: 26Hz - 120Hz (DIRECT)

26Hz - 80Hz (INTERNAL X-OVER)

Rated power: 1000W

Signal to noise ratio: >100dB (without weighting)

Input sensitivity: 100mV

Input impedance: 22k

Dimensions (W D H): 582 536 476mm

Net weight (each): 34kg

Front middle speaker: HiVi 2.8B-C

System form: three-way four-order inverted speaker system

Unit configuration: Professional 6.5 inches mid-bass 2

Professional 50mm midrange

Equal magnetic field tweeter

Frequency range: 55Hz - 20kHz

Distortion: 62Hz - 20kHz 1% (2.83V/1m)

Sensitivity (2.83V/1m): 88dB

Rated impedance: 4

Power range: 10W - 120W

Dimensions (W D H): 560 287 220mm

Net weight: 13kg

Monopole Surround Speaker: HiVi 2.8B-M

System form: Two-way two-order closed speaker system

Unit configuration: Professional 5-inch mid-bass

28mm dome tweeter

Frequency range: 65 Hz - 20kHz

Distortion: 75Hz - 20kHz 1% (2.83V/1m)

Sensitivity (2.83V/1m): 87dB

Rated impedance: 8

Power range: 10W - 60W

Dimensions (W D H): 170 192 236mm

Net weight (each): 3.8kg

Bipolar/Dipole Surround Speaker : HiVi 2.8B-BD

System form: Bipole/Dipole bipolar/dipole surround speakers

Unit configuration: Professional 5-inch mid-bass 2

28mm dome tweeter 2

Frequency range: 65Hz - 20kHz

Sensitivity (2.83V/1m): 87dB

Rated impedance: 4

Power range: 10W - 60W

Dimensions (W D H): 336 220 265mm

Net weight (each): 8kg

Case appearance: Luxury natural wood case with aluminum decorative ring

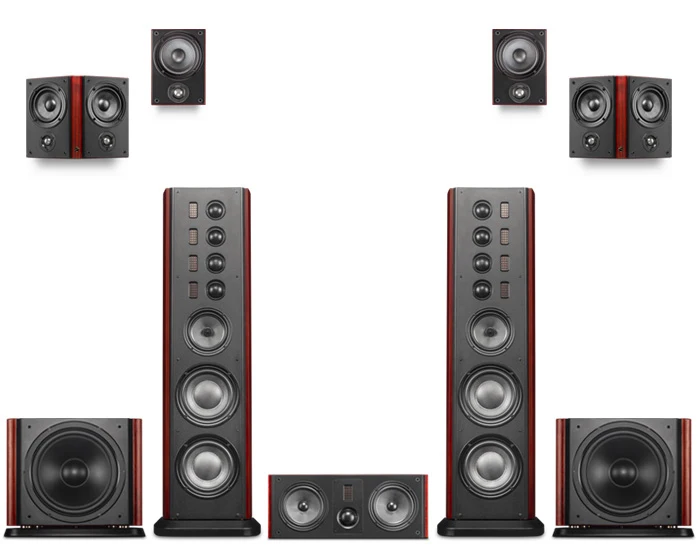

The HiVi 2.8BHT system consists of two front main channel speakers, one middle speaker, two 15-inch active

subwoofers, and two single/dual surround speakers to form a 5.1 channel speaker system. According to the

space environment, more surround speakers are used to form a multi-channel surround sound system such

as 7.1 and 9.1.

The main box of 2.8BHT is made of precious logs and is elegant and luxurious. As the flagship series of HiVi ,

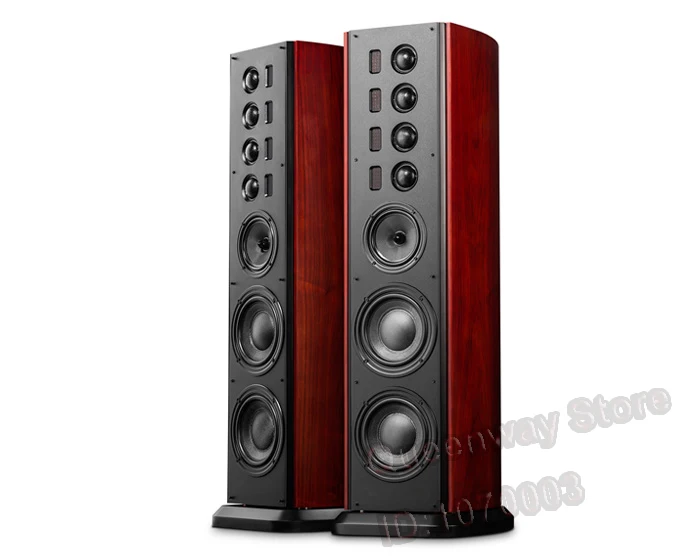

its volume is moderate, especially suitable for modern home environment. The 2.8B main channel speaker

consists of four linear magnetic field tweeter and four 2-inch soft midranges arranged in a linear arrangement

to enhance the sound pressure output of the medium and high frequency and ensure the large dynamic

response of the system. In addition, it is equipped with a 6.5-inch professional mid-range and two 8-inch bass,

together with a linear sound source to form a 4-channel speaker system.

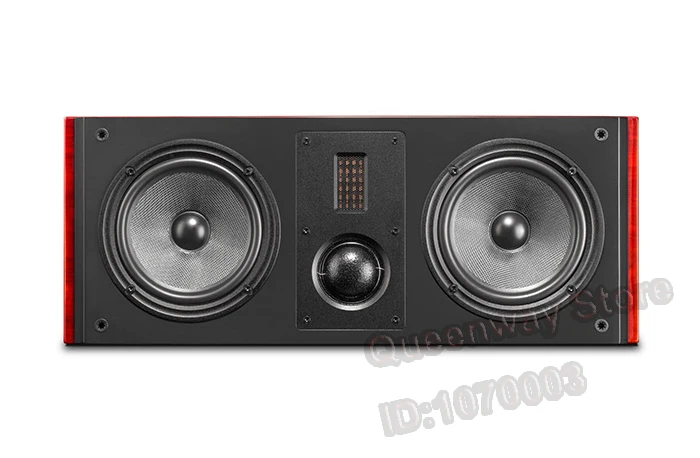

2.8BHT center speaker 2.8BC uses two professional 6.5-inch mid-bass, a professional 50mm mid-range and

an equal magnetic field tweeter, which uses the same unit configuration of the main channel to better ensure

the sound. consistency.

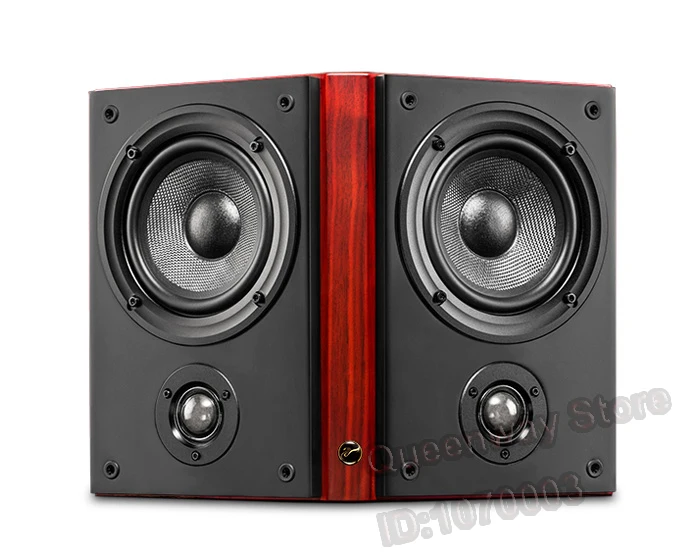

The 2.8HT surround channel offers users two options, with a single-stage surround speaker 2.8B-M, or with a

dual-level surround speaker 2.8B-BD. Among them, 2.8BM uses a professional 5-inch mid-bass and a 28mm

dome tweeter; 2.8B-BD has a unique appearance, with a professional 5-inch mid-bass and a 28mm dome

tweeter on each side of the cabinet. Create a more realistic surround sound field. The two surround speakers

are suspended for a variety of applications, and users can configure more surround speakers according to

space requirements.

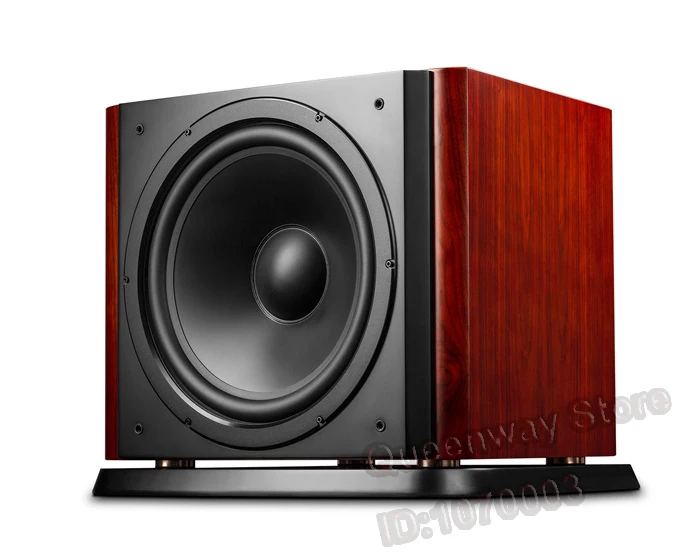

2.8BHT subwoofer 2.8B-SUB uses a 15-inch professional subwoofer, suitable for building large home theater

systems, 2.8B-SUB powerful, huge dynamic and abundant low-frequency sense, can system low-frequency

dive Extended to 23Hz and below.

HiVi maintains the concept of focus on sound quality, user-oriented, high-performance, personalized 2.8BHT

will bring users a more extreme experience. Luxury and elegance coexist, value and quality symbiosis,

2.8BHT excellent electro-acoustic technology and professional audio design to create its outstanding sound

quality. The full-band smooth response main channel, clear and natural center speaker, full-featured surround

speakers, and large dynamic high-energy subwoofer, HiVi Huiwei flagship series continues the legend,

creating a new generation of distinguished goods for audio-visual enthusiasts !
