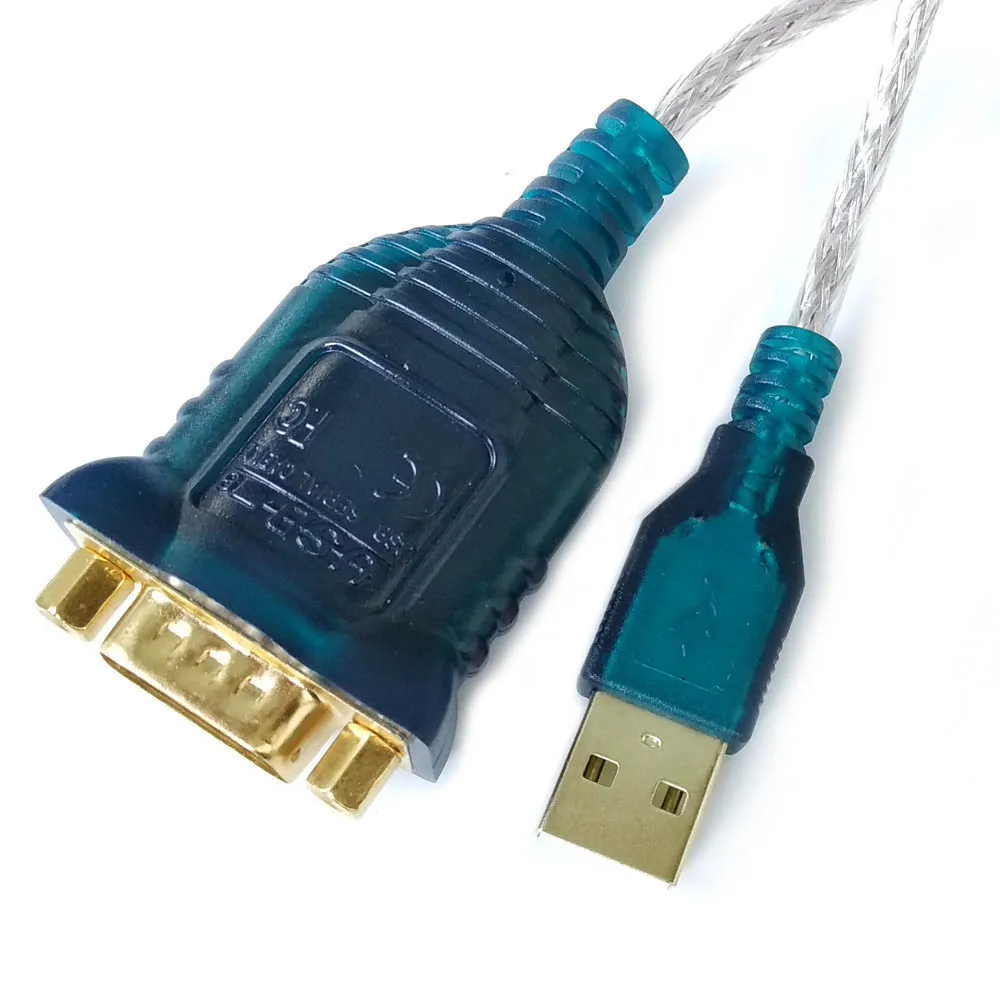

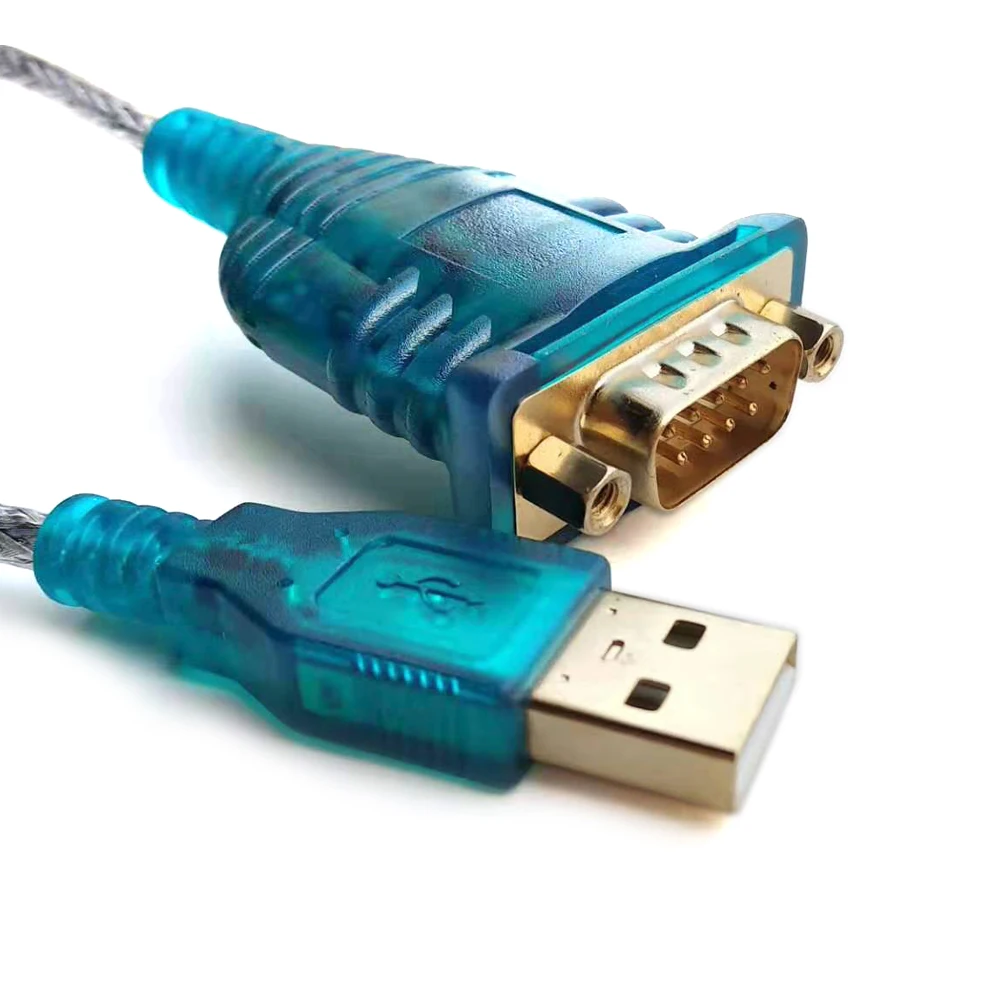

This USB RS232 converter is  for adding a PC standard COM port on your notebook, mobile phone, panel PC, mini PAD, portable PC, etd as all of them donot have DB9 COM port now.  It make the USB port to work act a PC COM port in your notebook computer or panel PC. It with full pinout as standard COM port, 1-DCD, 2-RX, 3-TX, 4-DTR, 5-GND, 6-DSR,7-RTS, 8-CTS, 9-RI

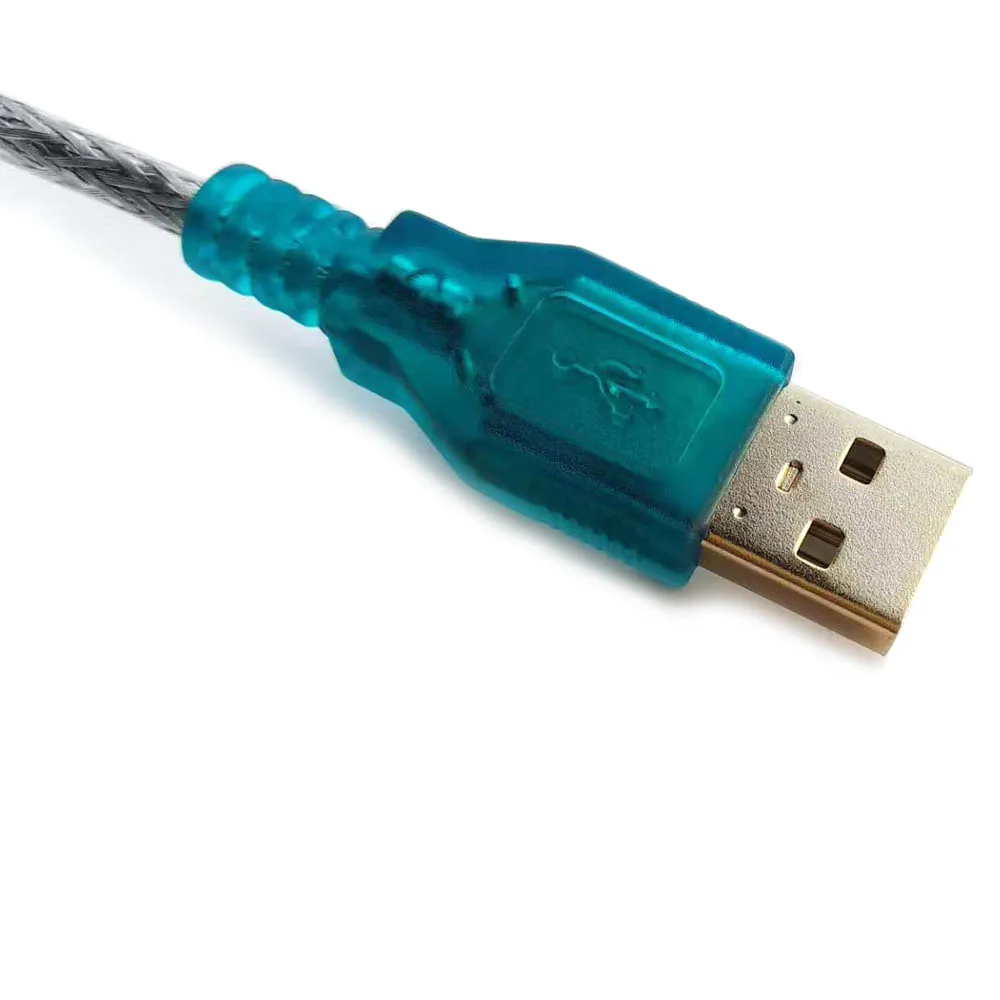

The electronics, including the FT232RL chip are housed in USB A male side.  DB9 connector is molded, it is simplified and stable for rough plug in & out testing.
Drivers support Win 8, Win 8.1, Windows XP, Apple Mac, Linux, Android.

• USB 2.0 full speed support

• Support standard PC COM port  signals

• USB RS232 virtual com port adatper cable

• Self-powered, no extra power required.

• USB to RS232 adapter cable, compatible withChipi-X10 &US232R-10

• Compatible with FTDI VCP drivers and D2XX drivers

• 1 DCD input,2 RxD input, 3 TxD output, 4 DTR output, 5 GND ground, 6 DSR input, 7 RTS output, 8 CTS input,9 RI input

• FT232+ZT213 chip

• Integrated 1024 byte EEPROM, support Mprog3.5

• 9C*28AWG, bare copper, shielded

• PE insulator, PVC jacket, OD=4.5mm

• Compatible with FTDI DS US232R

• 120cm in length

• DB9 male side with nuts on both sides

• Support Android, Support Win 8, 8.1, Win 7, XP, 2000, Linix, Mac OS

• Support mobile PC, mobile phone, panel PC, tablet PC, portable PC, etc.

• Support EEPROM, support Vendor ID re-write,support Mprog3.5

• Support FTDI VCP driver and D2XX drive

• All material are RoHS, REACH certificated

Notice for buyer:

1. This cable is a RS232(PC COM port) cable with level shift chip(ZT213), not UART TTL

2. 1-DCD,2-RXD,3-TXD,4-DTR,5-GND,6-DSR,7-RTS,8-CTS,9-RI

3. This is standard pinout, we can do your pinout, but need your message

4. This is for 1.2mtr cable, 0.15mtr cables are available in this store.

5. Standard shipment is DHL air express. FEDEX/UPS/CP/EMS/HK mail are workable

6. Standard package is blank zipper PE bag.

7. If you need to work with Android tablet or panel PC, please download APK from our websites:

The FT232R is the latest device to be added to FTDI range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.

The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.

• Single chip USB to asynchronous serial data transfer interface.

• Entire USB protocol handled on the chip - No USB-specific firmware programming required.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Fully assisted hardware or X-On / X-Off software handshaking.

• Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).

• In-built support for event characters and line break condition.

• New USB FTDIChip-ID? feature.

• New configurable CBUS I/O pins.

• Auto transmit buffer control for RS485 applications.

• Transmit and receive LED drive signals.

• New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.

• FIFO receive and transmit buffers for high data throughput.

• 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.

• Adjustable receive buffer timeout.

• Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.

• New CBUS bit bang mode option.

• Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.

• Device supplied preprogrammed with unique USB serial number.

• Support for USB suspend / resume.

• Support for bus powered, self powered, and high-power bus powered USB configurations.

• Integrated 3.3V level converter for USB I/O .

• Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.

• True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.

• High I/O pin output drive option.

• Integrated USB resistors.

• Integrated power-on-reset circuit.

• Fully integrated clock - no external crystal, oscillator, or resonator required.

• Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.

• UART signal inversion option.

• USB bulk transfer mode.

• 3.3V to 5.25V Single Supply Operation.

• Low operating and USB suspend current.

• Low USB bandwidth consumption.

• UHCI / OHCI / EHCI host controller compatible.

• USB 2.0 Full Speed compatible.

• -40°C to 85°C extended operating temperature range.

Drivers are available which allow FTDI devices to work with the following operating systems:

• Windows 8.1

• Windows 8.1 x64

• Windows 8

• Windows 8 x64

• Windows Server2012

• Windows Server 2008 R2

• Windows 7

• Windows 7 x64

• Windows Server 2008

• Windows Server 2008 x64

• Windows Vista

• Windows Vista x64

• Windows Server 2003

• Windows Server 2003 x64

• Windows XP

• Windows XP x64

• Windows ME

• Windows 98

• Linux

• Mac OS X

• Mac OS 9

• Mac OS 8

• Windows CE.NET (Version 4.2 and greater)

• Android

• Windows RT

Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0

Support for older versions of Windows Desktop

NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.

Differences in Driver API

For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.

To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCPorD2XX) and then locate the appropriate operating systems.  With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
