Kit3 enhanced version , Kit3.5 then upgradeKit3.5 +
After the upgrade strong :
1 ,Offline programming never crash . ( Original no such function)
Perfect support for all versions of the software MPLAB, MPLAB X
Offline programming never crash , burning faster.
2. Never lose your firmware. ( Original no such function)
Firmware self- recovery,Without dismantling the shell , do not brush program
1 minute automatic recovery firmware.
3. Strengthen the interface protection .
Using 1812 resettable fuse and strong protection circuit.
4, each KIT3 has a unique serial number.
Support MPLAB X, you can operate multiple KIT3.
5 , the programming voltage stability, the supply current is large .
6 , improve the interface protection circuit. Shorted not bad .

1, download speed , USBConnection stable than ICD2 / KIT2.
2 , offline programming capabilities, develop and debug programming can be used, bulk products offline programming Ye do so .
3 , power output, internal voltage can be directly controlled in the MPLAB IDE software.
4 ,Support WIN7 system,ICD2 / KIT2 does not support 64 WIN7.

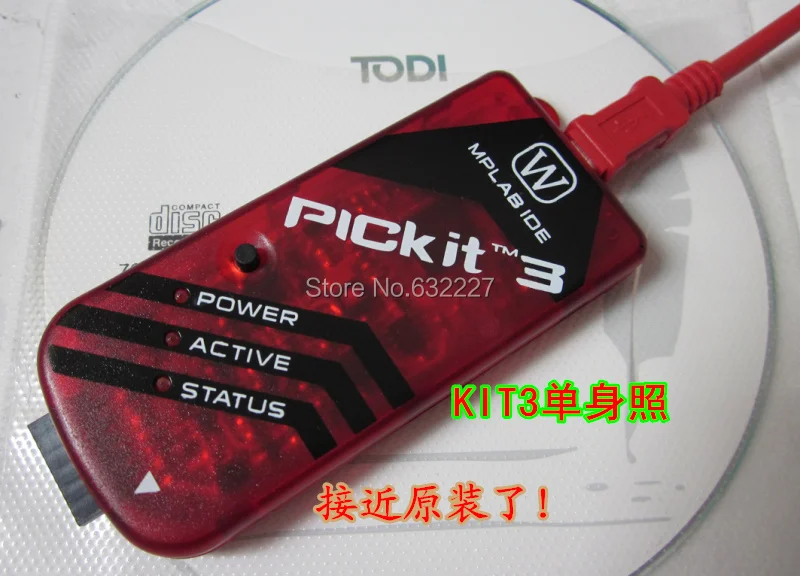

5 ,High imitation of the original shell( See picture) , ultra-small size : 95 * 39 * 11MM.

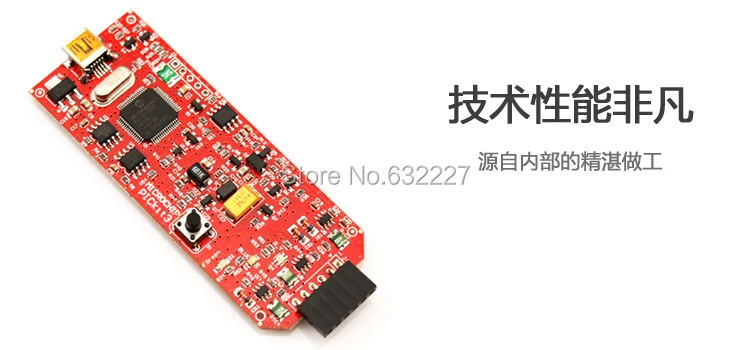

6. SMD design, placement after reflow soldering processing, product quality is more stable and reliable.

Standard configuration instructions :
1, PICKIT3.5 host a
2 , a high-quality USB cable
3, ISCP programming / debugging line 1
4,6P pin 2 (already installed in the ICSP line )
5 , CD-ROM (including the use of video tutorials) 1

CD-ROM includes:

1 , the latest MPLAB IDE software ,GenuineC30, cracked version of PICC and other commonly used PIC development software ;
2 , a large number of PIC development information , C language development toolkit ;

3 , a large number of PIC -based experimental program code ;

4, ICD2, KIT2, PICKIT3.5 instructions use ;

5 , using video tutorials ;

PICKIT3.5And compared to other products

1 ,PICKIT3.5VersusICD2Contrast

1)16Bit chip , the download speed is much faster thanICD2 2Times or more.

2) Price far belowICD2,Supported almost the same seriesICD2As much follow-up will exceedICD2.

3) Than the connectionICD2Reliable, does not often appearICD2 USBRom problem , this isICD2One of the most troublesome problems .

4) Official open standard circuits.

5)Already supports offline download,You can upgrade for field programs and batch programming.

6 ) Direct CommissioningPIC18FXXK series, and less than 10V VPP PIC16F72X and other chips , no need to manually increase the step-down circuit for VPP .

2 ,PICKIT3.5VersusPICkit2Contrast

The sameThe Department has :

1) On the same functionality .

2) Connected to thePCOfUSBPowered by .
3) Provides programmable voltage.

DifferentThe Department has :

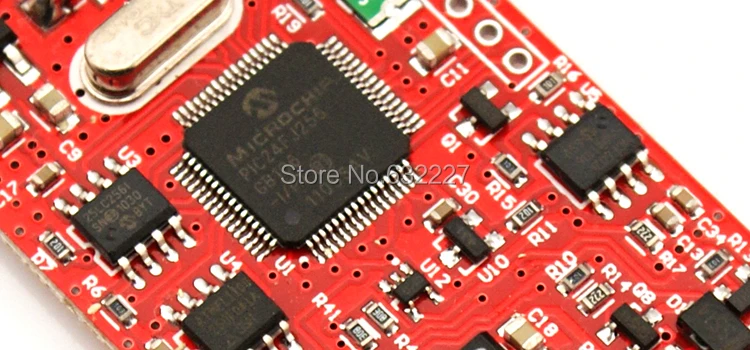

1)PICKIT3.5Faster ,PICKIT3.5The main chip isPIC24Faster thanPICKIT2Has improved,USBOrFull12M.
2) To expand the offline download space (512Kbytes), PICkit 2(128Kbytes)
3) To provide a more accurate reference voltage source
Increase the voltage range (1.8-5V VDD;1.8-14V VPP).PICKIT2(2.5-5V VDD)

4) Supported chip series more nowPICKIT3Has supportPIC16F193XAs well asPIC32.PICKIT2Follow-up will not supportPIC32Debugging , and PICKIT2 some new support chips , constantly in BETA state, such as PIC18F14K50.

5) PICKIT3.5, there are four self-recovery fuse , PICKIT2 a fuse are not, no protection is almost bare .

6) PIKCIT3.5, has begun to support WIN7 system , PICKIT2 not supported.

For PICKIT3.5 support IC, by MPLAB IDESoftware for viewing.

Open the software , configure-> select device PICKIT3.5 front indicated support green light .

Support chips Glance:
