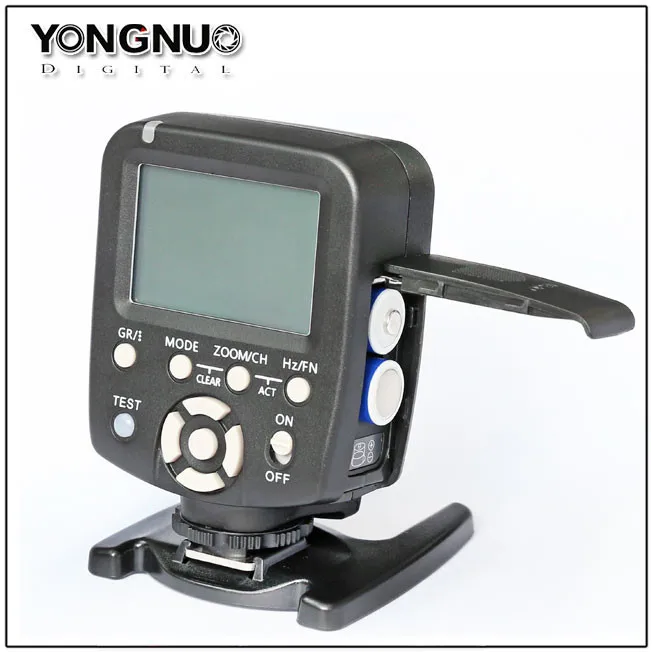

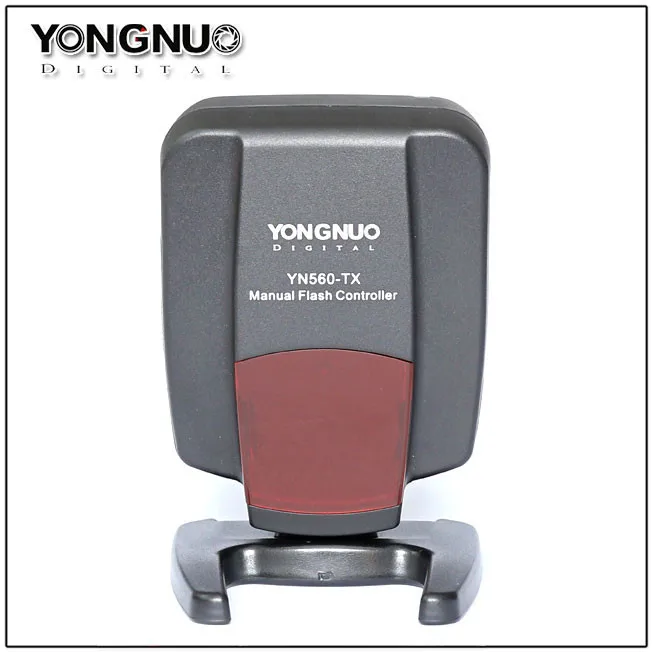

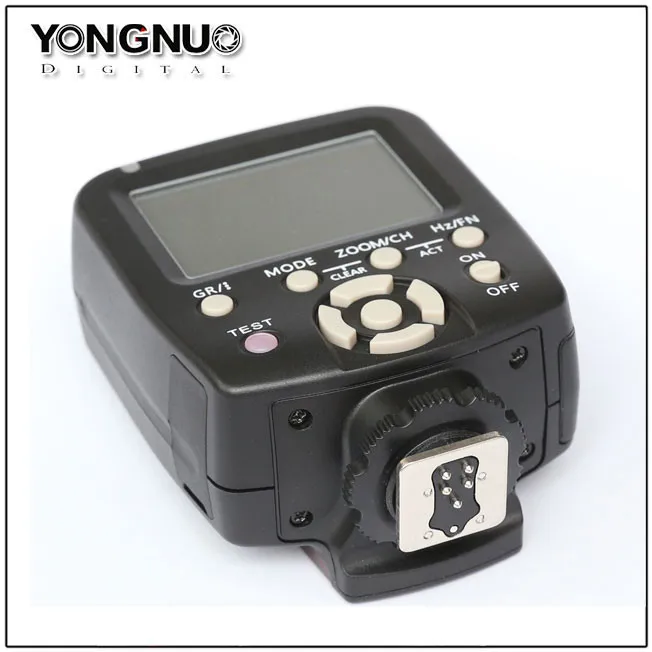

Yongnuo YN560-TX Wireless Flash Controller and Commander YN-560TX for YN560-III YN-560 IV for Canon 60D 70D 7D 6D 700D 5D2 5D3

Package Including:

1 × YN560-TX for Canon

1 × Instruction manual

Features:

Supports all the YONGNUO YN560-III & YN560-IV Flashes

Two Flash Modes: M/Multi

Remote control of Flash Output and Zoom per group, up to 6 groups.

Compatible with RF602/RF603/RF603 II

16 Channels

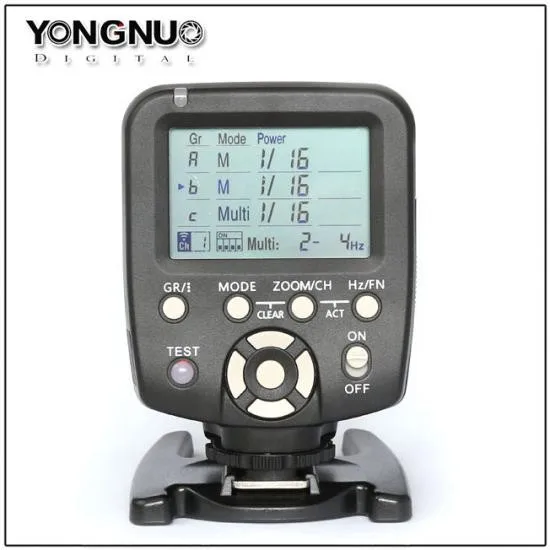

Large and Clear Screen, User Friendly Interface.

Transmission Range: 100 Meters.

Wireless Shutter Receiver of RF603/RF603 II

When we look at the specifications we see that it can control up tp 6 groups meaning that it can control up to 6 flash units. This is the only flash control unit until now that can control 6 flashes at the same time

Channel setting:

Standby mode, long press the button and ZOOM/CH

channel and simulation code switch, pull on the LCD operation channel

left/right key switch, a total of 16 channels. Collocation RF602/603/603 ii transceiver, when using transceiver code pull switch state should be consistent with the simulation code pull switch Settings.

Set the RF602/603 model

Standby mode, long press (Hz/FN), LCD display products currently compatible transceiver communication mode, product default compatible RF603 mode, operate) (left/right key can switch between RF602 mode and RF603 mode, press "OK" button to save and exit.)

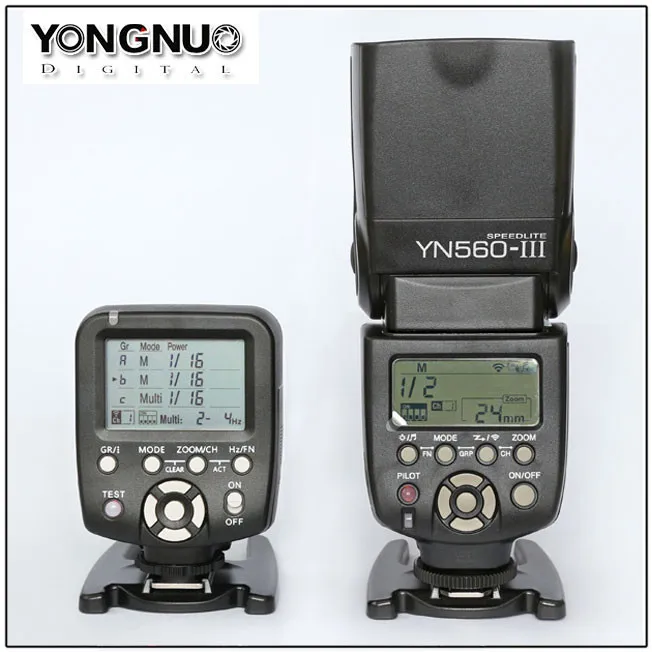

How to activate YN560-III:

First set 560 - TX controller compatible with 560 - III flash the same transceiver communication mode (controller Settings such as 2), and then set the same channel (such as 1) controller, and at the same time in the standby mode according to the controller of ZOOM/CH +)Hz/FN )button, the flash LCD display interface, press flash [OK], 560 - III is activated.

Modify the grouping flash mode:

Standby MODE, long press "Gr" button switch set of pages or d/a/b/c e/f set of pages, then short press "Gr" selection, determine the grouping, press the "MODE" key, the flash MODE will switch between M/Multi -, - said the ban on flash.

Modify the grouping flash output:

After determined choice group (4), through the direction key change flash output. M mode, press up/down key)flash output add and subtract a third gear respectively; Press the right/left) flash output respectively add and subtract 1 file; Multi mode, press the button on the right/) (flash output 1, press down/left minus 1. Multi mode, short press key switch Hz/FN) (select set flash frequency and the number of flash, press [/ right] raised, press down/left) ( key down)

Change groups focus:

Determine choice (e.g., 4), after a short press (ZOOM/CH) key to enter setting mode, then through [on] [of] [left] [right] key to modify the focal length, press [/ right] focal length is gradually changing, press down/left) ( focal length down gradually. Modify the focal length after the completion of the short press "ZOOM/CH" save and return.

Test the flash:

First set 560 - TX controller compatible with 560 - III flash the same transceiver communication mode (controller Settings such as 2), and then set the same channel (controller Settings such as 1), and the standby mode, press the controller "TEST" button, the flash will be awakened, indicating the light blue. When the [TEST] release button, the flash will flash TEST time, indicating the light is red.

Using 560TX:

First set 560 - TX controller compatible with 560 - III flash the same transceiver communication mode (controller Settings such as 2), and then set the same channel (controller Settings such as 1), the controller is fixed on the camera's hot shoe, let all the devices in the boot state, half press the camera shutter release key, flash awakened, the indicator light blue. The camera shutter release button, the flash flash once. The controller and the flash light is lit red.
