14mm/s Speed 250mm 10" Stroke Heavy Duty Linear Actuator &Brackets&Wireless Remote 1000N 220 Pound Max Lift IP65 DC 12V Motor |

---

14mm/s Speed 250mm 10" Stroke Heavy Duty Linear Actuator &Brackets&Wireless Remote 1000N 220 Pound Max Lift  IP65  DC 12V Motor

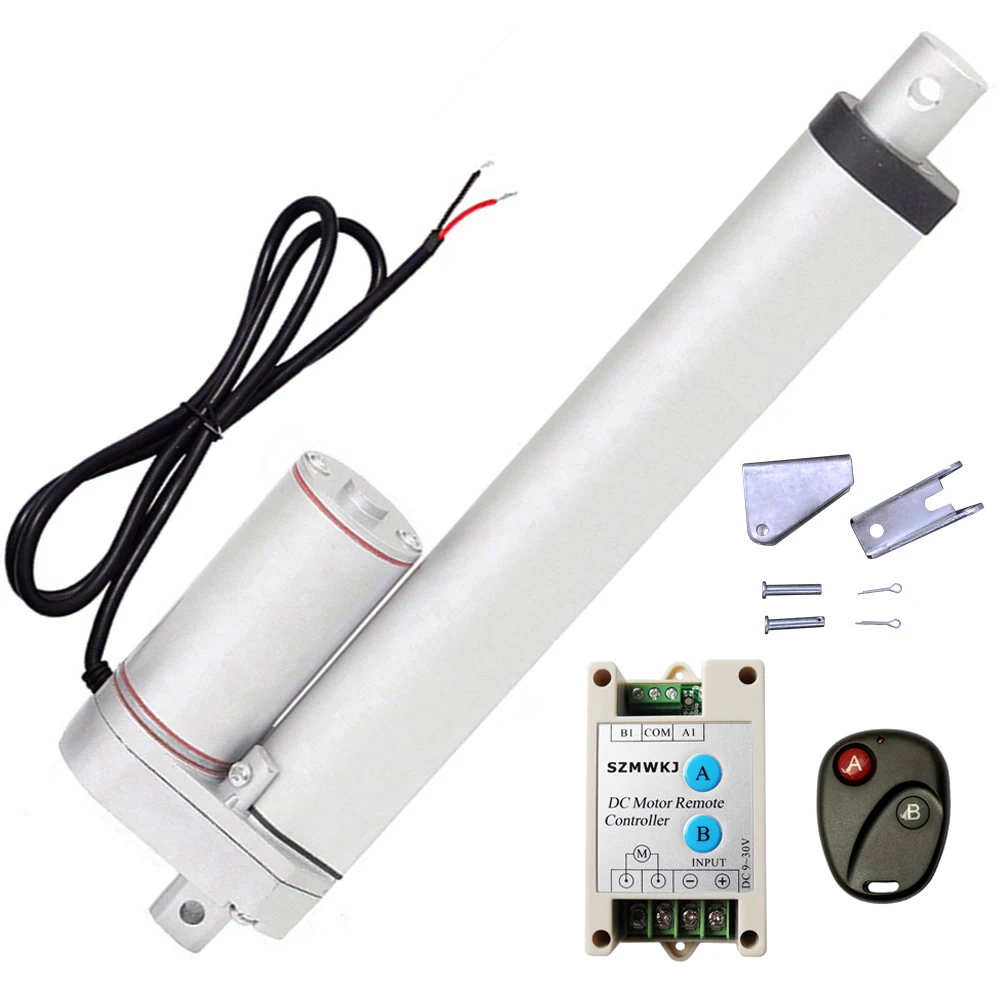

  Here for sale is 1PCS DC 12V 250mm/10" Stroke 1000N/220lbs max push load 14mm/s speed Linear Actuator, It comes with 2PCS Mounting Brackets&1 Set of Wireless Remote Control Kits for easy installation and convenient operation.   The control kit comes with a remote which is very small in size, convenient for operation.





Note 1: The battery in the photo is only for reference and is not included in the package.

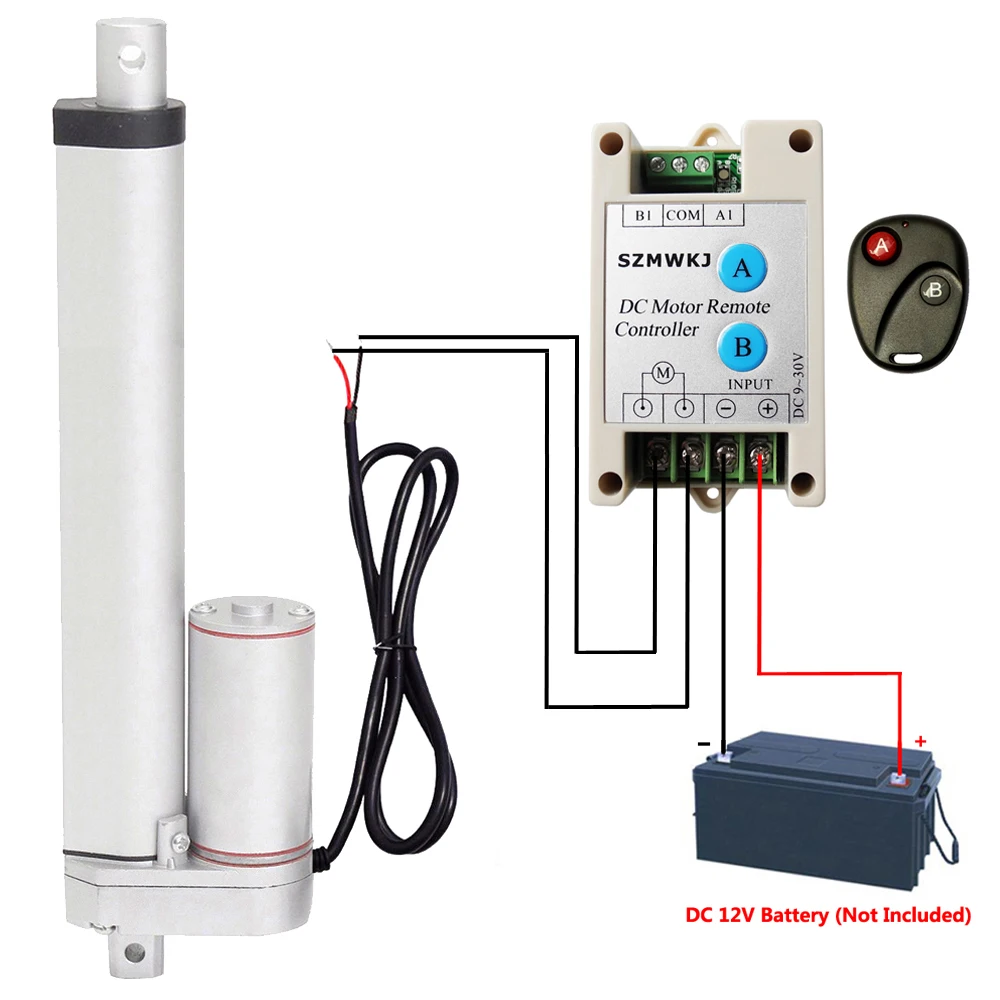

Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 3A.

Note 3: If there is no reaction after correct wiring, pls try to exchange the positive and negative pole of the power cord.



*1PCS 250mm/10" Stroke DC 12V 14mm/s Speed Linear Actuator.

*2PCS Silver Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuators.

*1Set of Wireless Remote Controller (Electronic Controller Box+Wireless Remote).



Note: The power supply in the photo is only for reference and is not included in the package.



Product Name	Linear Actuator
Condition	100% New
Input Voltage	DC 12V

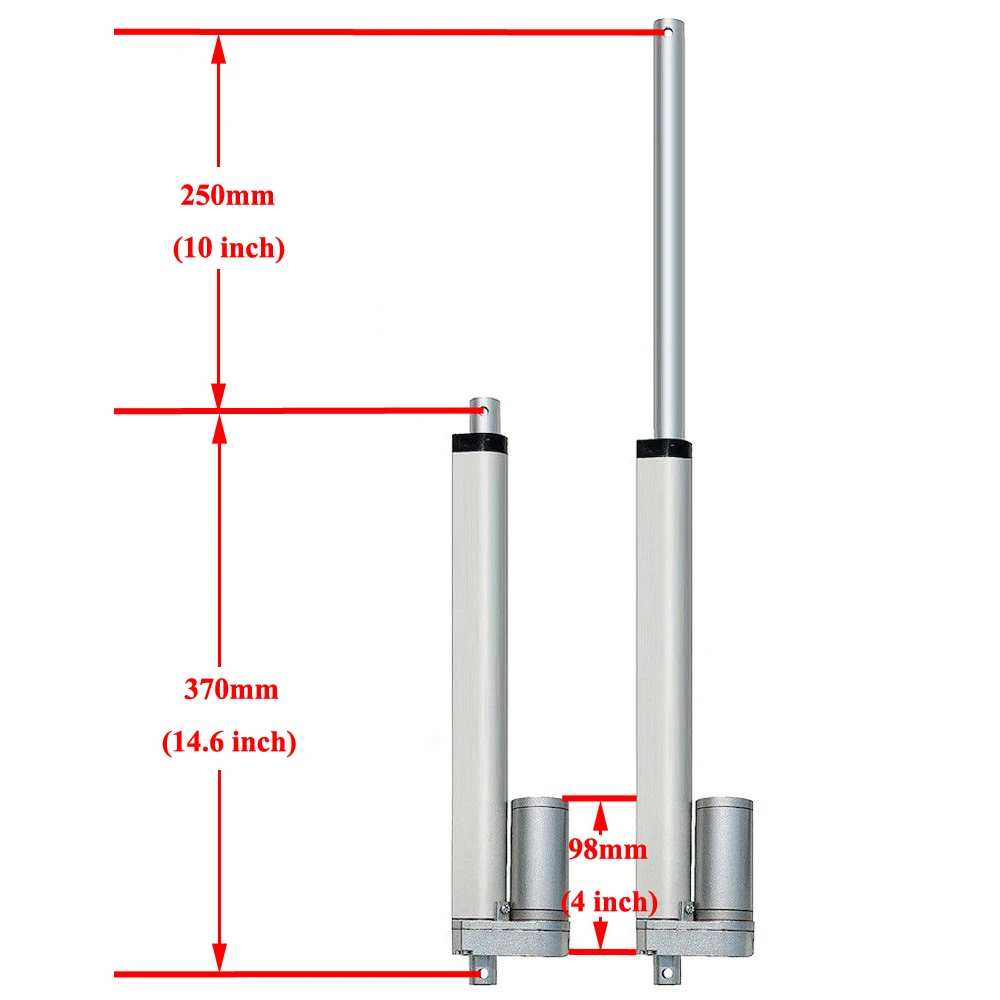

Stroke Length	250mm/10"
Retracted Length	370mm/14.57"
Extended Length	620mm/24.41"
Max Push Load	1000N/100KG/220lbs
Max Pull Load	800N/80KG/176lbs
Speed	14mm/s (0.55"/s)

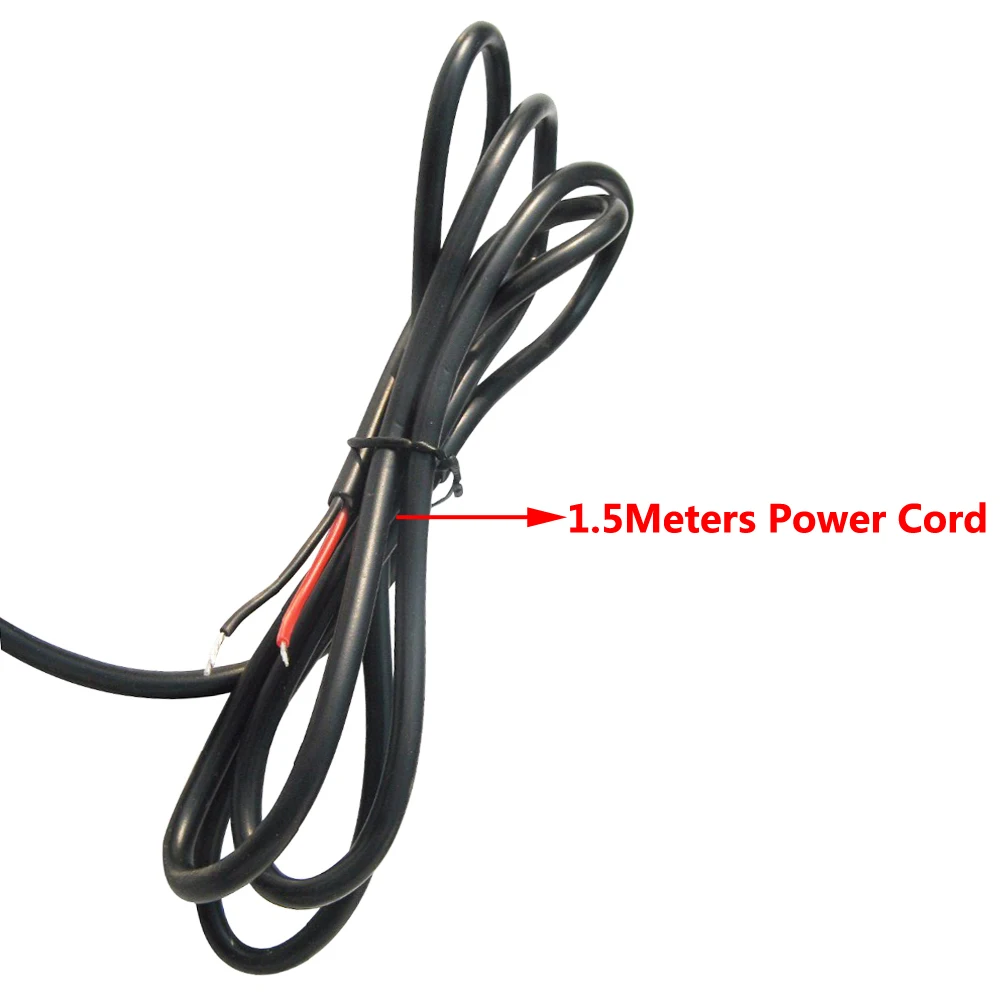

Power Cord Length	1.5Meters/59"
Duty Cycle	25%
Operating Frequency	20%
Material	Aluminum Alloy
Color	Silver Grey
Operation Temperature	-26 ° C ~ +65 ° C
Protection Class	IP65
No-load Current	< 0.5A
Max load Current	3A
Certification	CE&SGS
Warranty	Standard 1 year
Built-in Limit Switch	Yes



* 100% Brand New and high quality

* With CE&SGS certification

* Heavy Duty and Long Lasting Motor

* High quality aluminum alloy material

* High performance motor

* Built-in high quality limit switch

* The low noise design, noise level below 60 dB

* Multiple Purpose Applications Linear Actuator

* Commonly Used In Automotive, Medical Devices and Engineering Industry

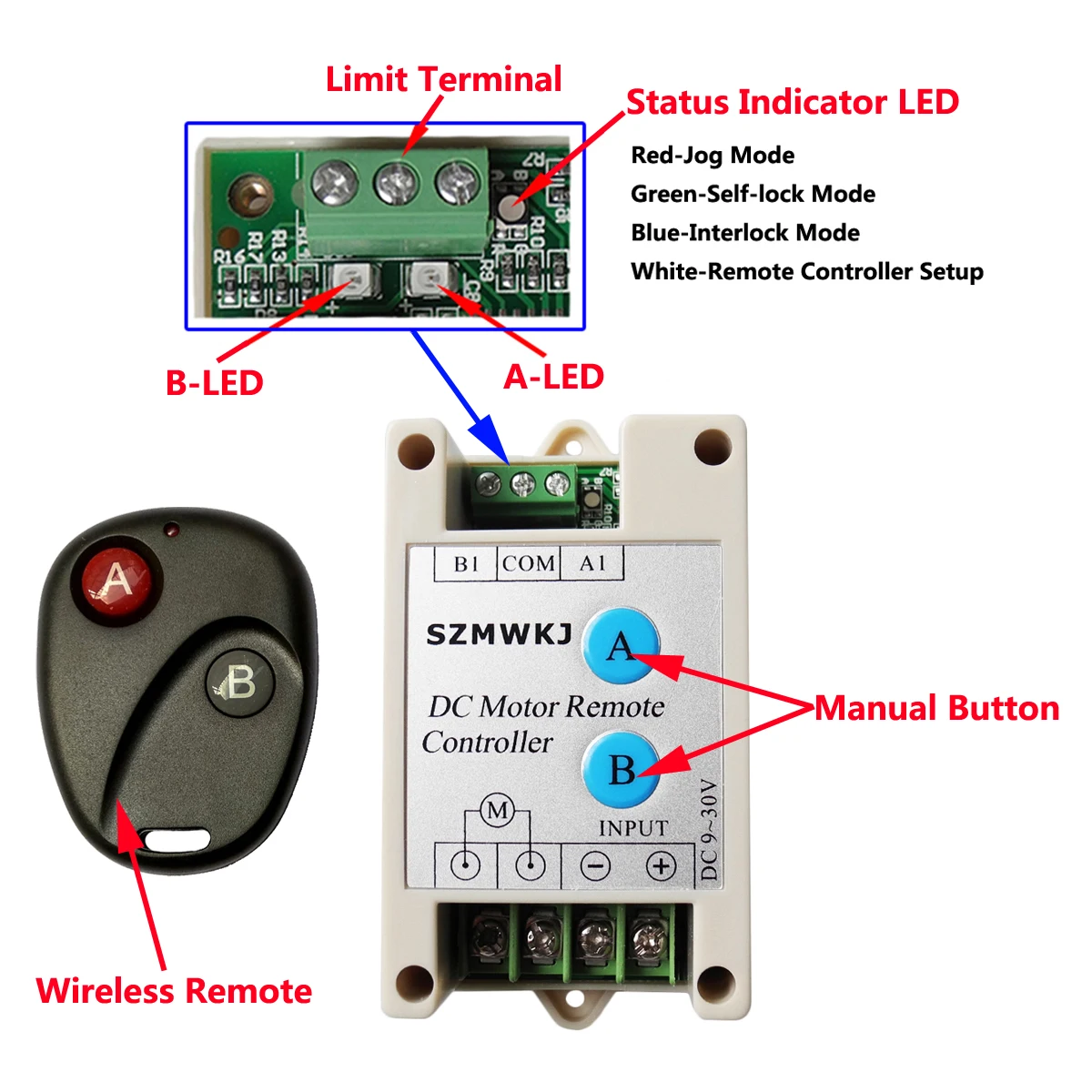

This controller can control DC motor’s positive inversion rotation, it can also control two-way DC loads. The controller can be operated by the wireless remote control or the manual buttons on the controller box which is very convenient for use. There are 3 operation modes: Jog Control, Self-Lock Control and Interlock Control, the 3 modes can be switched by the manual buttons, users can set and choose any of the three modes based on actual requirements.





Specification:



Brand	SZMWKJ
Model	TK005-2
Operating Voltage	9-30V DC
Max Discharge Current	10A
Fuse	10A/30V
Control Mode	Jog /Self-lock / Interlock Control
Manual Buttons	Yes
Wireless Remote	Yes
Frequency	433MHZ
Control Distance	> 80Meters
Protection Class	IP42
Operating Temperature	-20℃ to + 60℃
Controller Dimension	97*50*32mm/3.8*1.96*1.25inch
Net Weight	96g
Package Weight	140g
Warranty	Standard One Year





Features:



* Wide voltage design, operating voltage range is DC 9-30V.

* Two channels output, can control DC motor’s positive inversion rotation or control two-way DC loads.

* Three control modes (Jog Control, Self-Lock Control, Interlock Control) are switchable, easy for operation.

* The internal fuse is with over-current, over-load and short-circuit protection.

* With manual buttons and wireless remote, convenient for use.

* Can be operated by the wireless remote or the manual buttons on the controller box.

* The wireless remote is with learning function, easy for coding.

* With million groups address coding which are independent, high reliability and industrial design.

* With highly sensitive receiver, remote control distance is more than 80meters.

* With limit terminal, users can add external limit switch for actual needs.

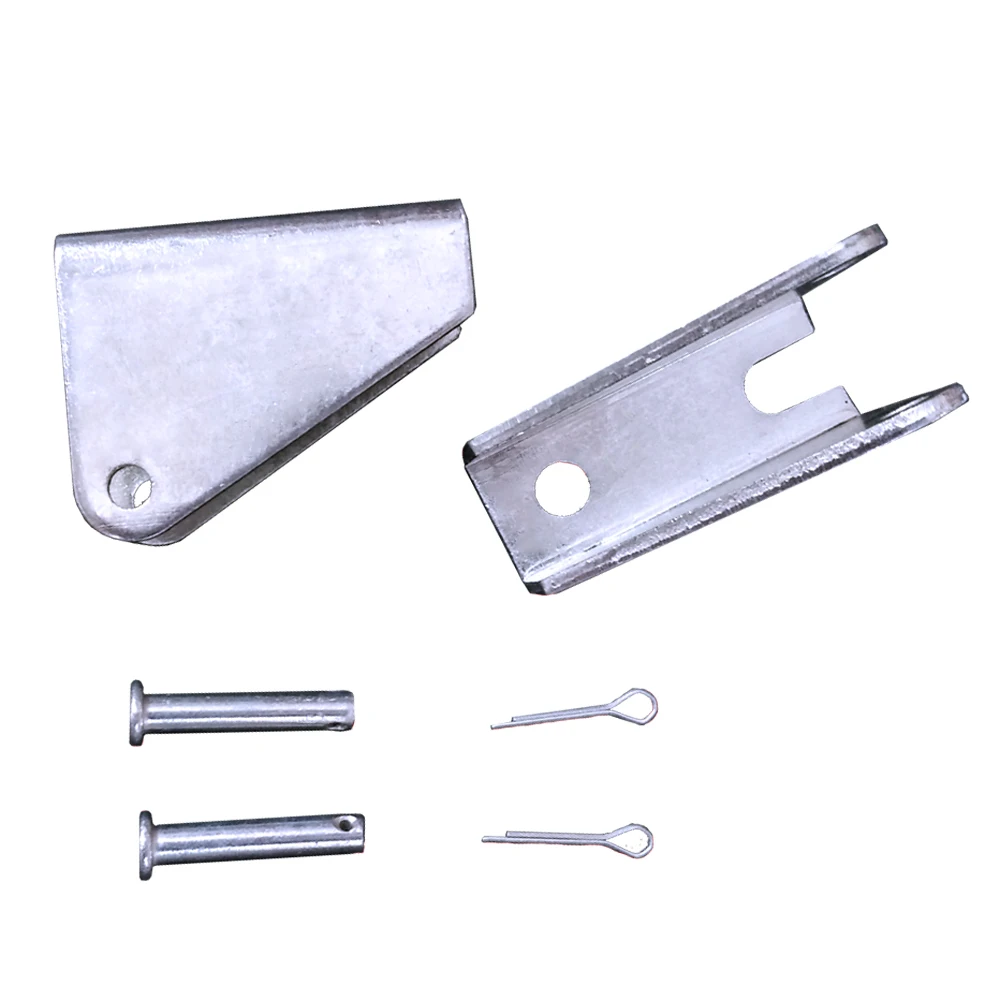

This bracket provides easier installation, and allows for nearly 180 degrees of rotation.



These are designed to fit easily onto either end of the actuator with a pin and cotter pin.









* Autos;

* The wedding system;

* Solar tracking system;

* Agricultural machinery;

* Industrial electric lifting system;

* The medical electric bed, surgical bed, traction bed;

* Chair for medical use: Electric wheelchair, Massage Chair, dental chair

* Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc;
