AC 220 V 10 A 1 channel RF Wireless Remote Control 55*32*17 mm Receiver +4 Transmitter High-grade remote control |

AC 220 V 10 A 1 channel RF Wireless Remote Control 55*32*17 mm Receiver +4 Transmitter High-grade remote control |

Brand NameCENTURY AOKEModel NumberMYYKG-217UseUniversalPackageYesFrequency315 MHzChannel1Wireless CommunicationRFMeasurement unitset/setsEach pack1

Unavailable in

Description

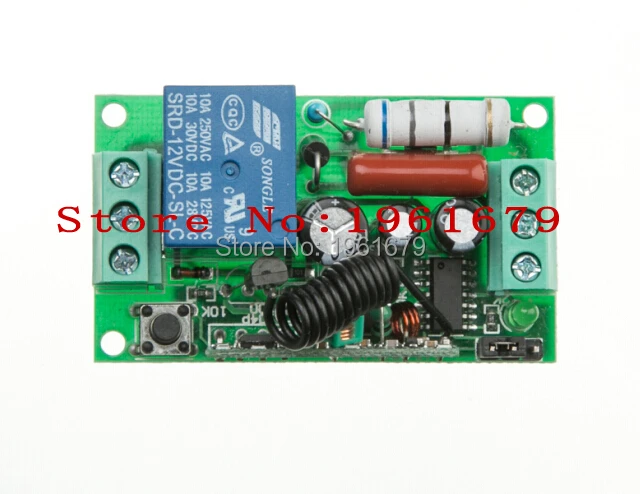

Receiver (switch)
 Channel: 1CH

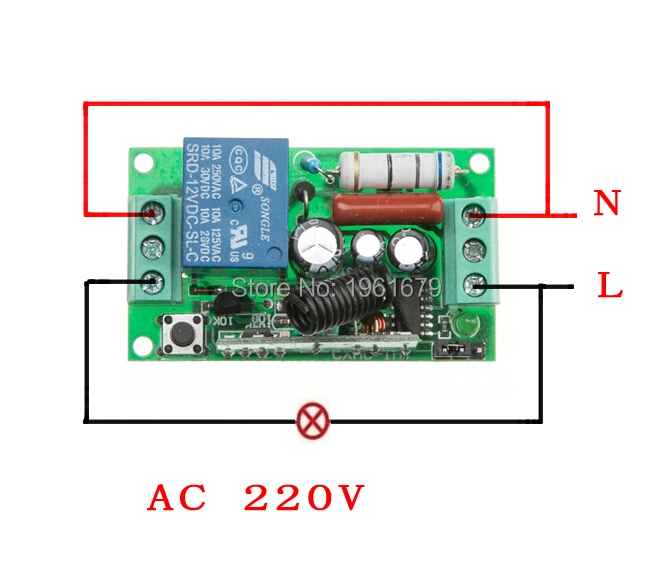

Working Voltage : 220V (180V-240V)
Max load current : 10A  (have better lower than 7A)
Working Frequency : 315Mhz/433Mhz  Frequency can choose, if no message, will send 315 MHZ
Receiver sensitivity: : -105Db
Working temperature : -10'C - +60'C
Output way : Jog .Inter-lock .Self -lock is Adjustable
Code type :Learning code
Switch size :55*32*17mm

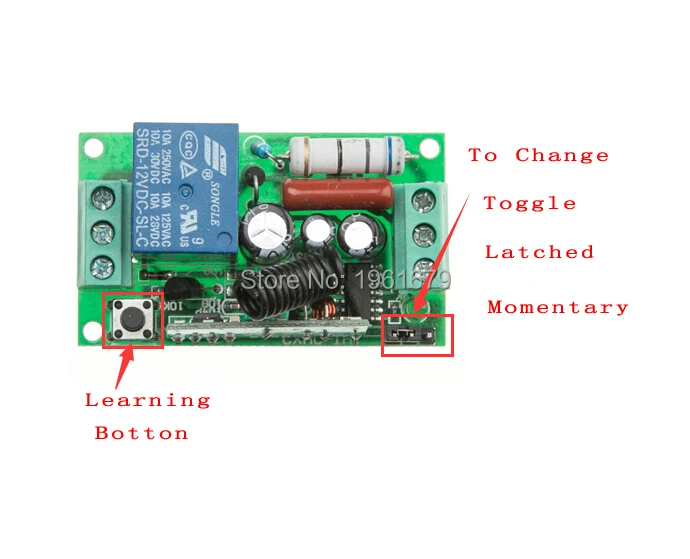

working/output way

 Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control
Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control )
Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control  )

Learning  method

Input AC220V for the Receiver. press the Learning Button until the Led indicator ON.  Then press transmitter , the Led indicator flash fast, it mean learning successfully.

Clearing Code:

Keeping press the learning Button on the receiver until the Led indicator ON and flash fast, it mean the code have been cleared successfully.

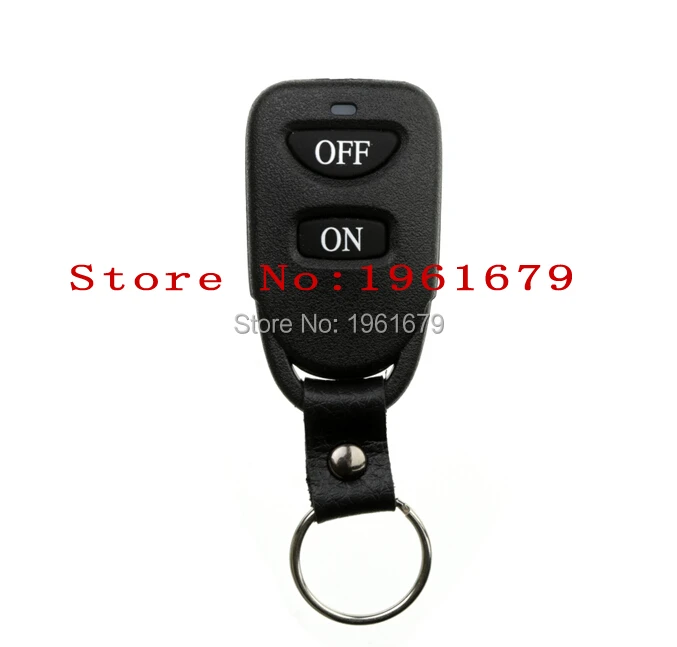

Remote control (transmitter)

Operating Voltage: DC12V
Operating Current: 30MA
Operating Frequency: 315/433MHz
Frequency Distance: 20M-200M
(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).

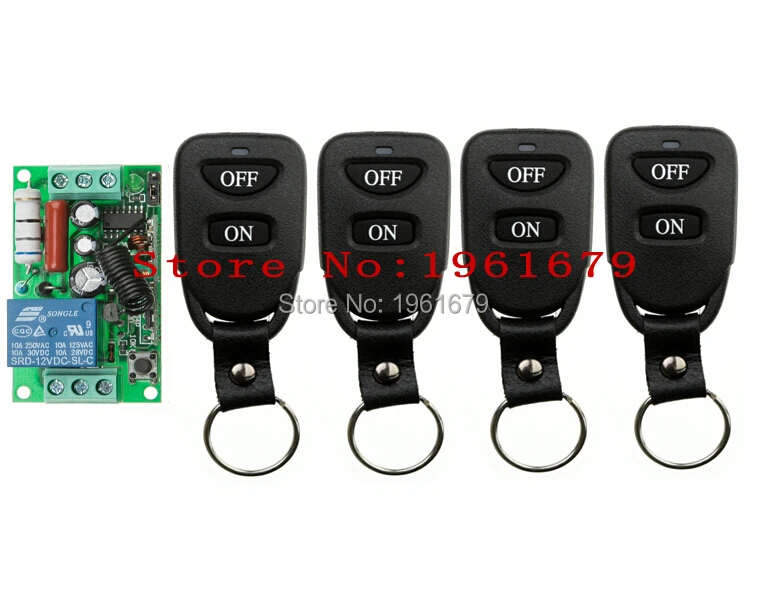

package included:
1*receiver (included cover)
4*transmitter (included battery)
