Характеристики

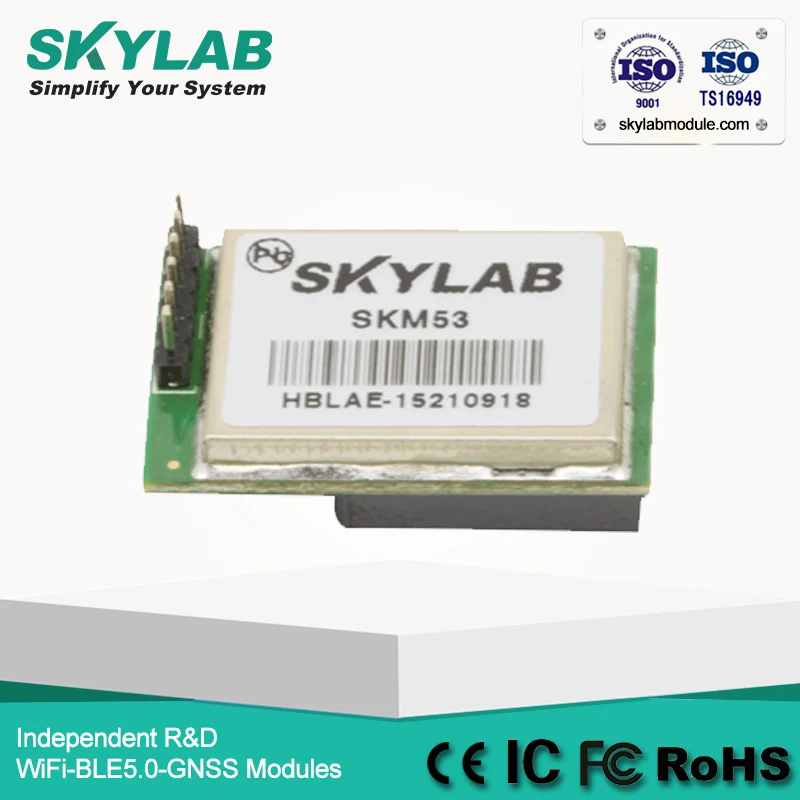

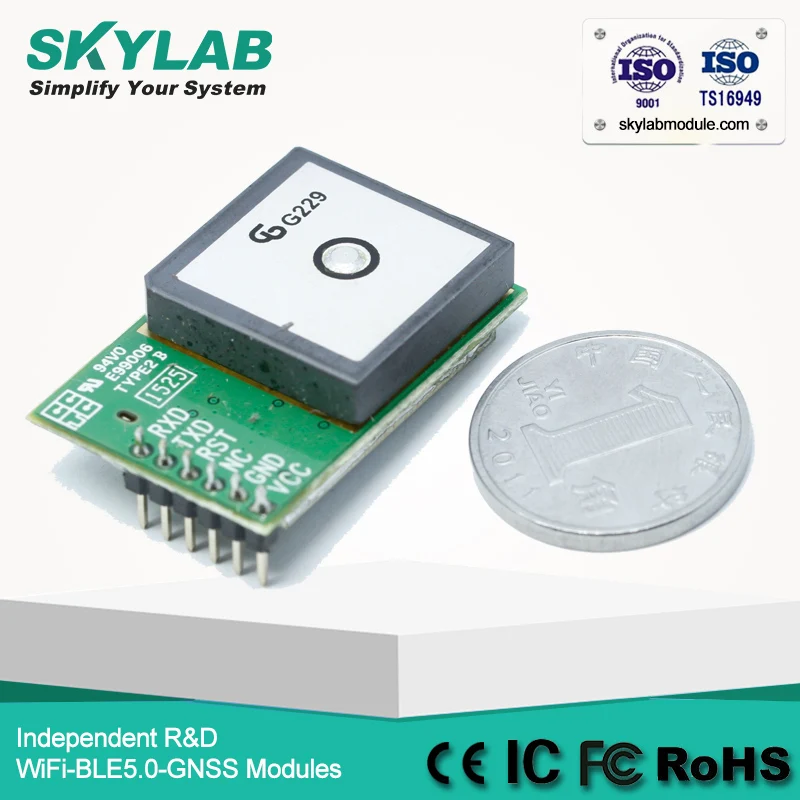

SKYLAB NMEA GPS receiver module SKM53 with Embedded Patch Antenna Internal back-up battery | Автомобили и мотоциклы
История изменения цены
*Текущая стоимость US $1,208.79 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 1.53 руб. | 1.76 руб. | 1 руб. |
| Jan-19-2026 | 1.3 руб. | 1.63 руб. | 1 руб. |
| Dec-19-2025 | 1.9 руб. | 1.16 руб. | 1 руб. |
| Nov-19-2025 | 1.30 руб. | 1.23 руб. | 1 руб. |
| Oct-19-2025 | 1.29 руб. | 1.40 руб. | 1 руб. |
| Sep-19-2025 | 1.41 руб. | 1.88 руб. | 1 руб. |
| Aug-19-2025 | 1.92 руб. | 1.9 руб. | 1 руб. |
| Jul-19-2025 | 1.3 руб. | 1.46 руб. | 1 руб. |
Описание товара
Name: The Ultra High Sensitivity and The Smart Antenna GPS Module
Model NO.: SKM53
The SkyNav SKM53 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.
It is based on the high performance features of the MediaTek 3327/3329 single-chip architecture, Its 165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The 6-pin and USB connector design is the easiest and convenient solution to be embedded in a portable device and receiver like PND, GPS mouse, car holder, personal locator, speed camera detector and vehicle locator.
Ultra high sensitivity: -165dBm
22 tracking/66 acquisition-channel receiver
WAAS/EGNOS/MSAS/GAGAN support
NMEA protocols (default speed: 9600bps)
Internal back-up battery and 1PPS output
One serial port and USB port (option)
Embedded patch antenna 18.2 x 18.2 x 4.0 mm
Operating temperature range: -40 to 85
RoHS compliant (Lead-free)
Performance Specification
| Parameter |
Specification |
|
| Receiver Type |
L1 frequency band, C/A code 22 Tracking / 66 Acquisition-Channel |
|
| Sensitivity |
Tracking Acquisition |
-165dBm -148dBm |
| Accuracy
|
Position Velocity Timing (PPS) |
3m 3D RMS without SA 0.1m/s without SA 60ns RMS |
| Acquisition Time |
Cold Start Warm Start Hot Start Re-Acquisition |
36s 33s 1s <1s |
| Power Consumption |
Tracking Acquisition Sleep/Standby |
<30mA @ 3V Vcc 40mA TBD |
| Navigation Data Update Rate |
1Hz |
|
| Operational Limits |
Altitude Velocity Acceleration |
Max 18,000m Max 515m/s Less than 4g |
| Antenna Specifications | OutlineDimension Center Frequency Bandwidth Impedance Axial Ratio Polarization |
18.2 x 18.2 x 4.0 mm 1575 ± 3 MHz 10 MHz min 50 Ω 3 dB max RHCP |
| Mechanical requirements | Dimension Weight |
30mm x20mm x 11.4mm 9g |
| Power consumption | VCC Current |
5V ±5% 55mA(typical) |
| Environment | Operating temperature Storage temperature Humidity |
40 ~ +85 (w/o backup battery) 0 ~ +125 95% |
Dimension: 30 x20 x 11.4mm
