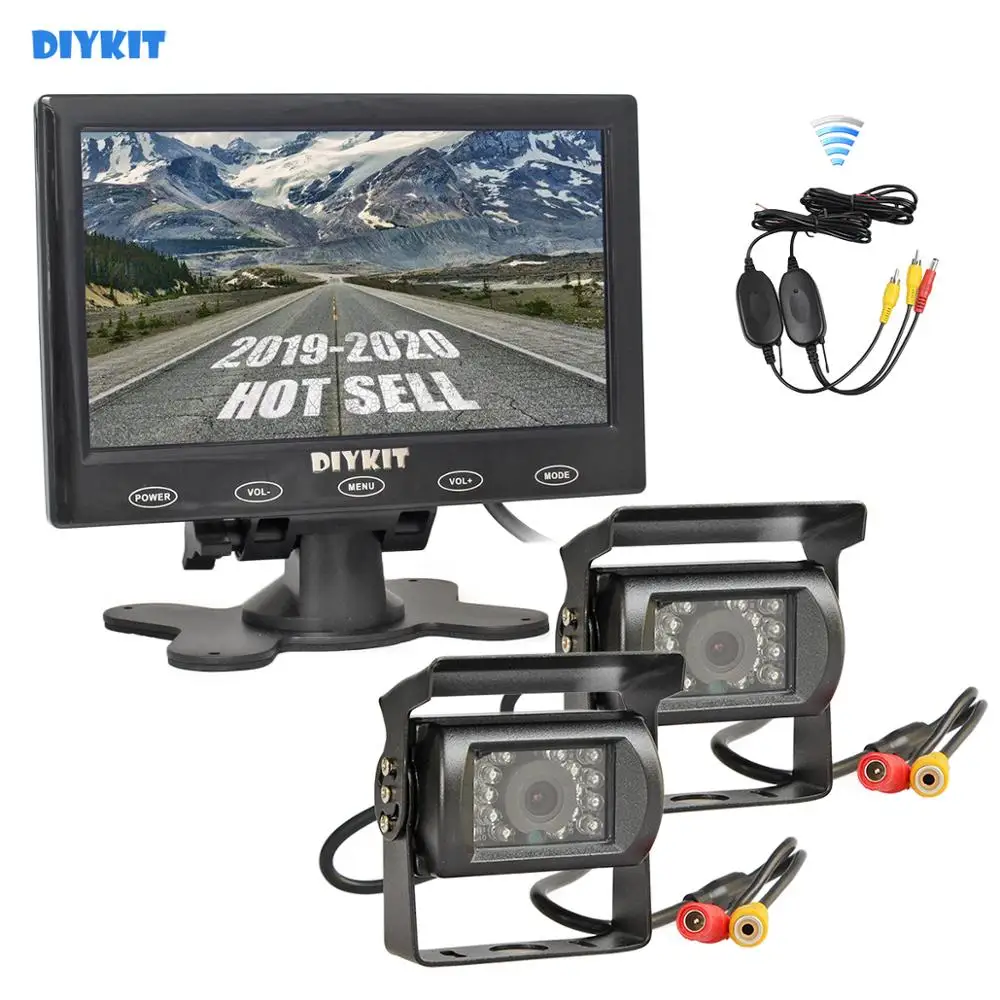

DIYKIT 12V DC Wireless Rear View Kit Backup Waterproof CCD Camera System 7" Touch Monitor for Horse Trailer Motorhome | Автомобили и

DIYKIT 12V DC Wireless Rear View Kit Backup Waterproof CCD Camera System 7" Touch Monitor for Horse Trailer Motorhome | Автомобили и

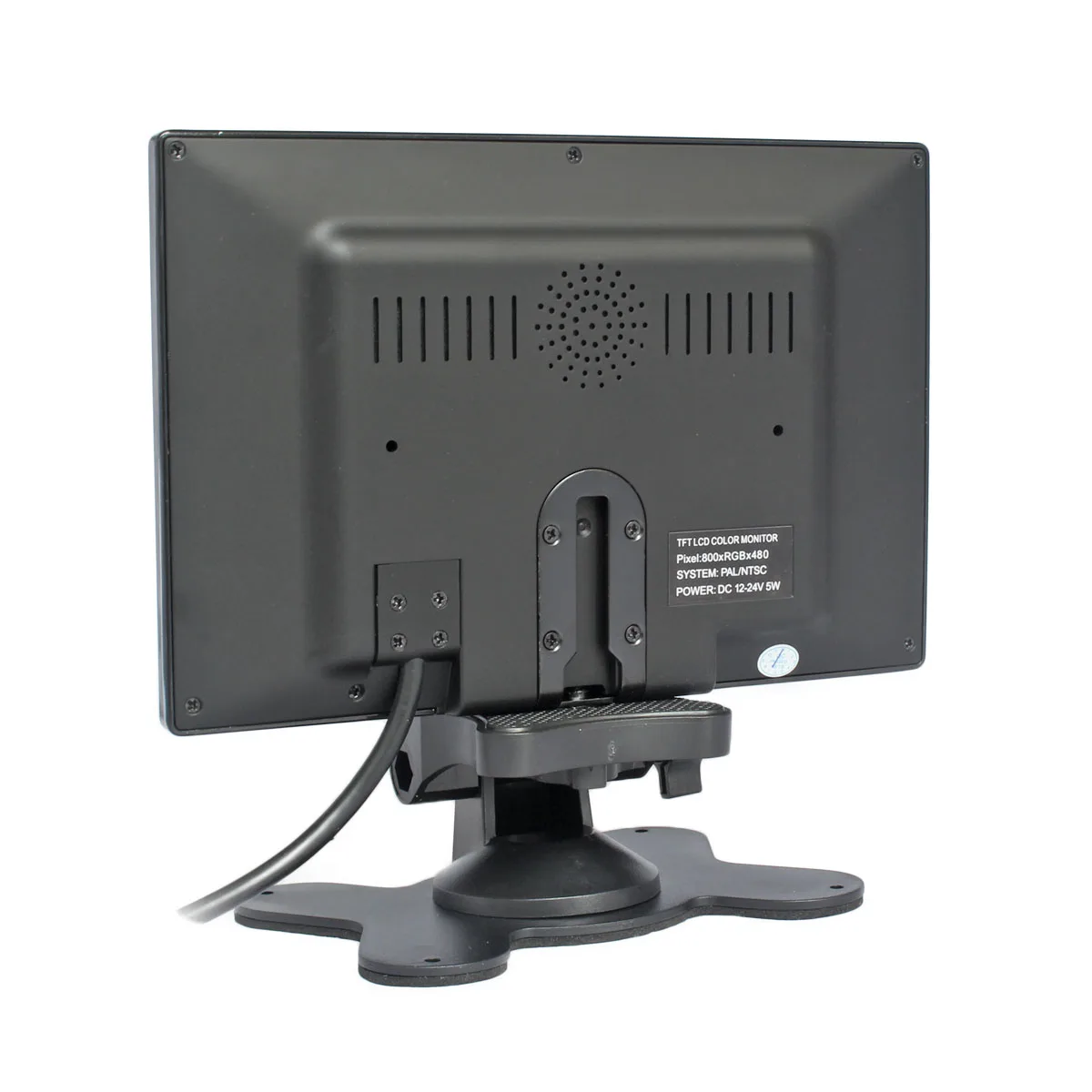

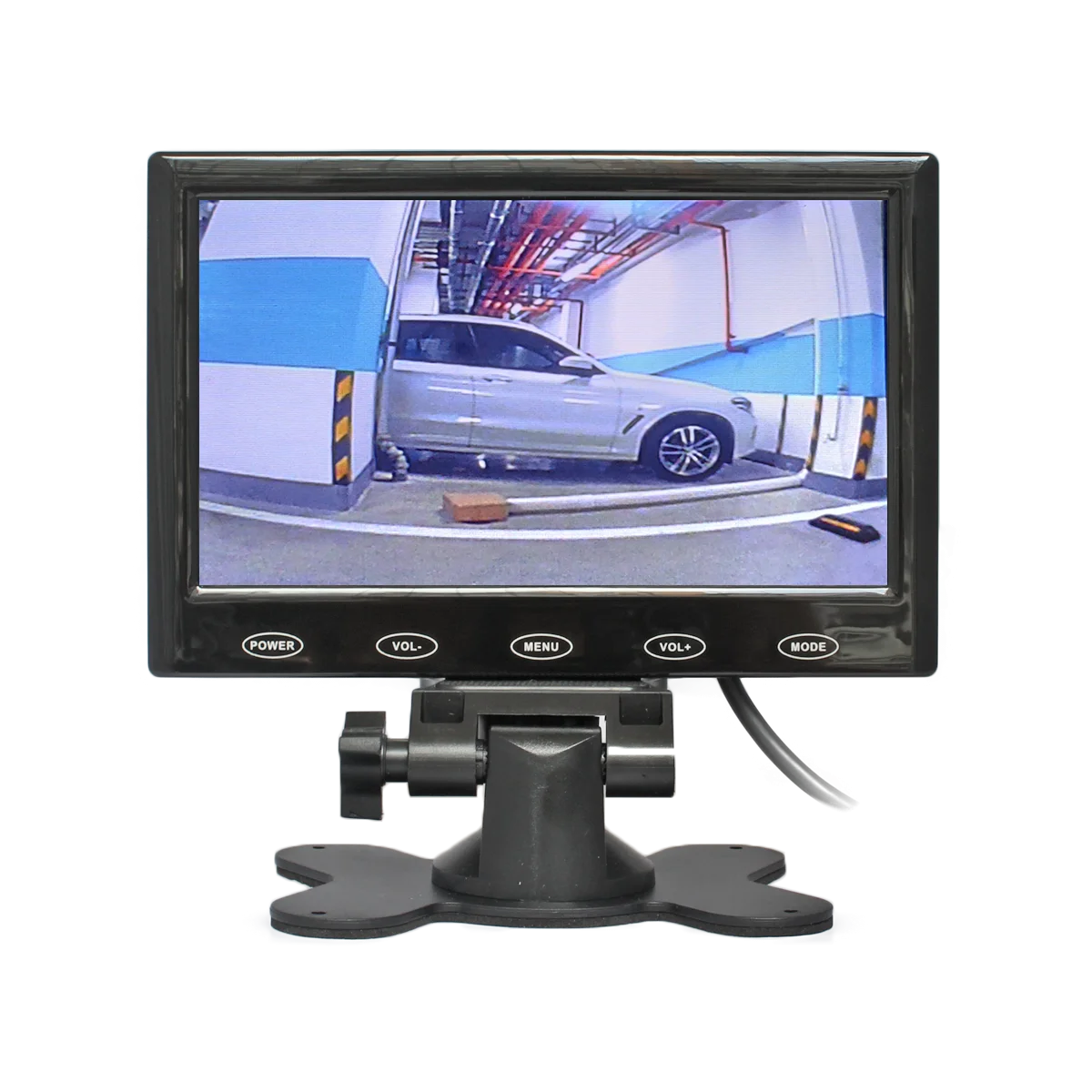

7inch Ultra-thin Car Monitor

Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.

• Fashionable screen with touch button and convenient remote control,
• Refined facture: Ultra-thin style of only 8mm thick and touch button designed
• Image can be rotated horizontally and vertically for mirror or normal viewing
• Monitor will automatically turn on and switch to the rear view camera when reversing.

For Trucks/ Caravans/ Buses/ Motorhome/ Horse Trailer

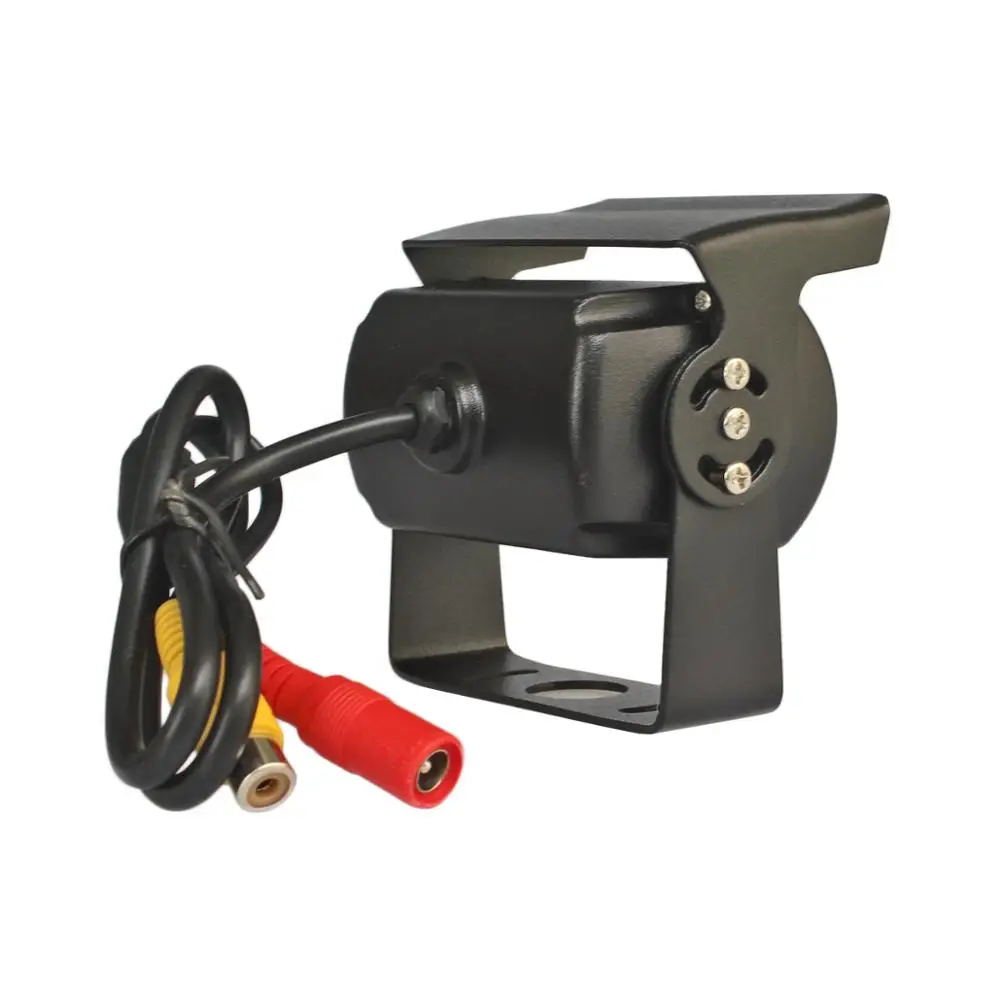

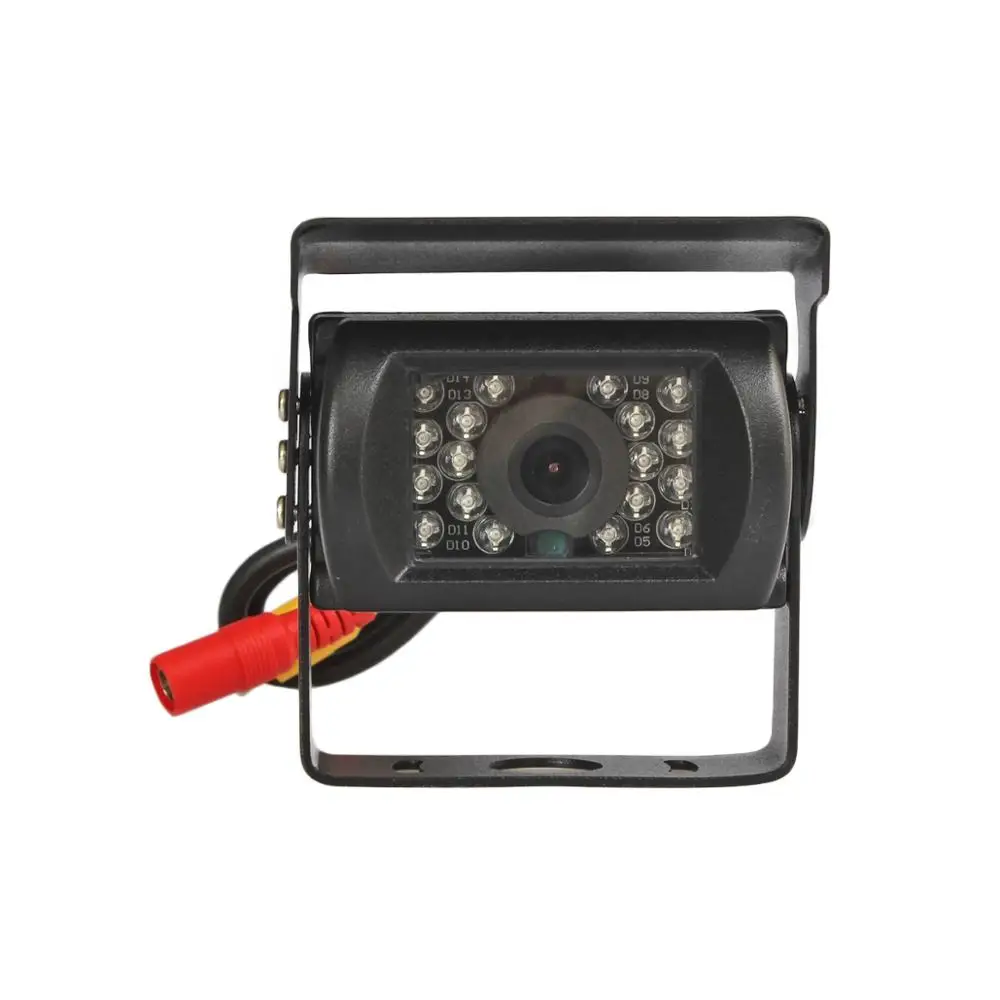

The CCD image sensor outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof.

​

• High-definition and 120 degree wide view angles,
• With good waterproof function,
• Applicable to variety of Vehicles: car, truck, RV, bus,
• Solve the issue of bad car rear view effect, can help reduce incidents and accident,
• Support IR Night color CCD image.

12V DC 2.4G Wireless transmission & receriver

Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

• Range of the transmission: 8m-12m,
• The shorter the distance between camera and monitor, the better transmission signal,
• The image can be seen clearly without any obstacles.

The difference between CCD and CMOS camera:

• CCD lens Makes clear night vision even in a low light environment.
• 120 degree angle lens, ensure cars rear side for effective reversing and parking operation.

With this item, you can park your car easily, speedily and safely.It will be a lot safer for beginners or even professional drivers.As you never know when an accident will occur.You can only prepare for the worse.

Specifications:

Monitor :

• Screen size: 7 inches
• Display mode: 16 : 9
• System: PAL / NTSC (Auto)
• Definition: 800(H) x 480(V)
• Nominal voltage: 12V DC
• Power consumption: 3W
• Way of control: Touch button and remote control
• Vedio input: Two way video input
• Operation temperature: -20°c-60°c
• Storage temperature: -40°c-60°c
• Brightness: 250cd/m2;
• Contrast: 300:1

Camera:

• Camera image type: High performance color CCD
• Horizontal resolution: 480TV Lines
• Usable illumination: 0.05Lux
• Free viewing angle: Diagonal Angle 120º, Horizontal Angle 90º
• Waterproof: IP67
• Shockproof: 10G
• Video output: 1.0Vp-p75
• Power supply: DC 12V
• Video system: NTSC / PAL

What's in:
