2pcs 100w flexible solar panel 20A mppt charge controller Y branch connector 6M cable with | Электроника
История изменения цены
*Текущая стоимость 37 160,60 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 44220.92 руб. | 46431.17 руб. | 45325.5 руб. |
| Feb-19-2026 | 43849.66 руб. | 46041.51 руб. | 44945 руб. |
| Jan-19-2026 | 36788.55 руб. | 38627.79 руб. | 37707.5 руб. |
| Dec-19-2025 | 43106.59 руб. | 45261.19 руб. | 44183.5 руб. |
| Nov-19-2025 | 37532.1 руб. | 39409.75 руб. | 38470.5 руб. |
| Oct-19-2025 | 42362.90 руб. | 44480.81 руб. | 43421 руб. |
| Sep-19-2025 | 41991.73 руб. | 44091.79 руб. | 43041 руб. |
| Aug-19-2025 | 41619.93 руб. | 43700.67 руб. | 42659.5 руб. |
| Jul-19-2025 | 41248.18 руб. | 43310.20 руб. | 42279 руб. |
Описание товара

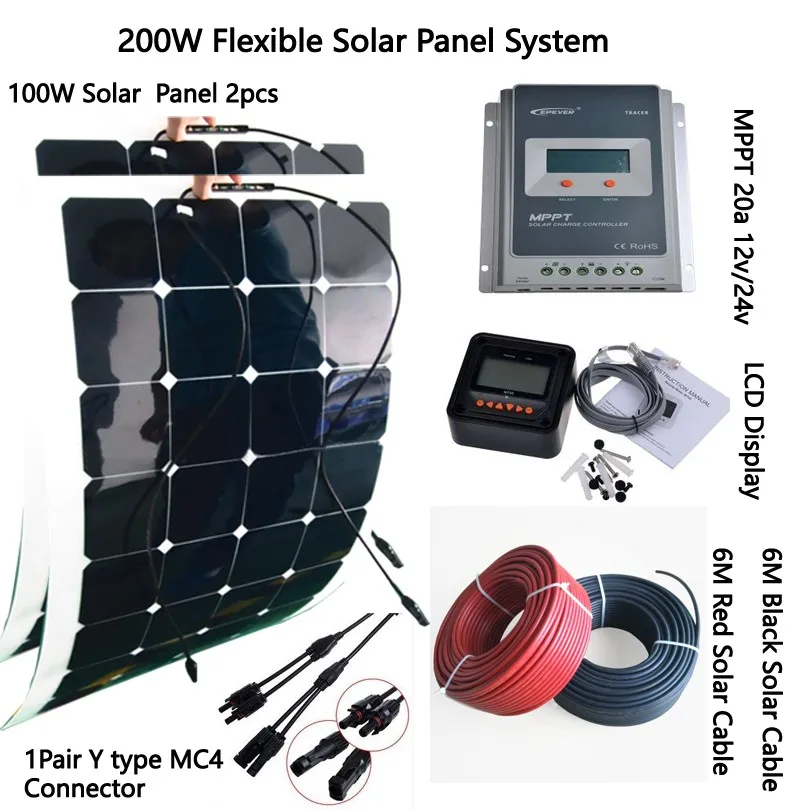

flexible solar panel 100w 2pcs; 200w solar panel system; 20a 12v/24v MPPT controller;
Y type solar cable; 6M Extend solar cable
Package List
1, Flexible solar panel 100w 18v, 2pcs; size: 1050MM*540MM*2MM.
2, 20A, 12V/24V Auto MPPT solar charge controller; 1pcs
3, LCD display Unit for MPPT Solar Charge Controller; 1 set
4, Y type solar cable; female and male; 1 set;
5, 6M Extension Solar Cable; red and black; 1 set;
Technical Feature
High efficiency Flexible(bendable) solar panel
High efficiency bendable solar module adopts the highest efficiency cell in the world from USA, with efficiency up to 20% or highter,
which enable 25-30% higher power generation than the conventional PV modules at the same size.
By adopting the back contact technique,the cell can be coated with the flexible materials and finally forms the high efficiency flexible solar panel.
This kind of solar panel can be widely used in the field of Electric Golf Car,Patrol Car,Travel Tourism Car,Yacht,Roof Power generation,Backpack,Tent and so on.
Technical Specification
|
Model No. |
PVM100W-32 |
|
Maximum Power at STC (Pmax) |
100W |
|
Optimum Operating Voltage (Vmp) |
18 V |
|
Open - Circuit Voltage (Voc) |
20 V |
|
Optimum Operating Current (Imp) |
5.56A |
|
Short - Circuit Current (Isc) |
6.1A |
|
Cell Efficiency |
22% |
|
Operating Module Temperature |
-40 °C to +85 °C |
|
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
|
Diodes |
2 by pass |
|
Power Tolerance |
-5/+5 % |
STC: irradiance 1000 W/m2, module temperature 25 °C, AM=1.5; Power measurement tolerance: ± 5%
Mechanical Characteristics
|
Solar Cell |
Mono-crystalline 125× 125 mm (5 inches) |
|
No. of Cells |
32 (4*8) |
|
Dimensions |
1050mm*540mm*2mm |
|
Weight |
1.5 KG |
|
Front Glass |
3.2 mm (0.13 inches) tempered glass |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP65 rated |
|
Output Cables |
TUV |
|
2.5 mm2 (0.10 inches2), symmetrical lengths (-) 900 mm (35.4 inches) and (+) 900 mm (35.4inches) |
Product Photo Shooting
MPPT Solar Controller 20A 12V/24V Auto
LCD Display Unit for MPPT Solar Charge Controller
Y Type Solar Cable For 2pcs solar panel in parallel connection
6M SOLAR CABLE; RED+BLACK
n
flexible solar pane
Product Application
Factory Inside Photo
