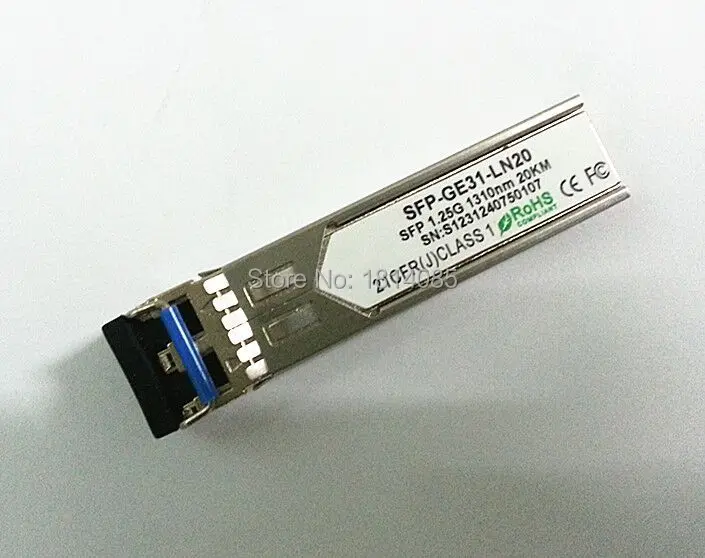

Hot Sale 2pieces/lot Optical Transceiver 1310nm SFP 20km 1000Base | Мобильные телефоны и аксессуары

Hot Sale 2pieces/lot Optical Transceiver 1310nm SFP 20km 1000Base | Мобильные телефоны и аксессуары

Product Descriptions:

1 Features

 1.1    1310nm FP laser and PIN photodetector

 1.2     Meet SFP MSA and SFF-8472 with LC receptacle

 1.3     Digital diagnostic monitoring

 1.4     20KM transmission with SMF

 1.5     Hot-pluggable

 1.6     Metal enclosure for lower EMI

 1.7     +3.3V Single power supply

 1.8     Qualified to meet the intent of Bellcore reliability practices

 1.9     LVPECL logic interface simplifies interface to external circuitry

 1.10   LVTTL logic level RX LOS

 1.11   With pull de-latch

 1.12   With 9/125 µm single mode fiber (SMF)

 1.13   Operate data rate:1.25Gb/s;

 1.14   operate temperature Standard :0 to +70°C,Extended : -20 to +85°C,industrial : -40 to +85°C

 1.15   Complies with RoHS directive

 2 Applications

 2.1  Gigabit Ethernet

 2.2 Switch to Switch interface

 2.3 Switched backplane applications

 2.4 Router/Server interface

 2.5 Other optical transmission systems

3 General

The optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable. The optical transceiver is ROHS compliant, each of the components is lead-free.

Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Gigabit Ethernet Transceivers
