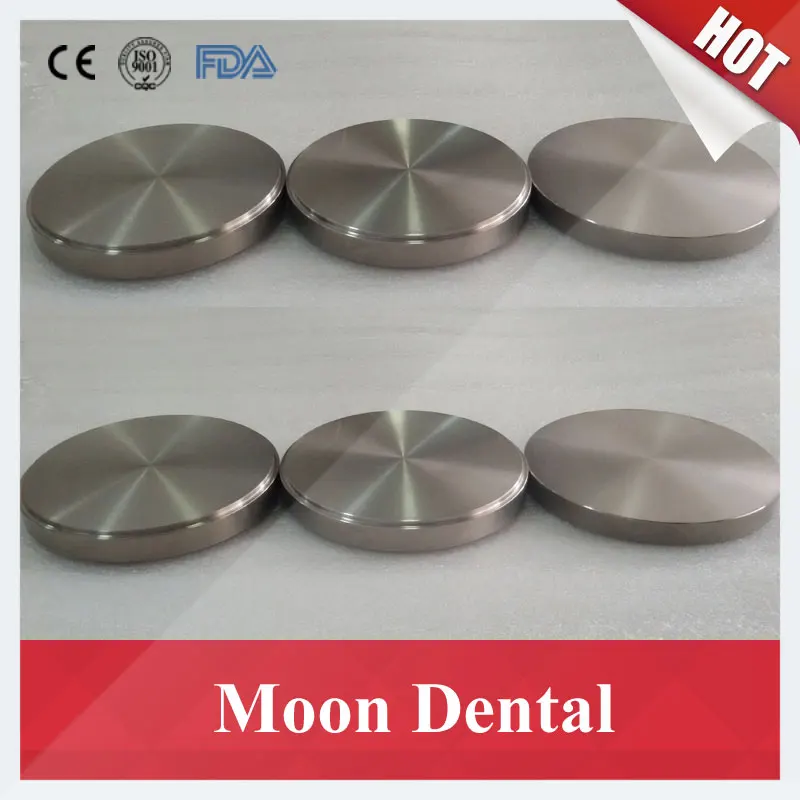

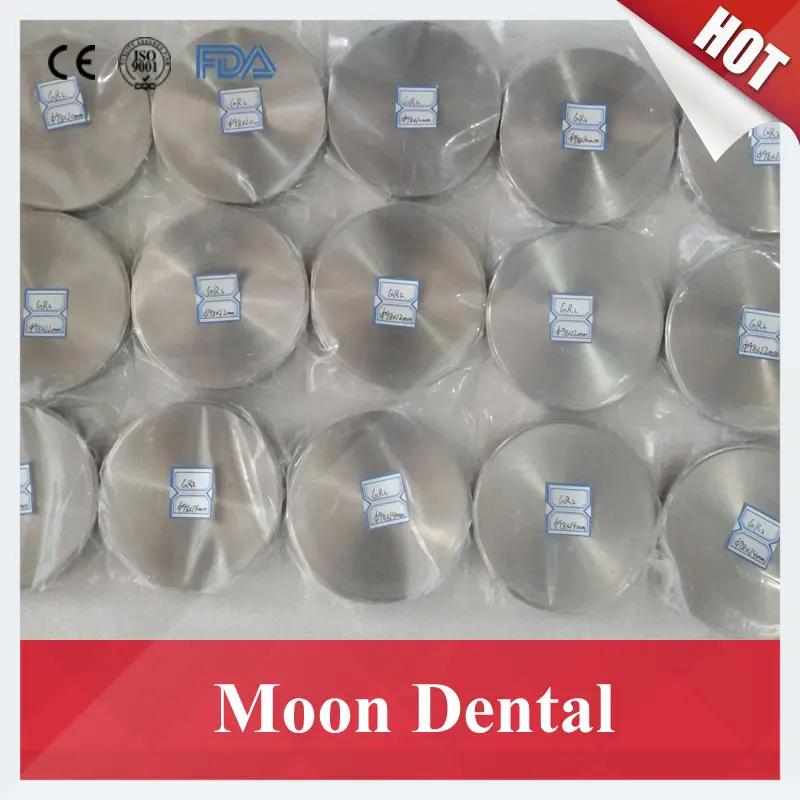

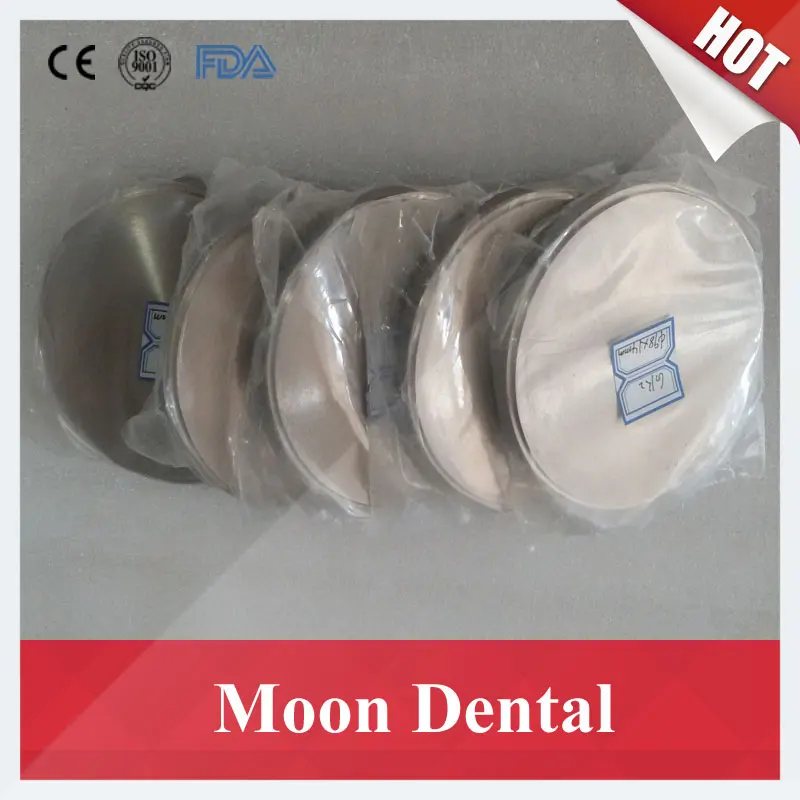

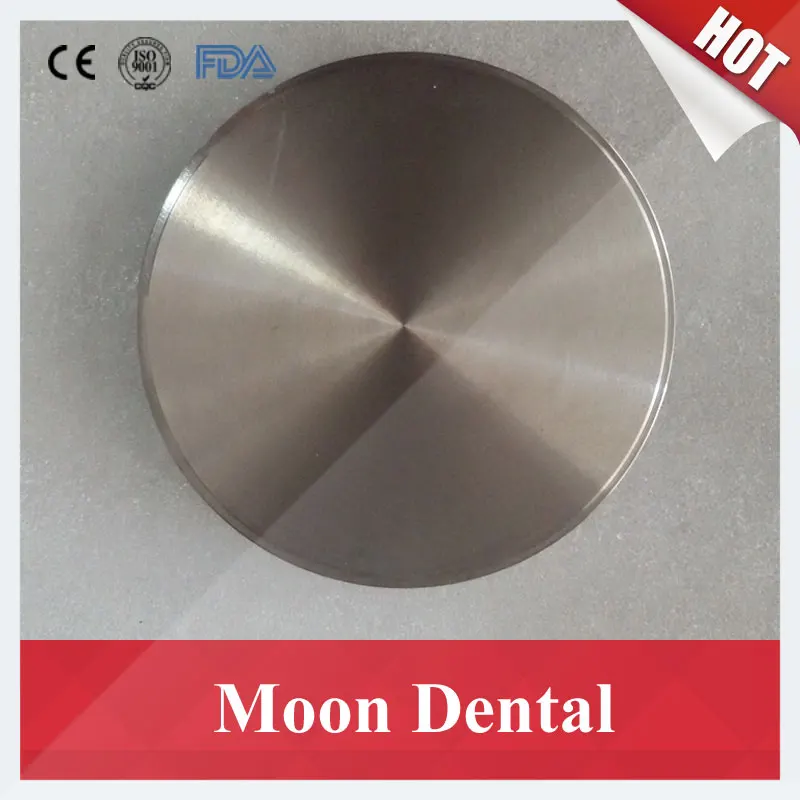

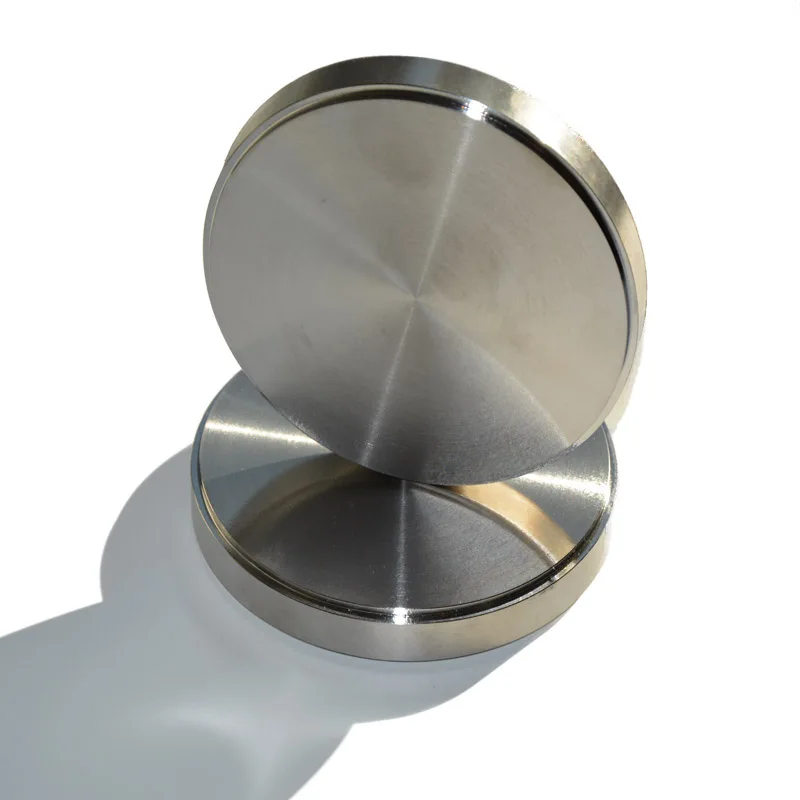

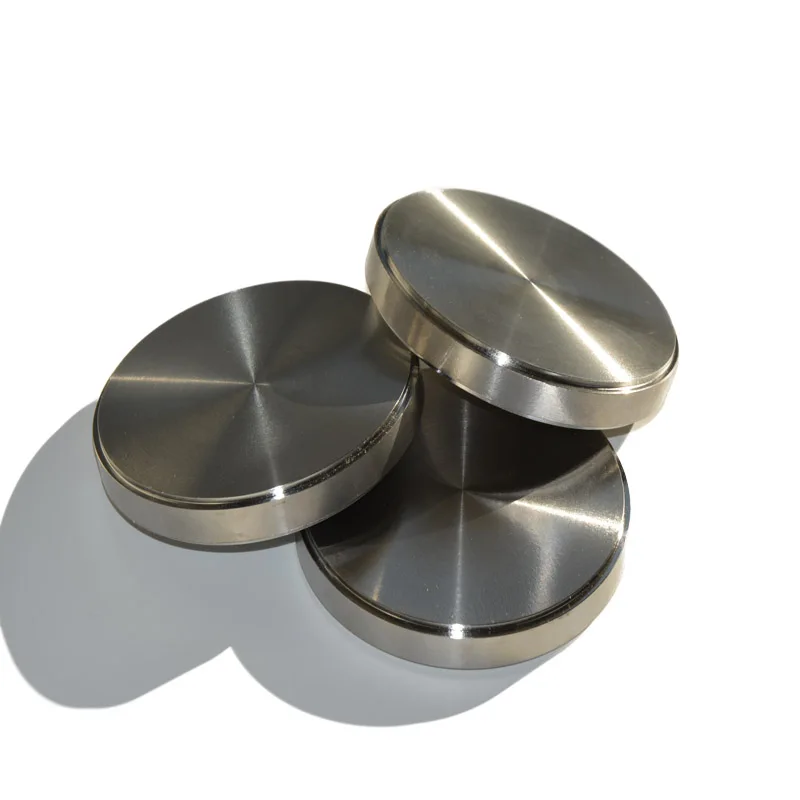

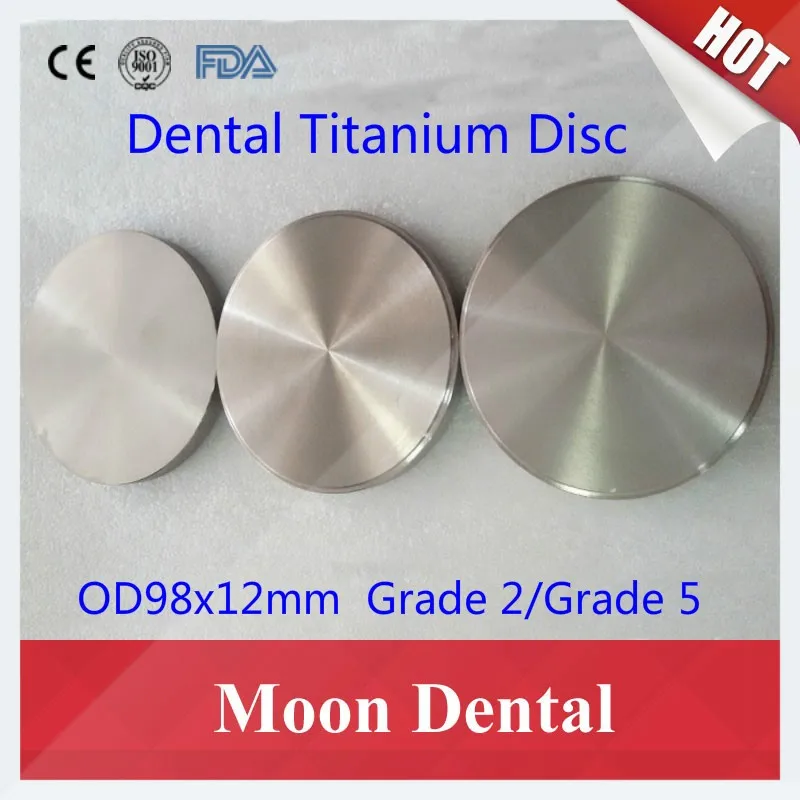

1 Piece OD98x12mm Dental Titanium Discs with Step Grade 2 & 5 for Open CAD CAM Milling System Machine |

---



    Inrtoduction: High purity titanium grade 2 & Grade 5 milling blank, especially designed for the use of CAD CAM milling systems. This industrially manufactured material ensures consistent quality and is suitable for crowns and bridges in the anterior and posterior regions. Any type of veneering ceramics which are suitable for titanium can be used. Sizes available for Round OD 98mm disks with or without step for height between 10mm and 25mm.     Advantage: it is more bio-safe, better casting property and excellent polishing property.     Technicial: Titanium composition                   Grade 2 Composition                              Specifications Titan >99%                               Density: 4.51g/cm3 Fe 0.30%                                   Vickers Hardness : 145MPa C 0.01%                                     E-module: 105kN/mm2 N 0.04%                                    Yield Strength: 275MPa O 0.35%                                    Tensile Strength: 345MPa H 0.01%                                     Elongation at break: 20% CTE: 9.6*10-6/m Celsius     Titanium composition                   Grade 5 Composition                                  Specifications Titan 90%                                      Density: 4.43g/cm3 Fe 0.13%                                       Vickers Hardness : 353MPa Al 6.0%                                         E-module: 114kN/mm2 V 4.1%                                          Yield Strength: 836MPa O 0.1%                                          Tensile Strength: 897MPa H 0.001%                                      Elongation at break: 12% N 0.01%                                        CTE: 10.3μm /K 25-500° C C 0.03%     Package include: 1 Piece of OD98x12mm Dental Titanium Discs
