Please noted this link only for Measure DC 199.9V 10A, input 3~40V DC

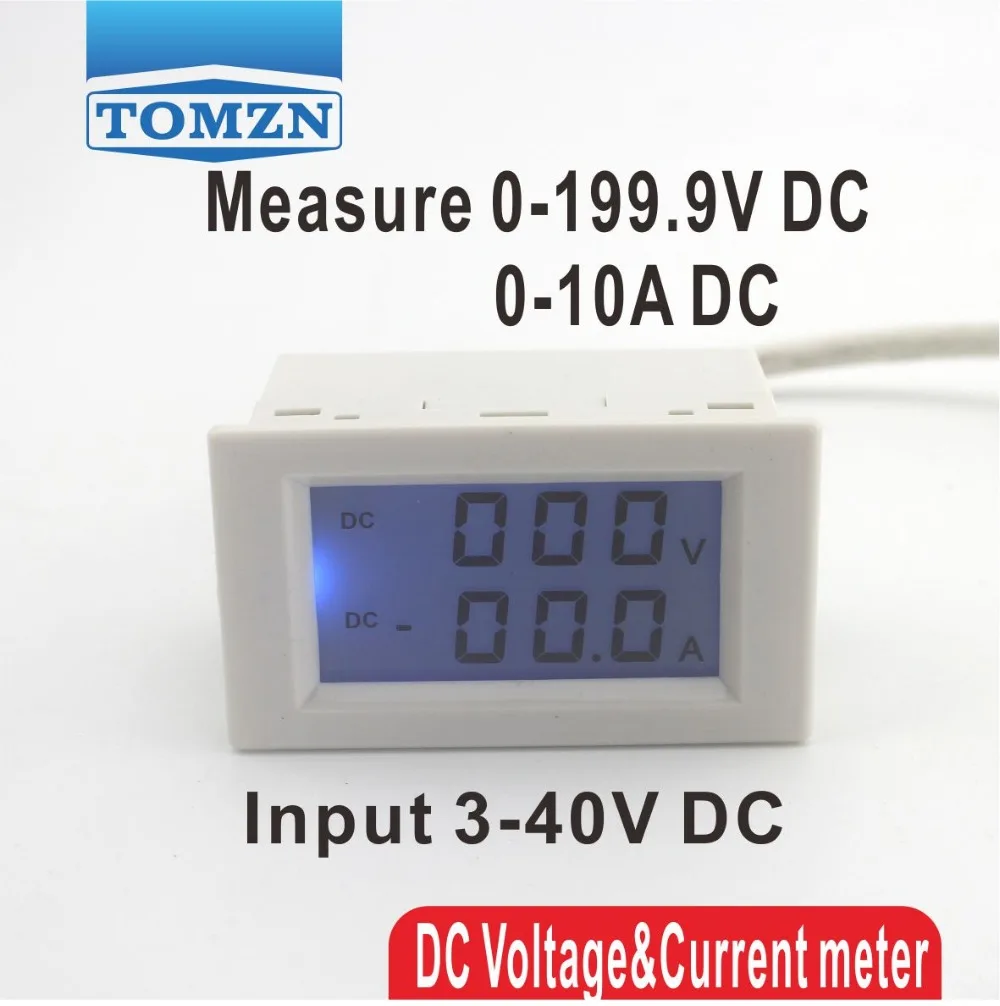

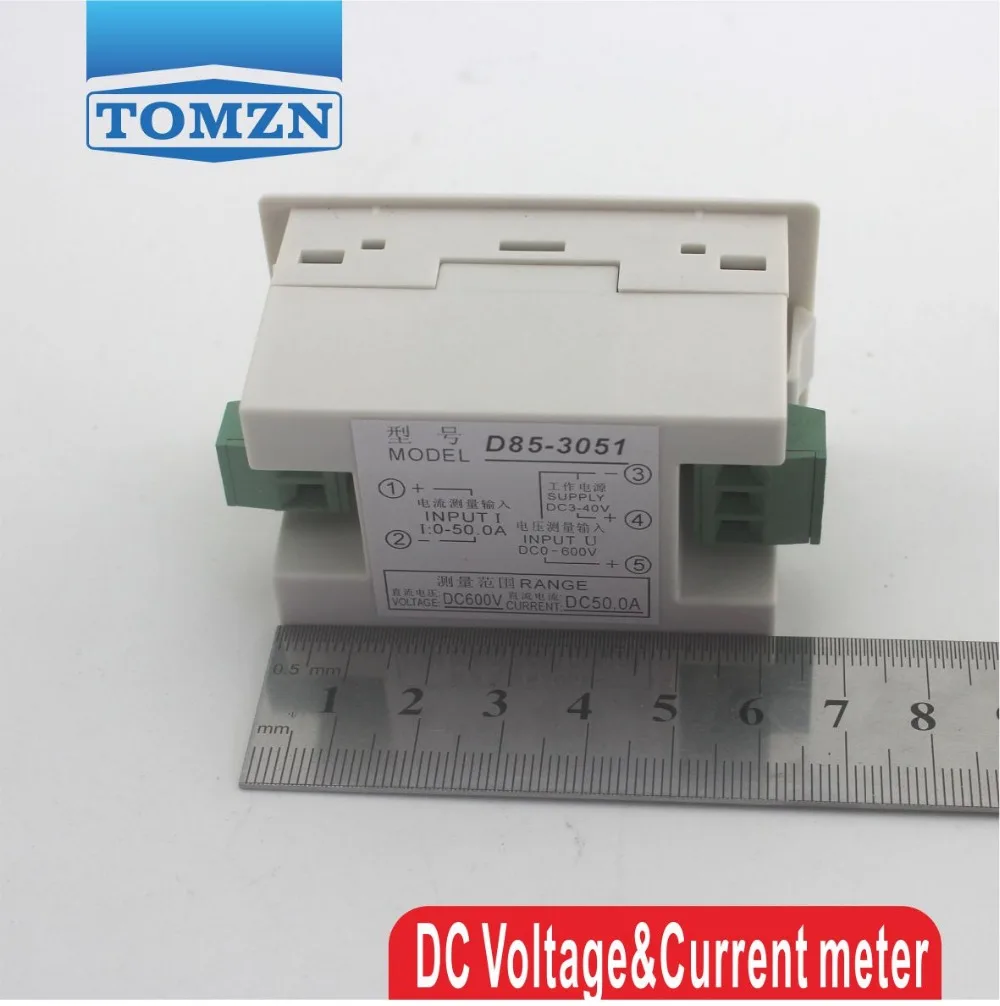

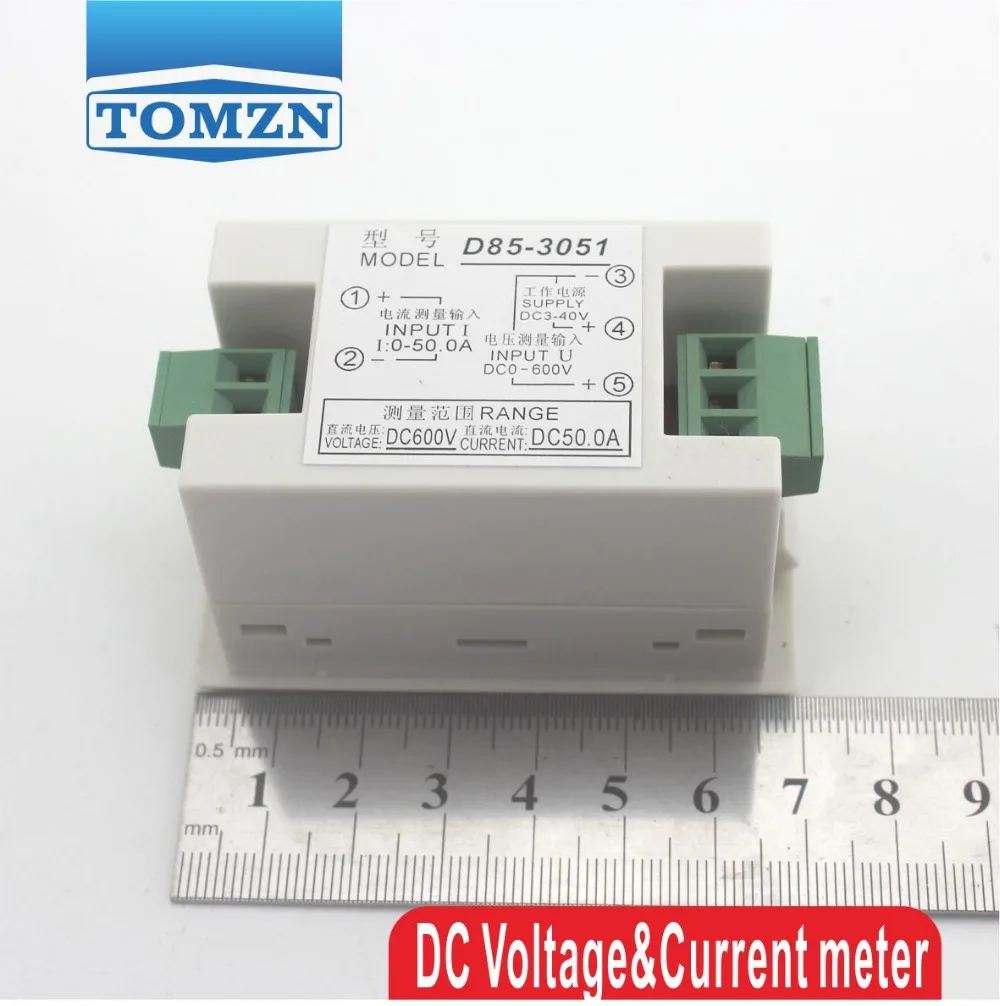

D85-3051 DC digital meter can measure and display the voltage and current at he same time. Measured t voltage and current can use the common ground.

Technical Indicators

1. Accuracy: 1%±2 word

2. Displayer: LCD

3. Measure Range: DC voltage (1) 0-199.9V DC (need supply another work power between 3-40V)

                          (2) DC 3-19.99V, DC 3-40.0V (measured voltage can supply as work power, so the meter do not need another work power)

when let measured voltage to supply as work power, the meter measure range only from

3V to 40V, if you want the measure range start at 0V or higher than 40V, you should supply another work power between 3 - 40V.

DC current: DC 0-10A

Noted: If current is higher than 10A, you should order the special shunt, as measure range between 0~50A, you need a shunt with 50A 75mV, 100A you should connect 100A/75MV Shunt). You should connect the shunt as wiring pictures below. The shunt must connect to the Negative - position. The measure load must connec to the positive + position. If the connection is wrong, the meter will damage. Please noted!!!!

5. Measure Speed: 2 times per second

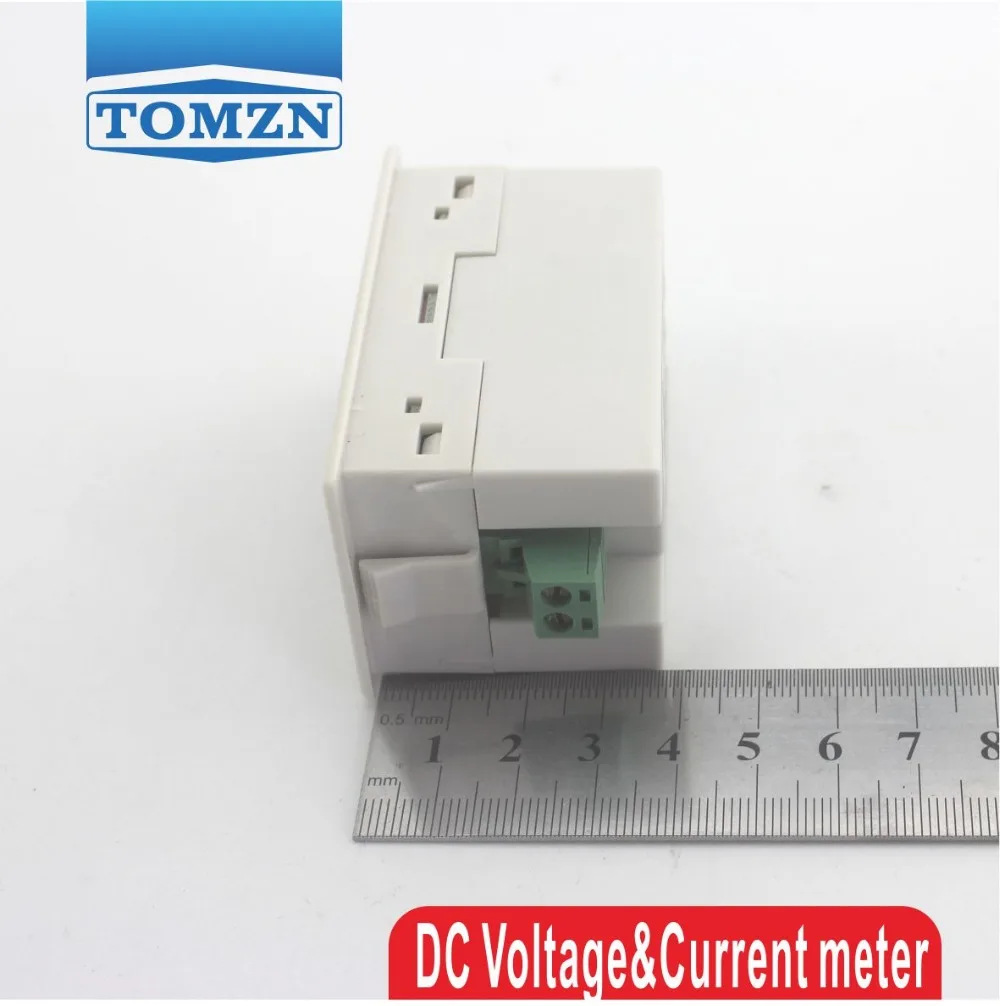

6. Size: 70*40*39mm

7. Installation size: 68*38mm

Connection Diagram

The meter should be connect as the graph in this instructions, if not the meter will be destory.

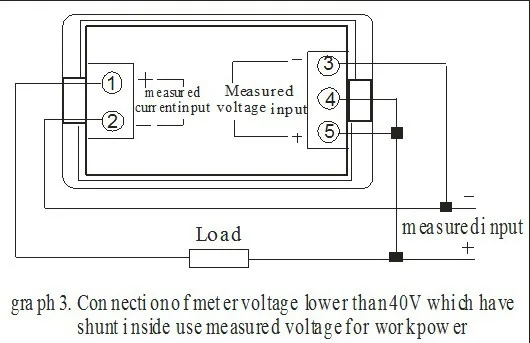

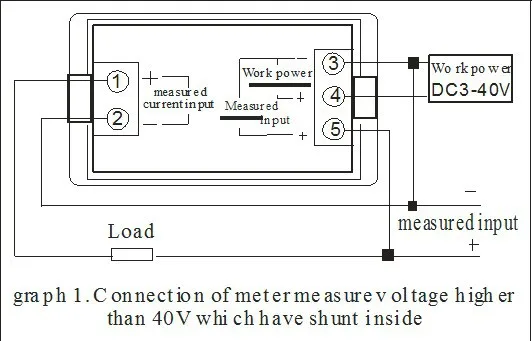

1. The meter with shunt inside should be connect the "current input port" to the negative pole of power asgraph 1 and 3.

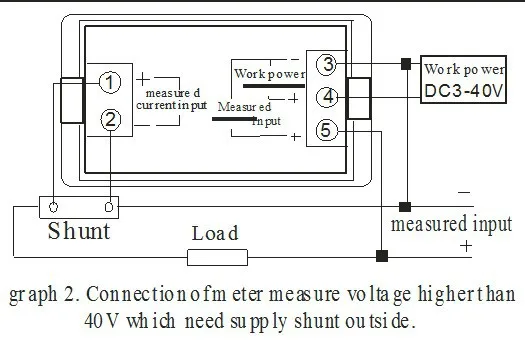

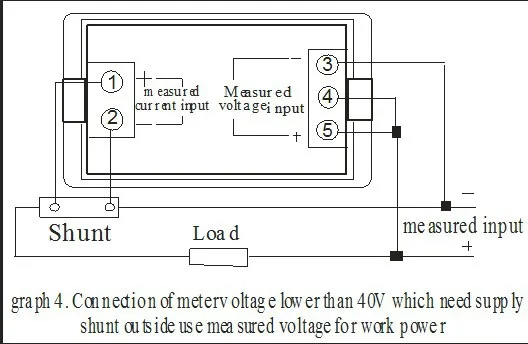

2. The meter with shunt outside should be connect the shunt to the negative pole of power as graph 2 and 4, and the load should connect to the positive pole of power.
