Car Truck Ham Radio 50W 809CH VHF UHF Transceiver Quad Band Dual Display Walkie Talkie Repeater Scrambler DTMF V/V U/U Receiver | Мобильные
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.54 руб. | 0.43 руб. | 0 руб. |
| Feb-19-2026 | 0.52 руб. | 0.38 руб. | 0 руб. |
| Jan-19-2026 | 0.51 руб. | 0.21 руб. | 0 руб. |
| Dec-19-2025 | 0.2 руб. | 0.80 руб. | 0 руб. |
| Nov-19-2025 | 0.3 руб. | 0.84 руб. | 0 руб. |
| Oct-19-2025 | 0.32 руб. | 0.63 руб. | 0 руб. |
| Sep-19-2025 | 0.68 руб. | 0.32 руб. | 0 руб. |
| Aug-19-2025 | 0.59 руб. | 0.66 руб. | 0 руб. |
| Jul-19-2025 | 0.68 руб. | 0.86 руб. | 0 руб. |
Описание товара

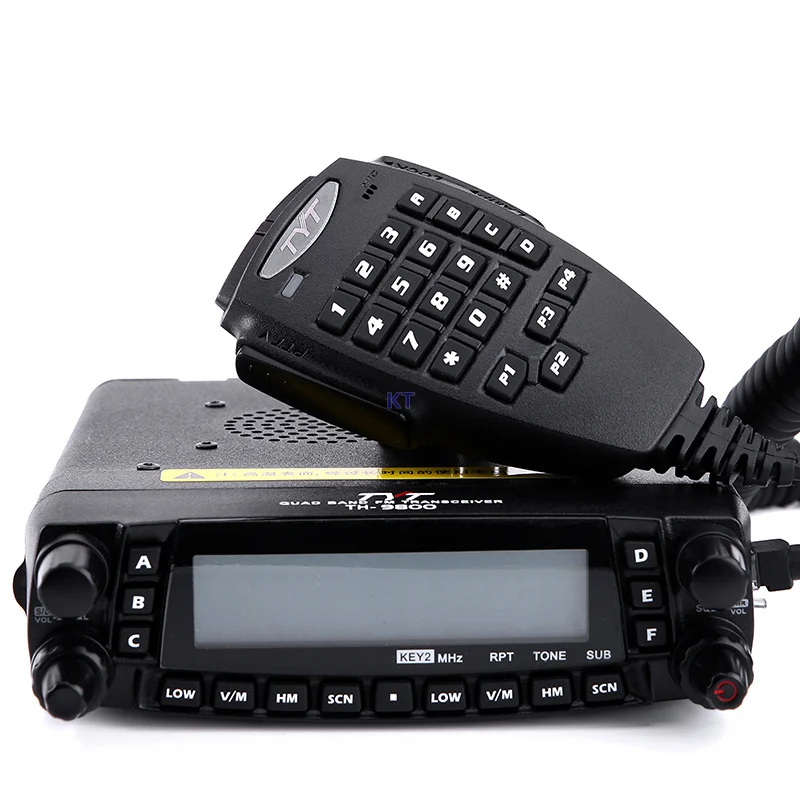

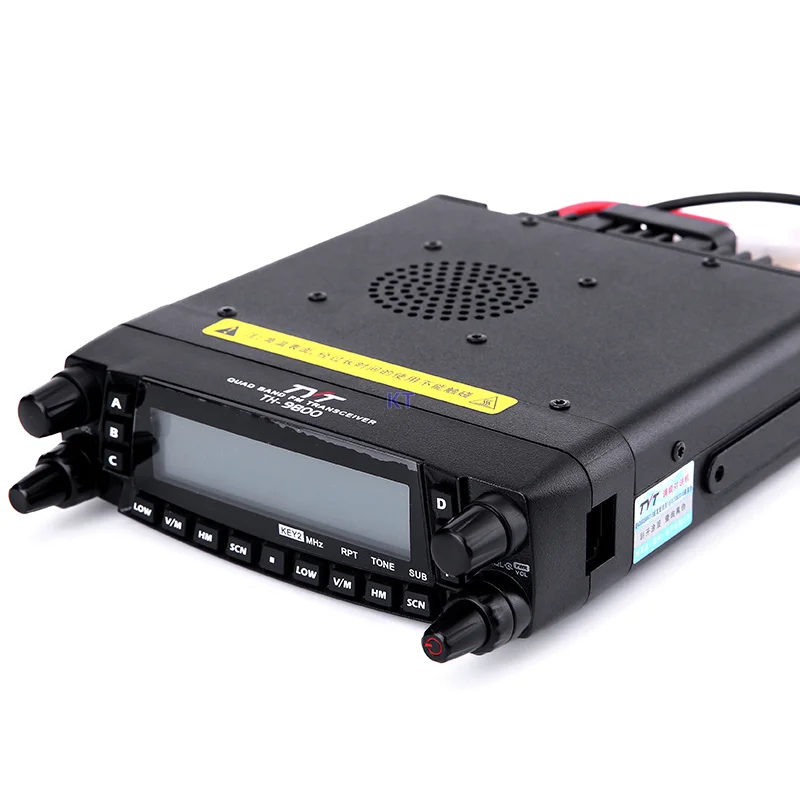

The TYT TH9800 Quad Band Transmit, Twin Receive, Dual Display FM Radio Transceiver for the 10 Meter, 6 Meter, VHF 2 meter & UHF 70cm Bands!.
Loaded with features, Over 800 AlphaNumeric Memory channels!
True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol & Squelch controls!
Multiple Tuning Steps,. Includes full keypad microphone!

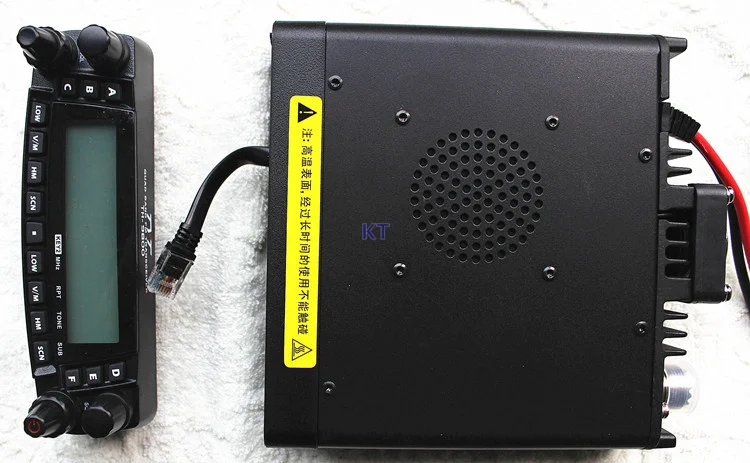

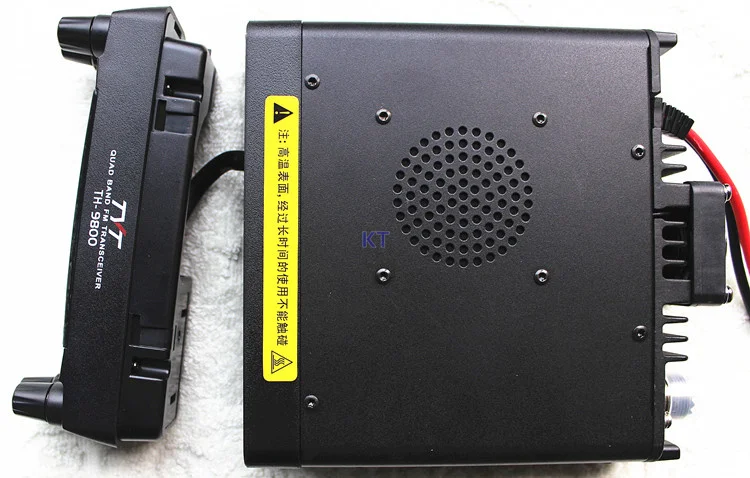

Remote mountable Faceplate!
Receive Range: 26-33Mhz, 47-54 MHz, 110-180Mhz ( with AM Air band), 350-399Mhz, 430-512Mhz, 750-947Mhz.
50W 2M & VHF / 40W 10M & UHF, with Multiple lower power settings available too.
ctcss, dcs (PL & DPL), DTMF, 2 tone/5tone signaling, ANI, Display Brightness setting & more!
PC Programmable, w/downloadable free software, Requires 12-14Vdc power hookup, at 12A or more, and an Optional suitable Antenna.

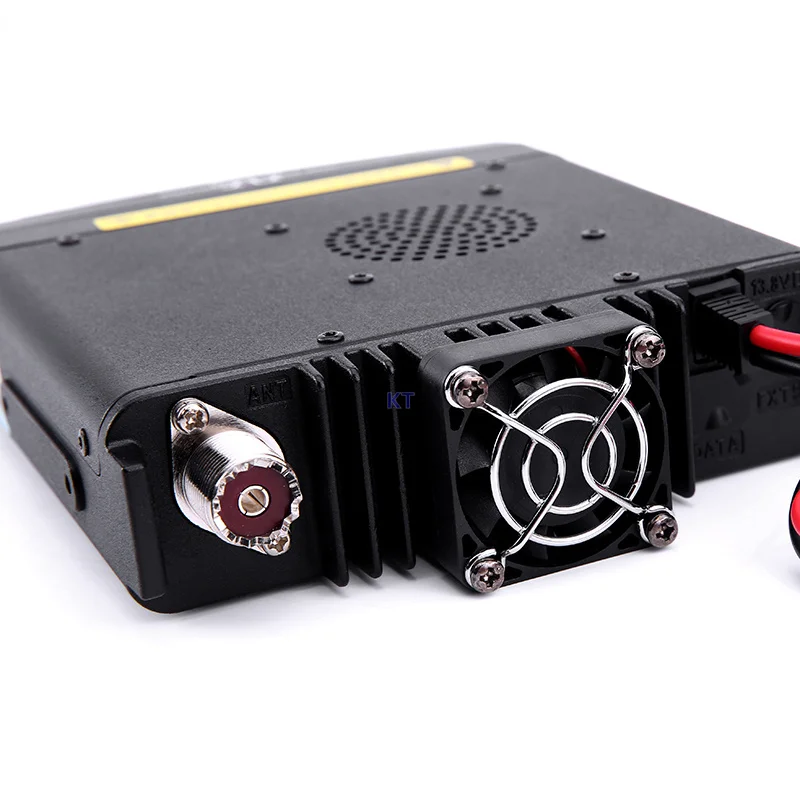

Includes 12Vdc Power Cable & Mounting Bracket, SO-239 Antenna connector on radio.

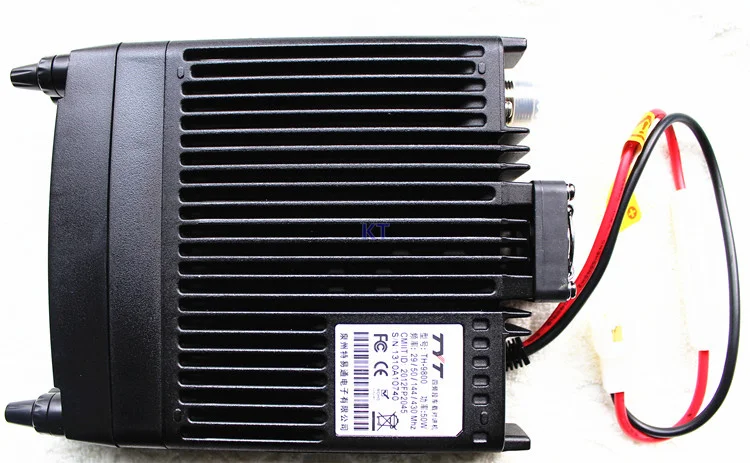

Built In Cooling Fan.
Functions:
Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands
Brilliant crossmodulation, intermodulation rejection and strong signal performance - similar to commercial radios.
Commercial quality and commercial performance, too!
809 memory channels
DTMF mic included!
Digital FM broadcast band radio
High/low output power levels
Reverse frequency selection
Dual (V/U) squelch set levels
Dual repeater offsets selectable
Multi-function scanning
Repeater offset selectable
Keypad lock function
Channel name editing
CTCSS/DCS encode/decode
Dual Band/Dual Receive: (Full Duplex)
Cross Band Repeat
TX Power: 5-50 Watts
Memories: 256
Antenna Connection: Single SO 259s
Specification:
| General |
|
| Frequency Range |
26-33MHz (RX/TX) (AM band RX) |
| 47-54MHz (RX/TX) (AM band RX) |
|
| 136-174MHz (RX/TX) |
|
| 400-480MHz (RX/TX) |
|
| 108-136 (AM band RX only) |
|
| 320-399.000 (RX only) |
|
| 750-950 (RX only) |
|
| Channel Capacity |
809 channels |
| Channel Spacing |
5/10/12.5/15/20/25/50KHz |
| Modes of Emission |
F3, F2, F1 |
| Antenna Impendence |
50 Ohms, unbalanced(Antenna Duplexer bulit-in) |
| Frequency Stability |
±5 PPM@-140°F~+140°F(-10-+60) |
| Operating Voltage |
-4°F~+A140°F(-10-+60) |
| Operating Temperature Range |
13.8VDC (±15%). Negative ground |
| Current Cunsumption(Approx) |
RX: 0.5A (Squelched) |
| TX:8.0A (50/430MHz), 8.5A(29/144MHz) |
|
| Case Size(WXHXD) |
140x41.5x168mm (w/0 knobs & connectors) |
| Weight(Approx) |
2.2lb(1Kg) |
| Transmitter |
|
| Output Power |
50/20/10/5W(29/50/144MHz) |
| Modulation Type |
Variable Reactance |
| Maximum Deviation |
Better than -60dB(29MHz:Better than -50dB) |
| Modulation Distortion |
Less than 3% |
| Microphone Impedance |
2kΩ |
| DATA jack Impedance |
10KΩ |
| Receiver |
|
| Circuit Type |
Double-conversion super-heterodyne |
| Intermediate Frequency |
45.05MHz/450KHz(left band) |
| 47.25MHz/450KHz(right band) |
|
| Sensitivity(for 12dB SINAD) |
Better than 0.2μV |
| Squelch Sensitivity |
Better than 0.16μV |
| Selectivity(-6dB/-60dB) |
12KHz/30KHz |
| Maximum AF Output |
2W@8Ω for 5% THD |
| AF Output Impedance |
4-16Ω |

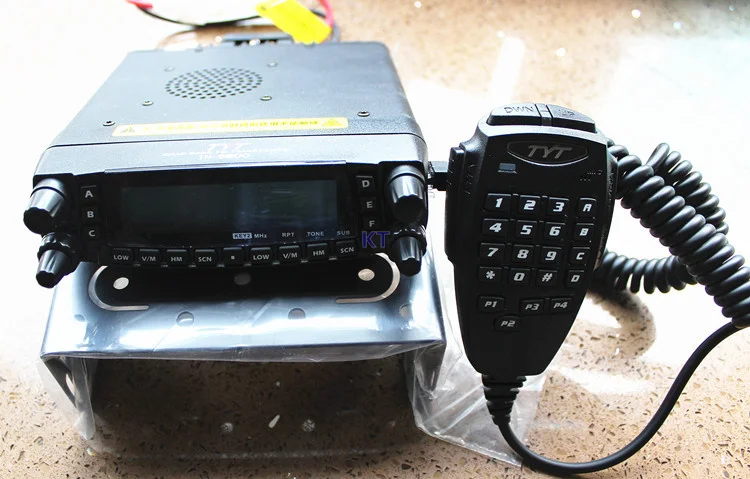

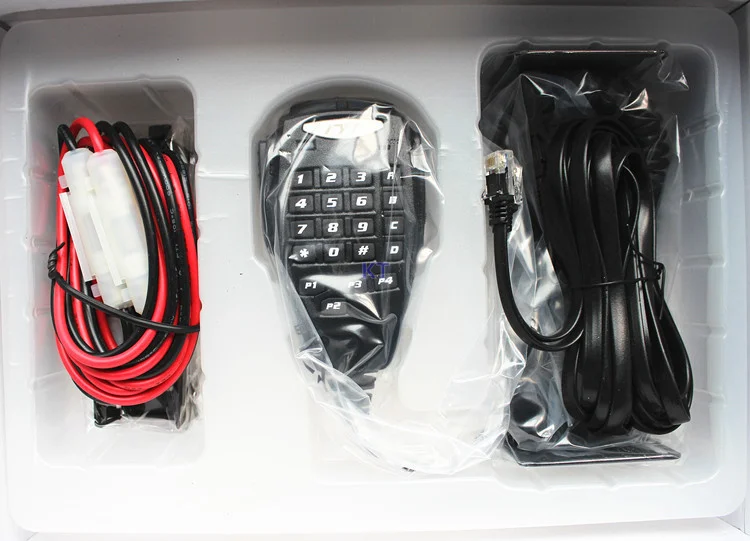

Package:

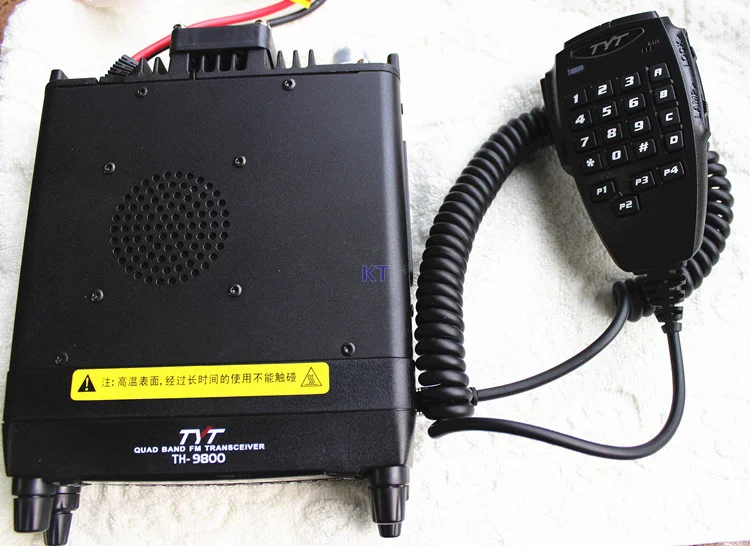

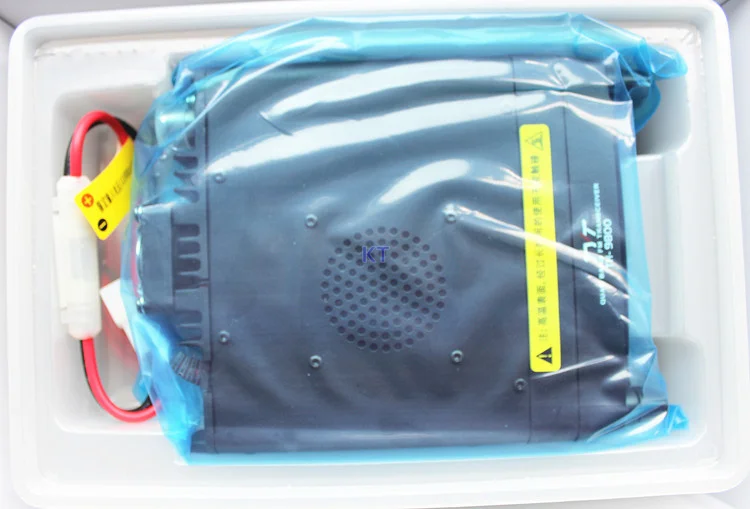

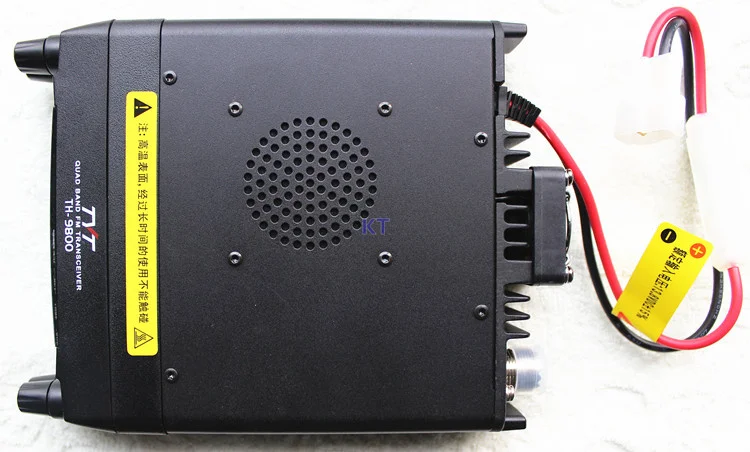

1x TYT TH-9800 Mobile Transceiver

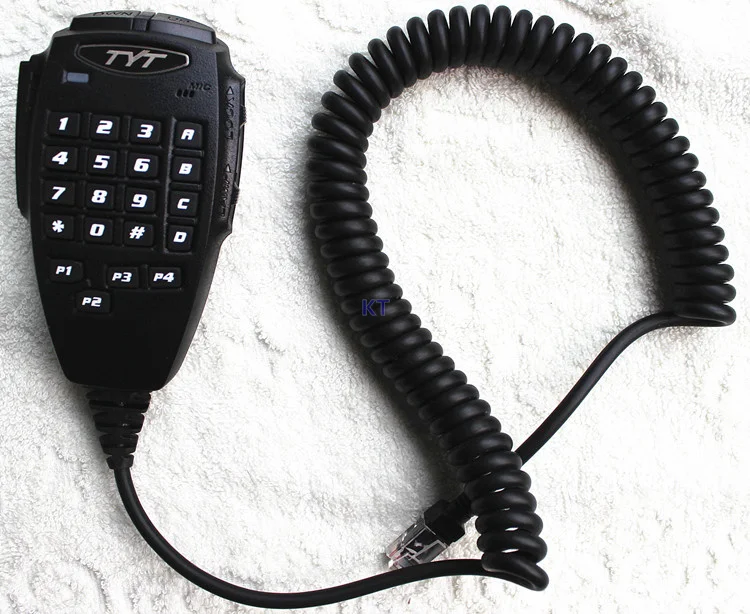

1x Handheld Microphone

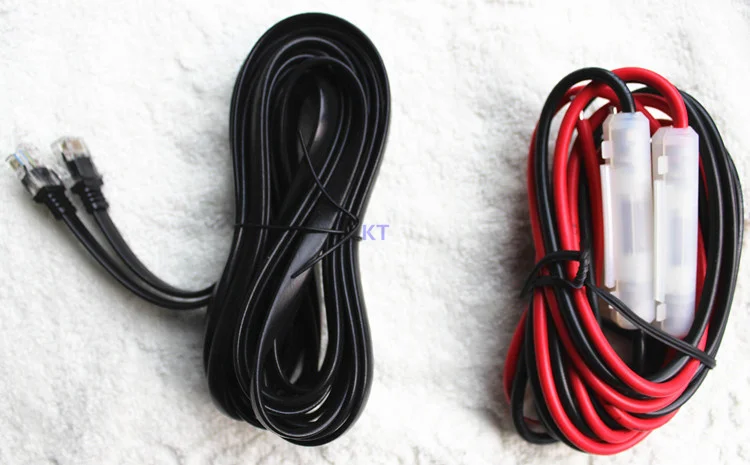

1x Power Cable

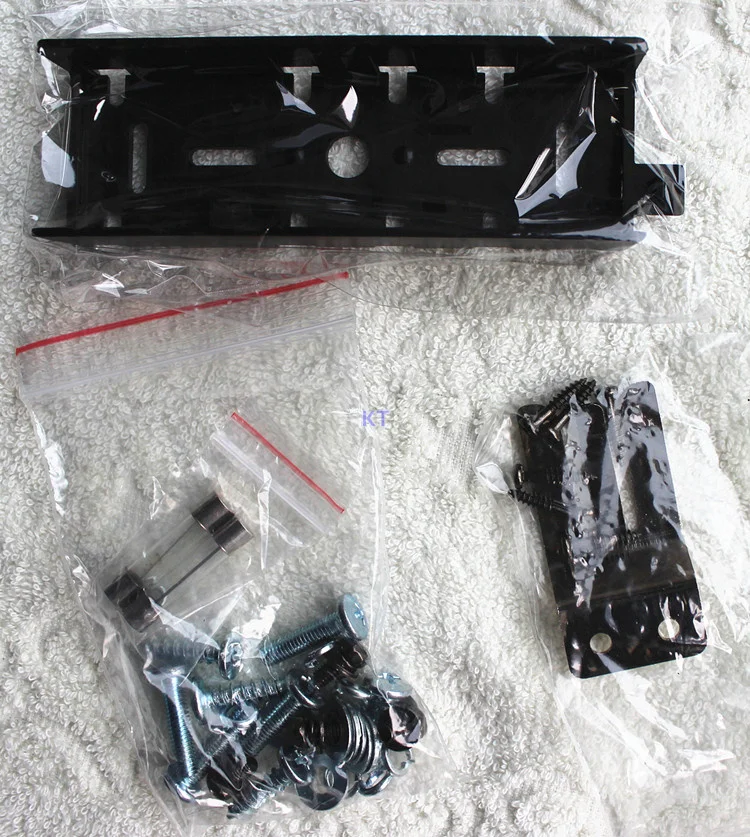

1x Screws and Accessories
1x User's Manual

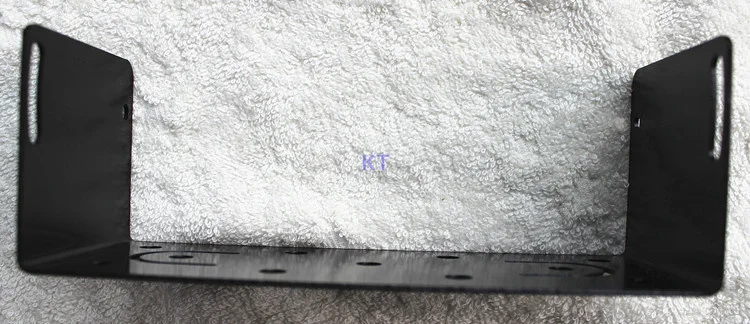

1x Fixed Bracket
1x Microphone Hanger
