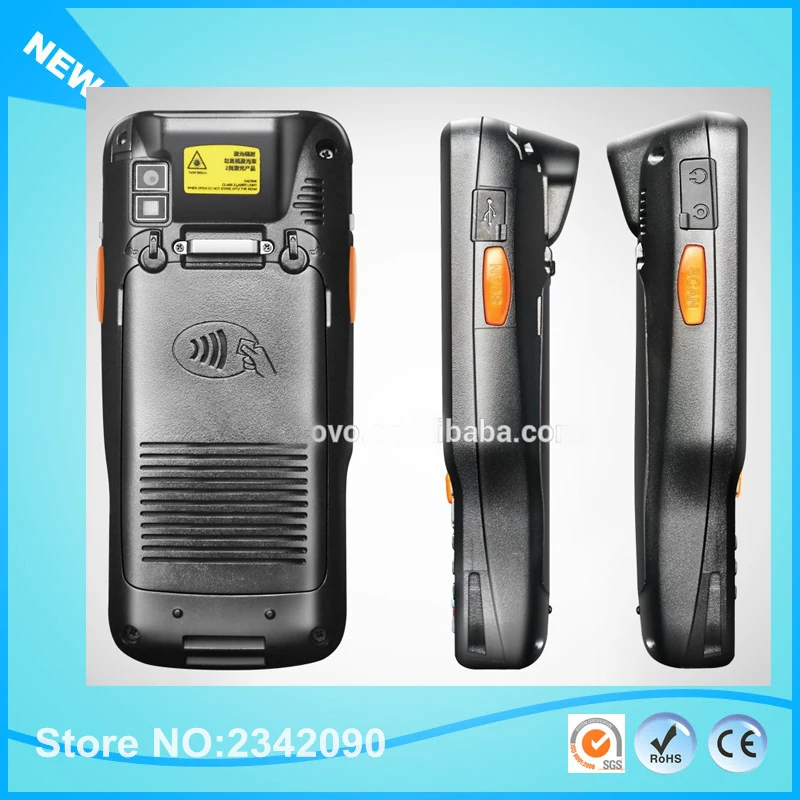

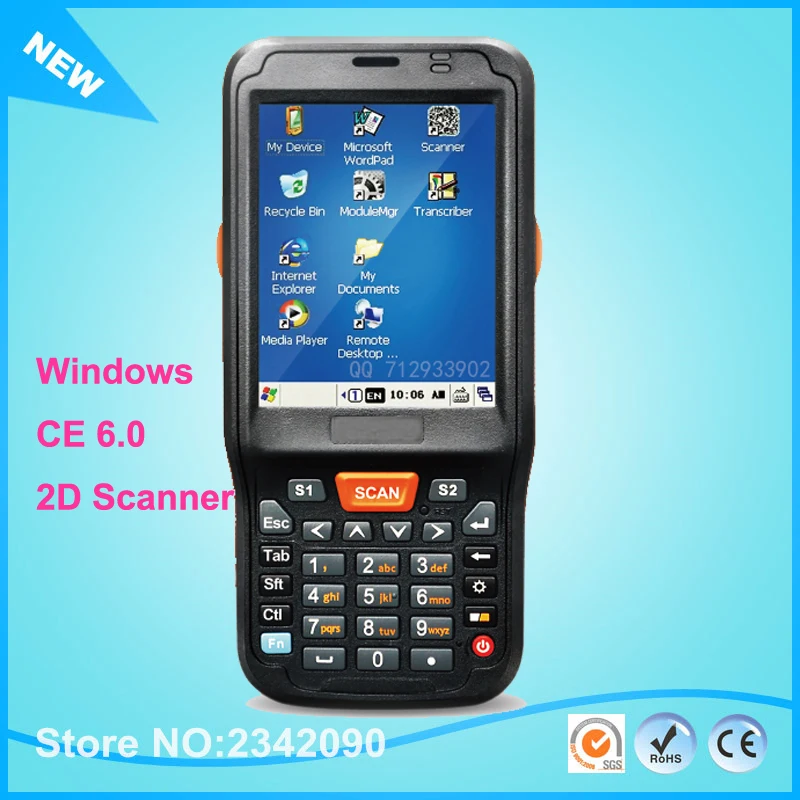

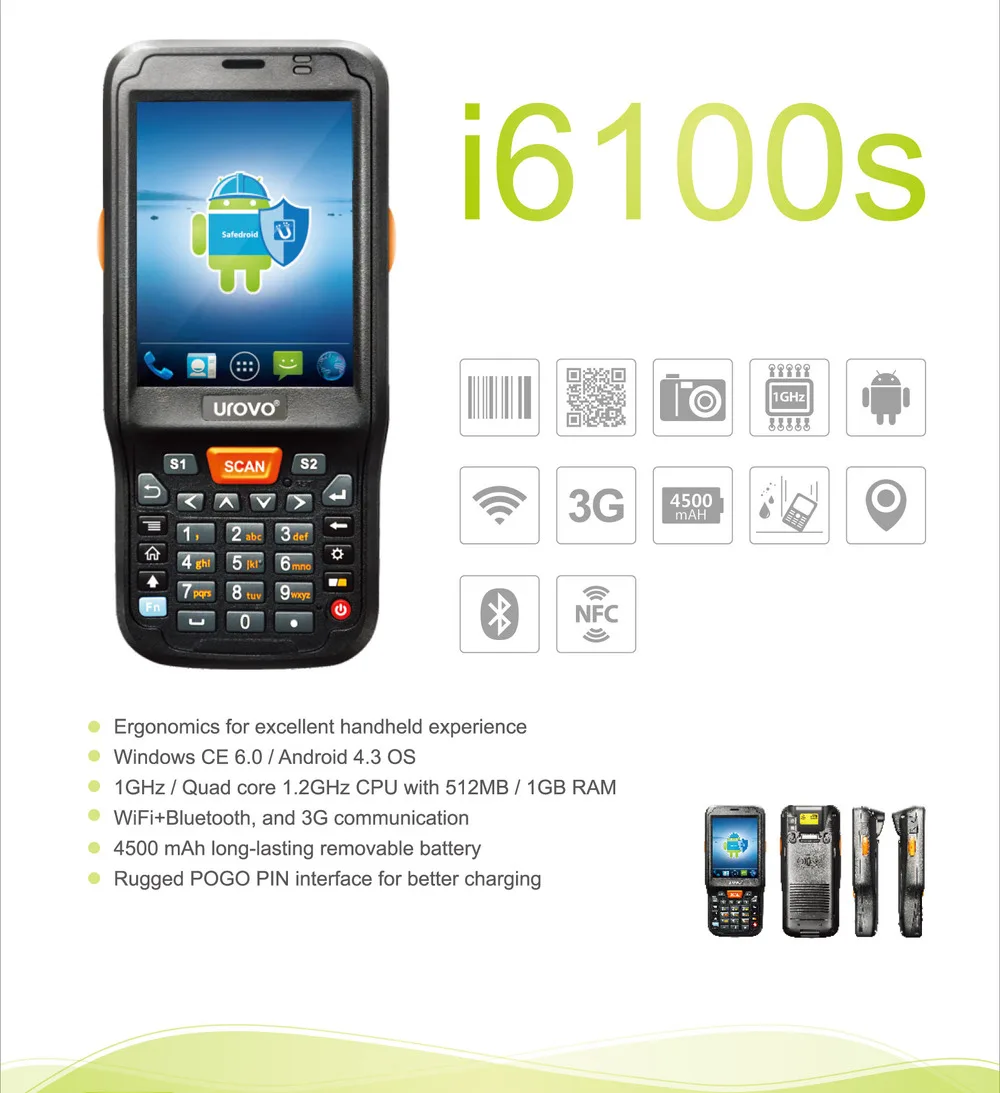

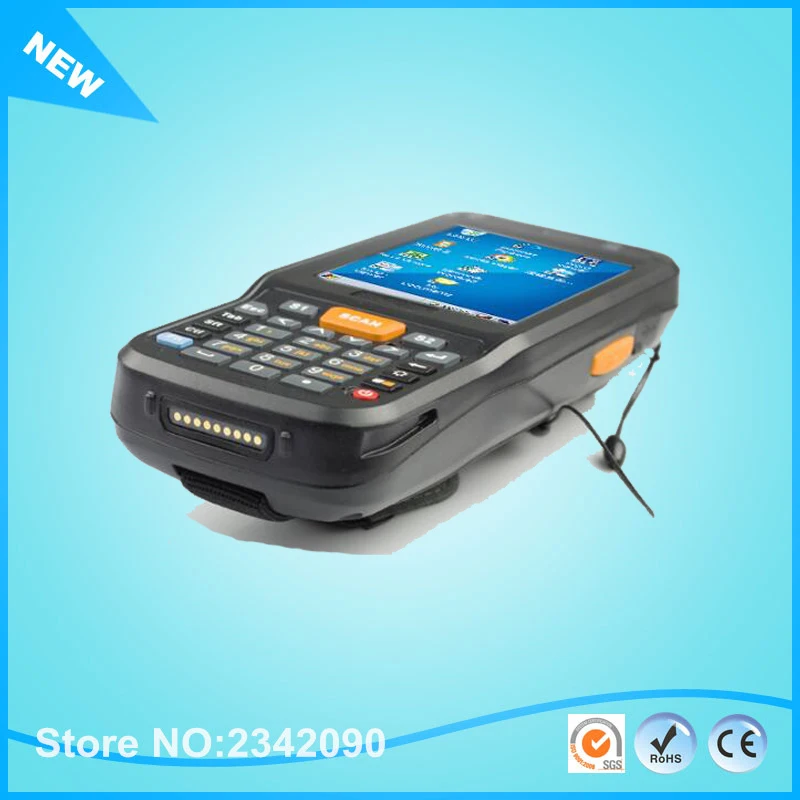

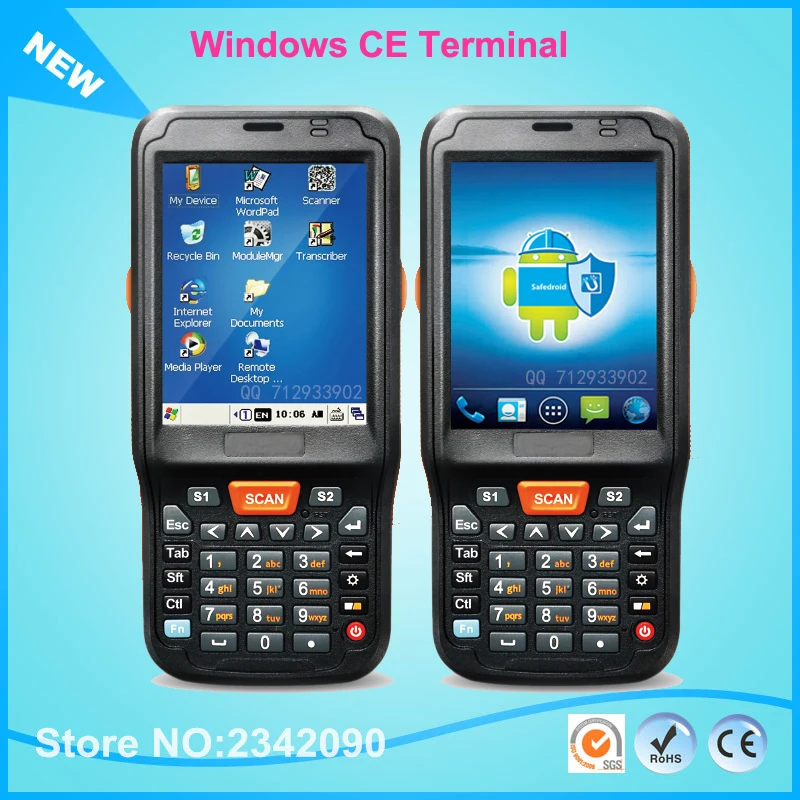

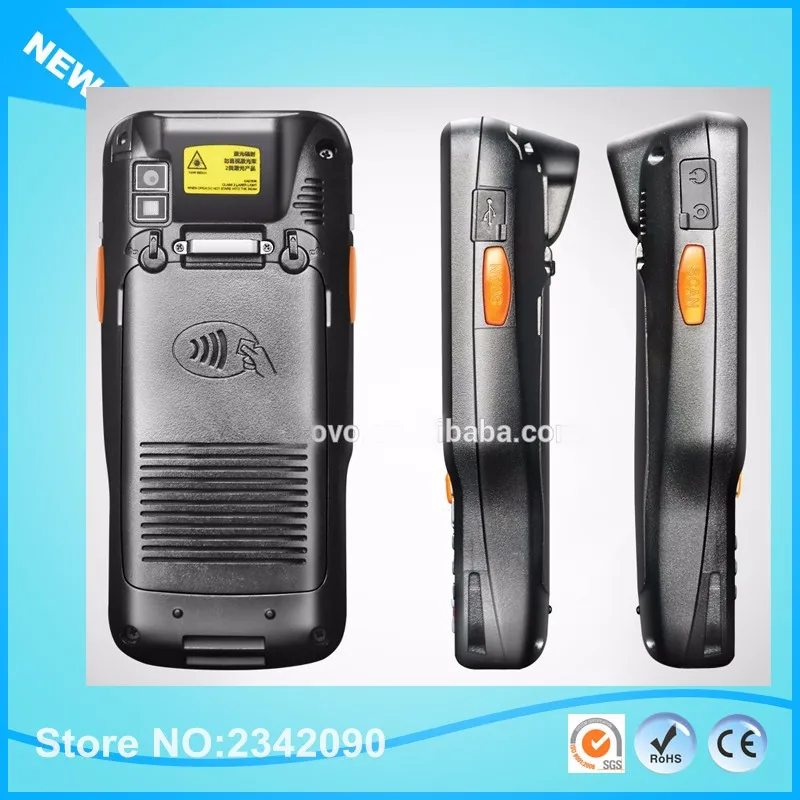

Urovo i6100S WIN CE6.0 Mobile Terminal Industrial Rugged PDA For 1D Barcode Scanner With 4GB ROM 1GHz CPU | Компьютеры и офис

Physical Characteristics

Model

urovo i6100s-CE

Dimentions

152mm*69mm*29mm

Weight

345g

Keyboard

Number/Alphabetic keys, directional keys, function keys, and scan buttons

Input

Chinese, English, handwriting, supports soft keyboard

Performance Characteristics

O.S.

Windows CE 6.0, multi-language

CPU

Single core 1GHZ

Display

3.2 inch TFT-LCD QVGA (240x320) color touch screen

Memory

ROM

4GB

RAM

256MB

Barcode Scanner

1D Laser

Scanning Rate

200 times/sec.

Decode Capability

Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded.

2D CMOS

(Optional)

Decode Capability

1D Symbologies: UPC / EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5, Korean3/5, Matrix 2/5, CODE 32, CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes.

2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse.

Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB / One Code / Intelligent Mail, UPU FICS Postal.

Radio Communication

WiFi (WLAN)

Supports 802.11 b/g/n, the maximum rate of 65 Mbps

Supports 802.11 I: AES, TKIP, WEP, WPA, WPA2

Supports bluetooth coexist, fast seamless roaming

WWAN

Built-in wireless network communication GSM / GPRS module

Frequency Range: GSM850 / 900 / 1800 / 1900 MHz

GPRS multi-slot Class 10: DL 85.6 kbps / UL 42.8 kbps

GPRS multi-slot Class 8: DL 85.6 kbps / UL 21.4 kbps

Bluetooth

Bluetooth Class 4.0

Options

Camera

5.0M mega pixels with flash and automatic focus

GPS

GPS,AGPS

RFID

compatible with HF RFID

Power

Main Battery

3.8V 4500mAh rechargeable lithium battery, which can work for 12 hours or above (depending on environment)

Slave Battery

240 mAh standby battery

User Environment

Operating Temperature

–10°C to +50°C

Storage Temperature

–20°C to +60°C

Humidity

5%–95% (non-condensing)

Drop Durability

4ft. / 1.2m multiple drops to concrete across the operating temperature range

Peripherals and Accessories

Expansion Card Slot

Micro SD/TF (max 32G), SIM x 1, SAM x 1

Physical Interface

Mini USB x 1, 3.5mm audio interface x 1, DC Jack x 1, POGO PIN interface x 1

Charging Dock

Optional single slot dock: supports to charge one unit of device and one spare battery simultaneously

Printers

Can connect with the serial port printer, bluetooth printer

Other Accessories

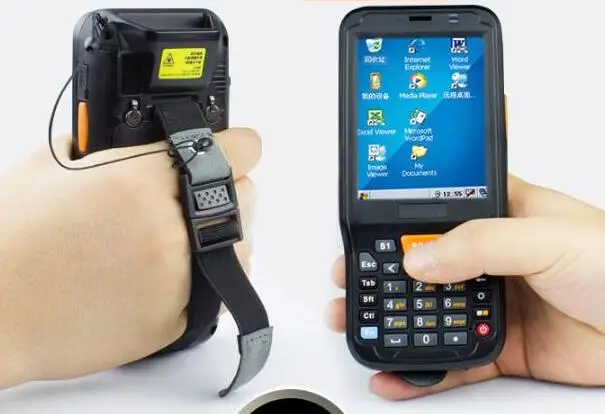

Standard equipped with handwritten pen, wrist strap; Optional with carrying pouch

Regulatory

Sealing

IP54

Product Certification

CCC, CE, FCC

Laser Safety

IEC Class 2 / FDA Class II, in accordance with IEC60825-1 / EN60825-1

Warranty

12 months (except the accessories)
