IR 2D Фиксированный модуль сканера штрих-кода из металла, встроенный в киоск для бумаги/мобильного телефона, USB/RS232, с экранным считывателем.

---

Description

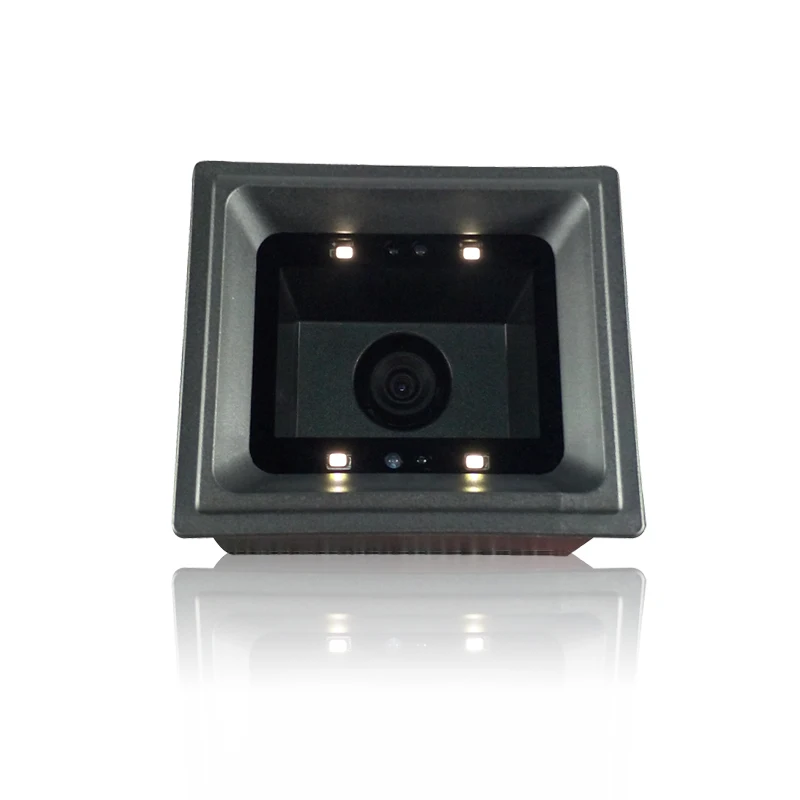

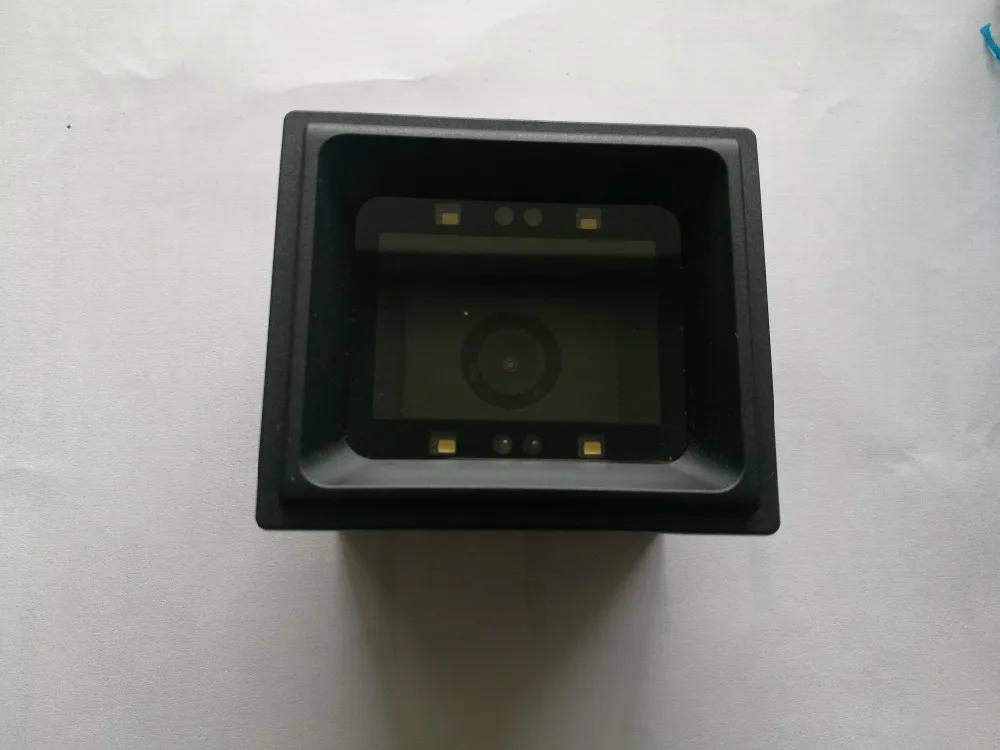

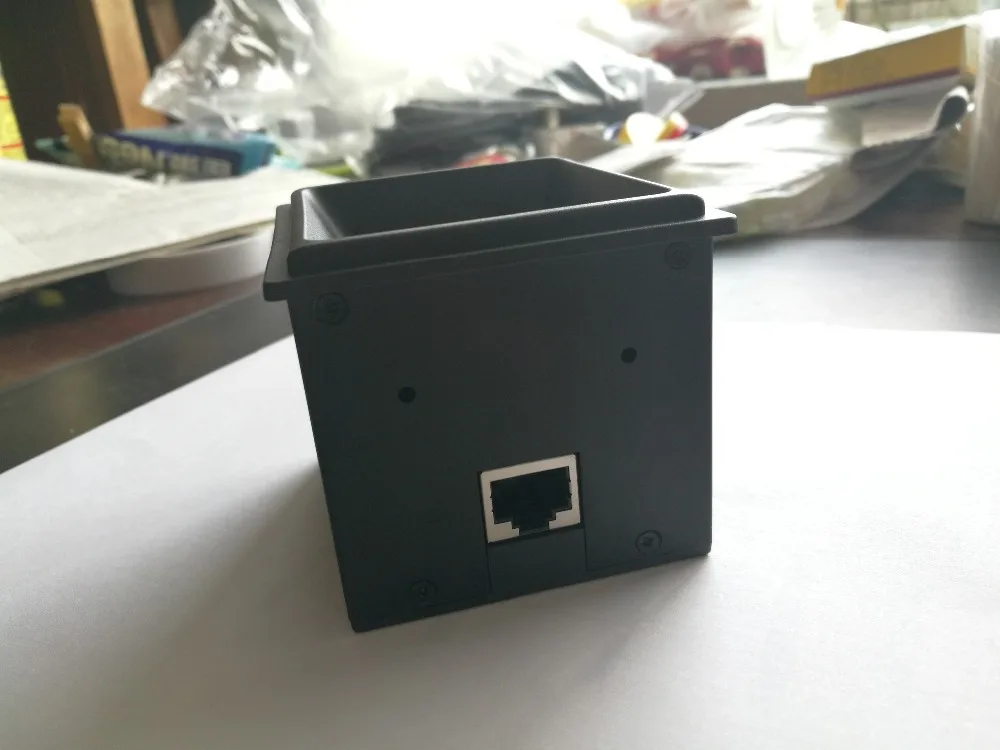

IR 2D fixed mount metal body housing barcode scanner module embeded kiosk for paper/mobile phone barcode,USB/RS232 on-screen barcode reader

Designed primarily for such applications as electronic tickets/coupons, mobile marketing and office automation, the SW-30FM fixed mount barcode scanner is able to read barcodes from paper and mobile phones.   Snappy On-screen Barcode Capture Armed with fifth-generation image technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.   Durable Metal Housing The scanner uses a durable metal housing, making it ideal for self-service applications.   Outstanding Power Efficiency The advanced  technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.   IR Trigger The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. markedly increasing throughput and productivity. High-capacity Barcode Reading Capability Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large amounts of data.   It boasts the following features: 1. Digital barcode data capture Capable of reading 1D and 2D barcodes off mobile phones.   2. Printed barcode data capture Capable of reading 1D and 2D barcodes printed on paper.   3. Swift scanning Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectances.   4. Easy to use Simple configuration by scanning the programming barcodes provided in the user guide.   Reading a Digital Barcode off Mobile Phone 1. Place the mobile phone screen close to the scan window and present the barcode to the center of the window, adjusting the distance between them within the range of 1cm-5cm. 2. For a successful read, the scanner will beep. After sending the data to the host, it will enter standby mode.   Reading a Barcode Printed on Paper 1. Place the paper close to the scan window and present the barcode to the center of the window, adjusting the distance between them within the range of 1cm-5cm. 2. For a successful read, the scanner will beep. After sending the data to the host, it will enter standby mode.

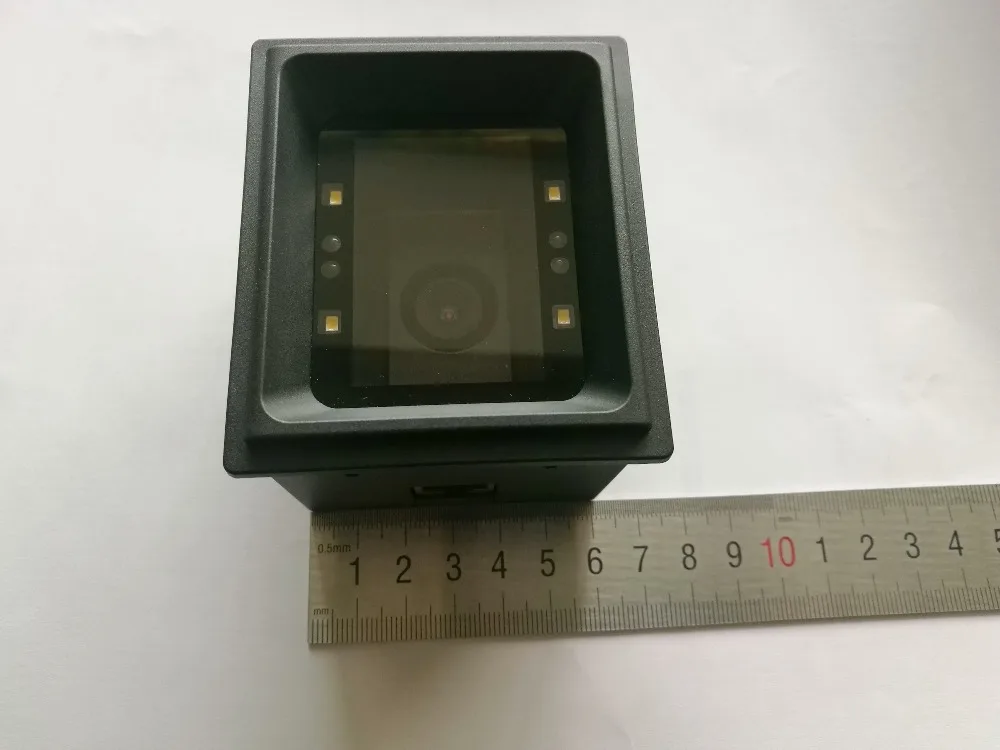

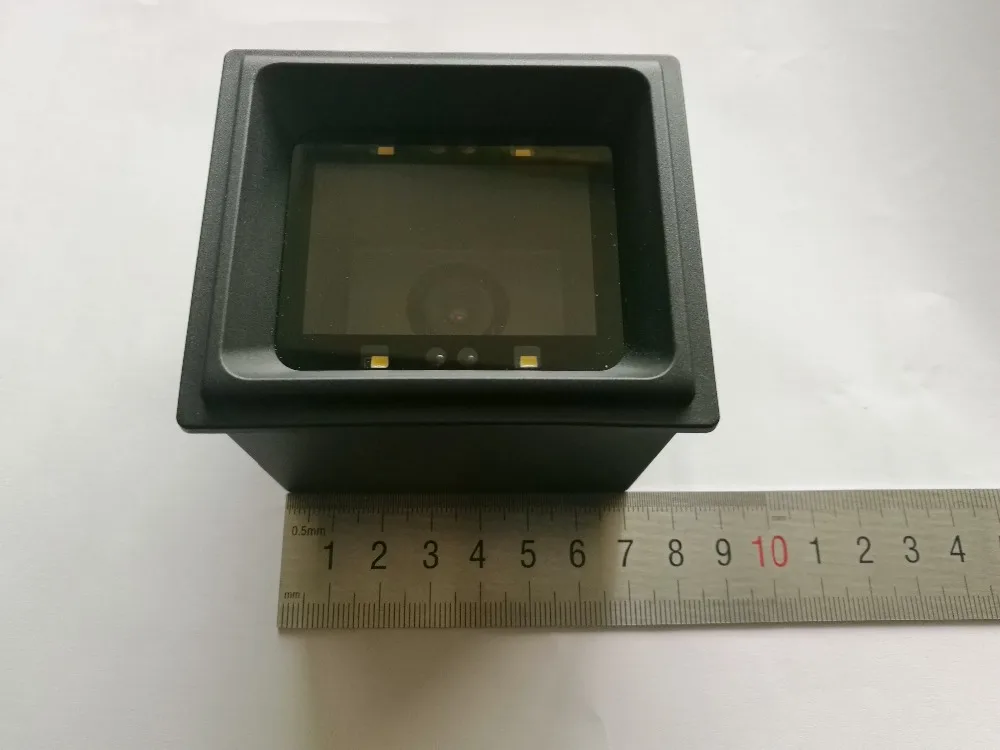

SW-3055FM SW-3050FM Performance Processor IOTC 0370 CHIP Image Sensor 752*480 CMOS Symbologies 2D: PDF417, Data Matrix, QR Code 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey Resolution ≥10mil Scan Mode Sense mode Light Source White LED Scan Window 31.5mm×46.5mm 38.3mm×60.4mm Symbol Contrast ≥30% Interface RS-232, USB FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° Physical/ Electric Dimensions (L×W×H) 78.2×67.2×52.3mm 78.2×67.2×62mm Weight 300g Notification Beep Max. Power Consumption 1.75W Environmental Operating Temperature -10℃~50℃ Storage Temperature -20℃~60℃ Humidity 5%~95% (non-condensing) Ambient Light 0 ~ 100,000 LUX Certifications   FCC Part15 Class B，CE EMC Class B Accessories Cable USB cable:   Used to connect the SW-30FM to a host device. RS-232 cable: Equipped with a power connector; used to connect the SW-30FM to a host device. Power Adapter Used to provide power for the SW-30FM. Output: DC5V, 1.5A; Input: AC100~240V, 50~60 Troubleshooting Problem  Solution   Does not respond to input.   Disconnect the power adapter and then reconnect it.   Scanned data is not displayed on the host. Ensure the scanner’s communication parameters (such as baud rate, interface)match the host’s settings.   Cannot read barcodes. 1. Follow the scanning instructions in this manual to scan barcode. 2. Ensure the barcode type is enabled. 3. Ensure the barcode is not defaced. Wrinkled, soiled or torn barcodes might       Application Scenarios Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.









---
