Introduction

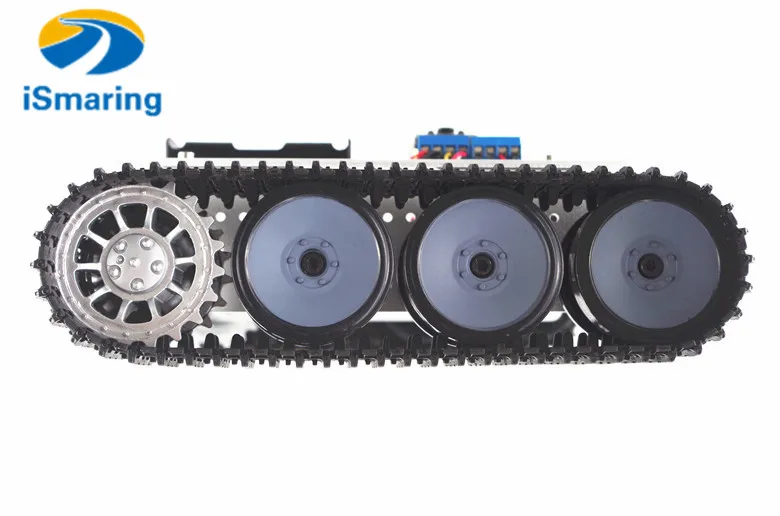

The tank chassis, delicate beauty, chassis support structure for newaluminium alloy, strong stability, double motor drive led led (carbon brushimport motor, all metal gear, hall speed sensor), strong, fast smooth, highstability, can be forward backward, turn left, turn right, turn circles,flexible characteristics of the fuselage intermediate obligate a steering gear installation,install the steering gear to provide convenient, the chassis is equipped withdouble platform, install batteries, control circuit and so on to provide enoughspace!

Features

• Aluminum alloy;
• Solid structure;
• Powerful force;
• Quickly, stability, flexibility;
• Novel and elegant appearance;
• Strong power;
• Name: Intelligent track car/tank chassis
• Material: aluminum alloy
• Wheel: engineering plastic
• Product size: about 200*190*85mm (length * width * height)
• Working voltage: 9V-12V
• Speed: 150rpm

Motor Parameters

• Name:25mm gear motor
• Output speed: 150±10%rpm
• No_load current: 200mA (Max)
• Stall current: 4500mA(max)
• Stall torque: 9.5kgNaN
• Rated speed: 100±10%rpm
• Rated torque: 3KG.CM
• Rated current: 1200mA (Max)
• Noise :56dB
• Working voltage: 9V
• Outside Shaft Length: 14.5mm
• Shaft End Play: 0.05-0.50mm
• Screw Size: M3.0
• Dia. Of Shaft phi 4mm, D3.5
• Encoder: 2pulses/circle

Shipping List

• TP200 chassis: 1set

NodeMCU kit: 1set
