DC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | Электроника



Сохраните в закладки:

Цена:US $31.38RUB
*Стоимость могла изменится

Количество:


Новое поступление

Shenzhen zita Electronic Co., Ltd.

Shenzhen zita Electronic Co., Ltd.

Магазина Shenzhen zita Electronic Co., Ltd. работает с 12.07.2012. его рейтинг составлет 92.38 баллов из 100. В избранное добавили 695 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 1956 наименований товаров, успешно доставлено 2946 заказов. 407 покупателей оставили отзывы о продавце.

Характеристики

DC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | Электроника

История изменения цены

*Текущая стоимость US $31.38 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Feb-18-2026 39.88 руб. 40.35 руб. 39.5 руб.
Jan-18-2026 32.3 руб. 33.8 руб. 32.5 руб.
Dec-18-2025 39.68 руб. 40.80 руб. 39.5 руб.
Nov-18-2025 38.65 руб. 39.8 руб. 38.5 руб.
Oct-18-2025 31.37 руб. 32.15 руб. 31.5 руб.
Sep-18-2025 38.35 руб. 39.79 руб. 38.5 руб.
Aug-18-2025 38.2 руб. 39.80 руб. 38.5 руб.
Jul-18-2025 37.31 руб. 38.86 руб. 37.5 руб.

Описание товара

DC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | ЭлектроникаDC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | ЭлектроникаDC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | ЭлектроникаDC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | ЭлектроникаDC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | ЭлектроникаDC 12V 18CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433.92 MHZ | Электроника


Specification

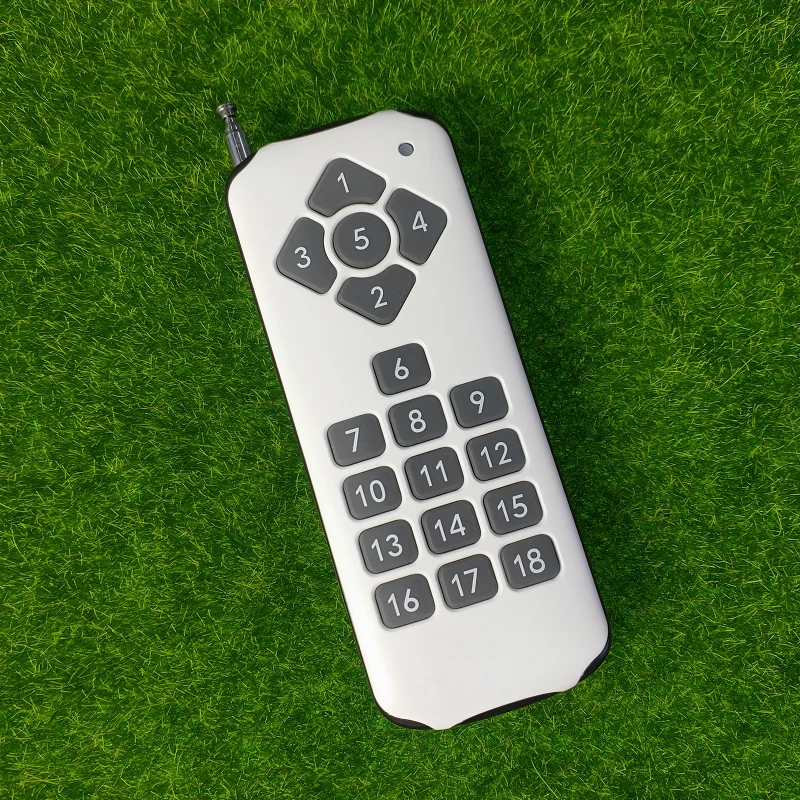

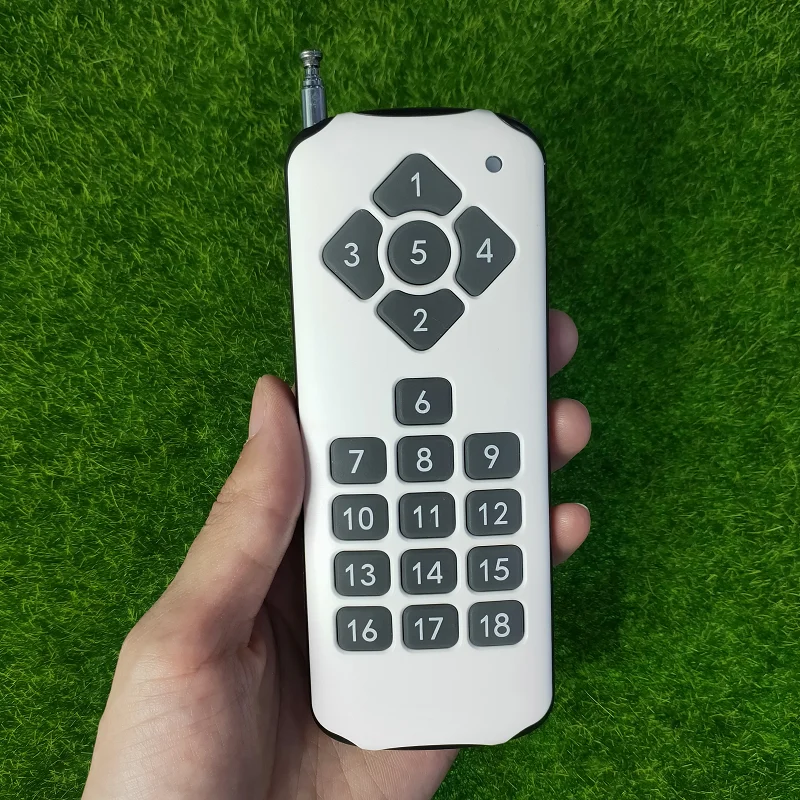

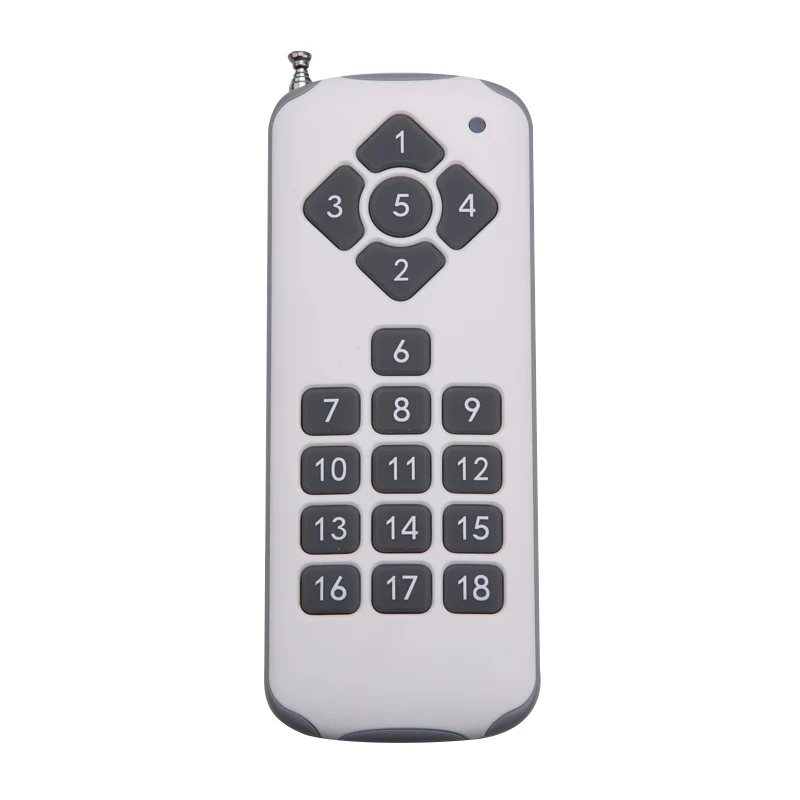

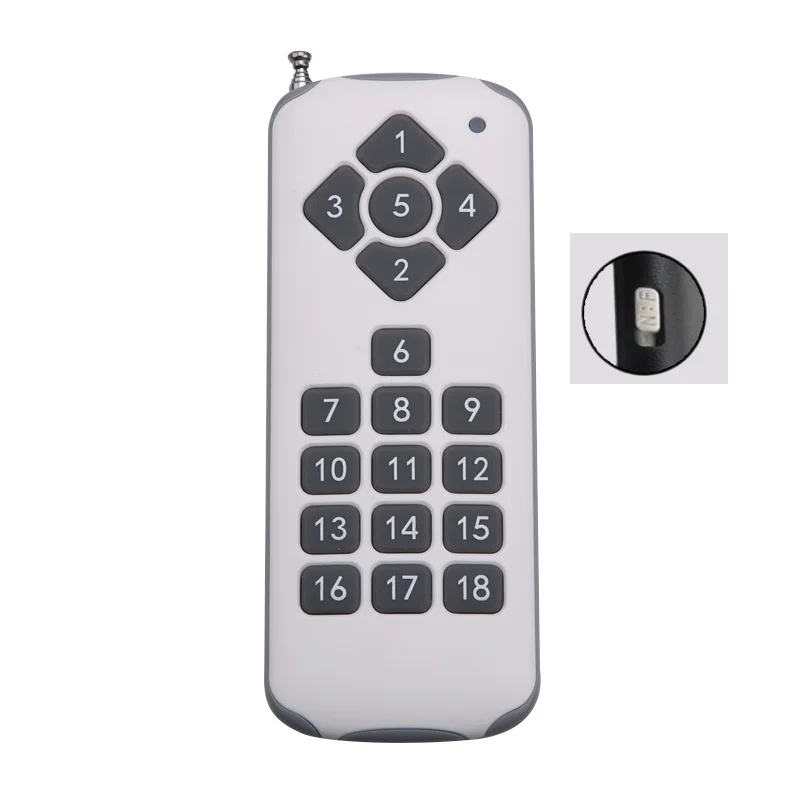

Remote Control:
Working Volt: DC12V
Working Current: 30-40mA
Frequency: 315~433MHz
Encoding Type: Learning code
remote with a white shell, behind the battery hatch to facilitate battery replacement
A number of buttons, this Wireless Remote Control Switch is very suitable for the kind of the occasion which need a little controls more, such as street light control
This Wireless Remote Switch has sand table remote control, data, wireless input, intelligent home control, and other comprehensive controls
This Wireless Switches fully uses the resources of 2262 chip, four parallel data yards
This Wireless Remote Control Switch has sand table remote control, data, wireless input, intelligent home control, and other comprehensive controls

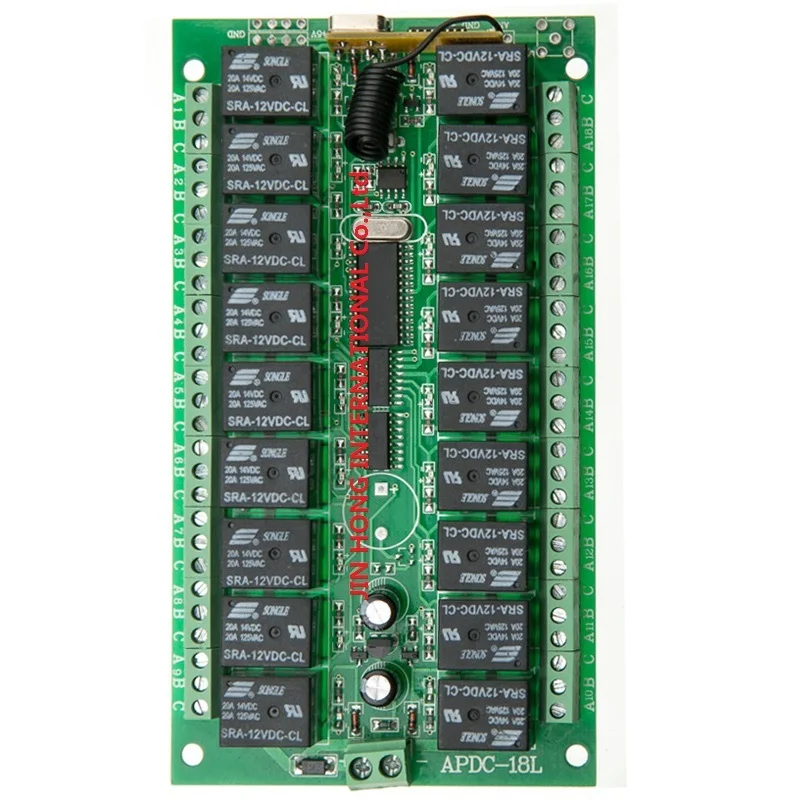

Control Switch System:

Operating Voltage: DC12V
Quiescent Current: 7 ~ 8MA
Operating Frequency: 315MHz (315 ~ 433MHz and other frequencies optional)
Receiver Sensitivity: -103dBm
Size:97mm*77mm*26mm
Output Status: Jog / interlock / self-locking

This Wireless Switches fully uses the resources of 2262 chip, four parallel data yards
This Wireless Remote Control Switch is very suitable for the kind of the occasion which needs a little control more, such as street light control

Output working way:
1. Self-lock ---connect the s1 with the cutting out cap.
2. Jog---the cutting-out cap is non-occupation, S1 and S2 do not connect either.
3.inter-lock---- Connect the S2 with the Cutting out cap,
Jog----  press one button is ON   . loosen your finger on the same button  is    OFF  .need one channel switch and one buttons remote control )

 buttons remote control
Learning and remove method.
1.             press the learning code .the indicator flash ,loosen your finger ,press any button of the remote  control ,the indicator flash 2 times and off .it mean you learn it successfully .
2.             it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3.          remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully .

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

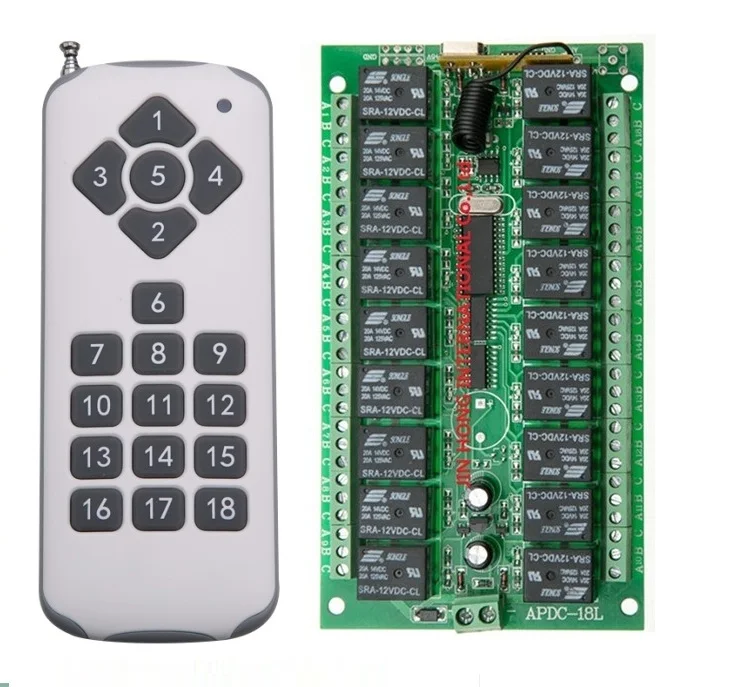

3.Package Included:
1 x Receiver

1x Transmitter

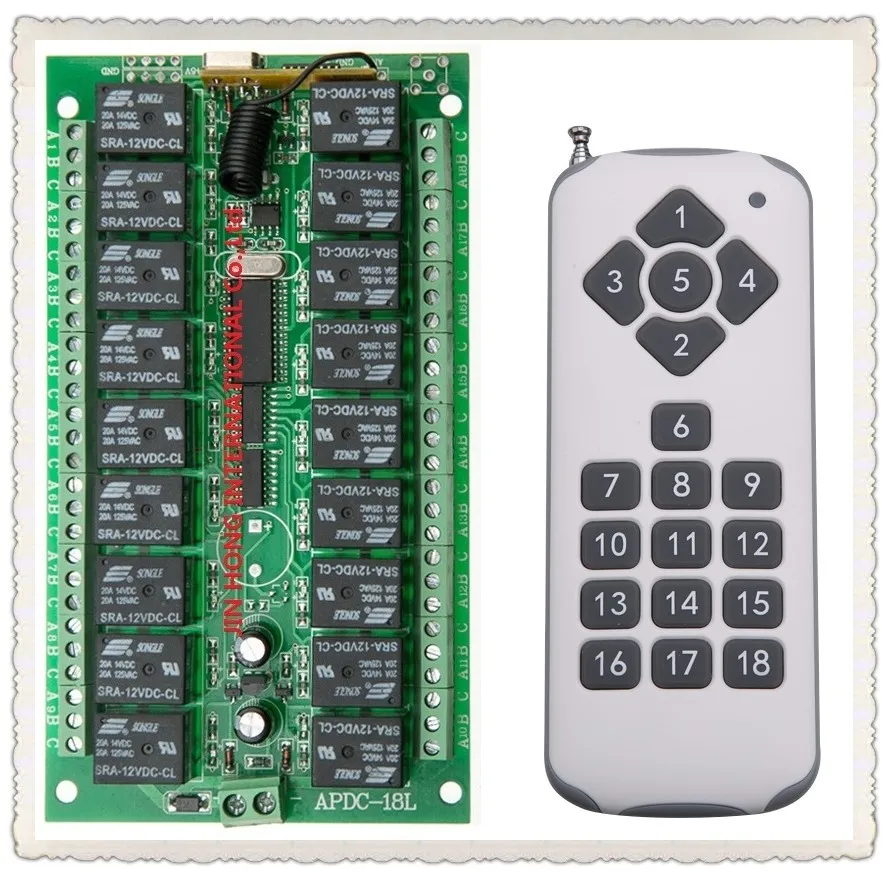

20151213-IMG_2568 -
