Description:
Brand Name:FlySky

FS-i6X Specifications:

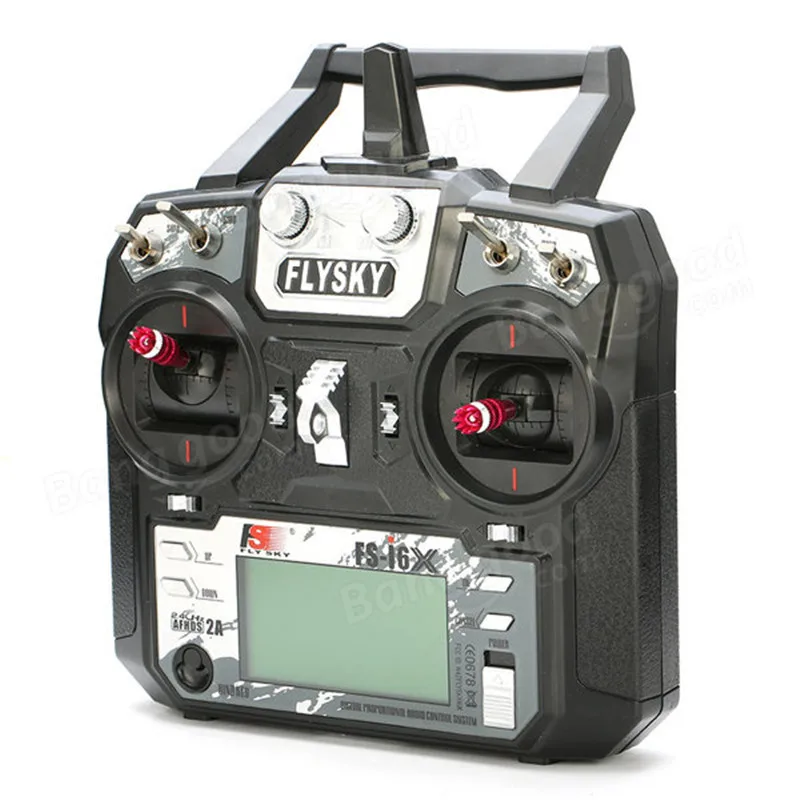

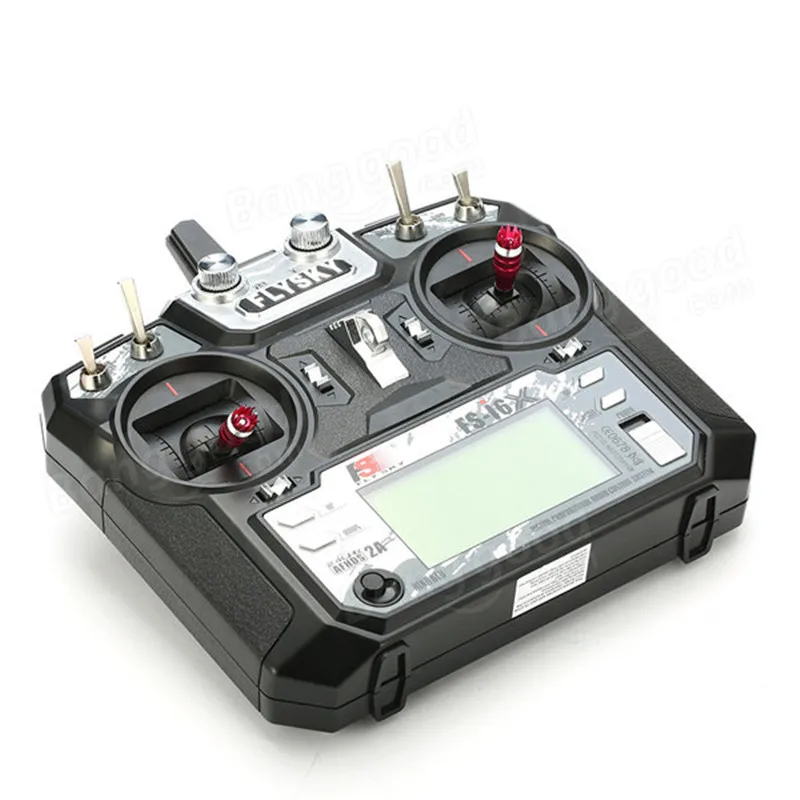

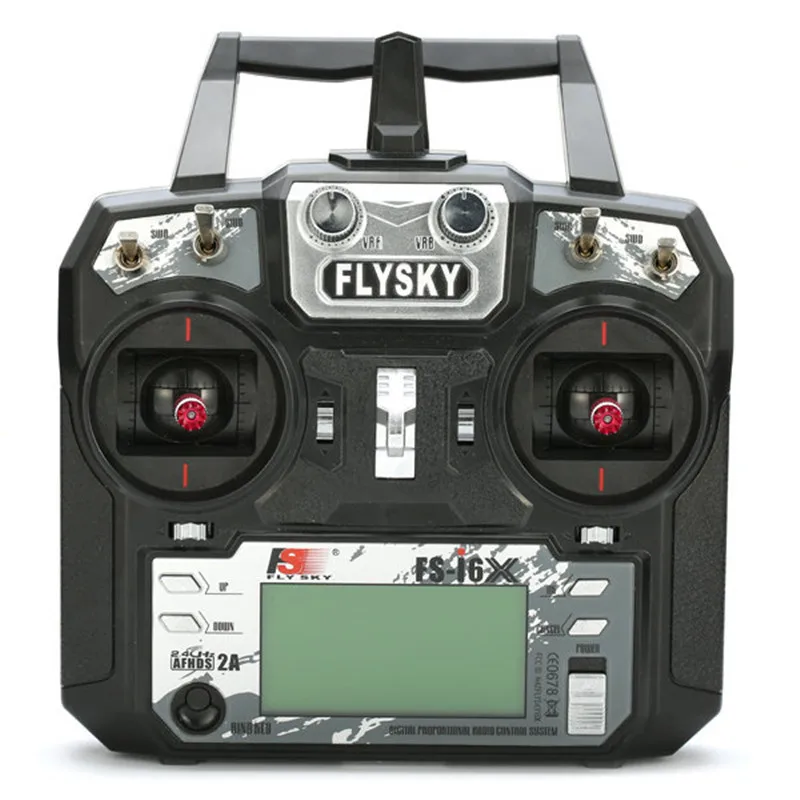

Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)Model Type: Fixed-Wing/Glider/HelicopterRF Range: 2.408-2.475GHzRF Power: < 20dBmRF Channel: 135Bandwidth: 500KHz2.4GHz System: AFHDS 2A / AFDHSModulation Type: GFSKStick Resolution 4096Low Voltage Warning: < 4.2VDSC port: PS/2 Port PPMChargeable: NoAntenna Length: 26mm (Dual Antenna)Weight: 392gPower: 6V DC 1.5AA*4Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlightSize: 174x89x190mmOn-line Update: YesColor: BlackCertificate: CE0678, FCC ID: N4ZFLYSKYI6X

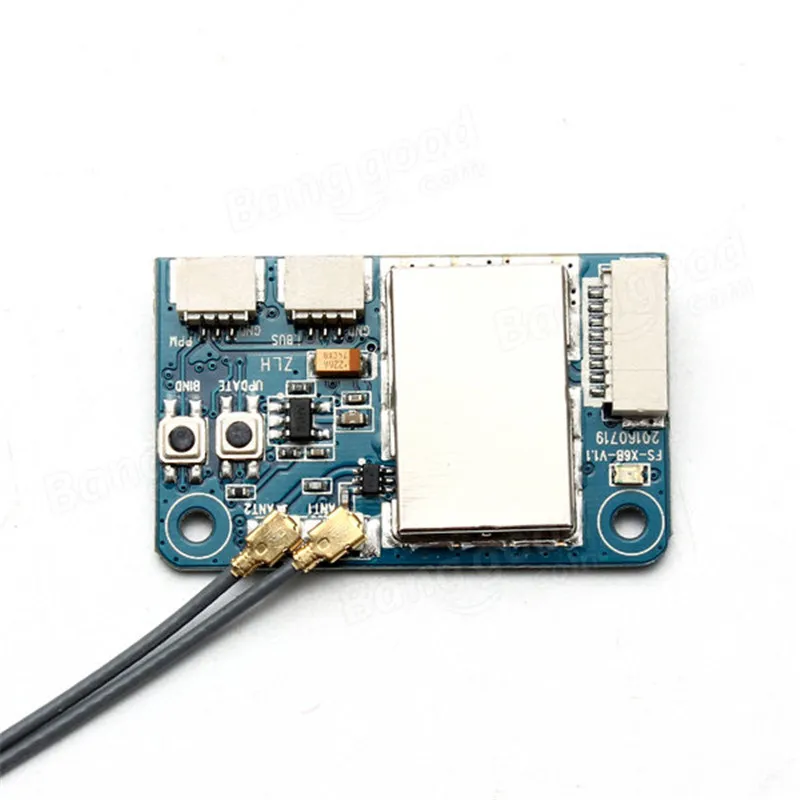

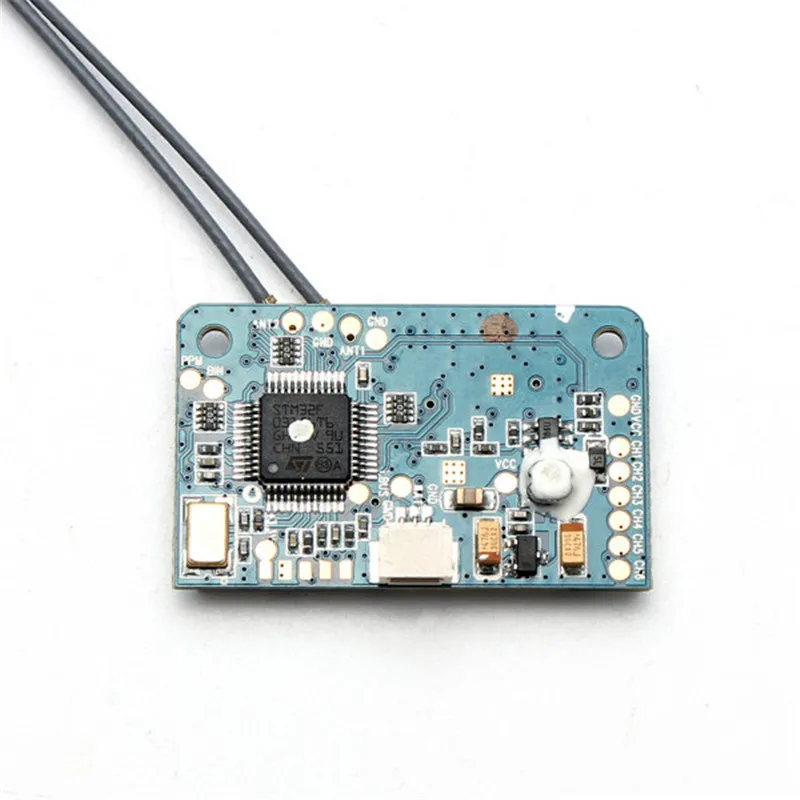

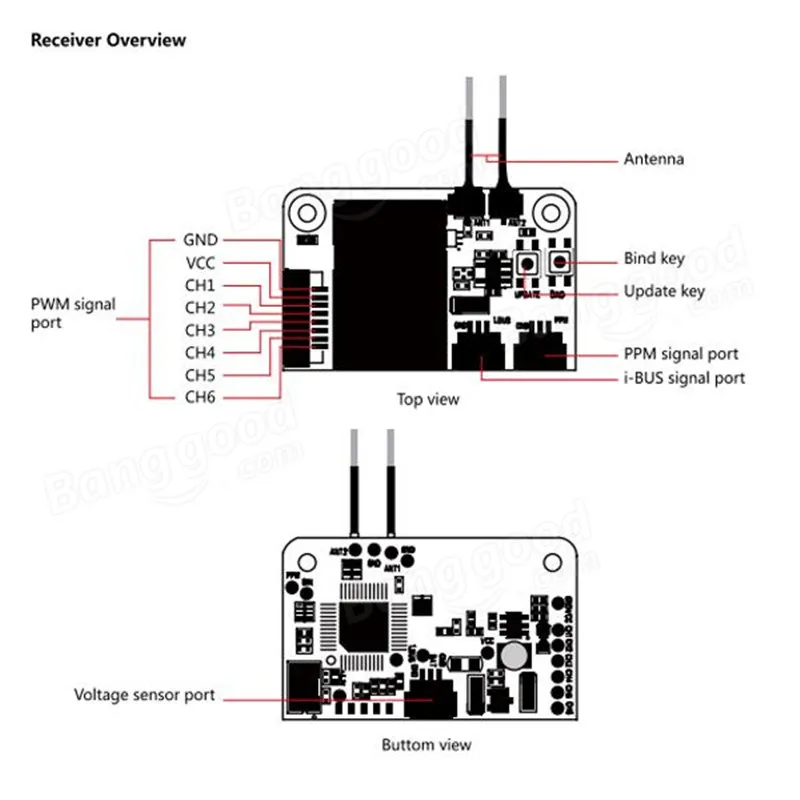

X6B i-BUS Specifications:
Brand Name: Flysky
Item: X6B i-BUS ReceiverChannels: 6(PWM), 8(PPM), 18(i-BUS)Model Type: Multi-TotorRF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135RF Power: No more than 20 dBmRX Sensitivity: -95dBm2.4GHz protocol: AFHDS 2AModulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)Power input: 4.0-8.4VOn-line Update: Yes(Wireless)
Range: >300mWeight: 4.5gSize: 36*22*7.5mmi-BUS Port: YesCertificate: CE0678, FCC ID: N4ZX6B00
  Features:The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today. Bidirectional CommunicationCapable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support. Multi-channel Hopping FrequencyThis system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters. Omni-directional Gain AntennaThe high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection. Unique ID Recgnition SystemEach transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation. Low Power ConsumptionThe system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
FS-i6X Transmitter User Manual, contact us
X6B i-BUS Receiver Manual, contact us

Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
1X Flysky Receiver(optional)
