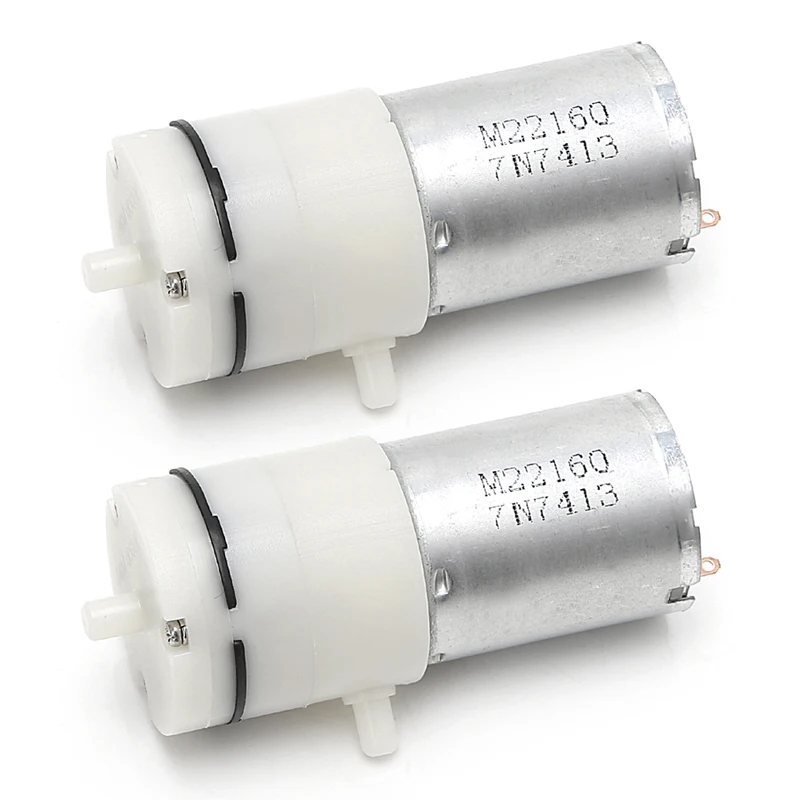

2x Mini Air Pump DC 3V-6V 5V 370 Motor Micro Vacuum For Aquarium Tank Oxygen | Обустройство дома
1 559,02 руб.
Безвоздушный распылитель краски полиуретановый эпоксидный защита от
Lutian Luba washer LT-16MA 16MB 17MA 17MB pump 3WZ-18060B plunger car wash machine industrial washing accessories | Обустройство дома
691,36 - 1 123,46 руб.
Lutian Luba washer LT-16MA 16MB 17MA 17MB pump 3WZ-18060B plunger car wash machine industrial washing accessories |
1 296,30 - 12 098,80 руб.
Lutian Luba washer LT-16MA 16MB 17MA 17MB pump 3WZ-18060B plunger car wash machine industrial washing accessories | Обустройство дома
864,20 - 1 728,40 руб.
PG-2815 13hp 4gpm 4000psi 15LPM gasoline engine driven washing plunger pump high pressure washer industrial cleaning machine |
91 778,04 руб.
Nanjing Runze Fluid Control Equipment Co. Store
Магазина Nanjing Runze Fluid Control Equipment Co. Store работает с 09.03.2017. его рейтинг составлет 94.29 баллов из 100. В избранное добавили 748 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 217 наименований товаров, успешно доставлено 478 заказов. 70 покупателей оставили отзывы о продавце.
Характеристики

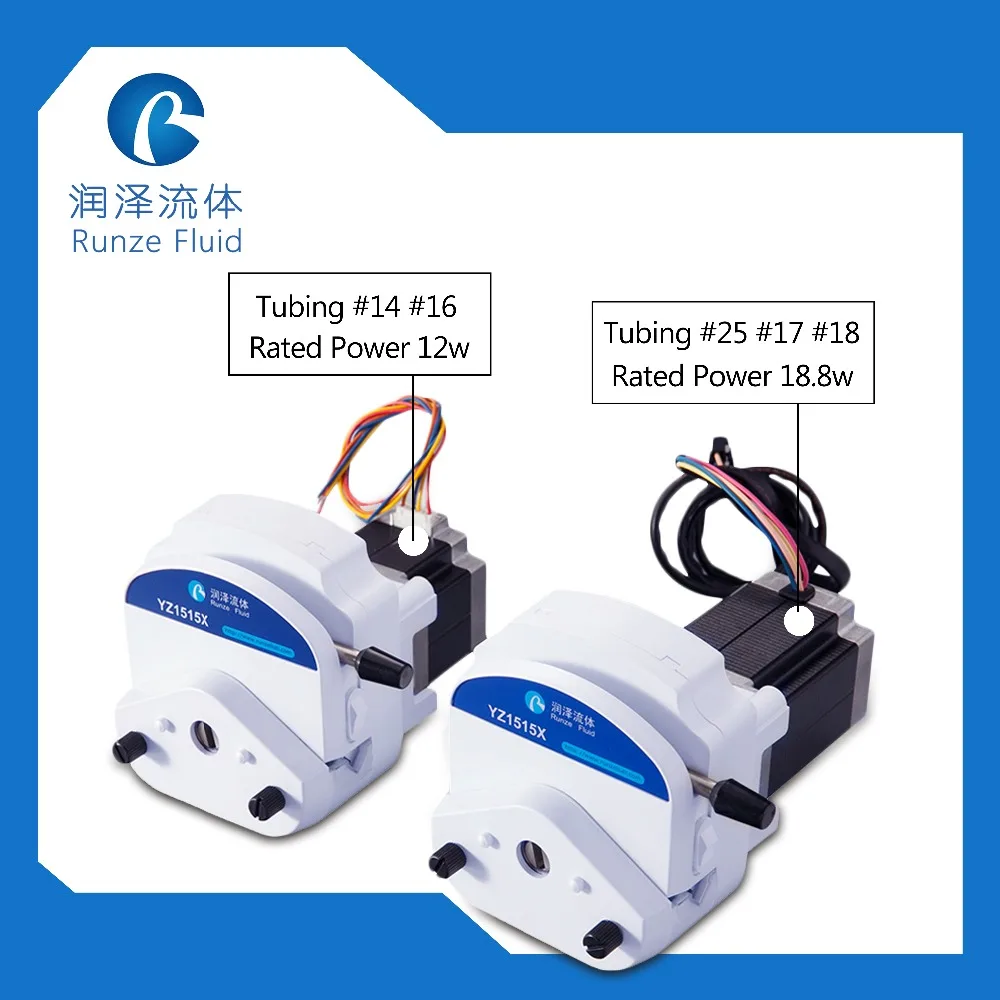

Easy Tubing YZ15 Peristaltic Pump Nema 23 Stepper Motor 24v Good Performance | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.29 руб. | 0.27 руб. | 0 руб. |
| Feb-18-2026 | 0.97 руб. | 0.85 руб. | 0 руб. |
| Jan-18-2026 | 0.89 руб. | 0.41 руб. | 0 руб. |
| Dec-18-2025 | 0.80 руб. | 0.21 руб. | 0 руб. |
| Nov-18-2025 | 0.2 руб. | 0.86 руб. | 0 руб. |
| Oct-18-2025 | 0.93 руб. | 0.3 руб. | 0 руб. |
| Sep-18-2025 | 0.79 руб. | 0.75 руб. | 0 руб. |
| Aug-18-2025 | 0.14 руб. | 0.2 руб. | 0 руб. |
| Jul-18-2025 | 0.43 руб. | 0.2 руб. | 0 руб. |
Описание товара
Technical Parameter
| Model No. |
BJ30-YZ1515X |
| Roller numbers |
3 rollers /6 rollers |
| Color |
White/Black |
| Roller material |
304 SST |
| Pump head material |
ABS |
| Motor type |
57 Step motor |

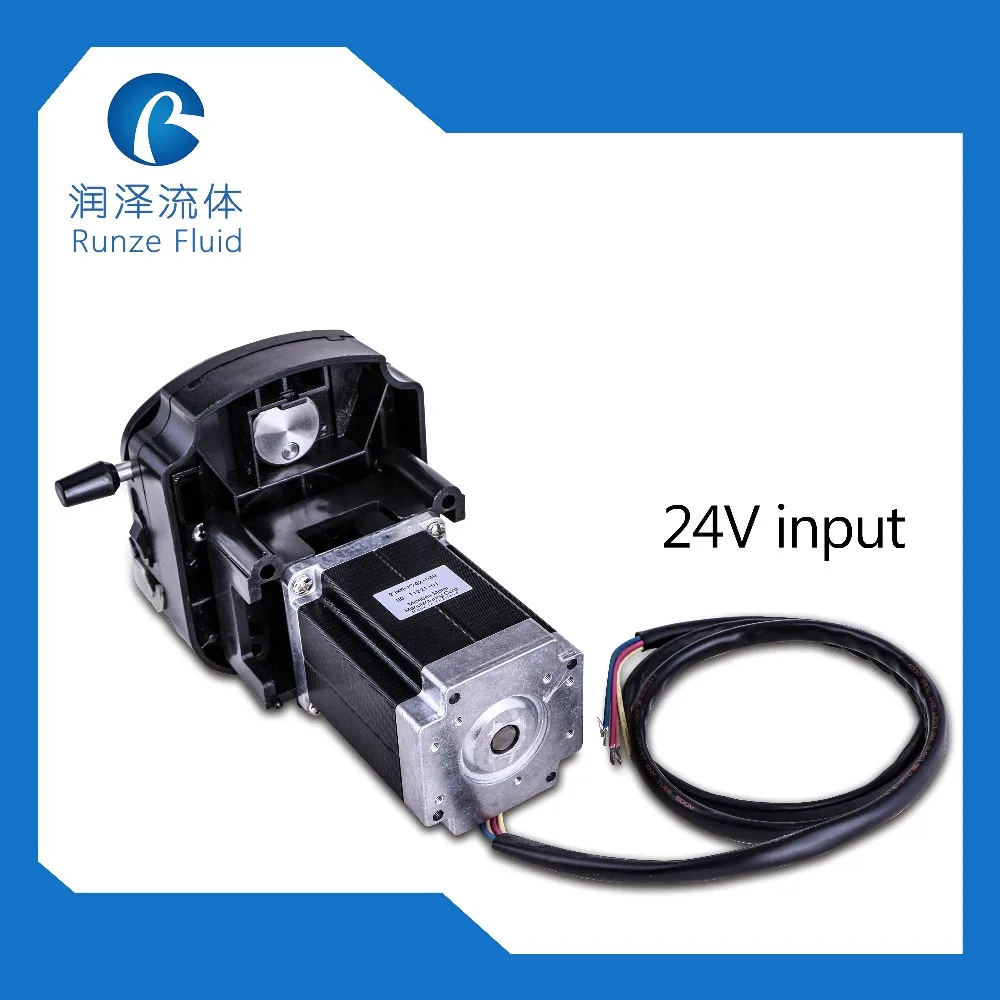

| Motor voltage |
24V input |
| Power supply |
AC100-240V |
| Rated current |
2.3A |
| Rated power |
12W (small motor) 18.8W (big motor) |
| Speed |
0-500rpm |
| Flow rate |
0-1921ml/min |
| Tubing |
Silicon/Rubber/Viton |
| Working temp. |
0-40℃ |
| Working humidity |
<80% |
| Max DB |
70db |
| Weight |
1525g (3 roller) 1585g (6 roller) |

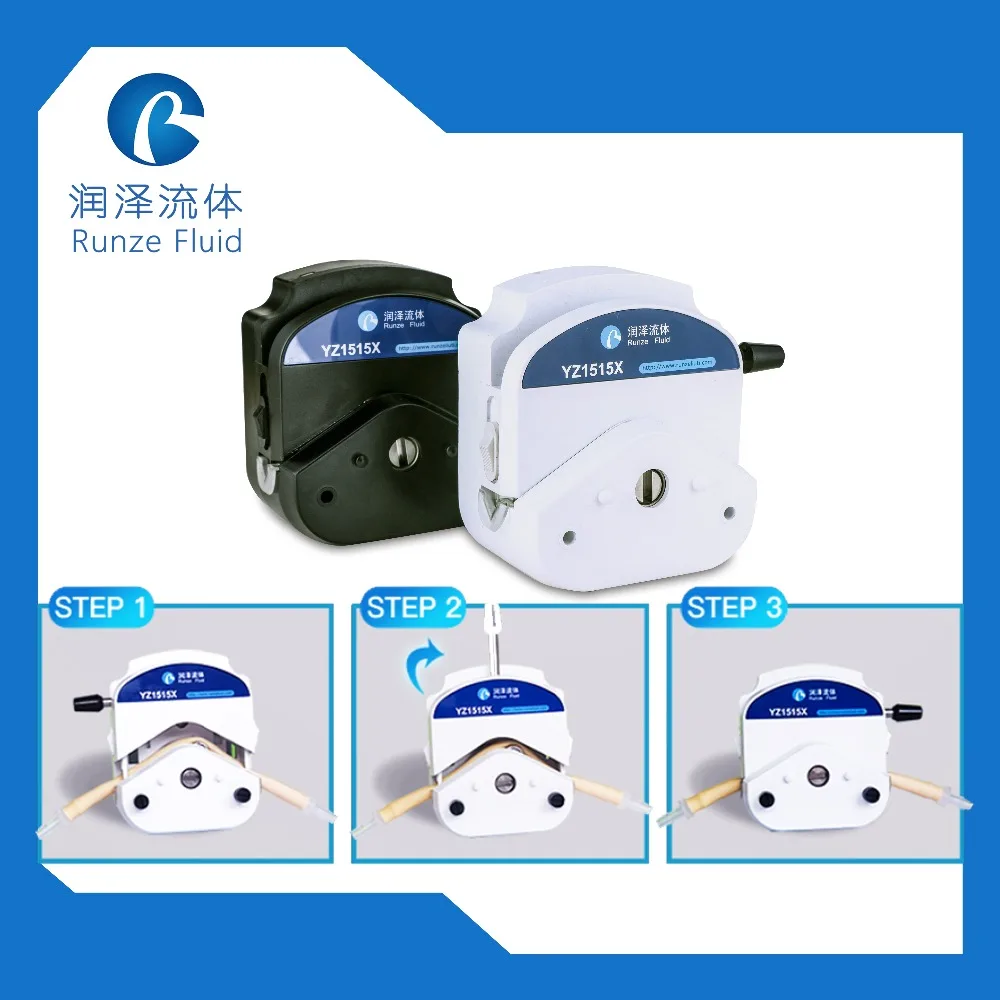

| Tubing Installation Way |
1. 20cm pump tube+2pcs straight connectors+ external tube (length as your application needs) |
| 2. 1 whole piece pump tube (length as your application needs) |
Motor Parameter
| Name |
57 big motor |
57 small motor |
| Max power |
18.8W |
12W |
| Step angle |
1.8° |
1.8° |
| Phase |
2 |
2 |
| Phase voltage |
4.0V |
2.6V |
| Phase current |
2.35A |
2.3A |
| Resistance |
1.7Ω ±1.7 |
1.15Ω ±0.17 |
| Inductance |
7mH REF |
1.85mH REF |
| Insulation |
100mΩ MIN |
100mΩ MIN |
| Temp. upper limit |
80℃MAX |
80℃MAX |
| Explosion-proof level |
B |
B |
BJ30-YZ1515X Flow Rate Table
| Tubing |
Speed (rpm) |
Tube size (ID*WT: mm) |
3 roller Flow rate (ml/min) |
6 roller Flow rate (ml/min) |
|
Rubber tube |
0-500rpm |
1.6*1.6 |
0-113 |
0-88 |
| 3.2*1.6 |
0-462 |
0-347 |
||
| 4.8*1.6 |
0-966 |
0-612 |
||
| 6.4*1.6 |
0-1447 |
0-804 |
||
| 8.0*1.6 |
0-1887 |
0-1332 |
||
|
Silicon tube |
1.6*1.6 |
0-117 |
0-92 |
|
| 3.2*1.6 |
0-491 |
0-375 |
||
| 4.8*1.6 |
0-1020 |
0-652 |
||
| 6.4*1.6 |
0-1494 |
0-848 |
||
| 8.0*1.6 |
0-1921 |
0-1426 |
Application Note:
1. These data are generated under room temperature without extra pressure, test media is water. Your results may vary depending on variables such as the solvent used, the material of tubing, temperature, pressure, humidity, voltage etc.
2. BJ30-YZ1515X peristaltic pump is suitable for liquid viscosity like water or weak viscosity liquid.
3. BJ30-YZ1515X peristaltic pump is suitable for corrosive or non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.
4. We will standard equip 20cm rubber tube and 2 pieces straight connectors for each pump for your order, if you need more tubes and connectors for spare use, please order them in our shop.
5. 1 piece stepper motor wireline will be standard equipped for each pump for your order.

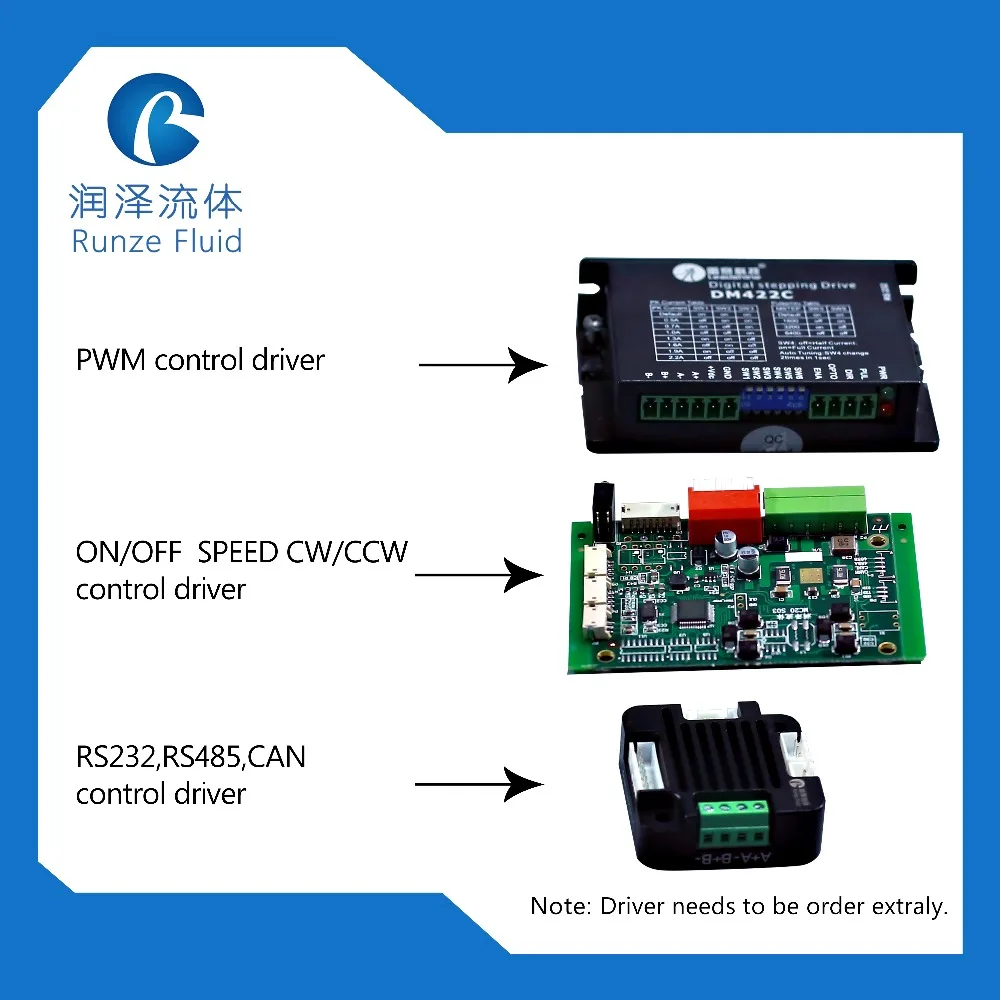

6. BJ30-YZ1515X peristaltic pump can be controlled by ON/OFF SPEED CW/CCW control, PWM control, RS232/RS485/CAN communication control, you can find corresponding driver in our shop.
7. The stepper motor of BJ30-YZ1515X peristaltic pump was MINEBEA imported from Japan with high reliability, if you need the manual of motor, please contact our customer service.

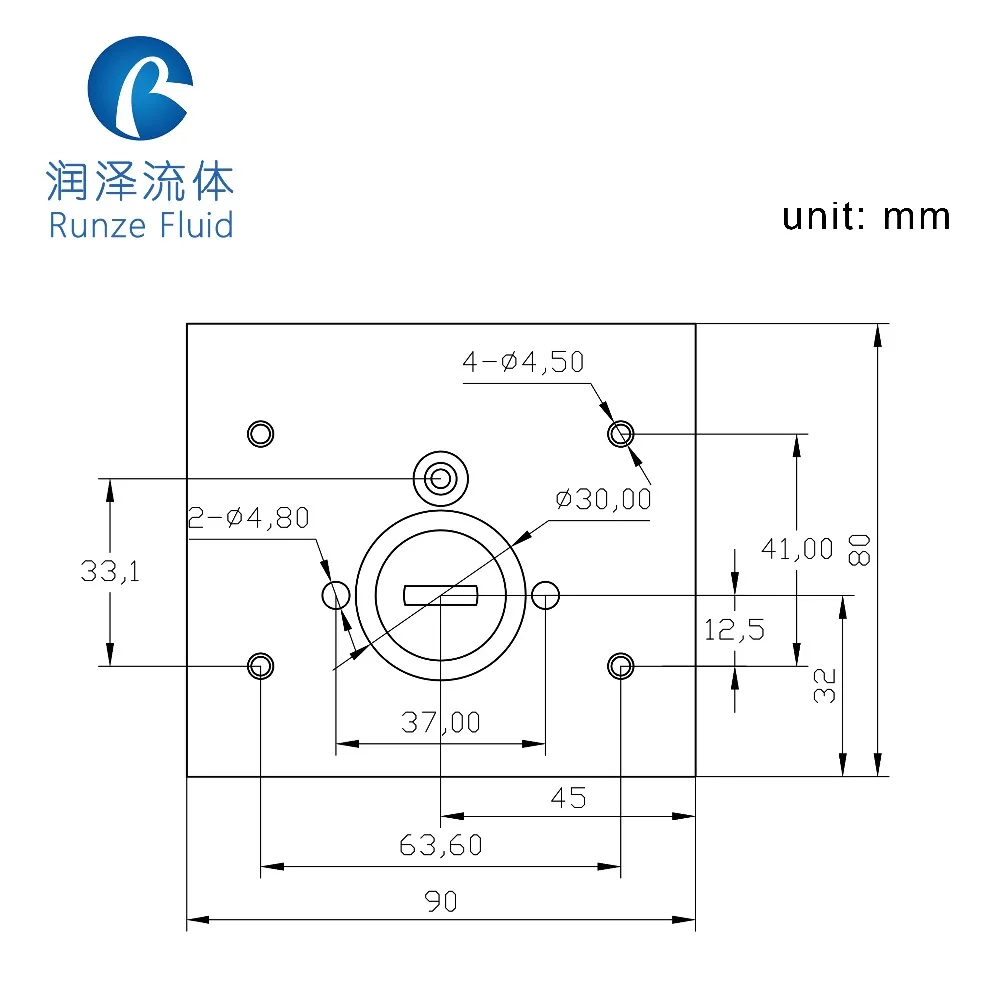

8. Dimension and installation sizes are within the 6 main showing pictures, please check them there.
