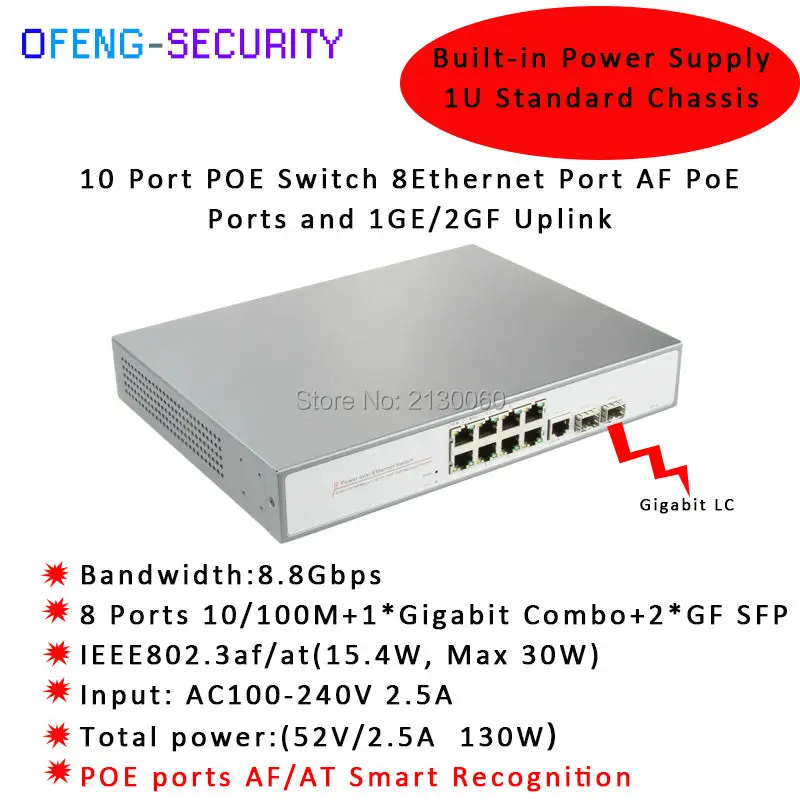

8x 100M ports+1x gigabit optical electronic multiplexing port+1x gigabit optical port PoE switch, among which port 1 to port 8 supports POE, IEEE 802.3af international standard, each port power is 15.4W, the whole power is 130W

Power Pin Assignment: Default PoE power type is end-span(12, 36 line pair), mid-span(45, 78 line pair) optional

Introduction

This switch provides a network point for power supply and data transmission. All the 8 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 8.8Gbps fiber interface, among which 1-8 ports can provide standard IEEE 802.3af power supply. Due the advanced self-sensing algorithm supply power for IEEE802.3af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected. In short, The Poe Switch features simple and reliable design, automatic identification PoE requirements, duplex and high-speed.

This cost-effective this POE Switch provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

Features

• Supply power to 5 classes Ethernet wireless access points AP and network IP surveillance cameras
• Port 1 to Port 8 support standard IEEE802.3af power(each port maximum power is 15.4W)
• 8x 10/100 Mbps automatic adjustment RJ45 ports, 1x gigabit optical electronic hybrid port + 1x gigabit optical port
• Compatible with IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x Flow Control; IEEE 802.1af standard
•  Flow Control: full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
• Port features with auto-flip(Auto MDI/MDIX)
• Network port comes with lighting-proof  (AC power port: difference module +/-2kV, common module +/-4kV)
• Maximum PoE Power: 130W(all PoE ports, port 1 to port 8
• Adopts store-and-forward architecture
• All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
• Wall mounted design, easy to instal
• Automatic adjustment, plug and play, no need software and protocol conversion

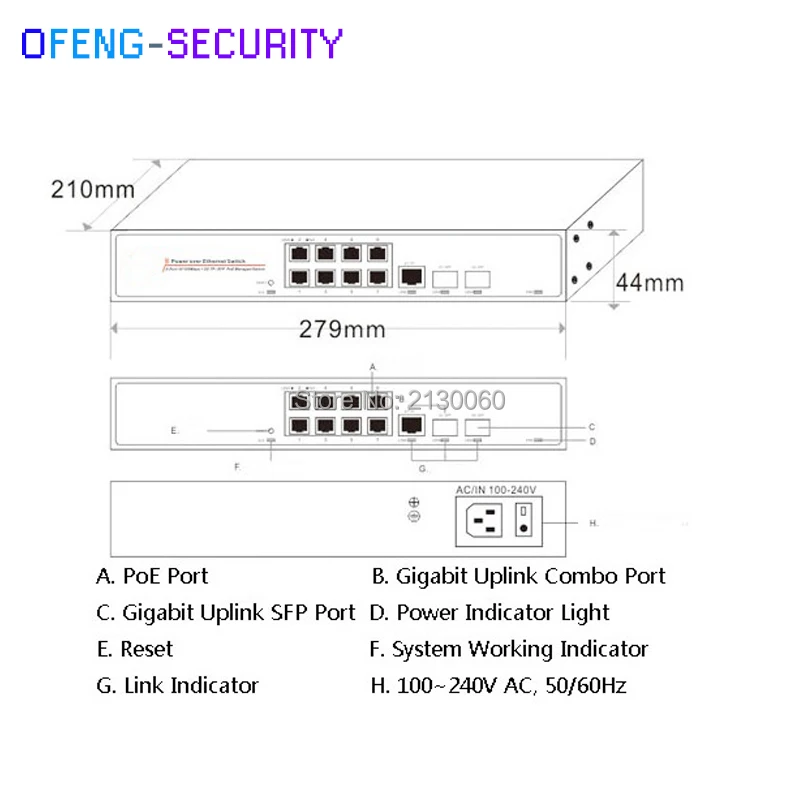

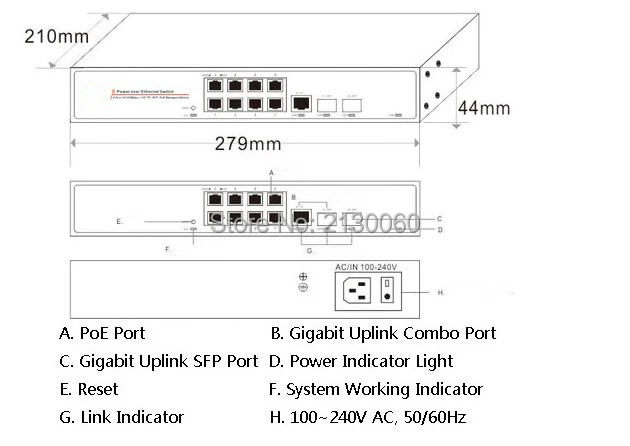

Dimension

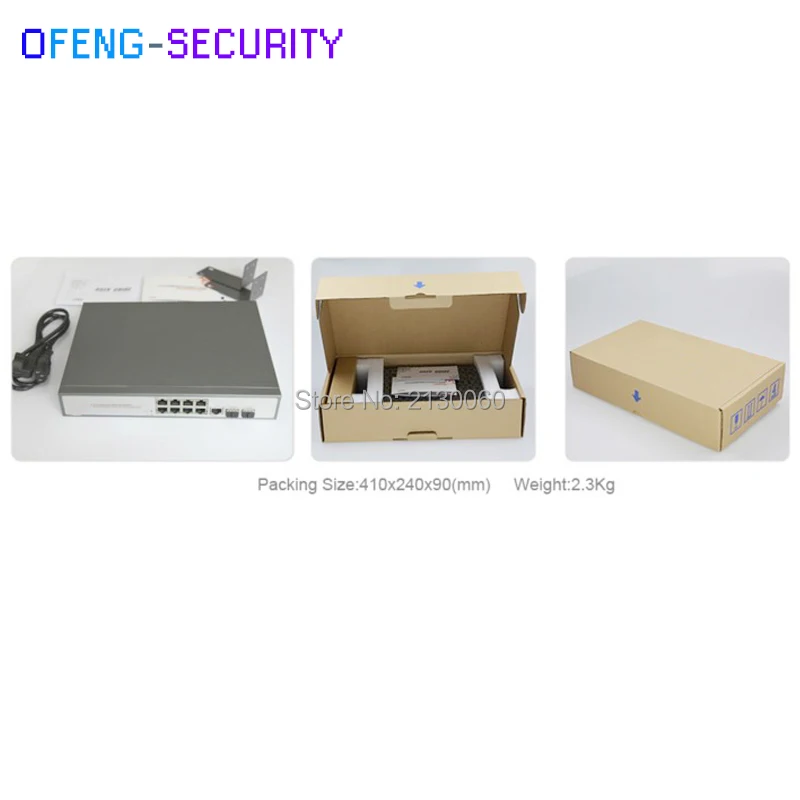

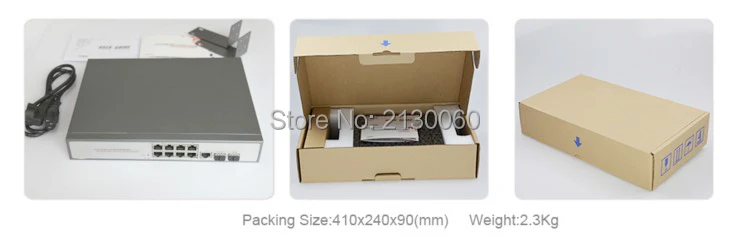

Package
