CCDCAM Onvif 4 megapixel mini high traffic speed dome cctv ptz ip camera | Безопасность и защита

---

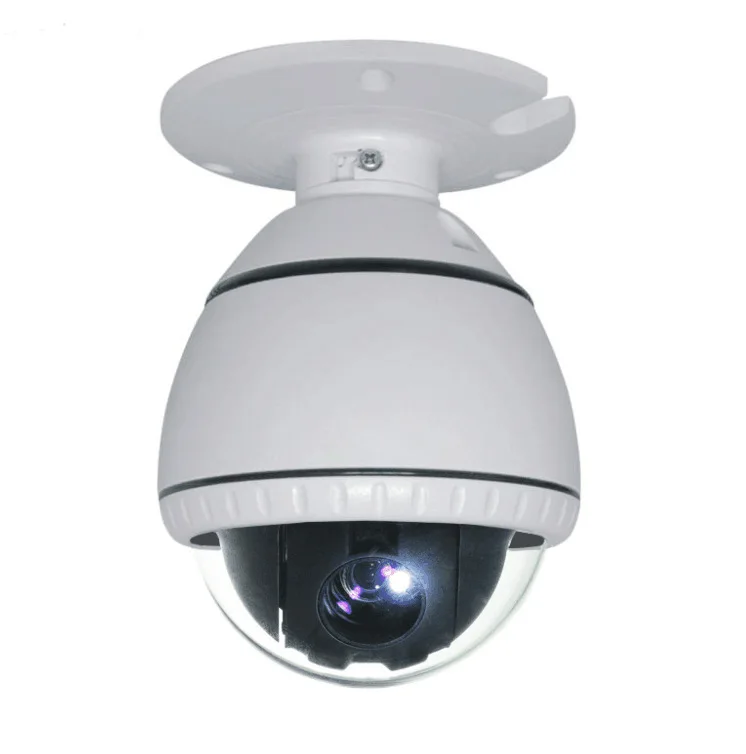

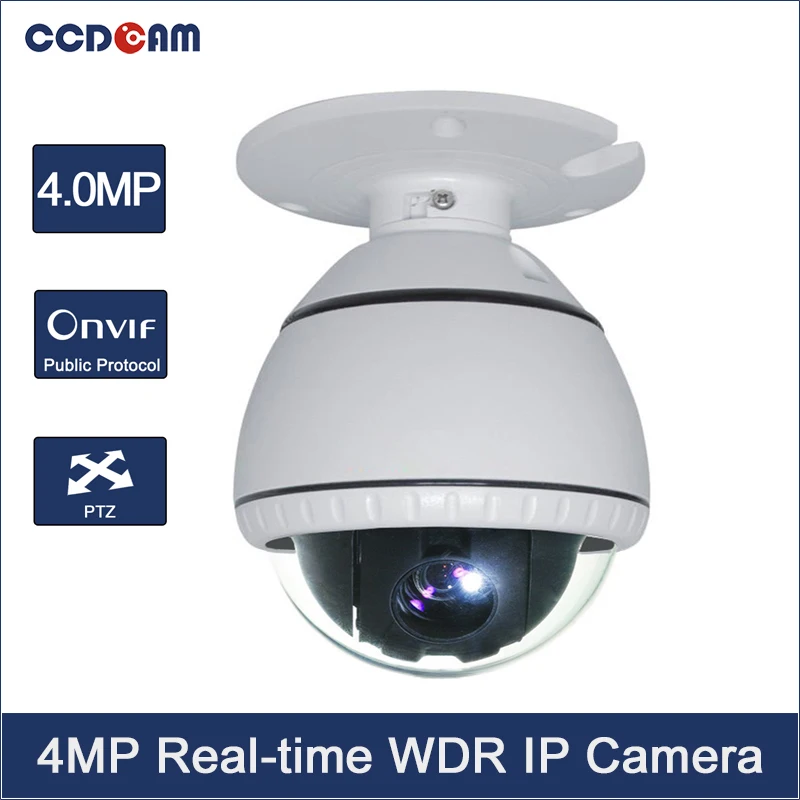

4 INCH Mini High Speed Dome IP Camera

8mm 3MP fixed Lens

Low Bitrate H.264, ONVIF

WDR,Low LUX
4MP(2560x1440),25/30fps,
3MP(2304x1296),50/60fps,
2MP(1920x1080)*60fps,
Multiple network monitoring: Web viewer, CMS@DMSS
Continuous 360°pan turning,
90° tilt turning.
Variable tilt speed-between0.01-200°/sec,
Variable pan speed-between0.01-300°/sec,
256 presets, 5 tour routes

Model		EC-IP6418
Camera Type		4 INCH IR Mini 4MP High Speed Dome IP Camera
Camera	Image Sensor	1/3 COMS
	Effective Pixels	2688(H)x1512(V)
	Day/Night	Auto(ICR) / Color / B/W
	Min.Illumination	Color(0.001 Lux/F1.2), B/W(0 Lux/F1.2,,IR On)
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Foucus length	8mm 3MP fixed Lens
Compression	CompressionStandard	H.264 Main Profile/High Profile 5.1
	Video Frames	Real-time PAL/NTSC 4MP@1~30FPS 2MP@1~60FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Resolution	Main Stream: 2688×1512 30fps(4MP), 2304×1296 40fps(3MP),1920×1080(2MP) 60fps
		Sub Stream:704×576,640×360,352×288,320×180(1-60fps)
Network	Parameter Settings	WEB configure and OSD supported, Real time recording, Transmissionand
		playback, Download;Motion detection
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Heartbeat, Password protection
	Protocol	Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ UPNP
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording, Sensortrigger
		alarm functions
Interface	Video Output	RJ45
	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Speed Dome	Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°
	Manual ControlSpeed	Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
	Preset Speed	Pan: 240° /s; Tilt: 200° /s
	PTZ Mode	5 tour routes,Two lines sweep
	Speed Setup	Human-oriented focal length/ speed adaptation
	Preset	256
	Auto Flip	Support
	Power off memory	Power off memory function, auto wakeup tour function
Other	Work Environment	-10°C- +60°C;≤95%
	Waterproof Criterion	IP66
	Power Supply	DC 12V
	Package Size	21x21x21cm
	Net Weight	2.0kg

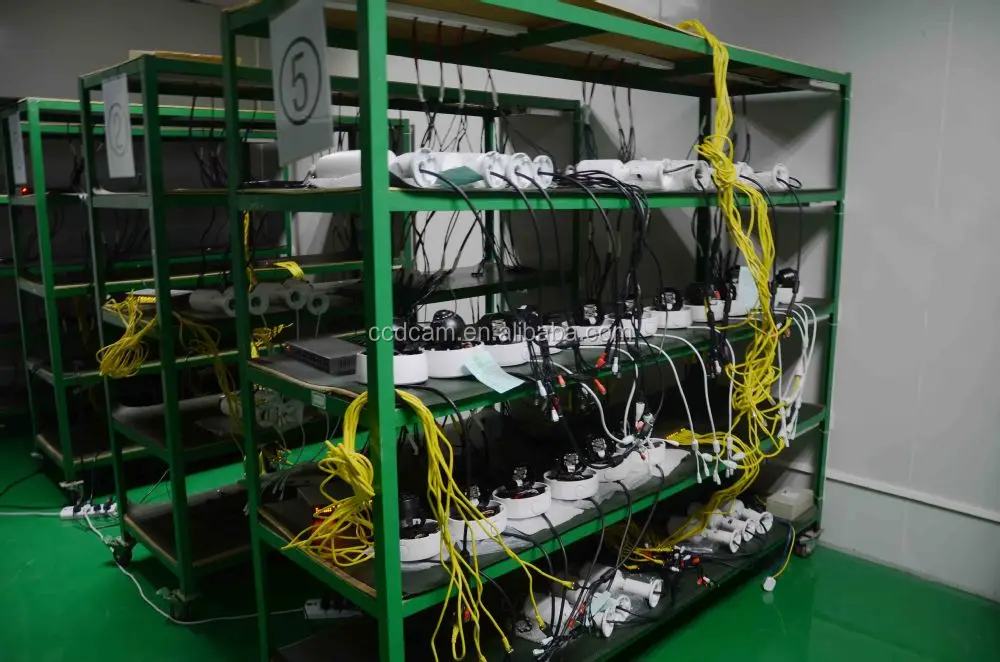

Our Aging Test:

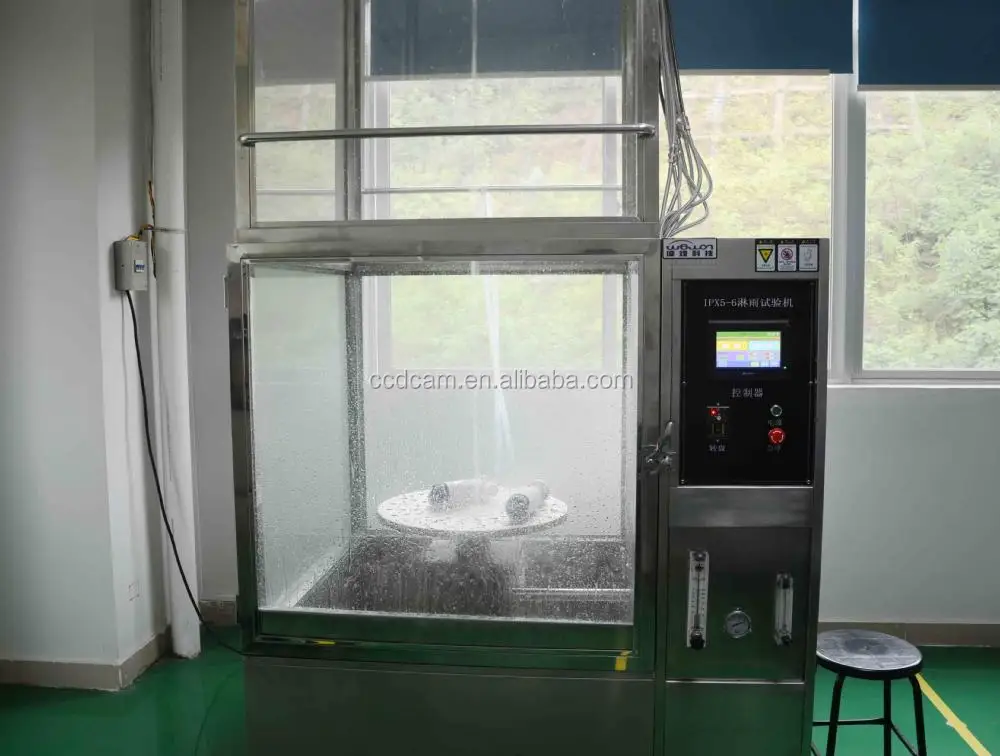

And Our Waterproof Test:
