AC22OV Receiver board is an excellent product. Its size is mini. Seldom AC Receiver board can be such small. Although it is small, however its performance is perfect than bigger common capacitors Receiver board. It uses film cap is much safer than common capacitors. Film cap is unlike common capacitors, after the external power supply is disconnected the charge  power will remain for a long time , if you touch it will get an electric shock, film cap will not has this kind problem. Although the film cap become invalid .it will not lead to electric shock, and will not endanger the personal safety.

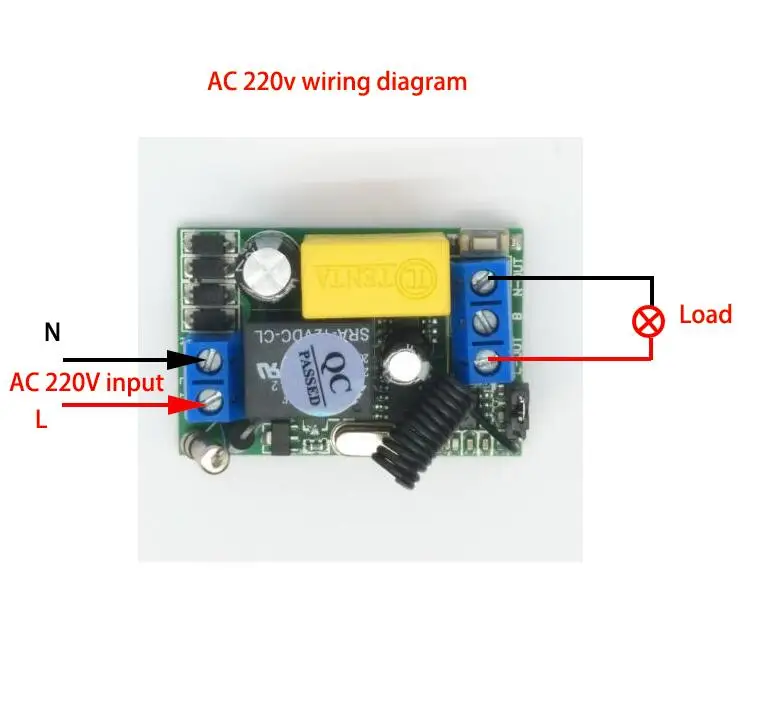

1. Working Voltage: AC220V    (Input AC220V Output AC220V)

2.Max Current: 10A (have better lower than 7A )

3.Channel: 1CH

4.Working Frequency : 315MHZ/433MZH(Frequency is optional, if there is no information, will  sent  315 MHZ)

5.Receiver sensitivity: : -105Db

6.Working temperature : -10'C - +60'C

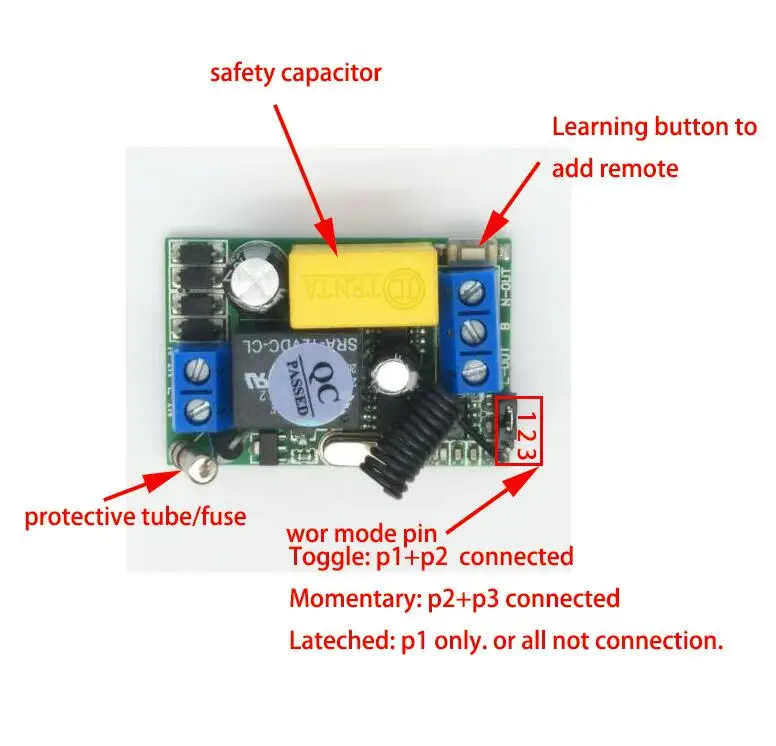

7.Output way : Momentary. Toggle .Latched Adjustable

8.Code type: Learning code Add Controller by the Learning Button on the receiver

Transmitting Distance: 10-200m

working/output way:

Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control

Learning Method:

Keeping press the learning button ,the LED indicator flash fast then press the transmitter button , until the LED indicator stop to flash  fast ,it mean learning successfully

Remove code:

Keeping press the Learning Button on the receiver until the LED indicator flash fast until it flash slow 2 times .it mean the  code have cleared successfully

Pay attention   the remote control only 315 MHZ

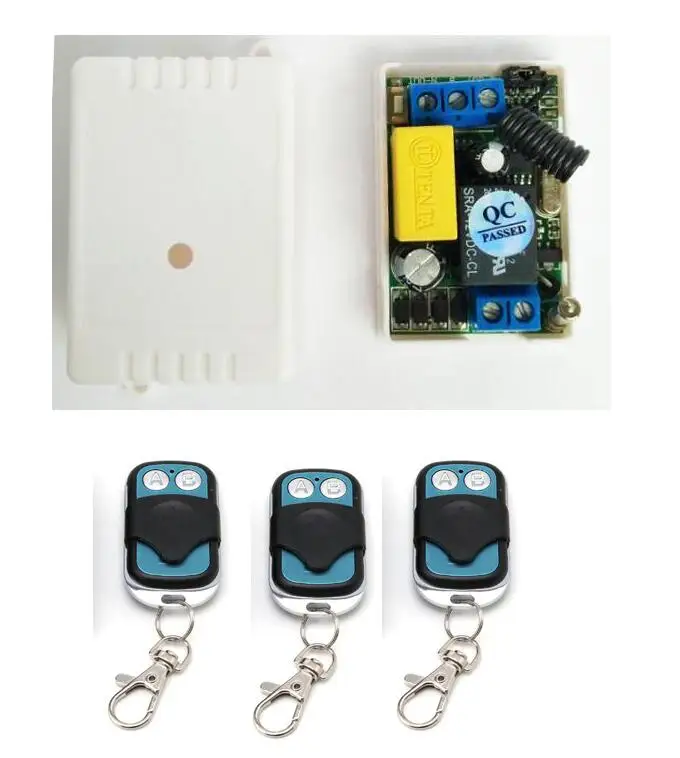

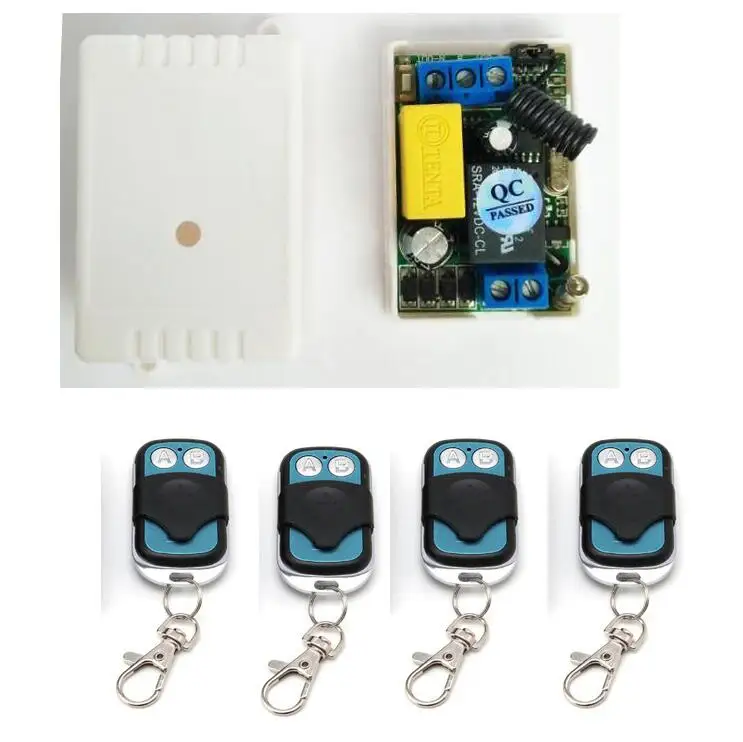

package include:

1 OR 2* Transmitter

1* Receiver
