Advantage:

   This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability.

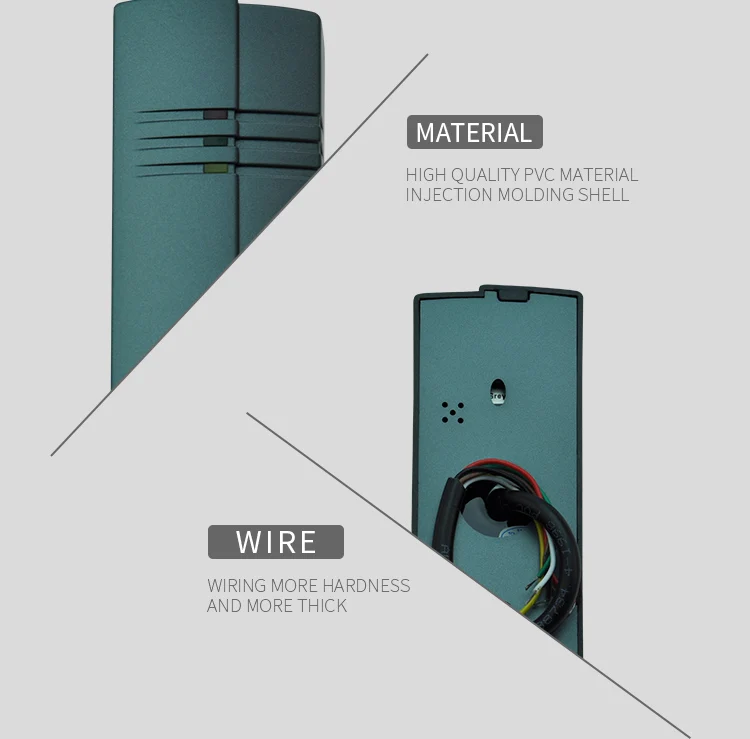

Material:ABS+Epoxy

Size: 122x48x23mm

Voltage:DC12V

Static Current:less than 50mA

Color:gray

Reading Distance:EM ID Card 6~10 cm

Waterproof:IP67

Frequency:125KHz

Interface:Weigand26/34

Communication Distance:100M

Temperature:-25℃~85℃

Reader speed :less than 0.2sec

Humidity :10%~90%

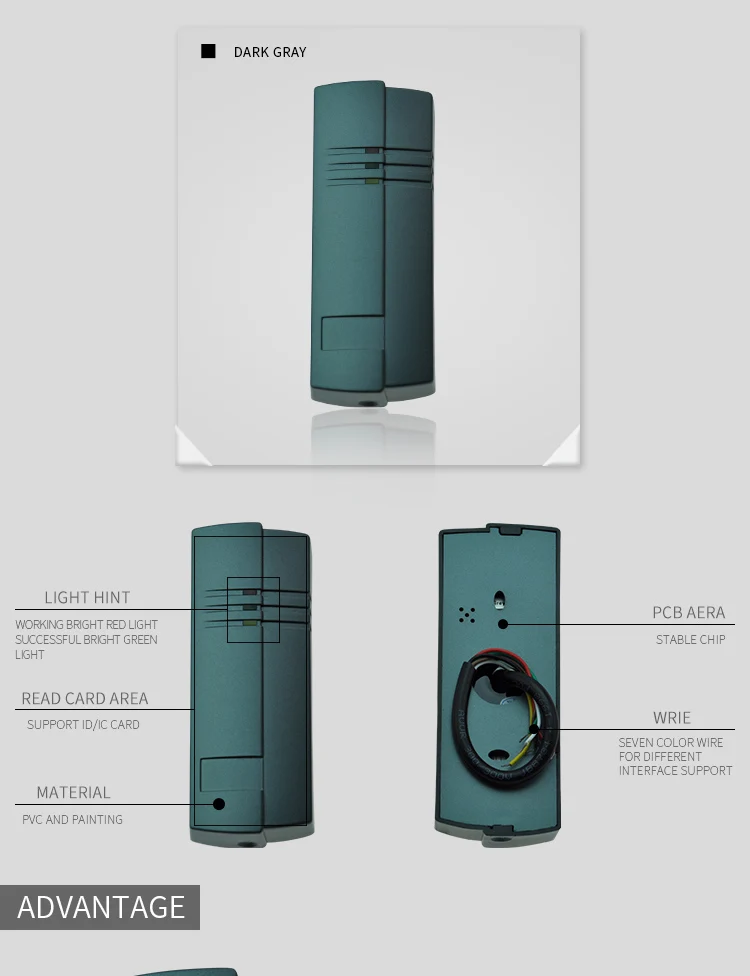

Built-in:Antenna,speaker,buzzer,red(blue)green color LED

Special Provide:Logo printing,long cable,Reader module

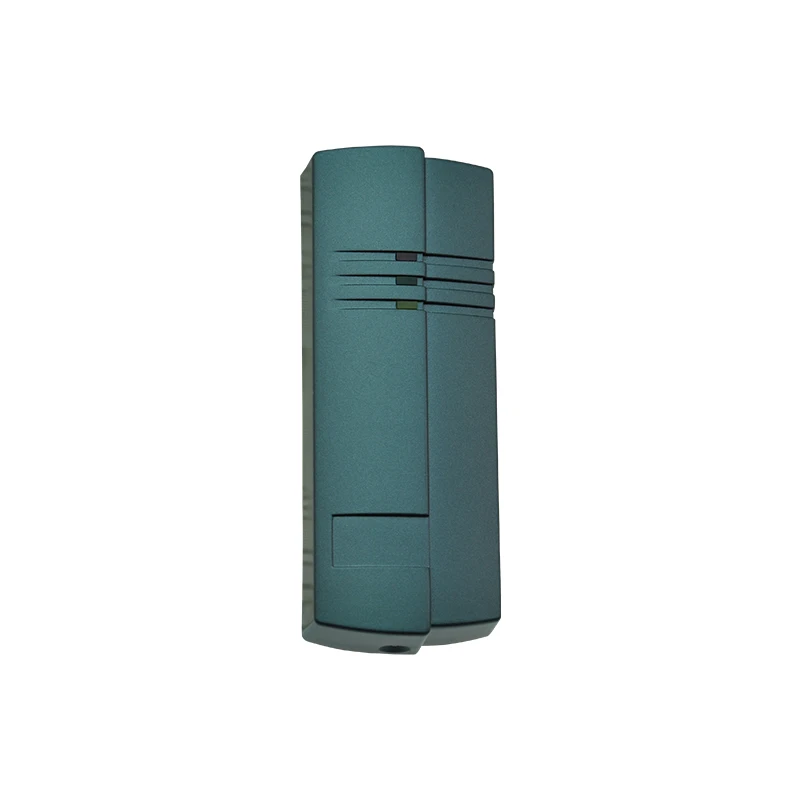

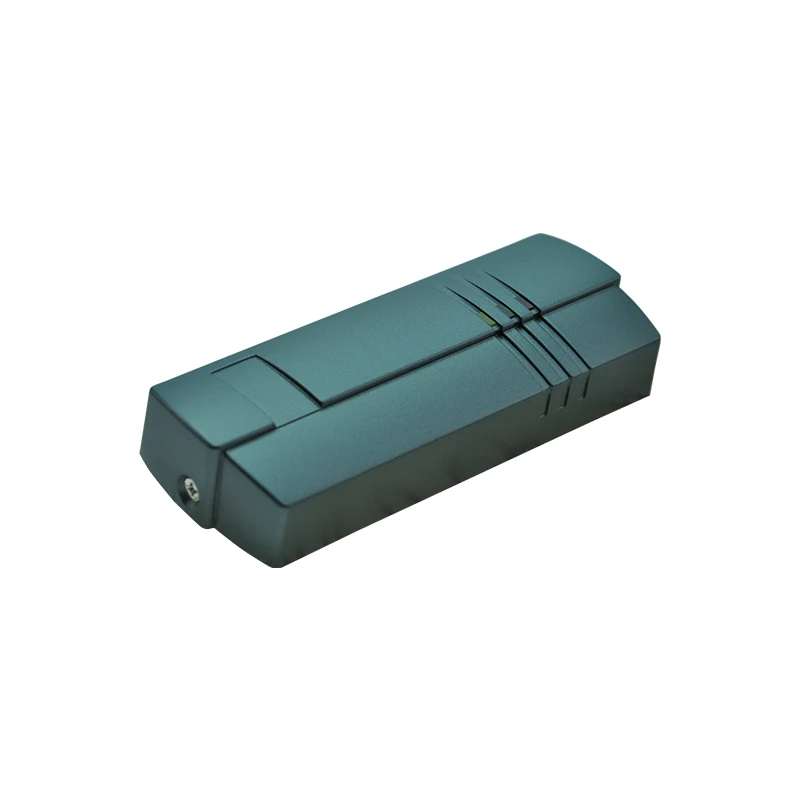

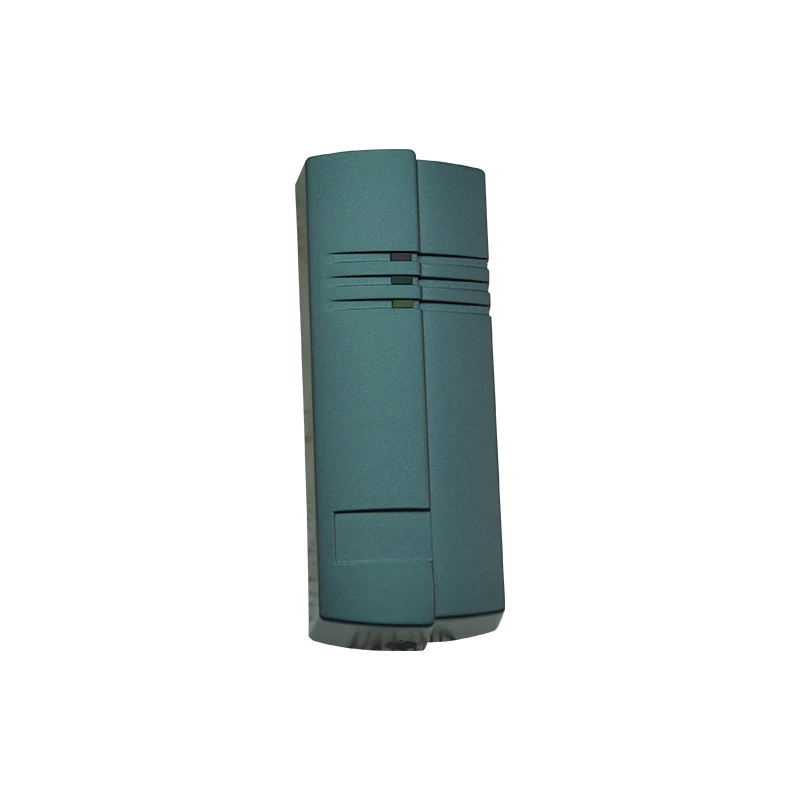

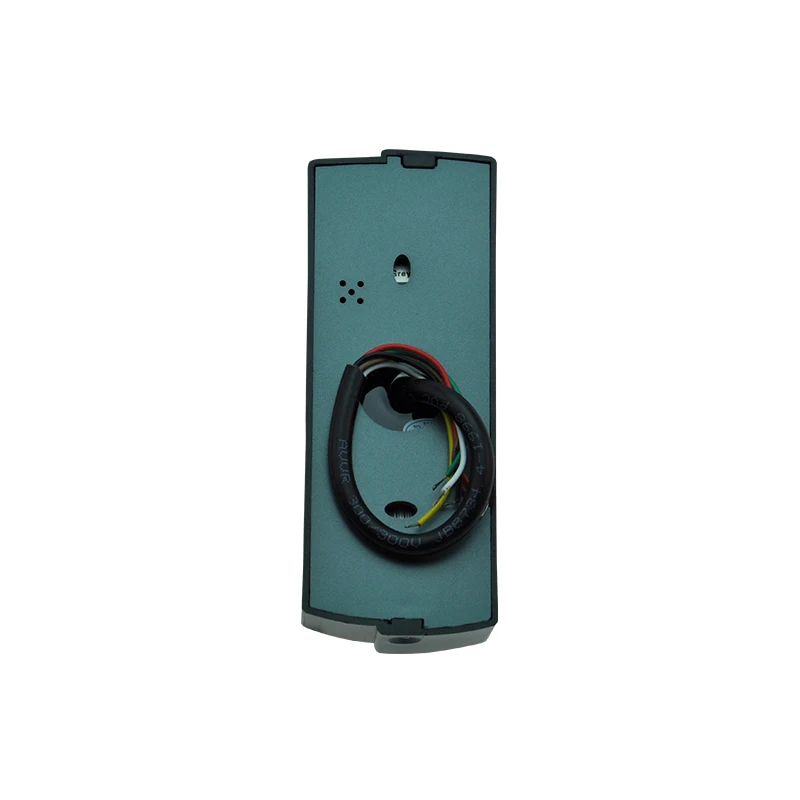

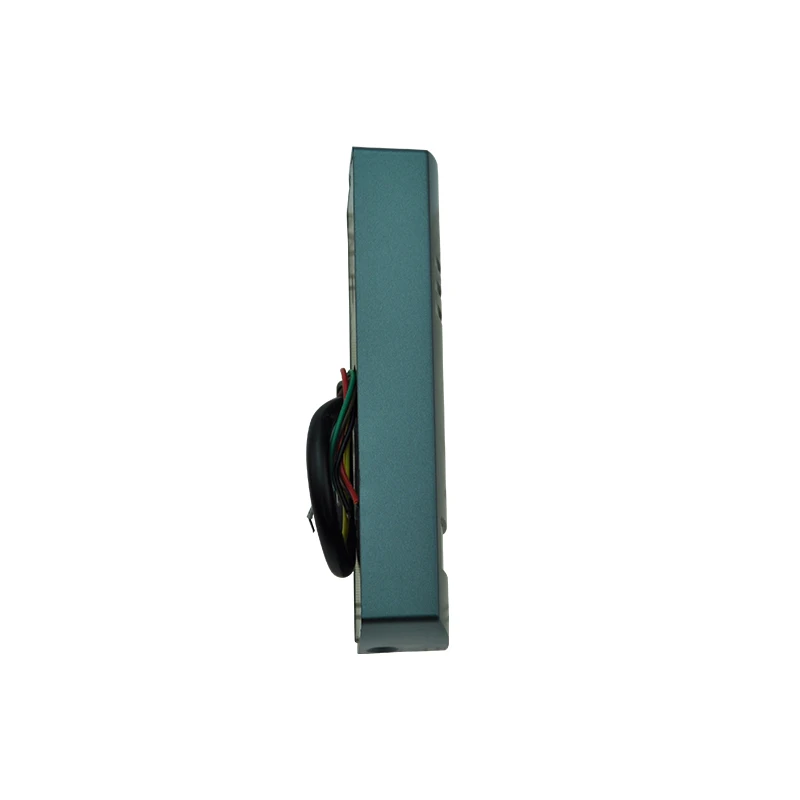

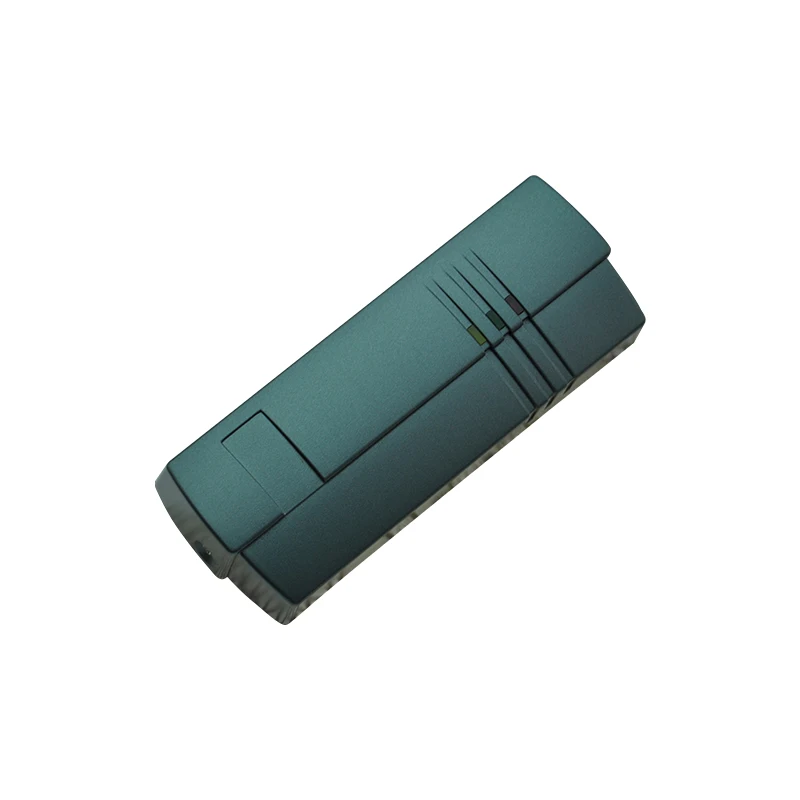

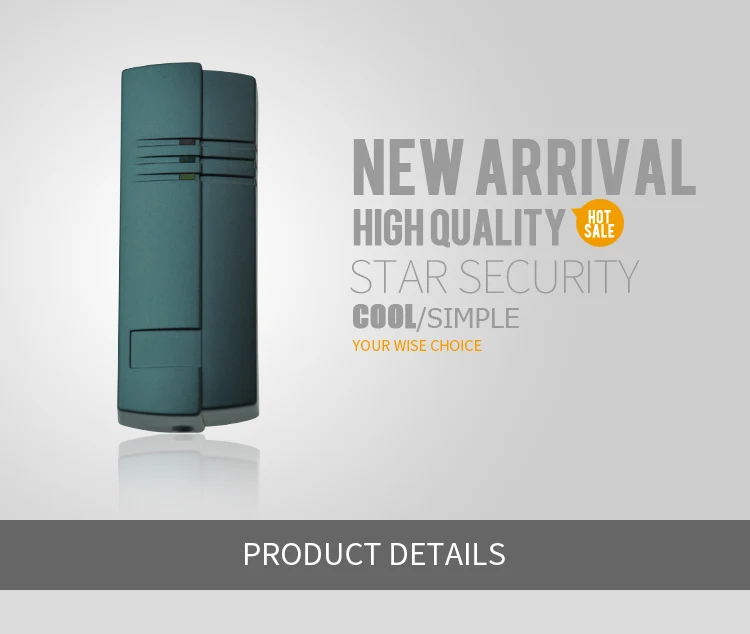

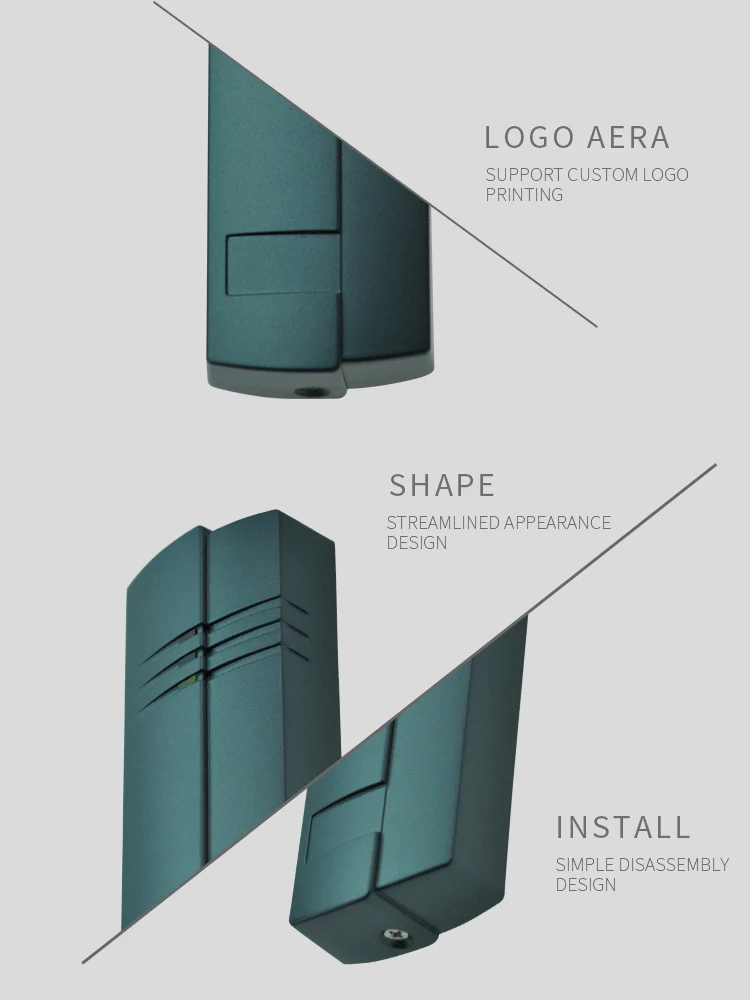

Detailed images:

Application:

Installation:

1. The reader inside the sticker on the position of reader to be installed. According to location Drilling two holes and an Middle outlet hole, insert rubber plug into the fixed hole.(Note: If you install on the wall, then concealed need to install the 86 embedded box)
2.Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

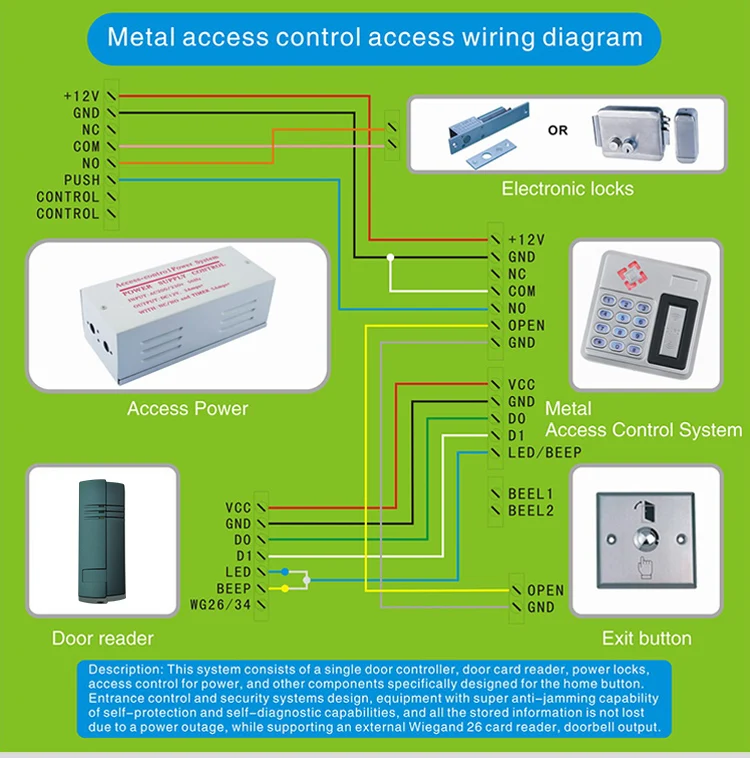

3.The reader cable through the outlet hole, connected by line instructions,it will panel and rear panel of the screw fixed.

Notice:

1.Confirm the electric voltage DC12V and differentiate positive anode and cathode of power supply
2. When external Power is used, suggest to use same power GND with controller panel.
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and light, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeter at least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.

Packing&delivery:

1.Reader/controller:

1pc/box, Export Standard Package

2.Card:

1pc/opp , 200pcs/box(23x10x6cm) , 5000pcs/carton

packing carton size:

5 box/carton   295x225x112cm

10 box/carton 485x230x135cm

20 box/carton 485x230x245cm

25 box/carton 485x230x305cm

3.Wristband/Keyfob:

100 pcs/opp & 10 opp/carton ==>each 1000 PCS in one carton

4.syringe:

20pcs/bag(16x8.1cm ) ==>1000pcs/carton(52x40x40cm )
