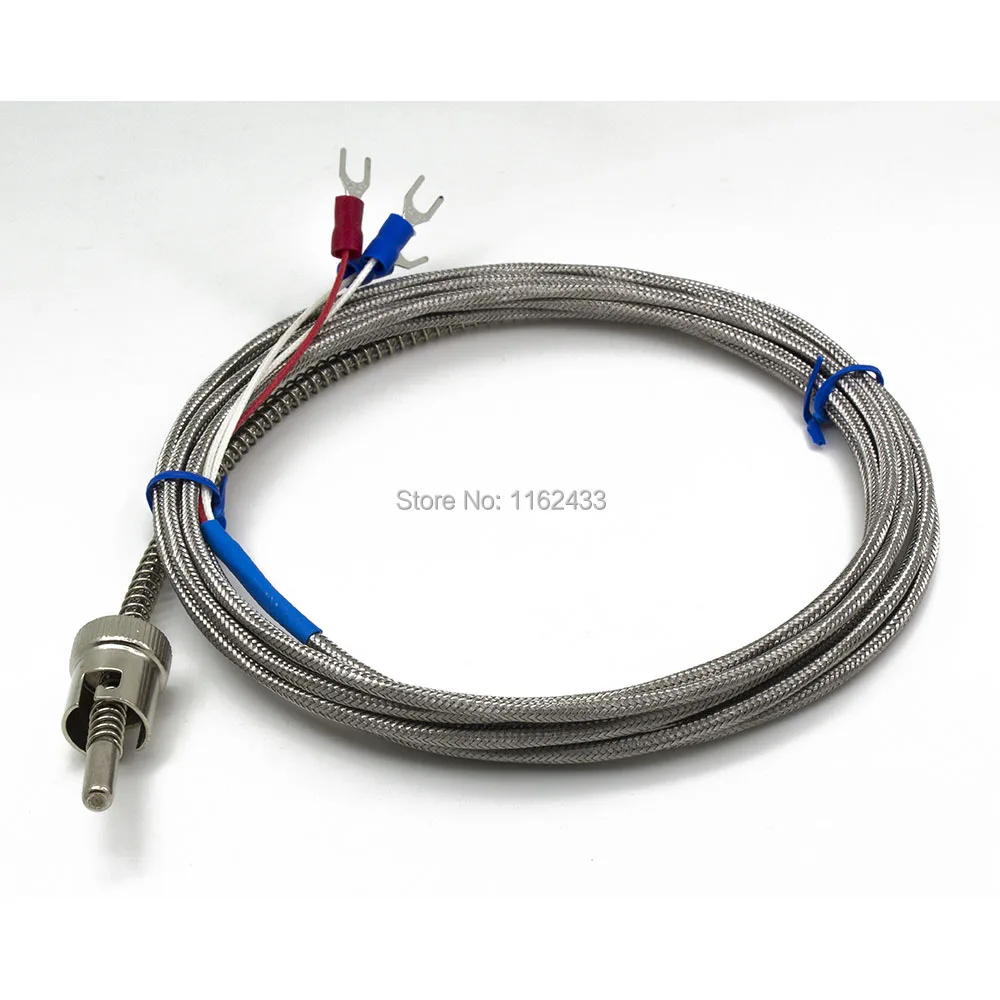

FTARS02 PT100 type 2m metal screening cable 11.5mm hole diameter adjustable bayonet cap RTD temperature sensor | Инструменты

---

FTARS02 series adjustable bayonet cap head thermocouple and RTD temperature sensor

finglaiModel number and parameters

Model number	Type	Measuring range	Related product
FTARS02-K	K	0-600 °C	Order
FTARS02-E	E	0-400 °C	Order
FTARS02-J	J	0-400 °C	Order
FTARS02-PT100	PT100	-50-450 °C	Visiting...

finglaiFTARS02-PT100 temperature sensor model number legend FTARS02-PT100

---

---

Parent Model Number -F

---

---

Bayonet cap material

---

---

-F: Iron

---

---

-B: Brass D11.5

---

---

Hole diameter

---

---

D11.5: 11.5mm

---

---

D12: 12mm HM

---

---

Cabel material

---

---

HM: High density metal screening 2

---

---

Cable length

---

---

1: 1m

---

---

2: 2m

---

---

3: 3m

---

---

4: 4m

---

---

5: 5m finglaiGeneral

Model number	FTARS02 series
Mounting form	Press spring
Accuracy	K, E, J: ±0.75%t; PT100: ±(0.6°C+1%|t|), ±(0.3°C+0.5%|t|)
Bayonet cap material	Iron, Brass Current: Iron
Hole diameter	Standard is 11.5mm, can make 12, 12.5mm Current: 11.5mm
Probe material	Stainless steel, brass
Probe diameter	4.5mm
Probe length	25mm
Cabel material	Usual metal screening, high density metal screening; high density multiple wire metal screening; high quality PTFE silver plated copper Current: High density metal screening
Cable length	Standard is 2m, customer can select 1, 3, 5m or specify the cable length Current: 2m
Matched accessory	11.5mm bayonet cap adapter, 12mm bayonet cap adapter
Thermal response time	Thermocouple: <5s; RTD: <12s
Insulating resistance	5MΩ min at 20°C, RH<80%

finglaiFTARS02-PT100 temperature sensor related products

No	Model Number	Bayonet Cap Material	Hole Diameter	Cabel Material	Cable Length	Related Product
1	FTARS02-PT100-FD11.5HM1	Iron	11.5mm	High density metal screening	1m	Order
2	FTARS02-PT100-FD11.5HM2	Iron	11.5mm	High density metal screening	2m	Visiting...
3	FTARS02-PT100-FD11.5HM3	Iron	11.5mm	High density metal screening	3m	Order
4	FTARS02-PT100-FD11.5HM4	Iron	11.5mm	High density metal screening	4m	Order
5	FTARS02-PT100-FD11.5HM5	Iron	11.5mm	High density metal screening	5m	Order
6	FTARS02-PT100-BD12HM1	Brass	12mm	High density metal screening	1m	Order
7	FTARS02-PT100-BD12HM2	Brass	12mm	High density metal screening	2m	Order
8	FTARS02-PT100-BD12HM3	Brass	12mm	High density metal screening	3m	Order
9	FTARS02-PT100-BD12HM4	Brass	12mm	High density metal screening	4m	Order
10	FTARS02-PT100-BD12HM5	Brass	12mm	High density metal screening	5m	Order
