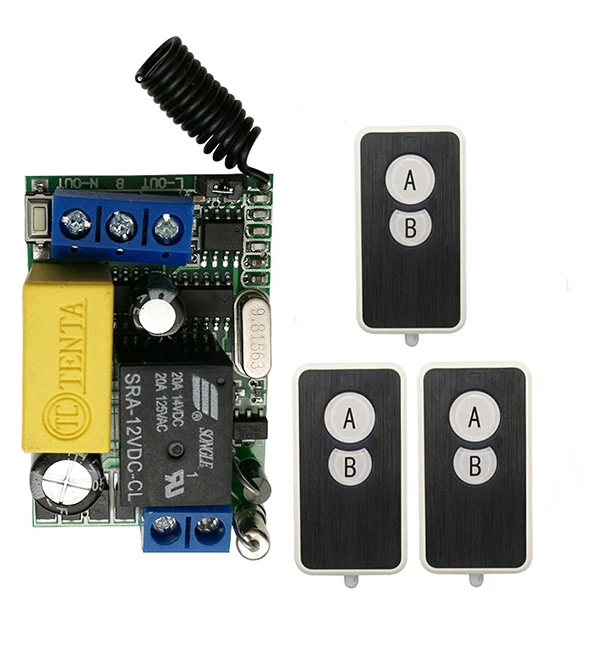

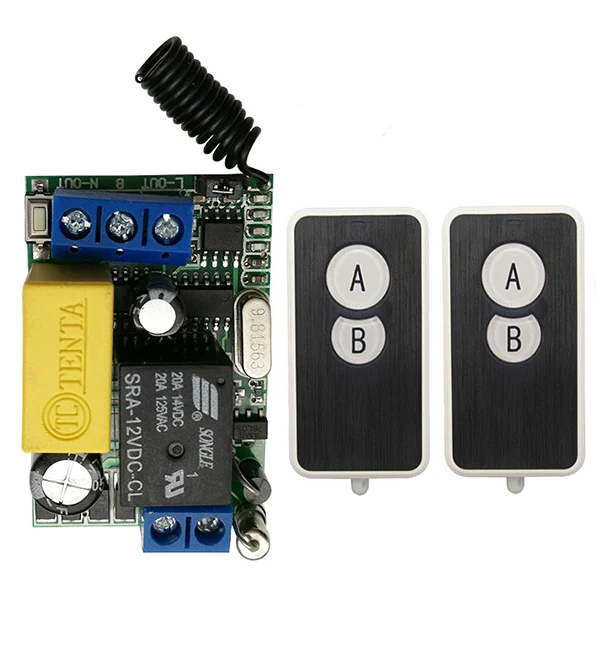

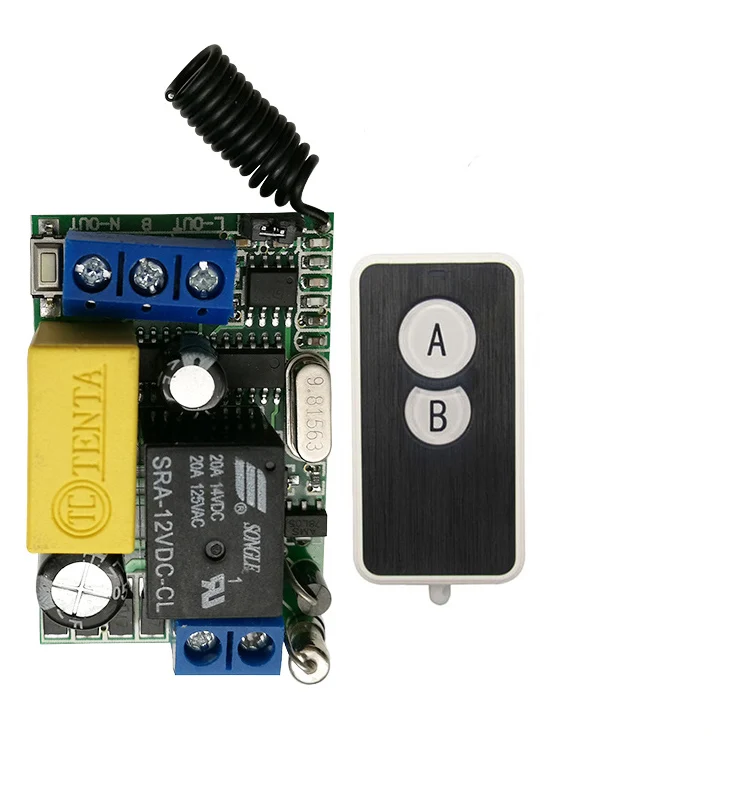

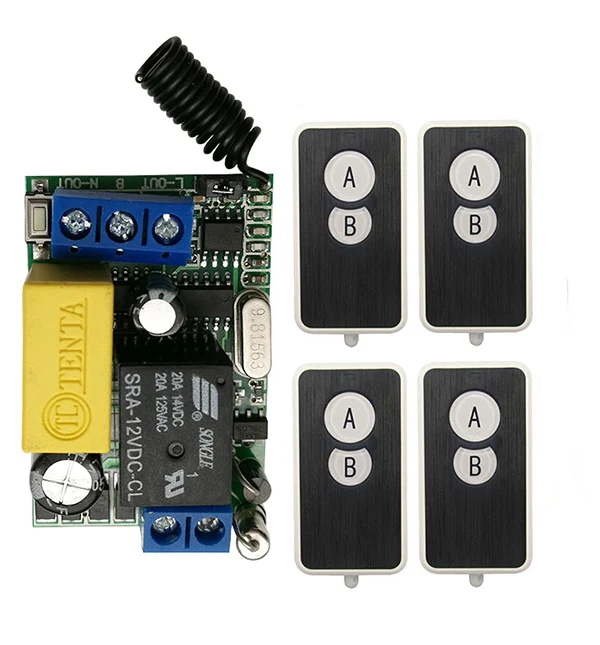

AC220V 10A 1CH Мини Беспроводной RF Пульт Дистанционного Управления Выключатель Света Реле Выход Модуль Приемник Радио + Пряжка на Ремне Передатчик Включить

Description

1.Receiver

Working Voltage: AC220V (Input AC220V Output AC220V)

Max Current: 10A (have better lower than 7A )

Channel: 1CH

Working Frequency : 315MHZ/433.92MZH

Receiver sensitivity: : -105Db

Working temperature : -10\'C - +60\'C

Output way : Momentary. Toggle .Latched Adjustable

Code type: Learning code Add Controller by the Learning Button on the receiver

2.Function: (original setting is Toggle,if you want to change the function,weld by yourself.)

Momentary:Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle:Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched:Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.

3.Learning Method:

Learn: input the 220V for the receiver,press the learning button until the LED indicator ON.Then press the transmitter ,the indicator flash fast,it means learning successfully.

Remove:keep pressing the learning button on the receiver aboout 10 seconds until the indicator ON and flash fast,it means the codes is cleared successfully.

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

pacote inclued:

A:

1 x Receiver(with cover)

4 x Transmitter(with battery)
