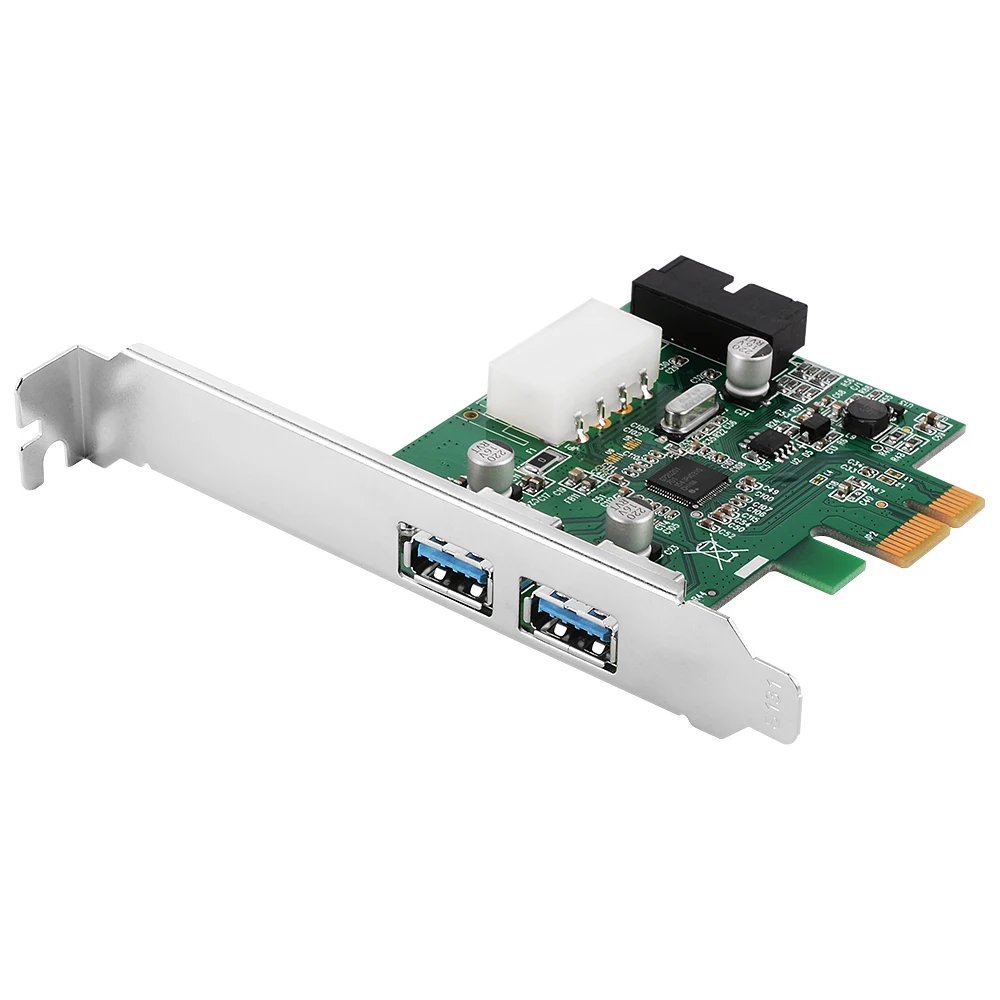

3 Порты и разъёмы pci-e PCI Express 2.0 в концентратор USB 3.0 PC Card адаптер 5.0 Гбит 19pin добавить
D600JCT-2E1-75 голосовой карты PCI PCIU | Компьютеры и офис
40 180,80 руб.
VER009S Plus PCI-E PCIE Riser 009s 6 pin PCI Express карта Molex USB 3 0 кабель 1X 16X удлинитель для майнинга
465,12 руб.
Материнская плата для ноутбука hp pavilion x360 14-cd полностью протестированная
20 142,76 руб.
Оригинал для Acer E5-575G E5-576G материнская плата DAZAARMB6E0 N16S-GTR-S-A2 GPU i7-7500U SR2ZV 100% идеальный
42 119,22 руб.
Плата промышленного оборудования PCA-6144V карт полуразмера REV. A2 19066614440 | Компьютеры
30 318,24 руб.
100% test work for MLT668TL MLT666T MLT666B MLT668TL-V power board | Компьютеры и офис
Shop2980023 Store
Магазина Shop2980023 Store работает с 15.04.2017. его рейтинг составлет 77.78 баллов из 100. В избранное добавили 376 покупателя. Средний рейтинг торваров продавца 4.1 в продаже представленно 2268 наименований товаров, успешно доставлено 281 заказов. 9 покупателей оставили отзывы о продавце.
Характеристики
For MTK 6572 module mobile communication program development board kit CORTEX-A7 Android 4.4 | Компьютеры и офис
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.48 руб. | 0.77 руб. | 0 руб. |
| Feb-18-2026 | 0.82 руб. | 0.6 руб. | 0 руб. |
| Jan-18-2026 | 0.20 руб. | 0.26 руб. | 0 руб. |
| Dec-18-2025 | 0.68 руб. | 0.39 руб. | 0 руб. |
| Nov-18-2025 | 0.73 руб. | 0.16 руб. | 0 руб. |
| Oct-18-2025 | 0.3 руб. | 0.74 руб. | 0 руб. |
| Sep-18-2025 | 0.69 руб. | 0.60 руб. | 0 руб. |
| Aug-18-2025 | 0.53 руб. | 0.56 руб. | 0 руб. |
| Jul-18-2025 | 0.32 руб. | 0.14 руб. | 0 руб. |
Описание товара
Our company is focused on the application of ARM embedded system in industrial field. The core module of YYW-M-6572 has been applied to industrial control field in large quantities. The quality and stability of the product have experienced the test of high stability requirements of industrial equipment. The module is suitable for customizing users with personalized requirements. The details and customizing methods can be used with the company. Get in touch!
Contact: manager of Liang
Contact phone: 13581501210
Autumn and Autumn: 313638714
YYW-M-6572ModularProduct features
- CPU MTK6572 ARM-CORTEX-A7, dual core, mononuclear 1.3GH
- DDR2 high performance memory, 1GB RAM board on 4GB eMMC
- Integrating 2 high speed serial ports
- Support GPS/WIFI/BT
- Support WCDMA and GSM
- Support AC97/IIS digital audio interface
- Support 1 way SD card interface
- 1Road USB 2 DEVICE, 1 road USB 1.1 HOST
- Highly integrated core module design, suitable for the two user development customization.
At present, the development board has been on-line. At present, the supply is adequate. It can be photographed directly and shipped on the same day.
Purchase this link shipping list:
- YYW-M-6572 core boardAnd YYW-M-6572 standard plate open floor (already fitted);
- Serial line: 1
- USB line: 1Power adapter: 1
- 4.3 inch QHD LCD screen assembly, including ten point capacitive touch screen.
- 5 million YUV camera;
- Baidu cloud disk data, containing
- Software source code,
- Development board user manual,
- Bottom board schematic and PCB (all OrCAD source files)

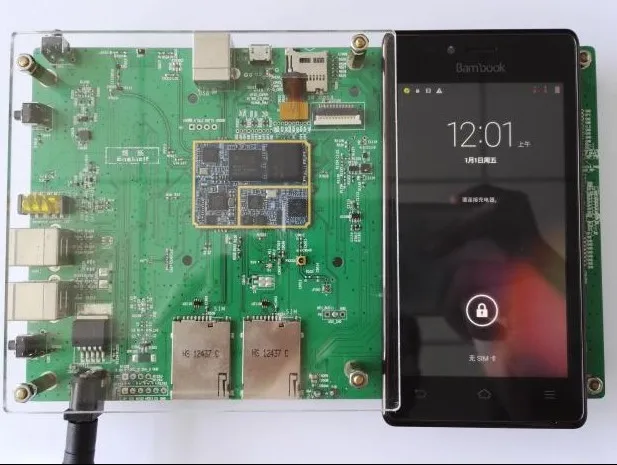

Frontal map of development board
Backside map of development board
Development board resource map
|
Introduction of hardware interface |
||
|
Name |
Position mark |
describe |
|
Power button |
1 |
Power input switch |
|
Wake-up key |
Setting up the development board dormancy/awaken |
|
|
Antenna interface |
2 |
GPS/WIFIAntenna interface |
|
USB |
3 |
USB2.0 BType mouth |
|
USB OTG |
4 |
USB OTG2.0 |
|
SD Card |
5 |
SDCard interface, Zui big support32G |
|
LCD |
6 |
LCD 540x960 Nt35510 |
|
TP |
Touch screenFT5306 |
|
|
Key |
7 |
volume+ |
|
sensor |
8 |
M-sensor |
|
sensor |
9 |
G-sensor |
|
Camera |
10 |
CameraSocket |
|
Headset |
11 |
4Segment type headset socket (national standard) |
|
serial port |
12 |
serial port2(USB-BType mouth) |
|
serial port |
13 |
serial port1(USB-BType mouth) |
|
ANT |
14 |
GSM/WCDMA Antenna interface |
|
Key |
15 |
volume- |
|
External power supply |
16 |
External socket(3.7-4.2) V |
|
SIM Card |
17 |
WCDMA/GSM |
|
SIM Card |
18 |
GSM |
|
External power supply |
19 |
Power Supply+ (3.7-4.2) V |
|
External power supply |
20 |
Power Supply- GND |
|
Module external interface resources |
|
|
Functional characteristics |
Explain |
|
DISPLAYdrive |
LCDSupportMIPIandRGBTwo kinds of interfaces; |
|
Touch Panel |
Support capacitive touch screen |
|
WIFI/BT/GPS/FM |
Support |
|
SD/MMC/SDIO |
SupportSD/MMC/SDIOdrive32G SD Card |
|
IIC |
SupportIICdrive |
|
SPI |
Support high speedSPIdrive |
|
UART |
Supporting serial port driver2Serial port, serial level1.8V |
|
USB OTG |
high speedUSB2.0 (Device)Support and supportPCSynchronize, copy data, |
|
Software resources |
|
|
Android |
Android 4.4 |
