Беспроводная радиосистема переключателей освещения на 4 канала с приёмником и передатчиком на 433мГц, питание от постоянного тока 24В, кодирование обучения.

Беспроводная радиосистема переключателей освещения на 4 канала с приёмником и передатчиком 433мГц питание от постоянного тока 24В кодирование обучения.

Brand NameCENTURY AOKEModel NumberMYYKG-157UseUniversalPackageNoFrequency433 MHzChannel4Wireless CommunicationRFSupport APPNoMeasurement unitset/setsEach pack1

Unavailable in

Description

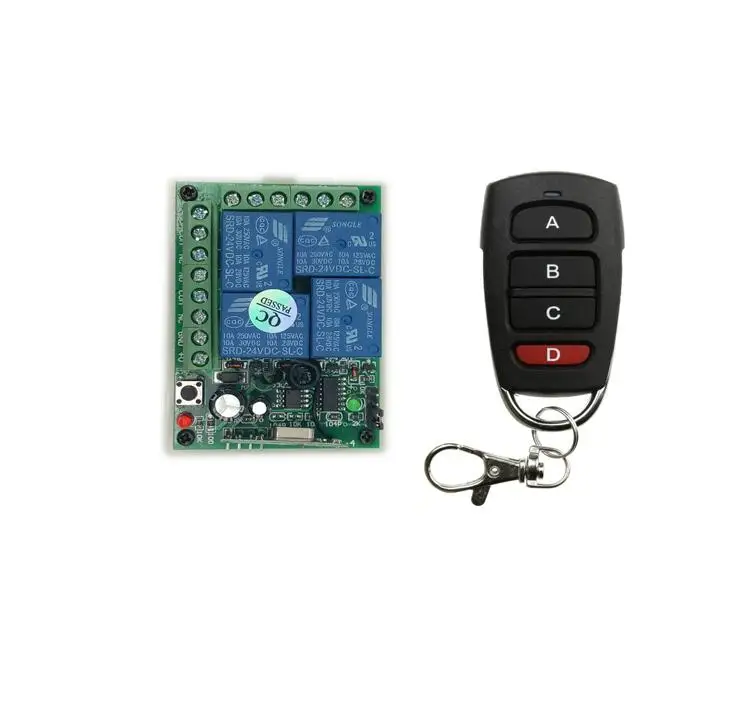

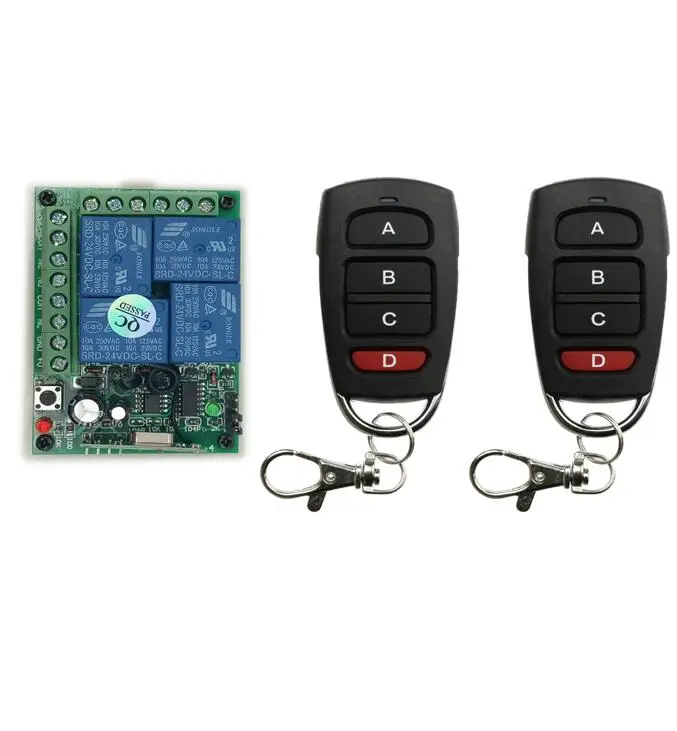

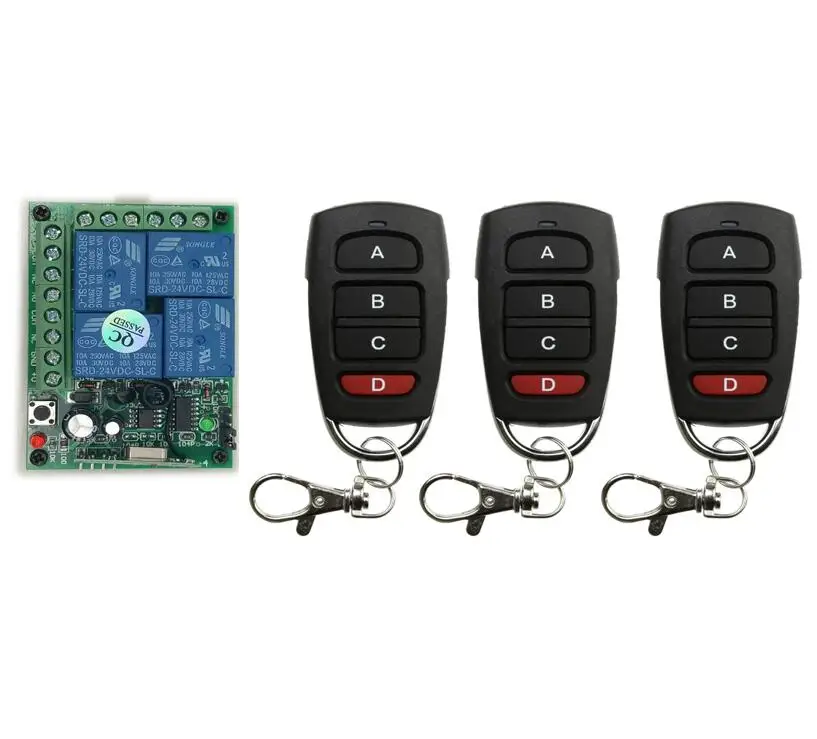

24V 4 CH 10A RF wireless remote control system
The 4 channel wireless remote control switch with 4 Relays. It can make the  equipment turn or reverse .on/off and so on come true. The volume is small and the performance is stable and reliable ,high receive sensitivity

Application range:
Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.
The switch can compatible 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it .

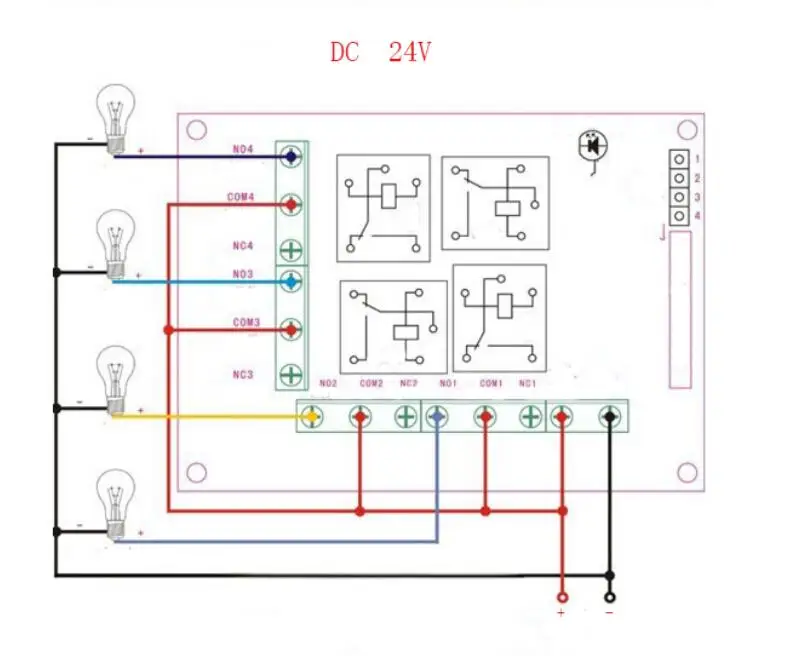

Output working way:

Jog/Momentary---- press one button is ON . loosen your  finger on the same button is  OFF  .(need one channel switch  and one buttons remote control )
Self -lock/Toggle ----- press one button for one time is  ON  .press the same button again is  OFF  .need one channel  switch and one buttons remote control
Inter-lock/Latched ------- press one button is   ON , press another button is  OFF  . (need one channel switch and 2 buttons remote control

Learning and remove method
1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully .

Technique Data:
working voltage :DC24V
quiescent condition :less than 6mA
working temperature :-10'c+60'c
receiver sensitivity : more than -105dBm
working frequency :315/433MHz can be choose, If there is no requirement,we will send 433 MHZ ,Of course it is has been make work together you do not have to care about the frequency.
output voltage: DC and AC is optional
output current : less than 3A
max load current:10A

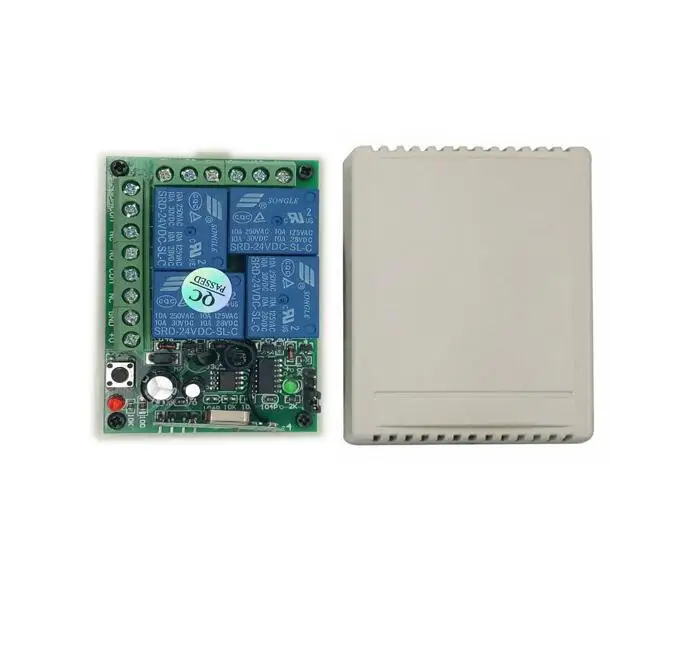

70mm*50mm*18mm

Code :Learning code. It is a learning code wireless remote control switch (receiver),the output way /working way can be change as you like ,it is easy to match the transmitter

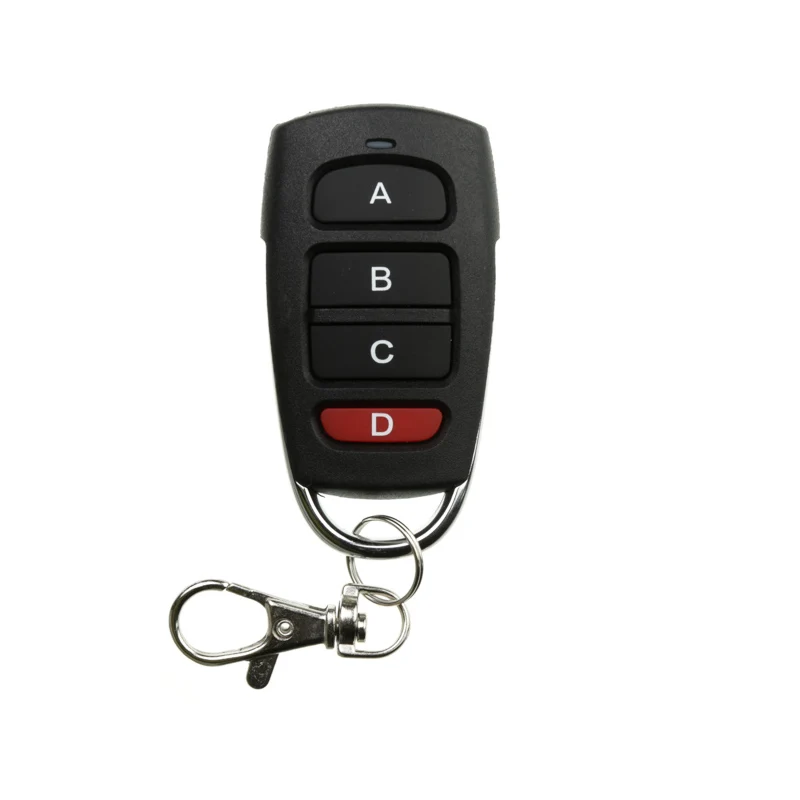

remote control transmitter
Wireless remote control
Working voltage :DC12V
Operating Current :30MA
Operating frequency :315/433MHz
Transmitting distance:20-200 meters (it is the ideal distance .it would be shortcut as the different environment )
Encoding Type :fixed code, learning,
Encoding way: fixed code by soldering

package included:
receiver
transmitter
