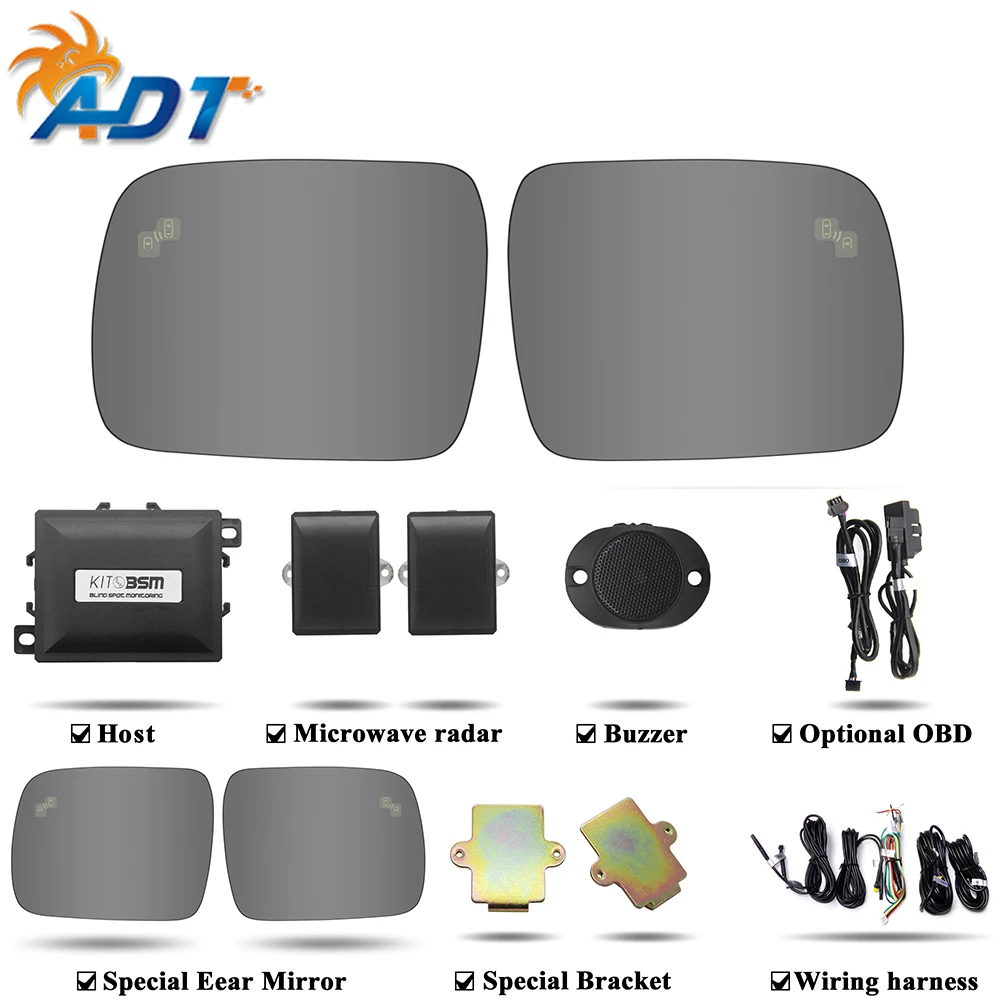

The Car Blind Spot Detection LED Warning System With OBD Function For L-and R-over F reelander | Автомобили и мотоциклы

The Car Blind Spot Detection LED Warning System With OBD Function For L-and R-over F reelander | Автомобили и мотоциклы

Blind spot monitoring system and auxiliary system, English referred to as BSM or BLIS is a high-tech configuration on the vehicle safety, the main function is to remove the rearview mirror blind, in the rain, fog, dim light at night, more difficult to see the rear of the vehicle, the road is more danger. Our company is the first company in China  successful development of 24GHZ microwave radar detection based on blind lane change assist system , 3 years 300 thousand km road test data accumulation algorithm, mature and stable product reliability.

Working principle:

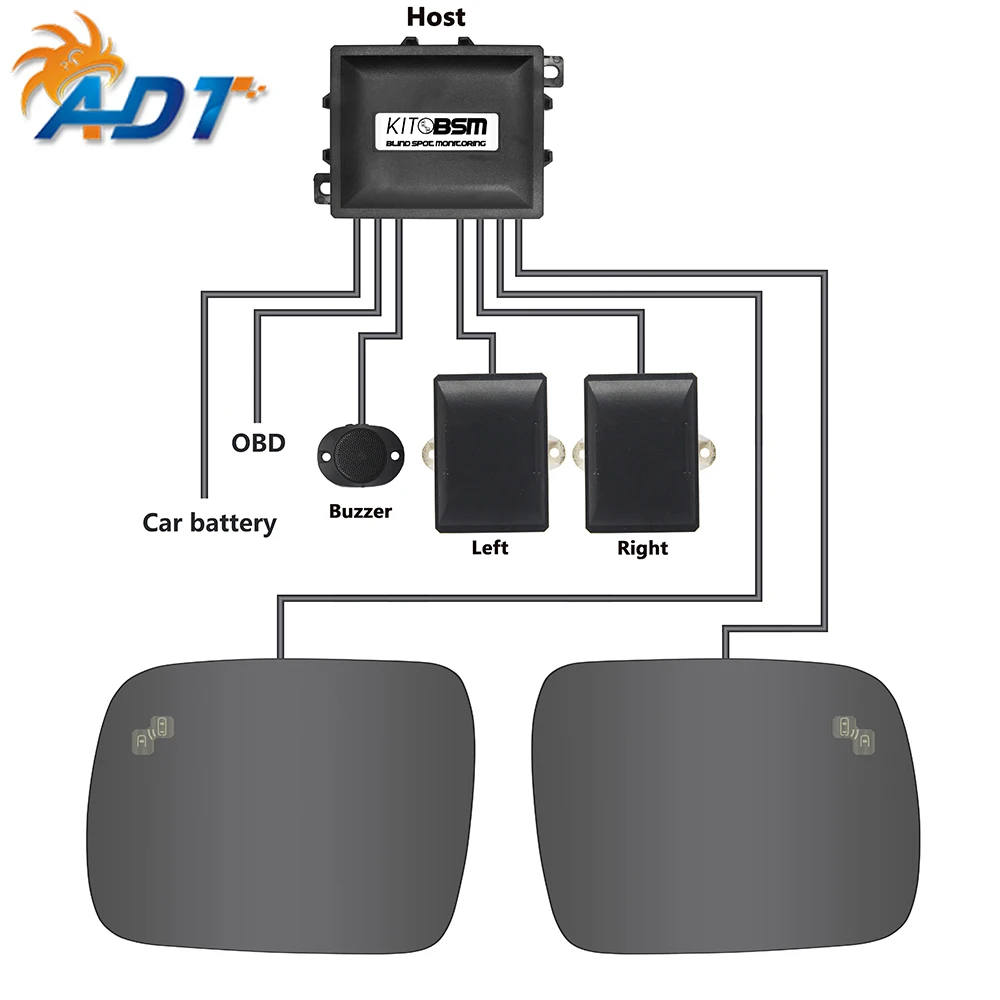

Through to the car bumper installed two 24GHZ microwave radar probe, the vehicle speed is greater than 10KM/H to start automatically, real time about 3 meters 8 meters behind the range, a microwave signal detection, system analysis of the reflected microwave signal, namely the back vehicle distance, velocity and direction information etc. through the system, algorithm, exclusion of fixed objects and far away from the object, when the detected vehicle near the blind spots, flashing lights, the driver can not see the area within the vehicle, but also can know through the indicator rear oncoming car, becoming dangerous road collision, if the driver still paid no attention the lights flashing, playing the steering light, ready to change, then the system will send out voice alarm beep beep, again remind the driver at this time change is dangerous, should not be changed Avenue。 Throughout the course of the vehicle, uninterrupted detection and reminder, to prevent the driving process due to bad weather, driver negligence, rearview mirror blind spots, such as the potential risk of new road traffic accidents.

​
