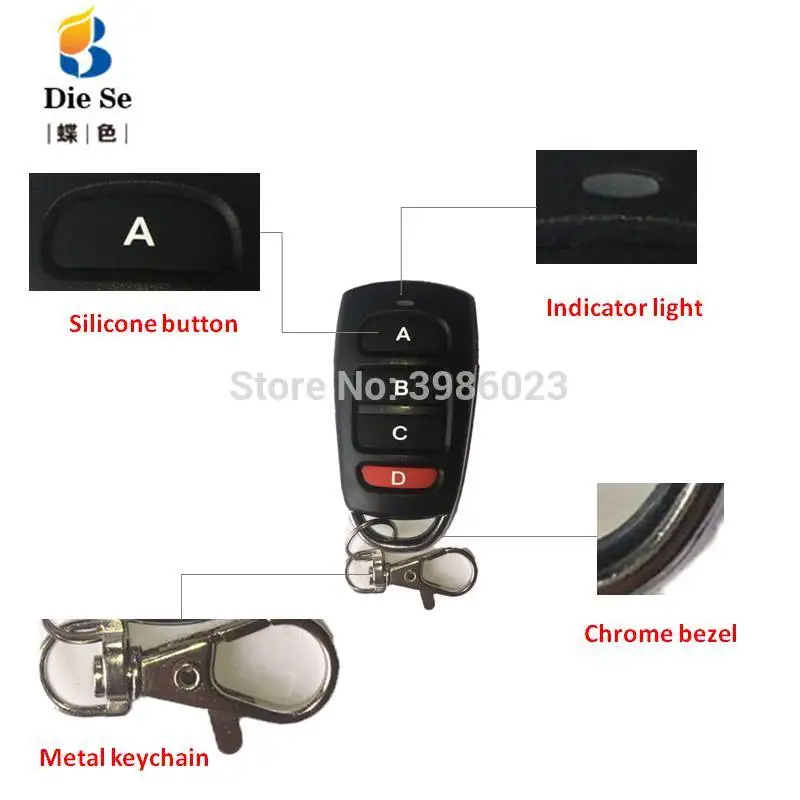

433МГц Универсальный Беспроводной Пульт Дистанционного Управления DC 12В 4CH Реле Модуль Приемник RF Переключатель 4 Кнопка Ворота Гаража Открытый.

---


433MHz Universal Wireless Remote Control DC 12V 4CH Relay Receiver Module RF Switch 4 Button Remote Control Gate Garage opener
*** Tips:If you need us to set up the operating mode , please leave a message on the order ***
  Product Application Area
Remote control garage door \  Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device   Package include

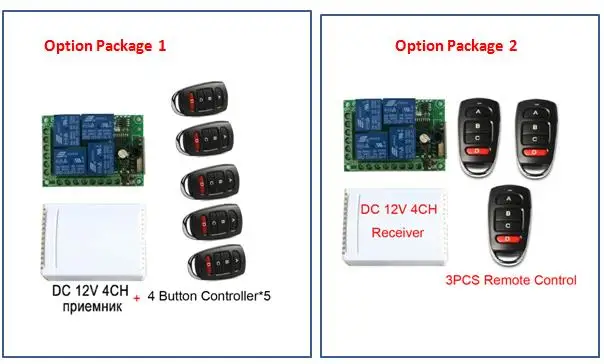

• Option Package 1:

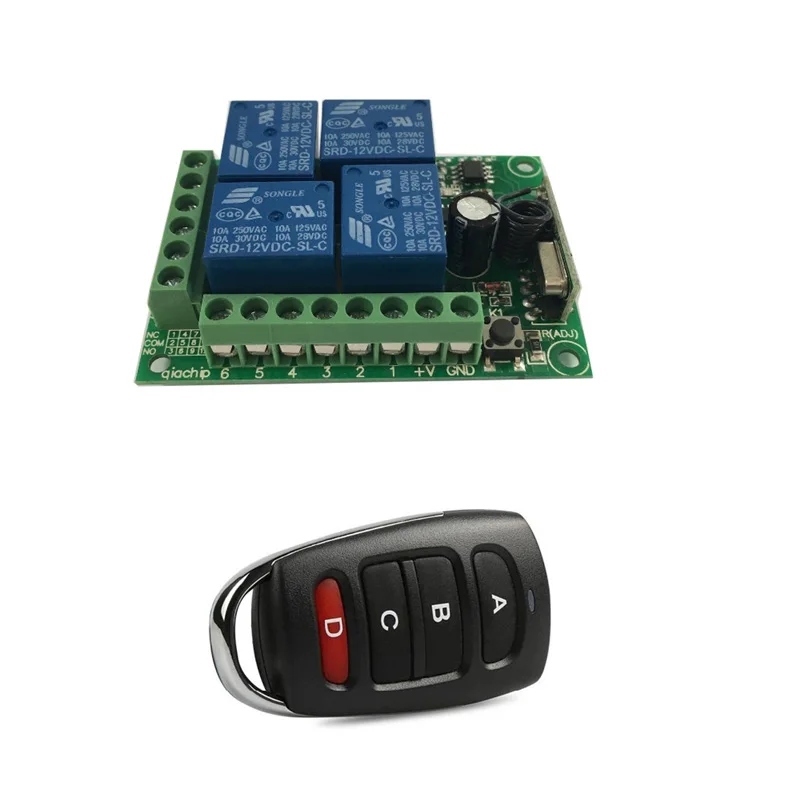

Receiver module * 1pcs ( include Shell )

Remote Control * 5pcs (include battery )



• Option Package 2:

Receiver module * 1pcs ( include Shell )

Remote Control * 3pcs (include battery )

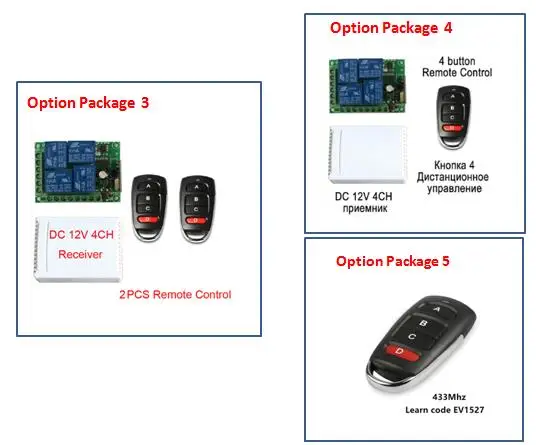

• Option Package 3:

Receiver module * 1pcs ( include Shell )

Remote Control * 2pcs (include battery )

• Option Package 4:

Receiver module * 1pc ( include Shell )

Remote Control * 1pc (include battery )

• Option Package 5:

Only Remote Control * 1pc (include battery )

 Technical Data

• Working Voltage:DC12V
• Input Voltage:1V~220V
• Output Voltage:1V~220V
• Max Load: 2200W
• Max current : 10A
• Quiescent Current:5mA
• Working Frequency:433Mhz
• Receiving Sensitivity:-104dBm
• Function option:Momentary/Toggle/Latched
• Modulation Mode:ASK
• Matching Mode: Intelligent Learning code
• Output Mode:Dry contact /Voltage output
• Shell:Yes
• Working temperature : -30~+80

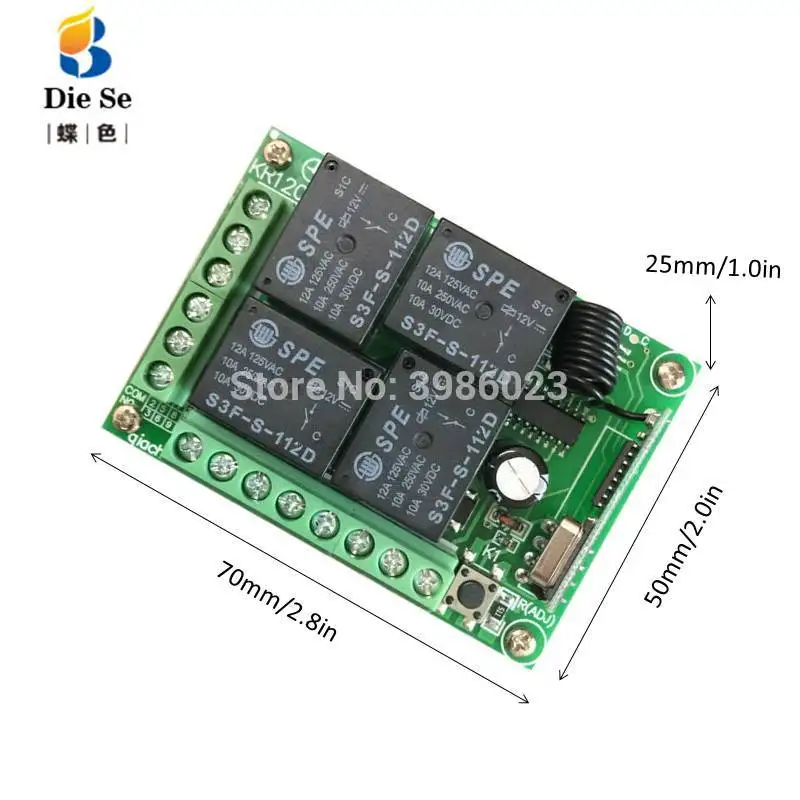

• PCB dimension:68.2x48.2(mm)

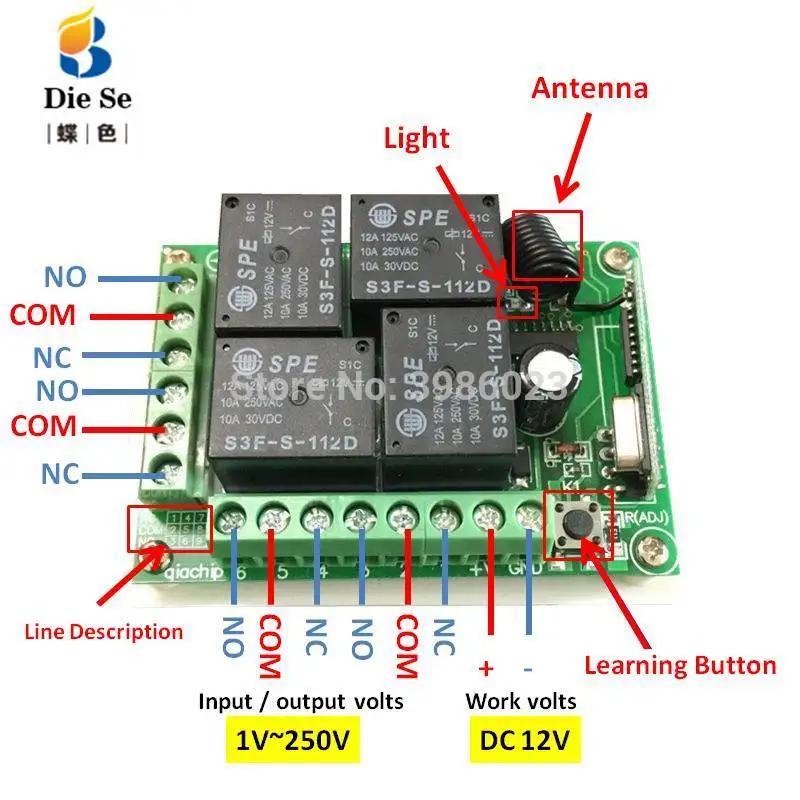

Pin functions:

• +V :Positive pole input
• GND :Negative pole input

Relay 1/2/3/4

• 1. Normal Closed of relay (NC)
• 2. Common of relay (COM)
• 3. Normal Open of relay (NO)

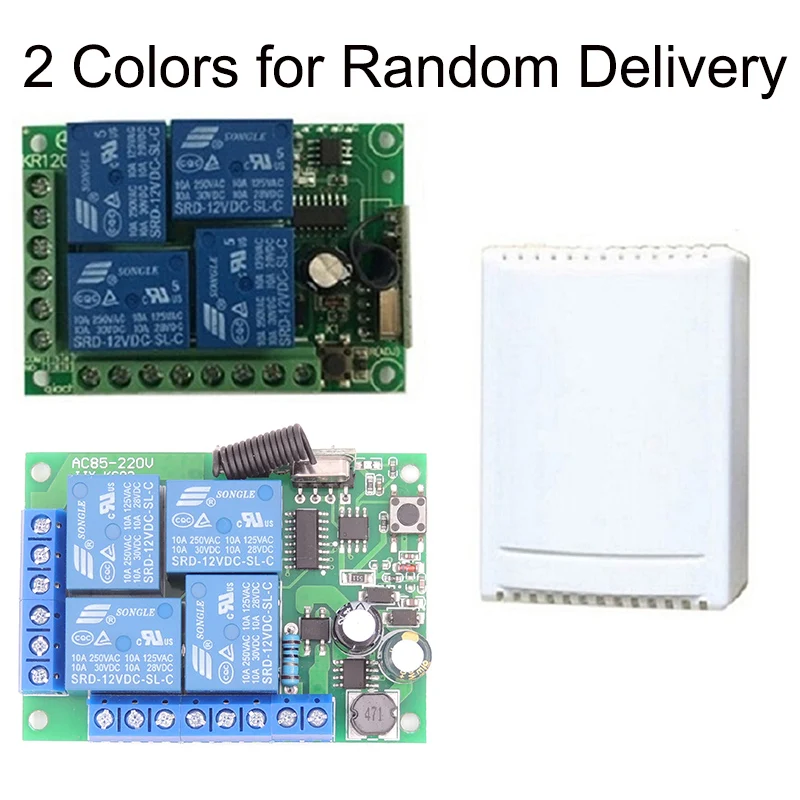

  Products Display

Tips:

All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.

Click here to search more

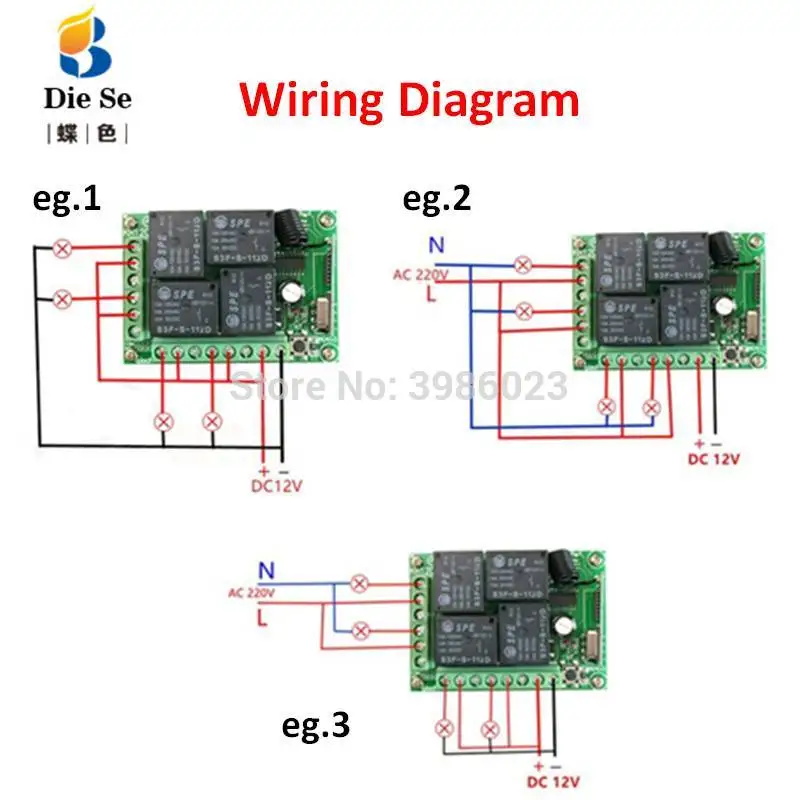

  Circuit Connection modes   the Receiver Switch Module have 3 ways of working mode.The OUTPUT signal has 2 Voltage Level. It decided by the INPUT of the COM pin.


NOTES   1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity. 2. Please promptly change battery when remote control voltage is insufficient, (when the battery voltage is insufficient, generally get close transmitting ) 3. Please pay attention to avoid metal mask,large equipment ,strong interference electromagnetic filed when using wireless RF products,and avoid too short distance between the remote control and receiver board . 4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe .


  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.

• Remote mode 1:  Momentary Mode

Press and hold on one button -> ON; Release the button -> OFF



• Remote mode 2:  Toggle Mode

Press one button -> ON; Press the same button again -> OFF



• Remote mode 3:  Latched Mode

Press one button "A"-> ON; Press another button "B" -> OFF(another relay turn to switch-on)



  Set Up

-  Part 1:  Delete the existing data about remote mode

 Note:    When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about     remote mode     for the first application.   Press the learning button on the Receiver Switch Module board 8 times   , the existing data are deleted successfully.     After deleted the data, all the remote control cannot work any more.

  -  Part 2:  Set up the Remote Mode

Remote mode 1: Momentary Mode

• STEP 1

Press and release the learning button on the Receiver board once. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press and release one button on the  Remote Control    , the LED on the receiver board will flash on then off indicating the button was learned.   Wait 3 seconds, the LED will turn on again, indicating system is ready for use.



Remote mode 2 :    Toggle Mode

• STEP 1

Press and release the learning button on the Receiver board twice. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press and release one button on the  Remote Control, the LED on the receiver board will flash on then turn off ,     indicating the button was learned.   Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.

Remote mode 3 : Latched Mode

• STEP 1

Press and release the learning button on the Receiver board triple. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press and release one button  on the  Remote Control,  the on-board LED indicator will flash 5 times to inform that the setting of latched mode successful .    Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.



Supplementary explanation:

Remote motes can be combined



2CH momentary + 2CH Toggle



Pressing four times the learning button on the receiver board(Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting successfully .





2CH Momentary + 2CH Latched



Pressing five times the learning button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting successfully .





2CH Toggle + 2CH Latched



Pressing six times the learning button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting successfully .



On this products details page, there is a demonstration video available.     *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*





---
