1/2HP Stainless steel self-priming screw pump 1m3/h 50m head |

1/2HP Stainless steel self-priming screw pump 1m3/h 50m head |

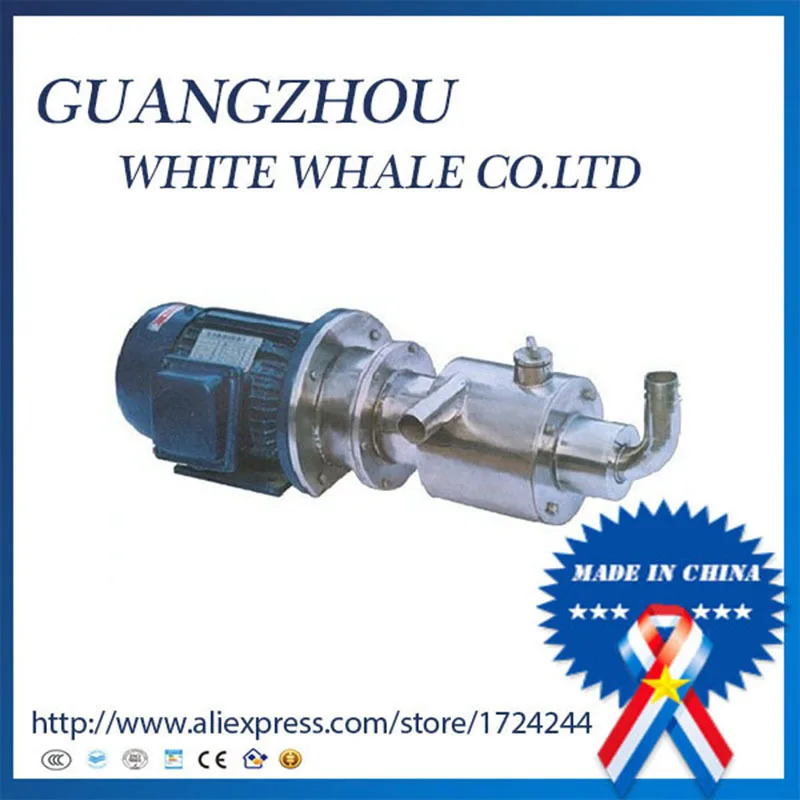

CG Type Stainless Steel Screw Pump

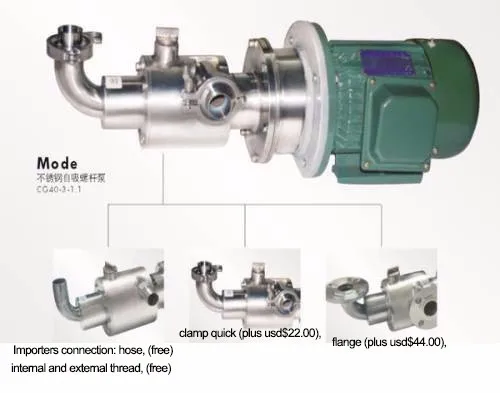

importers connection: hose, internal and external thread, clamp quick (plus usd$22.00), flange (plus usd$44.00), DC drives (plus usd$22.00).

tell us what kind of connection you need.

CG is a new stainless steel screw in the meshing of rotary positive displacement pumps. With high efficiency, strong self-absorption capacity, a wide range of advantages, difficult to transport a variety of mediums that are present pump delivery. Therefore, stainless steel screw in a foreign country is known as universal pump. This pump can deliver even work neutral or corrosive liquids, clean or grinding of liquid, or easy to produce a liquid containing gas bubbles in liquid, high or low viscosity, including fibers, liquid containing a substance and software.

1.No hard particles of various fluid sampling, measurement, cooling, transportation, transport, distribution, circulation and bottling

2.Transmission fluid have gravity, can not flow can not be transported

3.Transmission medium temperature should not exceed 60 degrees

4.Conveying non-corrosive media

5.Pump body:stainless steel 304

Feature:

Stainless steel screw pump works is a single spiral double helix rotor stator bore for planets rotating around the axis of the stator, the rotor - airtight chamber is formed between the stator deputy on a continuous, uniform, and the volume will be unchanged medium from the suction side to press out the end of the conveyor. Since this ingenious works, make stainless steel screw having a general feature of the pump outside. Its most notable features:

√ can transport high-viscosity media. Depending on the size of the pump, the maximum viscosity of 37,000 cps media -200000 cps.

√  the liquid output of continuous and uniform, stable pressure, agitation is small, it does not change the sensitivity of the liquid ingredients.

√ for the simple proportional relationship between the flow and speed. Can be adjusted by adjusting the speed of traffic, coupled with variable speed motor, it can be a variable displacement pump.

√ the pressure can be automatically adjusted with the output pipe resistance. 0-50 (kg/cm 2) pressure, users can easily to the desired pressure. In this way, energy-saving, but also to avoid the pressure is too high or too low to affect the process.

√ simple structure, less wear and easy maintenance.

Compared with other types of pumps:

And centrifugal pumps compared to stainless steel screw not need to install the valve, and the flow is stable linear flow.

And piston compared to a stainless steel screw with a better self-absorption capacity, height of up to 8.5 meters of water suction.

And diaphragm compared to stainless steel screw pump can transport a variety of mixed impurities containing gas and solid particles or fibers of the media, but also transport a variety of corrosive substances.

Compared with gear pump, stainless steel screw pump can transport high-viscosity substances.

And piston, diaphragm, gear pump is a stainless steel screw can be used for pharmaceutical filling and measurement.

1.Connecting shaft

2.Mechanical seals

3.Universal joint

4.Connecting frame

5.o-ring

6.Pressure cap

7.o-ring

8.pump body

9.screw

10.screw sleeve

11.Pump cover

Pump iqdentiflcation:
