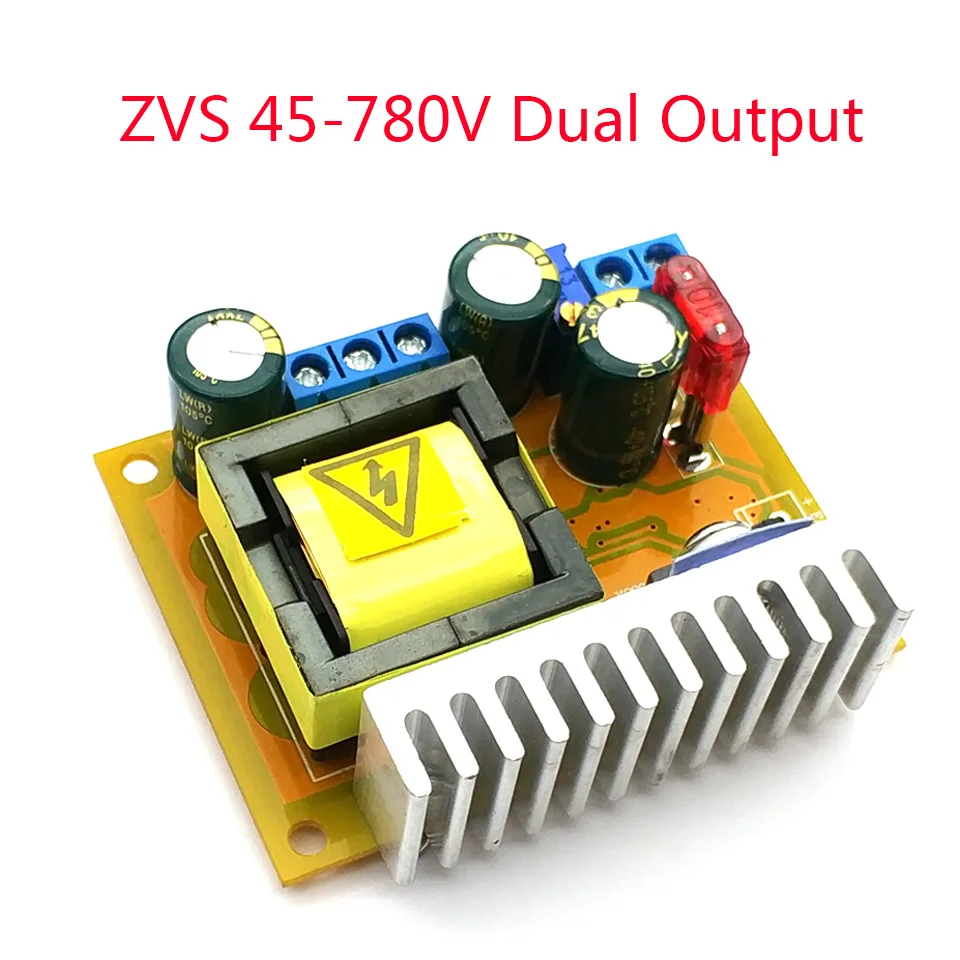

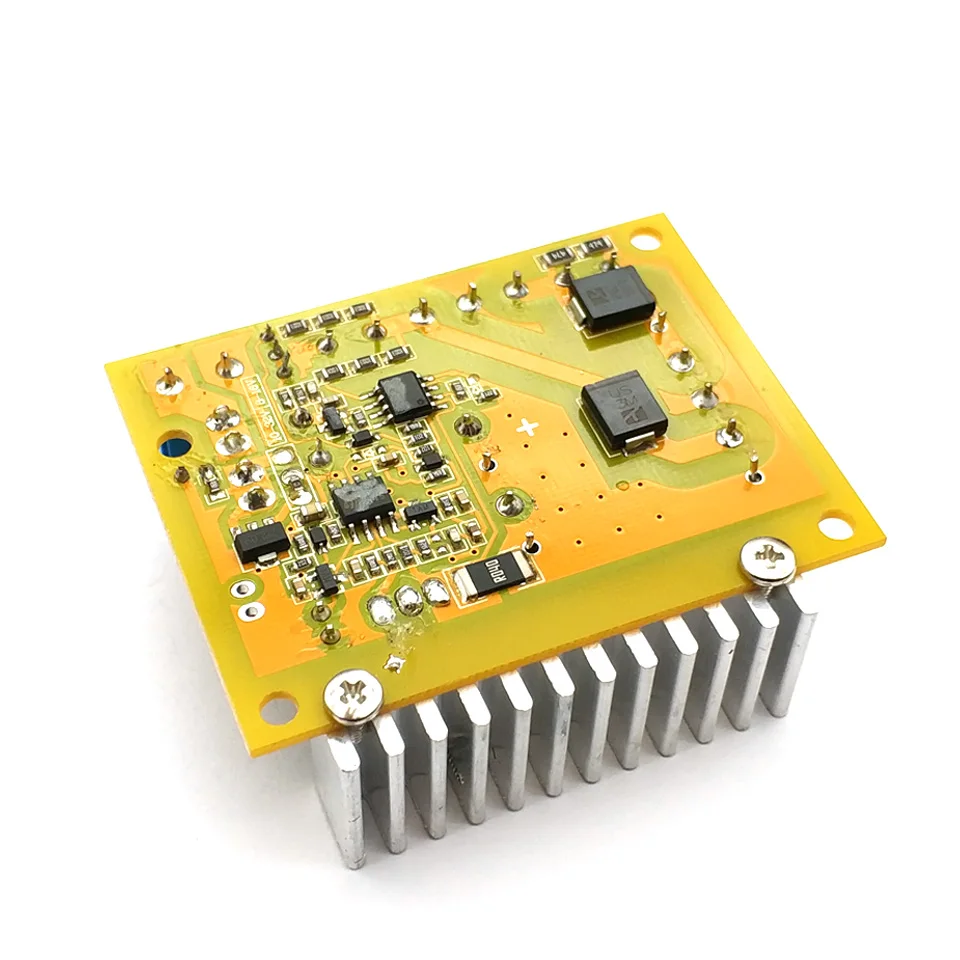

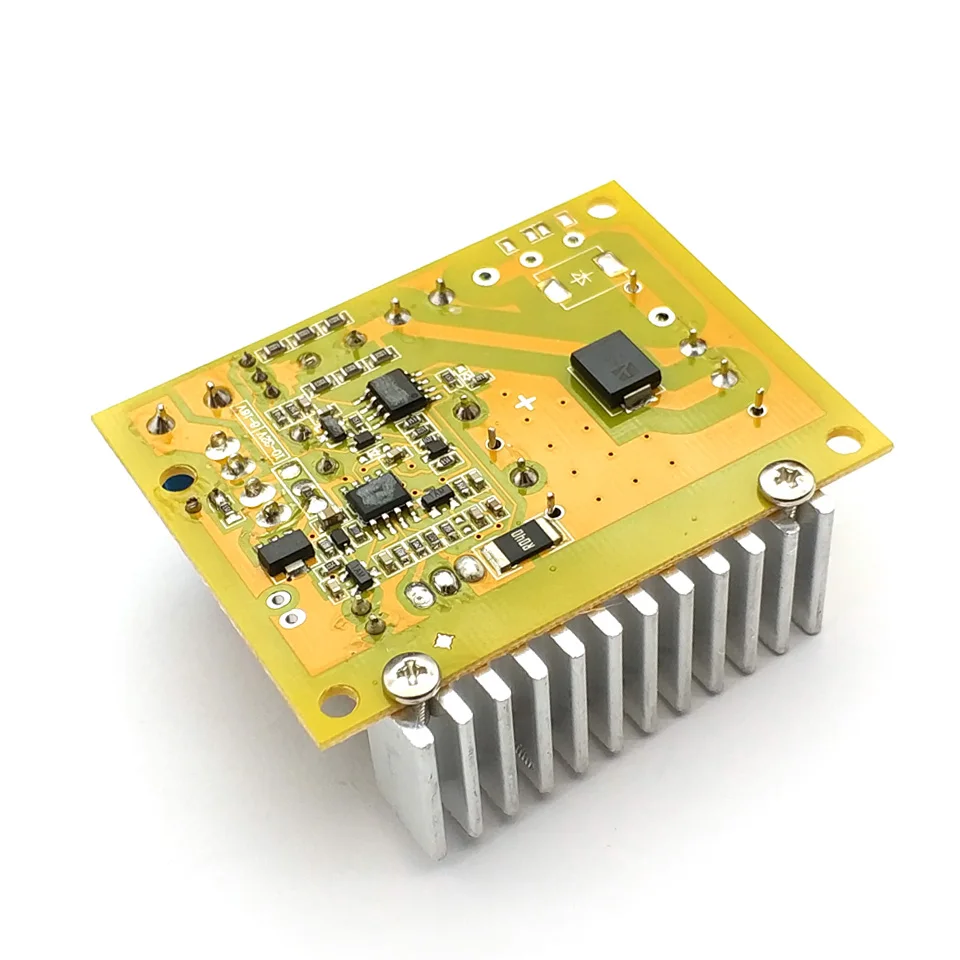

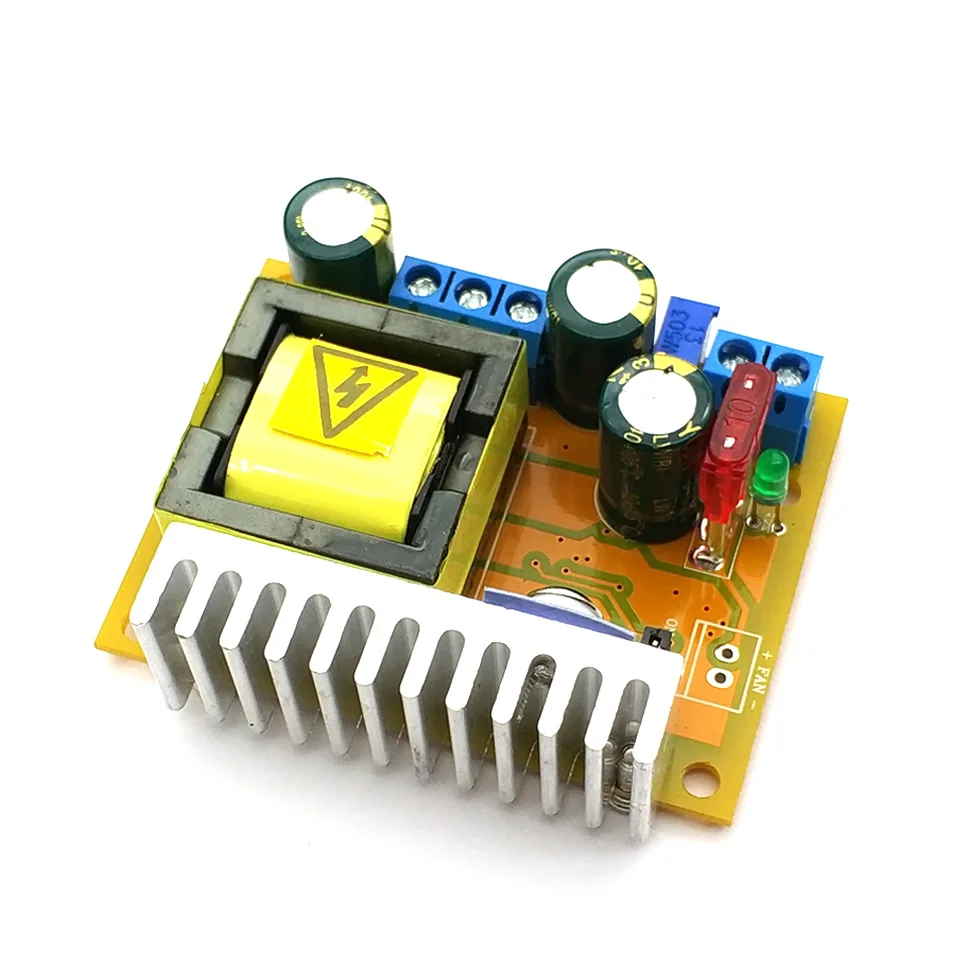

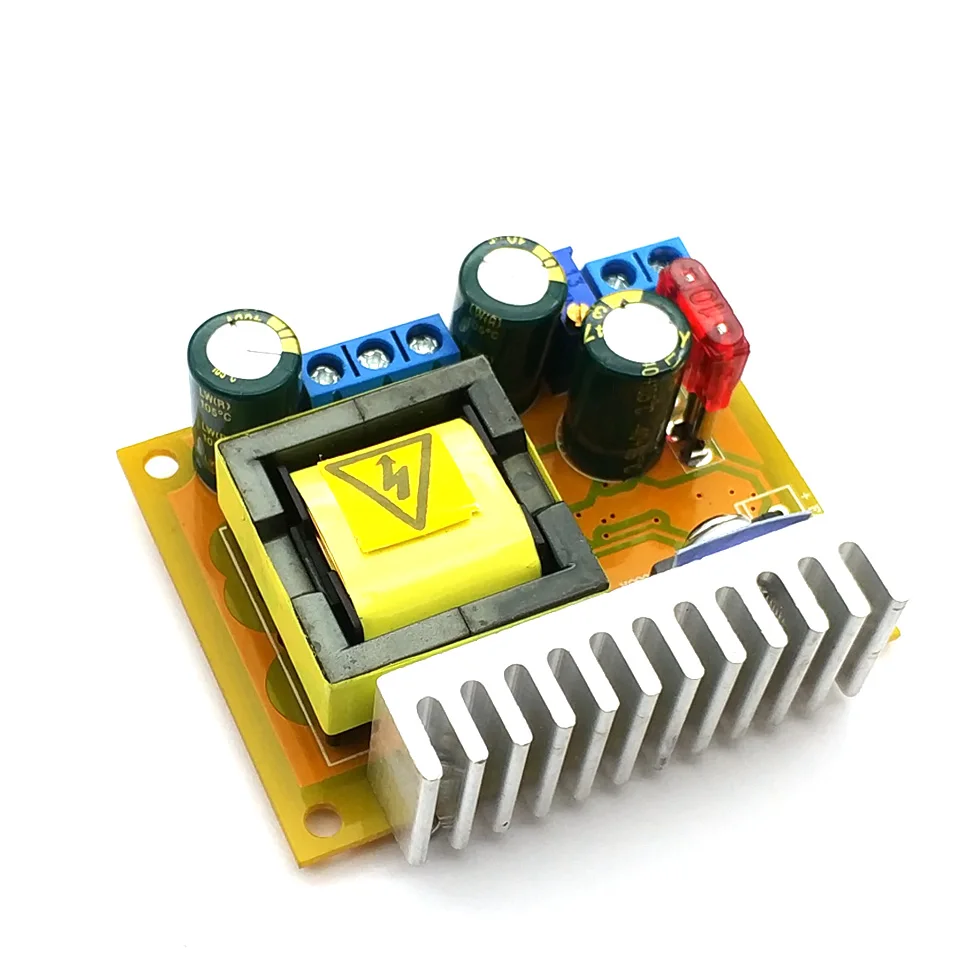

Модуль повышения высокого напряжения DC-DC ZVS с зарядкой конденсатора электромагнитной пушки 45-390В двойного выхода регулятора с возможностью настройки 780В.

High voltage boost module, plus or minus 45-390V 780V wide voltage range, input double current limit protection,
output voltage regulator function,
suitable for capacitor charging, hunting, rodent control, glow pipe power

Module parameters:
Module Name: High Voltage Boost Module
Module nature: non-isolated step-up module
Input voltage: two input voltage range optional, (through the back of the jumper selection, shipping default 10-32V input)
1,8-16V input (for three strings of lithium and 12V battery applications)
2,10-32V input (for wide input voltage range applications)
Input current: 5A (MAX)
Static operating current: 15mA (12V l 50V, the higher the output voltage will be too much static too much)
Output voltage: 45-390V continuously adjustable.
Output current: 0.2A MAX (with the input and output pressure, the higher the output voltage, the smaller the output current)
Output power: 40W (peak 70W)
Operating temperature: -40 ~ +85 degrees (when the ambient temperature is too high, please strengthen the heat)
Operating frequency: 75KHz
Conversion efficiency: up to 88% (efficiency and input, output voltage, current, pressure related)
Short circuit protection: Yes. (Input 10A fuse, the output should not directly short-circuit pull the arc!
Direct short-circuit pull the arc may damage the rectifier device, such as short-circuit pull the arc Please series power resistor current limit)
Overcurrent protection: Yes. (Input current exceeds 4.5A, reduces output voltage)
Overvoltage protection: Yes. (Output voltage exceeds 410V, reduces output voltage)
Input reverse polarity protection: Yes (non - self - recovery, then burned fuse, try not to reverse).
Installation: 4 3mm screws
Wiring method: terminal-free solder output (with shell for the welding output)
Module size: length 60mm wide 45mm high 19mm

To the capacitor charging time measured data:

470uF full to 390V time 2 seconds
1000uF full to 390V time 4 seconds
2200uF full to 390V time 8 seconds
4700uF filled to 390V time 18 seconds

Applications:
1, capacitor charging, electromagnetic gun power.
2, for your electronic equipment power supply, you can set the output value according to your system voltage.
3, the pressure test power, glow tube power.
4, hunting, rodent control.
