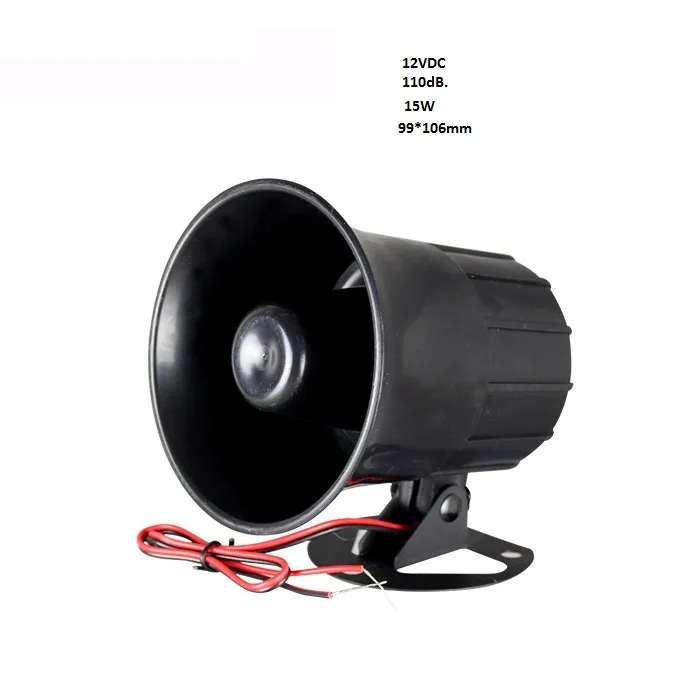

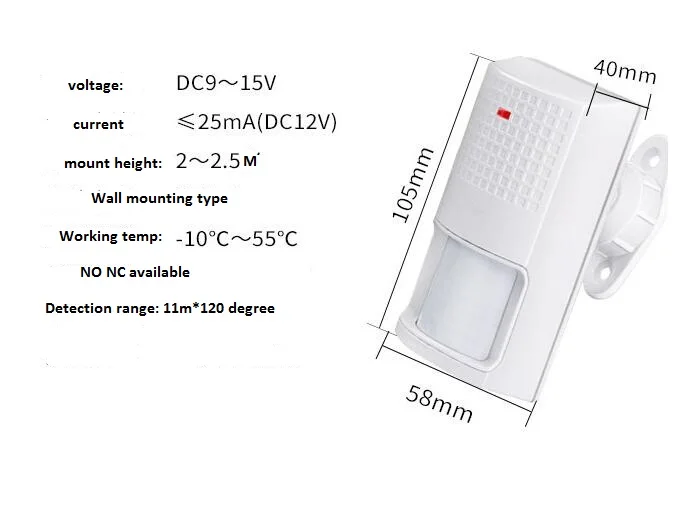

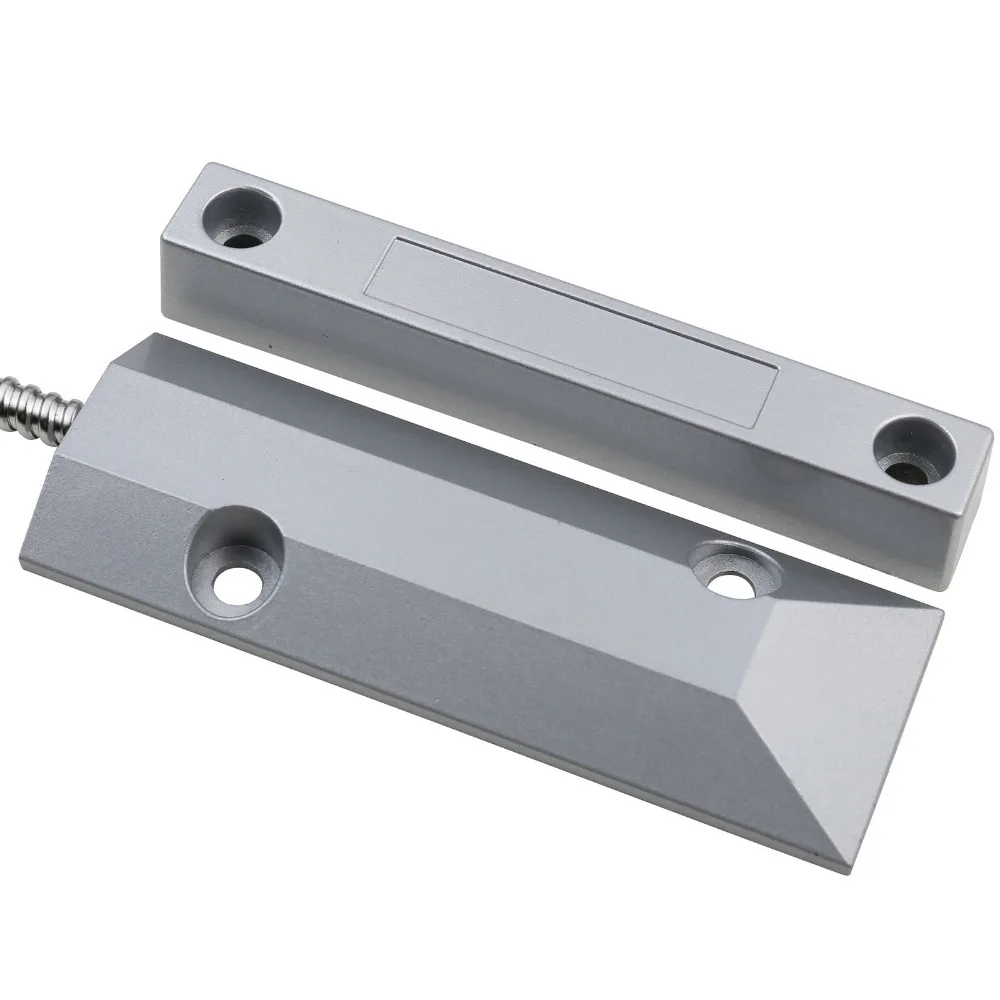

  RTU5025 GSM Remote Gate/Door Opener:                  kit contents： 1 pc RTU5025 1 door sensor, wired, normally closed; 1 siren, 12VDC, black; 1 pir sensor, indoor use,   optional

The RTU5025 is an upgraded version of famous RTU5015 gate opener, a very simple device which can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID),well used on door access, gate control, remote switching, or car parking systems. Actually the RTU5025 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE phone call from your mobile or fixed line telephone.

PC software for programming via USB,remote server system over TCP/IP supported*,users can easily download the access historical data anywhere anytime.

Advantages:

> GSM or 3G band,distribute worldwide applications;

> Up to 999 authorized phone numbers can be configured at the specified time for access control;

>  No call charges.Reject calls from authorized number then carries out the turn ON/OFF action on the first 'ring';

>  Secure – Using Caller-ID for verification, unknown phone calls are ignored;

>  SMS confirmation of relay actions(door open) to the owner or authorized caller number.

>  No need remote control or keys for different users;

>  Up to 10,000 events log,download the operation historical dat by USB or over GPRS;

> Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

Digital Inputs:

>  One Digital input for motion sensor or other sensors to protect your door and windows,SMS alert to owner immediately when triggered;

>  One Digital input special for secure door and automatically armed when door closed, SMS alert to owner immediately when door opened illegally.

How RTU5025 Works?

1. Put a Mobile SIM Card into the Device.

2. Setting by PC software.(WindowsXP, Win7, Win8)

3.Call the RTU5025 by Authorized phone number,  Relay Switch ON/OFF

4. Download the access historical data by PC software via USB port to remote control the Gate/Door or other Machine OPEN/CLOSE!

>>>Door status checking alarm and remote control:

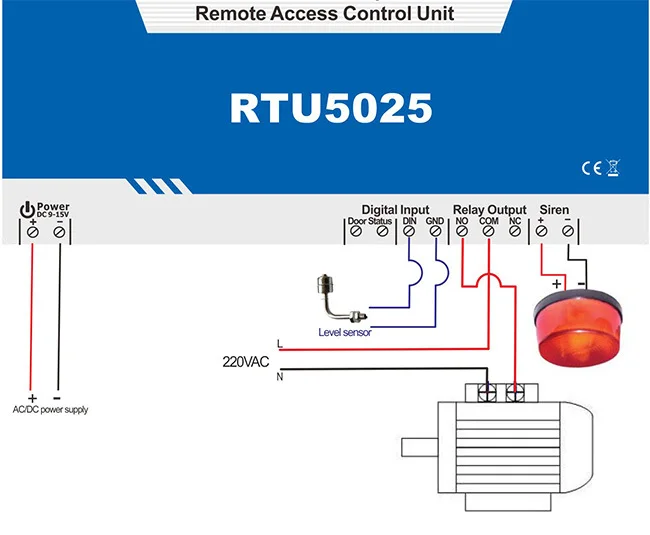

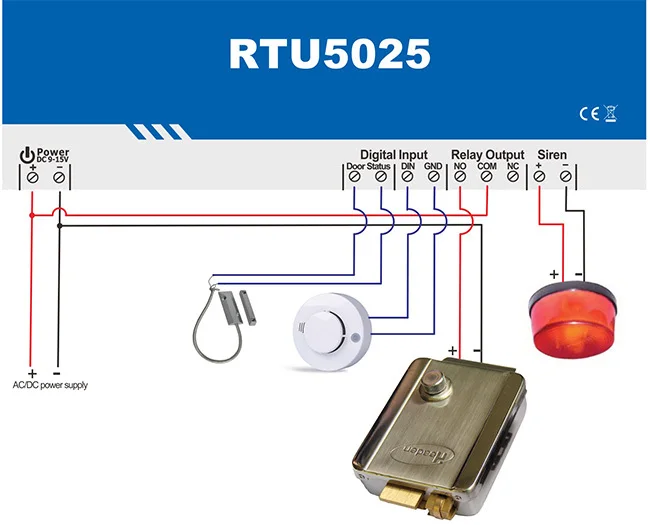

1.Connect wired detector/sensors in tothe DIN1/2.

2.When detector/Sensors trigger,RTU5025 send Alarm SMS Text to the 1st ~6th users automatically.

3.According to the Alarm SMS, users make a decision to CALL RTU5025 Switch Relay ON or OFF.

GSM Gate Opener RTU5025 well used for:

>> Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!

>> Intrusion security alarm,remote ON/OFF motors, lights, pumps,generators,valves and machines.

>>Home and garage owner

>>Business company

>>Hotel

>>Warehouse

>>Parking place

>>Hospital

>>Other place need remote switching ON/OFF applications. eg. Pump, Motor, Valve, or any need NC/NO contact devices.
