Lii-S4

Auto-Polarity Detect Charger

 This charger is designed for portable, flexible and multi-types of batteries. It can detect automatically the battery polarity, battery types and charge the battery under your selected charging current. Built-in digital tube indicator to display the charging real-time status


Cautions:

1. This charger can only charge cylindrical rechargeable batteries 3.7V Li-Ion , 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4

2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

3. Use only DC adapter with output 5V min.2A

4. Mind heating while charging; Keep far away from Children.

5. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

6. For indoor use only

7. The displaying data only for reference, please refer to professional instrument for more accurate data

Features:

1. Four-slot independent charging and MCU management system, Micro USB DC 5V input Min.2A

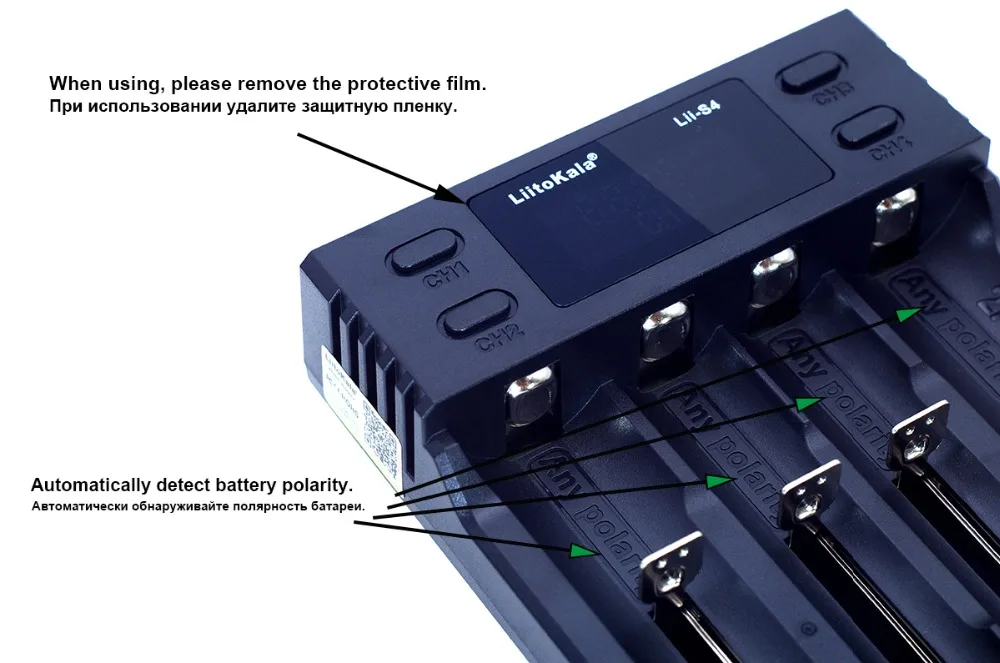

2. The most bright point of this charger with battery polarity auto-detection function( Any Polarity)

3.Selective 0.5A/1A/2A charging currents for Lithium batteries by long press the current button. The defaulted current is 0.5A

4.Built-in digital tube indicator shows the real-time charging status of channel no. (CH), voltage, current, time  capacity and battery type Li-Fe 3.20V / Li-ion 3.70V /Li-ion 3.85V (IMR); When two channels charging, total current will be no more than 2A( when only 1pcs battery inserted, the charging current will be 2A, after the second battery inserted, the current will be automatically lowered to 1A; when charging finish, it shows "FULL";

5.Identify Li-Ion and Ni-MH battery automatically; Select manually by short-press the mode button for IMR battery(3.85V Li-ion )and LiFePO4 battery(3.2V)

6.Activation function for 0V battery of PCM protection.

7. Will not charge batteries with 0.0≤U<0.2V  for NiMH/Cd and 1.65≤U<2.2V for Li-Ion

8. Multi-safety protection functions of over-charging, over-discharge, short-circuited and can automatically Identify broken/defective battery( will not charge bad batteries);

9. Charging under constant voltage and current

Operation instruction:

1. Buttons: There's a 'MODE' button separately for each channel choosing the battery types, charging current

and charging status tracking

u  Long press the 'MODE' button for 3 seconds to change the charging current for lithium batteries, you can change the charging current at any time

u  Short press the 'MODE' button to change the charging types of lithium batteries. If no setting, it will default as 1.2V Ni-MH or 3.7V li-ion battery automatically. You need to change the mode for 3.85V li-ion and 3.2V LiFePO4 battery

u  It begins to charge the battery 5 seconds after your settings

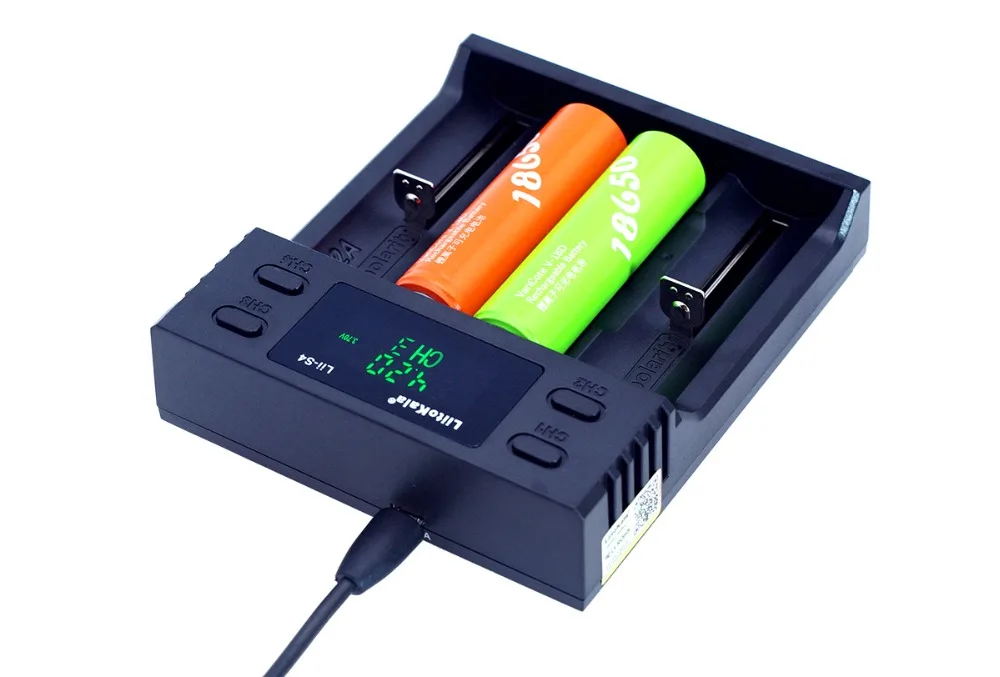

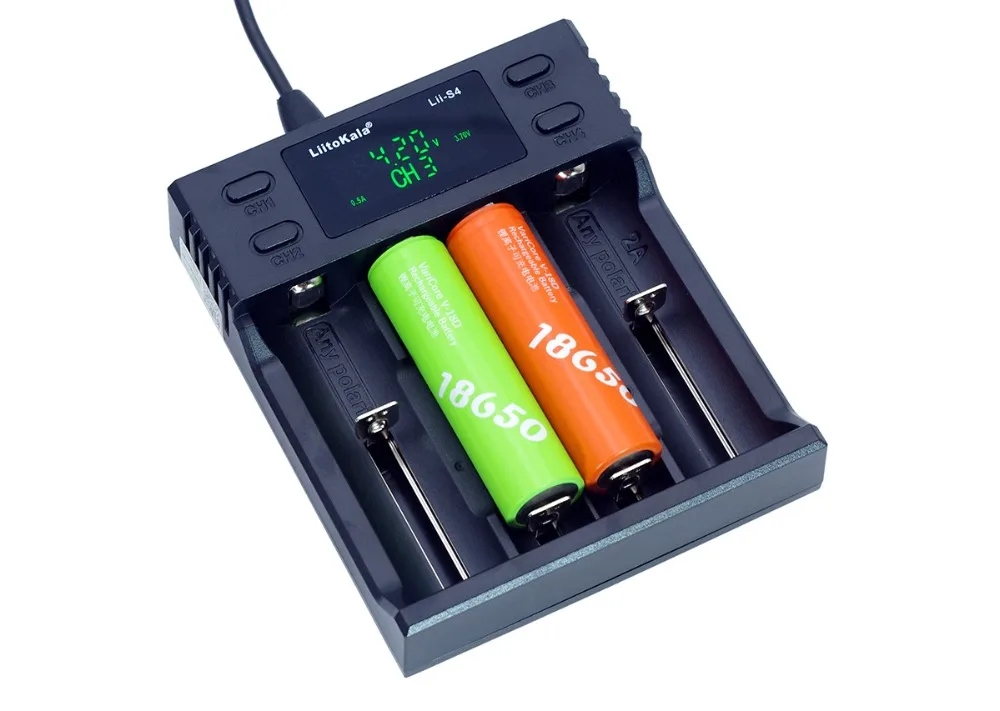

2. Charging display: Connect the 5V input port with USB cable, the digital indicator showing

the whole information for 2S and "null" if no battery inserted;  after it detects with battery inserted showing channel no, battery voltage and current while the battery type symbol is flashing( there will be no battery type symbol flashing function for NiMH/NiCd batteries); then in 5S, it will start to charge with "V" flashing(charge starts). When the battery is fully charged, it shows "Full"

   Digital indicator parameter reference drawing:

Electrical technical parameters:

u  Input: Micro USB DC 5V/2A(min.)

u  Output voltage: DC 4.2V 2A*1pc; 1A*2pcs; 0.5A*4pcs  for Li-Ion

             DC 4.35V  2A*1pc; 1A*2pcs; 0.5A*4pcs for IMR

             DC 3.65V  2A*1pc; 1A*2pcs; 0.5A*4pcs for LeFePO4

             DC 1.48V 500mA for NiMH/NI-Cd

u  Constant voltage charging with cut-off current l ess then 100mA

u  Standby current: No more than 15mA

Compatible for Batteries:

u  Li-ion / IMR/LiFePO4: 26650,20700,18650, 18490, 17700, 17500, 16340(RCR123), 14500, 10440

u  Ni-MH/Cd: AA, AAA, A, SC, C size

Size(mm)/Weight(grams):

u  Length 118mm x Width 100mm x Height 30mm

u  136.4 grams (charger) not included USB cable

Design and made in China

Contact distributor for more information or support
