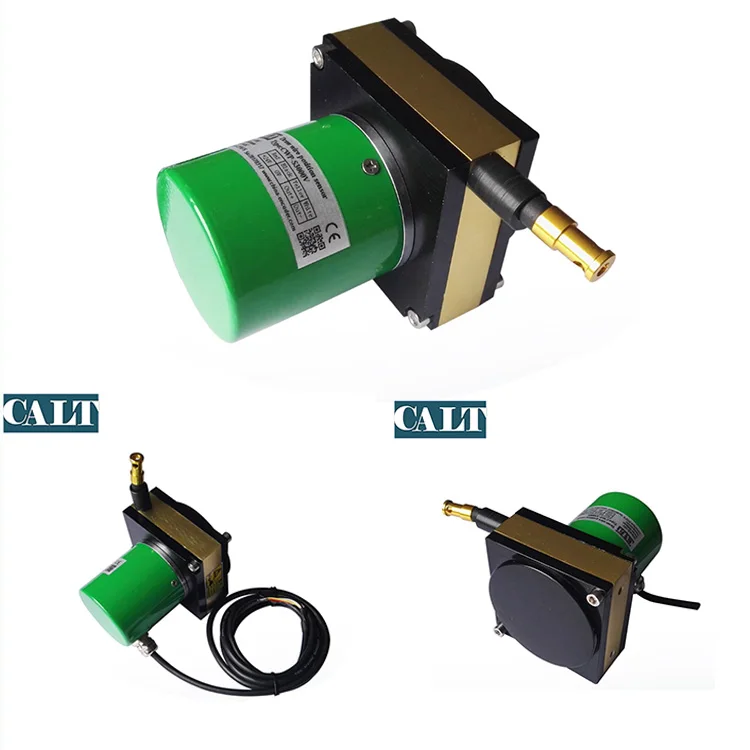

3m stoke range sensor CWP-M3000 Manufacturer CALT Hydraulic Cylinder Draw Wire position Linear Encoder transducer 4-20mA 0-5v |

3m lage stoke range Manufacturer CALT Draw Wire Encoder  Linear Encoder 4-20mA For Hydraulic Cylinder

Note:   The  following dimensions are for reference only, the size of all the encoder refer to the encoder attached in instructions.

If you want other Measuring range or other output please contact me , or note the specific model number when ordering.

Features:

*compact size, rugged construction, easy to install

*economic cost, and cost savings for customers

* Various signals output optional: 4 ~~ 20mA, 0 ~ 5V, 0 ~~ 10V and so on

*The cylinders, testing machines and other industry has achieved large-scale applications, reliability

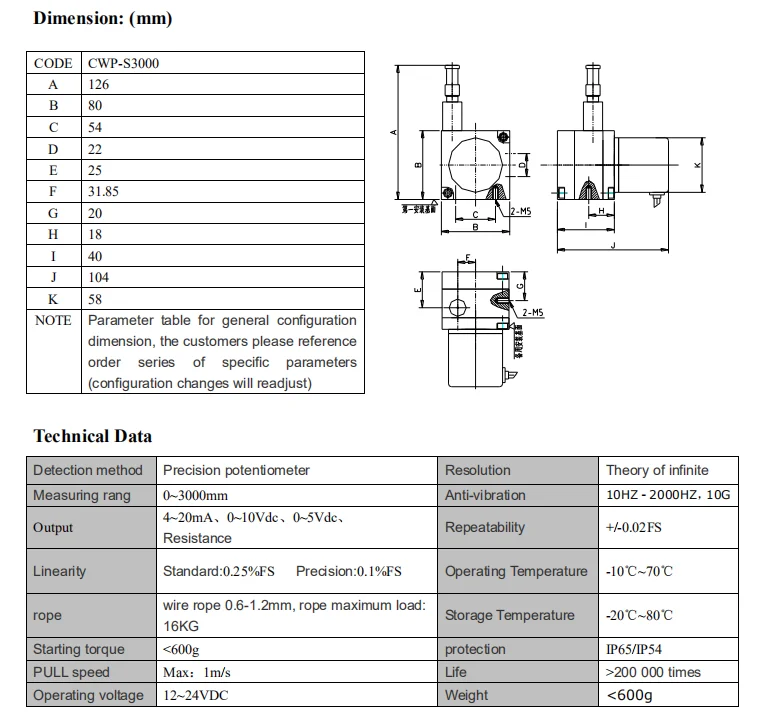

Dimension: (mm)

COMPANY PROFILE

Shanghai QiYi Electrical & Mechanical Equipment Co., Ltd is a technology industrial enterprises integrating R & D, production, agency and sales. Our company focus on the rotary encoders, displacement sensors and proximity sensor with CALT brand. We have many years of experience in supplying rotary encoders and sensors, which widely used in CNC machine, steel rolling machinery, linear guide systems, hydraulic systems, lifting machinery, turbine and other multiple industries. Located in Shanghai, we enjoy convenient air, water and land transportation.
