Описание товара

GR900 Ultrasonic Flaw Detector Portable Digital Measuring Range 0-10000mm GR-900 | ИнструментыGR900 Ultrasonic Flaw Detector Portable Digital Measuring Range 0-10000mm GR-900 | ИнструментыGR900 Ultrasonic Flaw Detector Portable Digital Measuring Range 0-10000mm GR-900 | ИнструментыGR900 Ultrasonic Flaw Detector Portable Digital Measuring Range 0-10000mm GR-900 | ИнструментыGR900 Ultrasonic Flaw Detector Portable Digital Measuring Range 0-10000mm GR-900 | ИнструментыGR900 Ultrasonic Flaw Detector Portable Digital Measuring Range 0-10000mm GR-900 | Инструменты

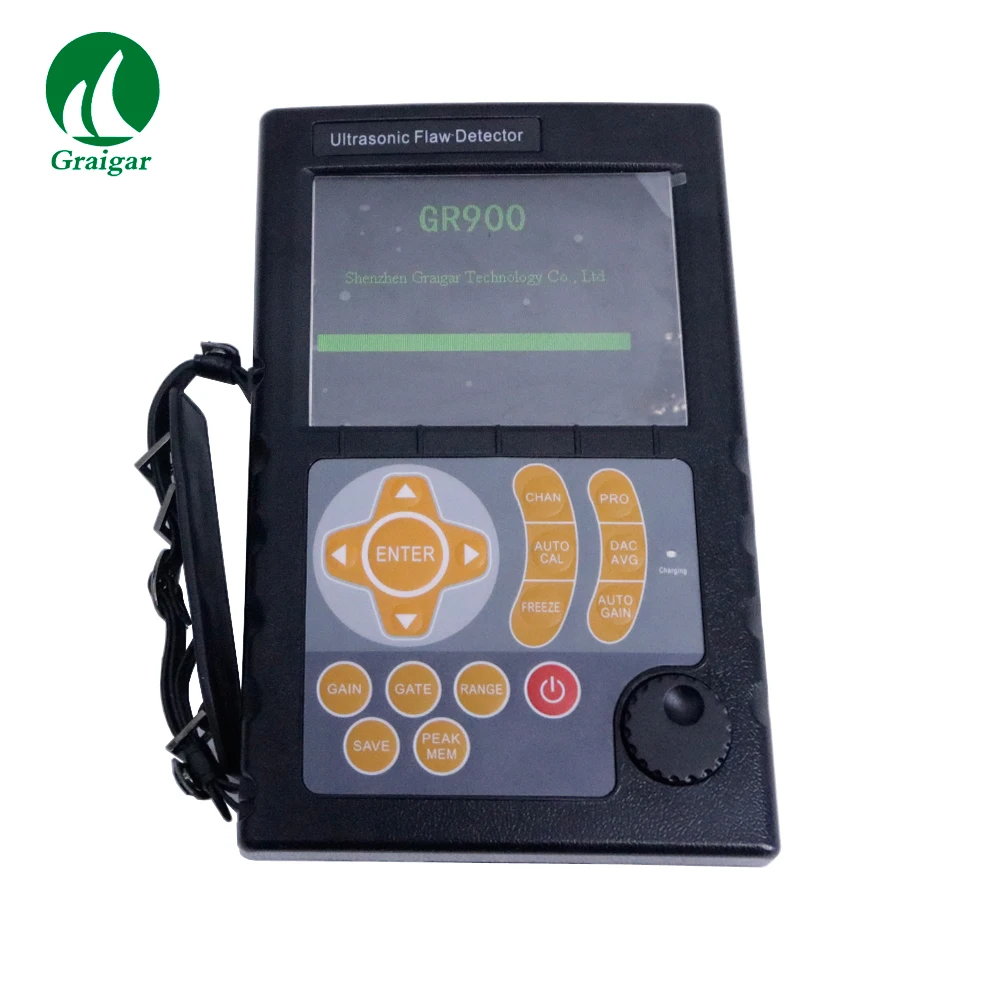

ALIBABA-INSTRUMENT-TOP     GR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector   Measuring Range 0-10000mm GR-900










 Model





GR900

Measuring range

0-10000mm

Material Velocity

1000 m/s~15000m/s

Gain

0-130dB

Working Frequency

0.2-20MHz

Waveform memory

300

Channels

100

D-Delay

 -20µs~+3400µs

Resolution

0.1mm(2.5mm~100mm)   1mm(>100)

P-Delay

0µs~99.99µs

DAC

AVG

Built-in Standards

Vertical linear error

≤3%

Horizontal linear error

≤0.1%

Sensitivity Leavings

>62 dB

Dynamic range

≥32dB

Recoring Time

5mins

PC Software

Temperature

-20℃~50℃

Humidity

20%~90%RH

Power

7.4V 4800mAh

Working time

>10 hours

Display

LED true color

Size

238mm*155mm*46mm

Weight

1.0kg



Main feature:

*Automated calibration of transducer Zero Offset aor Velocity;

*Automated gain, Peak Hold and Peak Memory;

*Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

*Automated switch (Depth d,level p,distance s);

*100 independence setup,any criterion can be input freely, we

can work in the scene without test block;

*Big memory of 300 A graph.

*Gate and DAC alarm;Acoustic-Optical alarm;

*The embeded software can be online updated;

*Li battery, continue working time up to 10 hours;



*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*High-speed capture and very low noise;

*DAC,AVG;

*Automated calculate the size of the flaw with w ide bottom type in AVG function.

*6dB DAC functions;

*Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;

*Powerful PC software and reports can be export to excel;

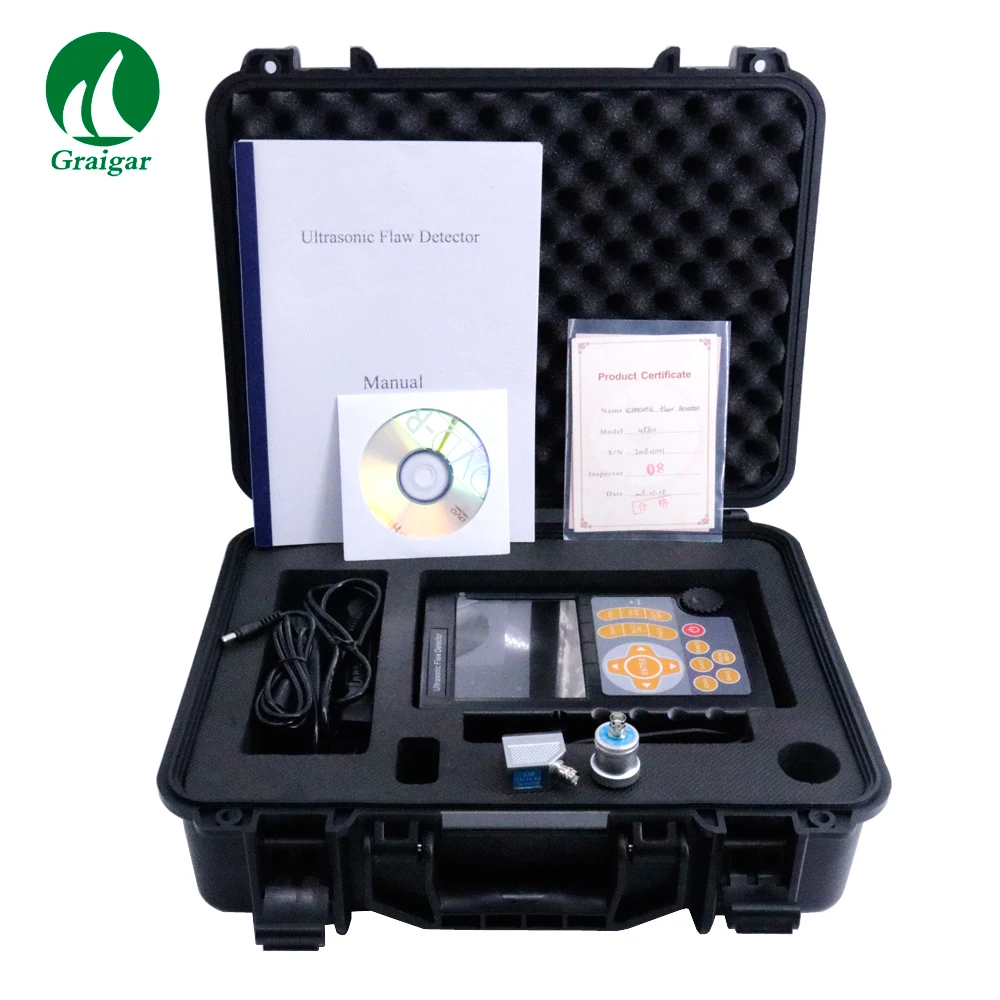

 Standard Configration:



Standard Configuration:





Name

QTY

1

Main unit

1

2

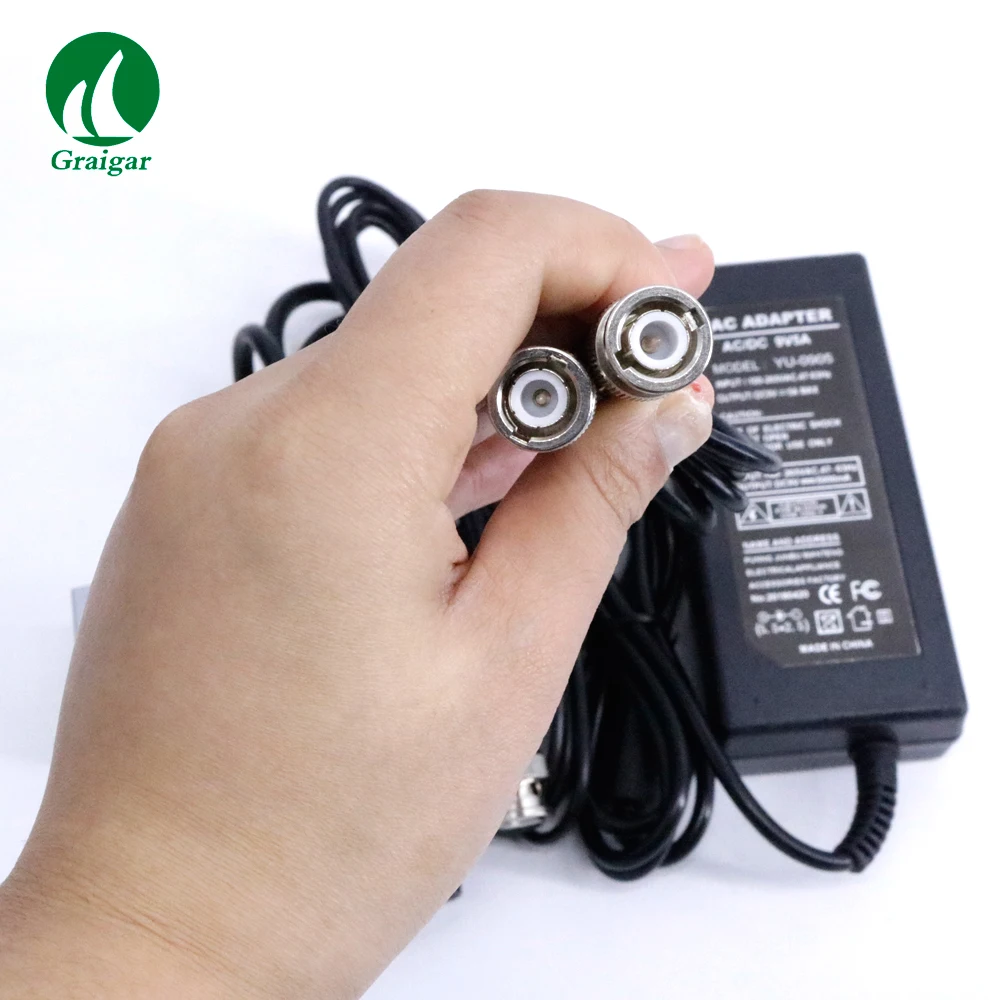

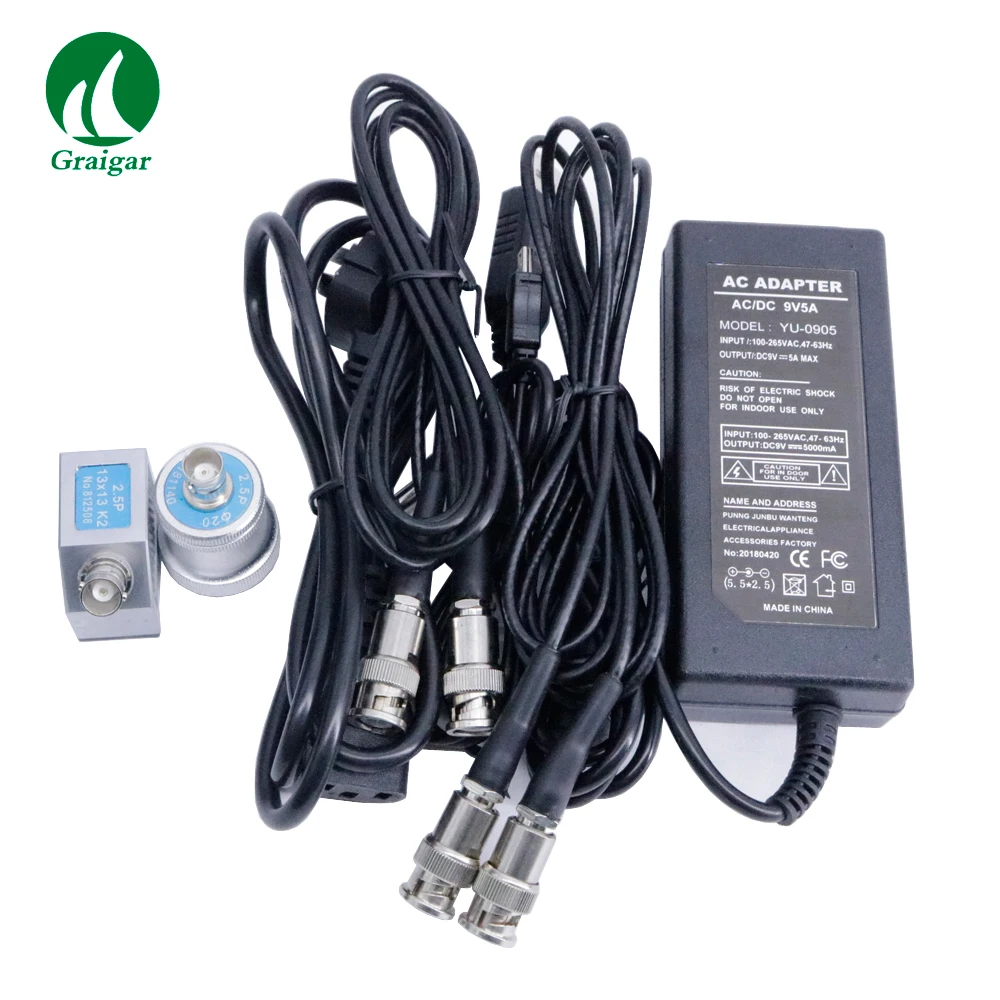

1.5A/9V power adaptor

1

3

probe connecting cable

2

4

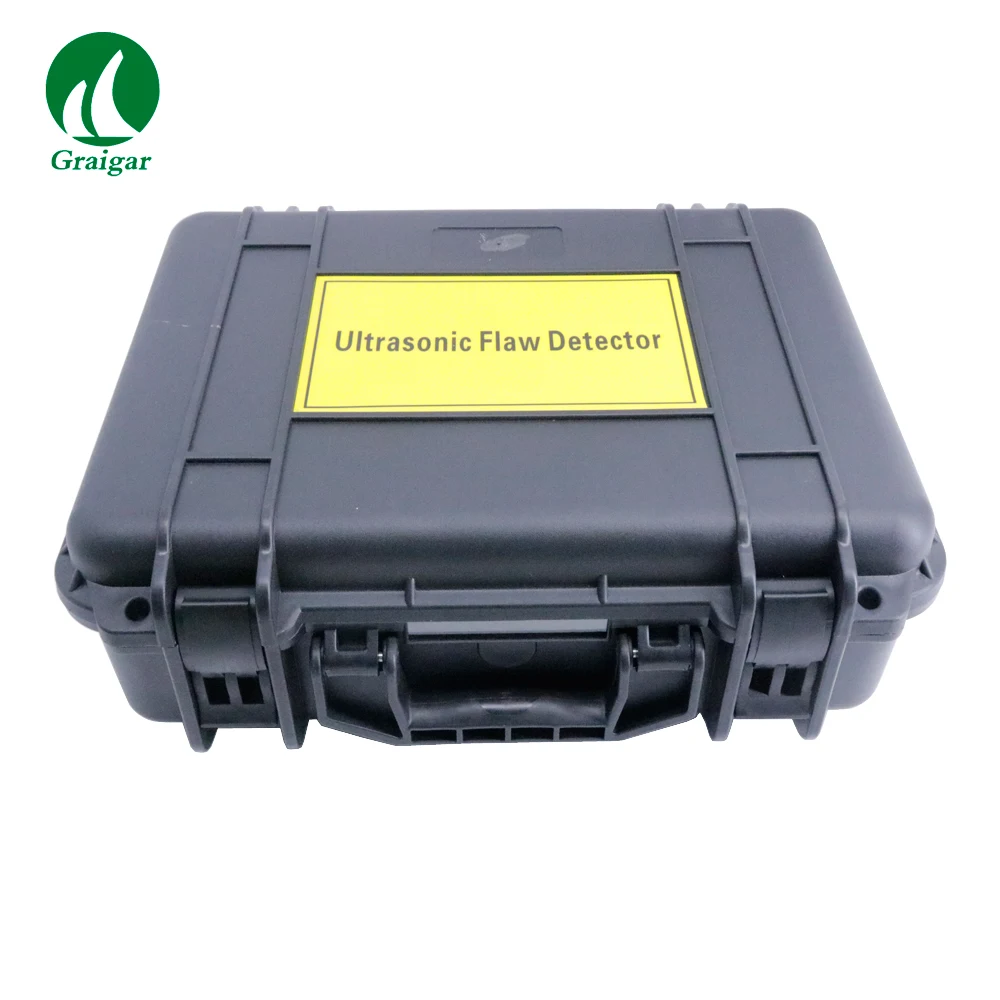

Instrument case

1

5

Instruction manual

1

6

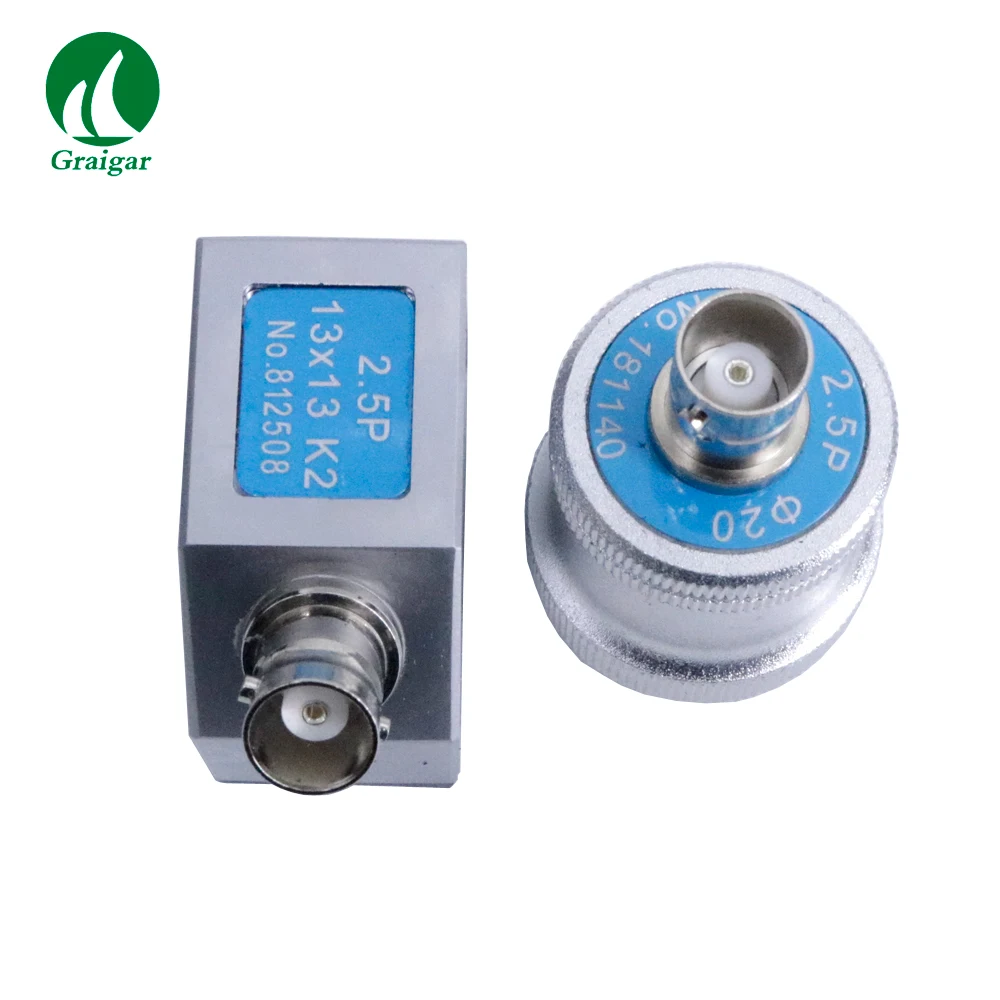

Straight probe 10mm 2.5MHz

1

7

Angle probe 13x13 K2 2.5MHz

1

8

Warranty card

1

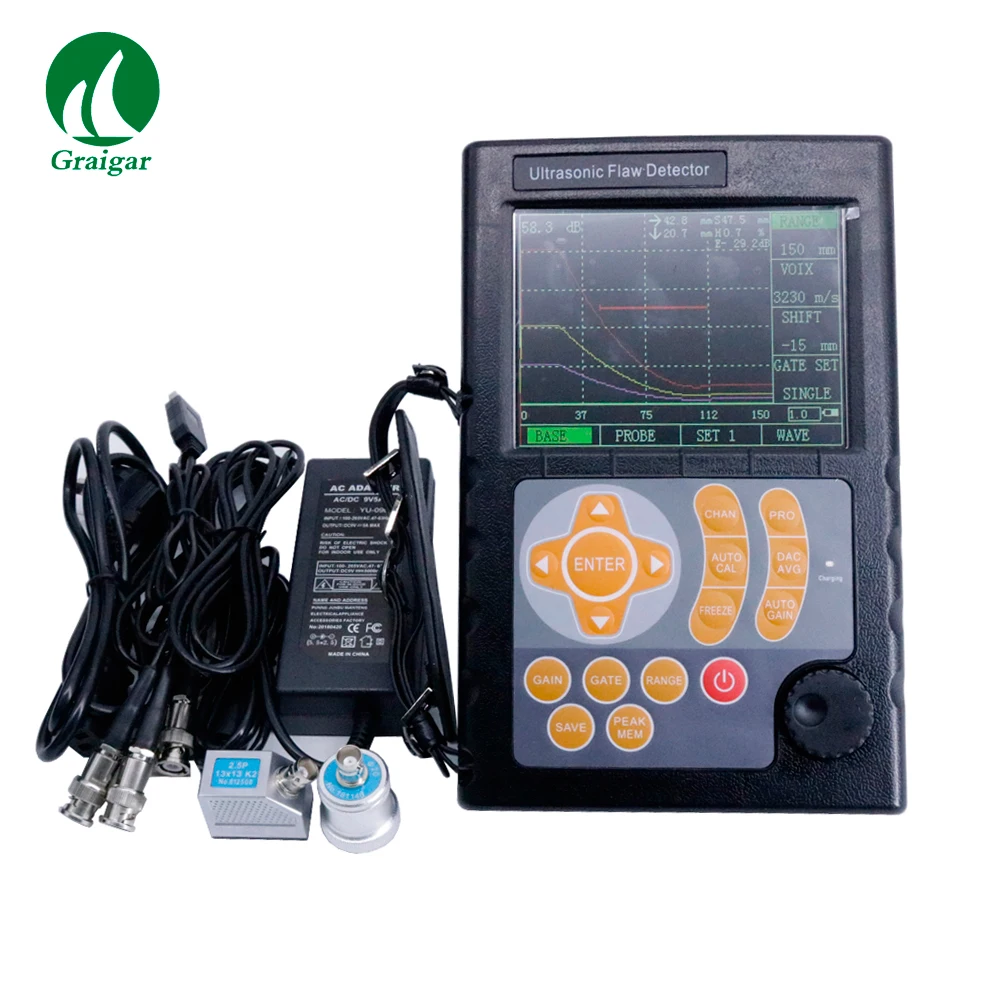

  GR900(1)

GR900(9)GR900(10)GR900(11)GR900(12)GR900(2)GR900(3)GR900(4)GR900(5)GR900(6)GR900(7)GR900(8)
