Note:

1. Once we receive your payment, we will prepare & arrange shipment to you within 1-3 days. 2. In order to avoid unnecessary trouble caused by product problems, all products will be fully tested before shipment. 3. Due to the international air does not allow contains flammable and explosive goods, so the unity does not contain the battery delivery, thank you for understanding! 4. I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, and please contact us before you give us neutral or negative feedback. we will give you the most satisfactory answer! Happy shopping, thank you very much！

Features:

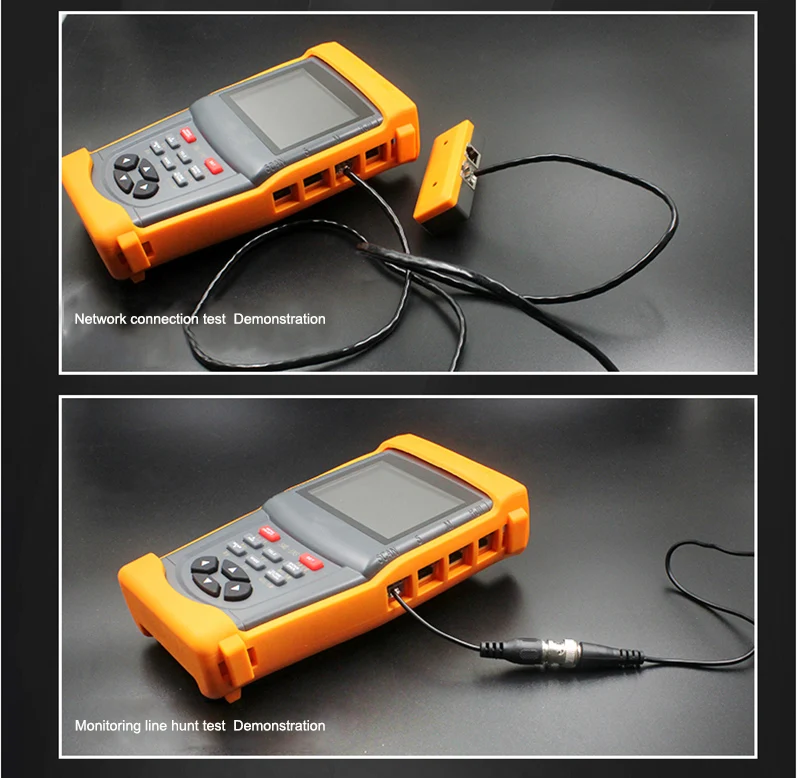

1. 3.5 inches large screen high-definition LCD display, 960*240 resolution, 262 k color. 2. LCD video brightness/contrast/color saturation is adjustable. 3. Automatic adapt and display NTSC and PAL of video system. 4. Measure the video signal intensity, testing video signal level is attenuation or not. 5. DC12V 1A power output to provide emergency power of video camera, also can input external power to provide power for instrument. 6. Many system striped pattern generator (seven system can switch over the video test signal generator), the transmit/receive global seven system of striped image. 7. Rapidly scanning and finding ball machine address, helping users to find the ball machine address. 8. Testing cable type: twisted pair, telephone lines, coaxial cable and through the crocodile clip test common metal line. 9. Testing cable length, proofreading cable length, store length parameters,obtain storage length parameters. 10. Test crosstalk of wisted-pair cable line, judge connection/open circuit/orientation of twisted-pair cable line ,test far end of twisted-pair cable line. 11. Find coaxial cable line, test length of coaxial cable line, position coaxial cable breakpoint length ,test metamorphic of coaxial cable wire , test open cricuit of coaxial cable. 12. Find telephone line, test length of telephone line length, position telephone line breakpoint length, test short circuit of telephone line . 13. Support RS232 / RS485 interface, rate of 300-19200 BPS is adjustable. 14. Support PELCO - P, PELCO - D, FOR SAMSUNG more than twenty kinds of control protocol. 15. Capture and analysis PTZ agreement , Control protocol instruction display,help engineer to judge RS485 transmission is normal or not, more easily to find out the equipment fault. 16. PTZ (PTZ and zoom) control, can control rotation direction of PTZ, zoom/focus,aperture of video camera, set ball machine menu parameter, set and call preset position etc. 17. Delay shutdown software: if the instrument in 20 minutes not operation, it will be turned off to save battery.

Production Function:

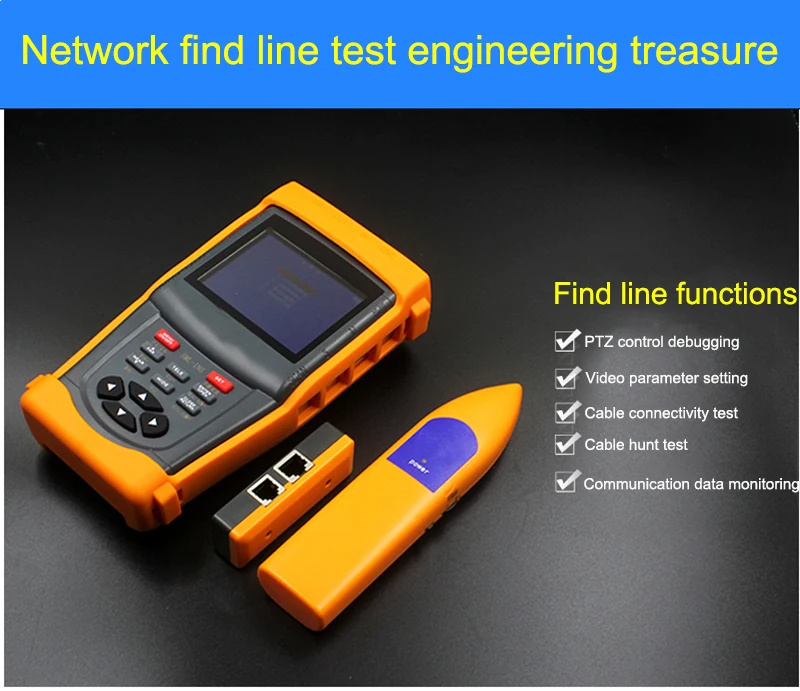

1. Test Signal Function 2. Test Signal Strength Function 3. PTZ Control Function 4. CCTV Camera Control Function 5. DC12V 1A Power Output Function; 6. PTZ data capture and analysis function; 7. Cable connectivity test 8. Cable length test function 9. Cable Hunting Test Function 10. Optical power test function

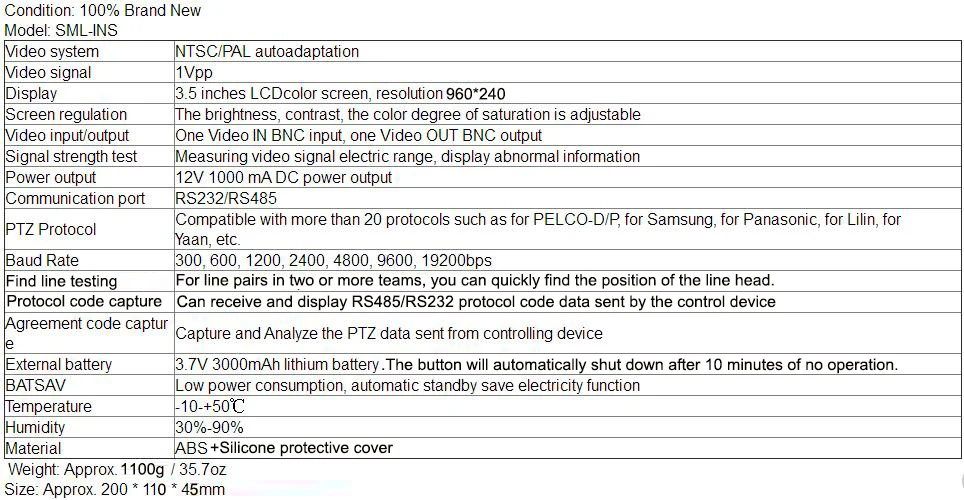

Specification:

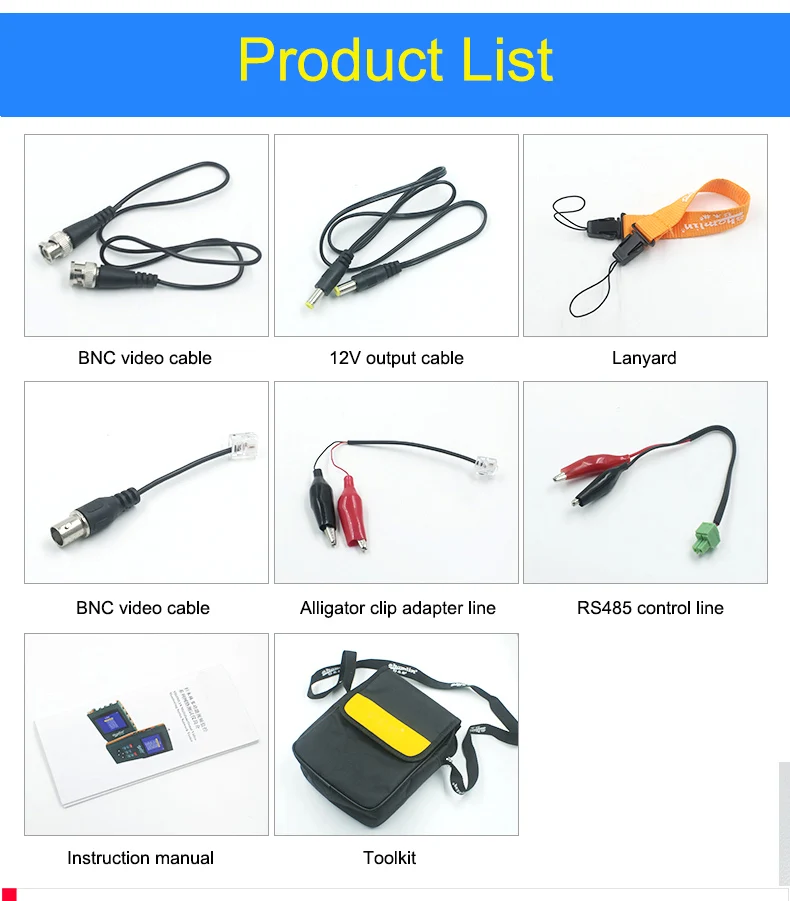

Package List:

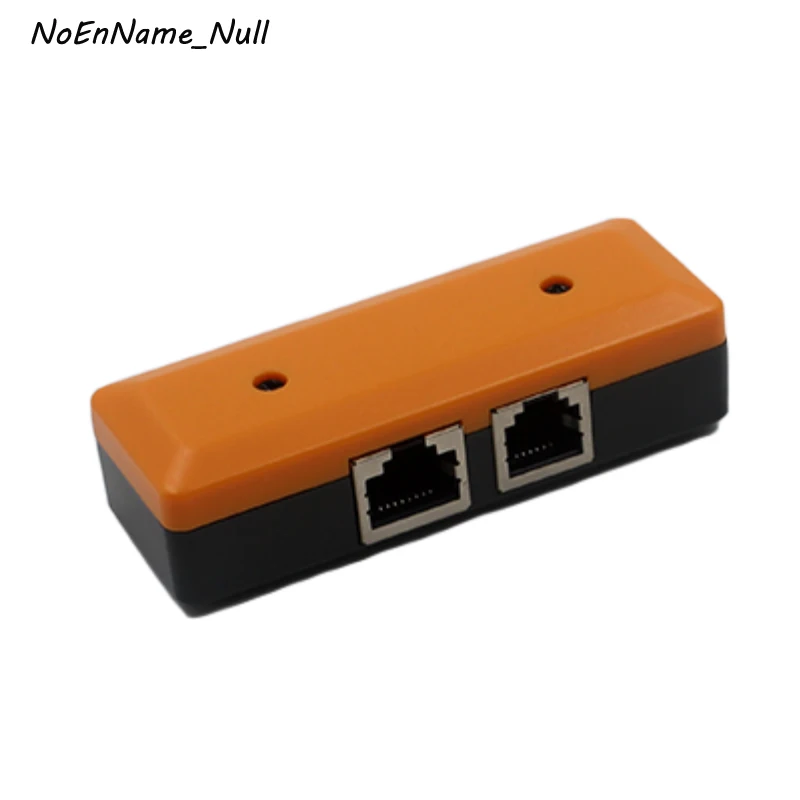

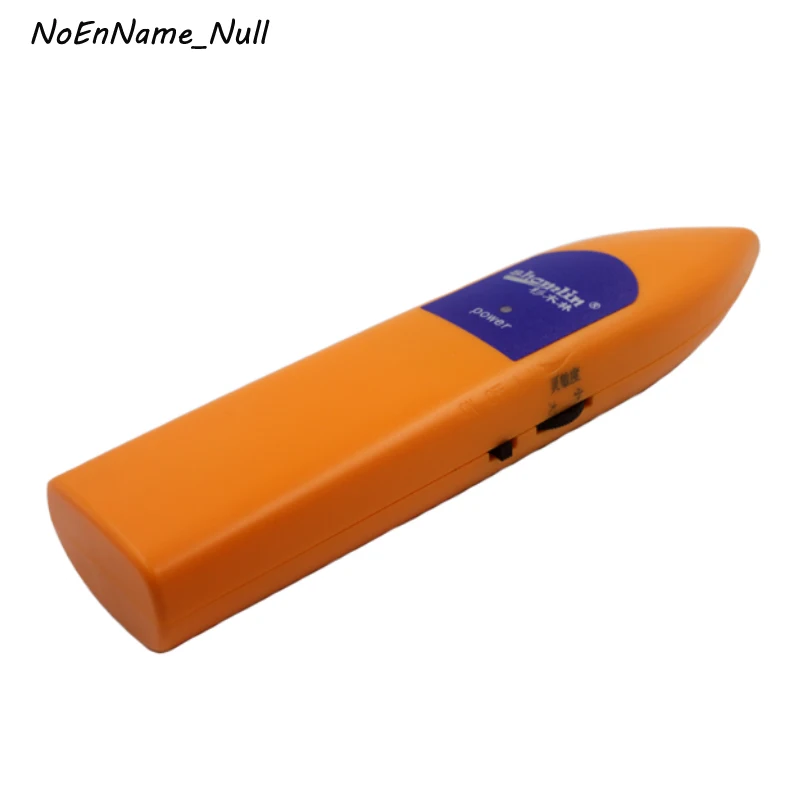

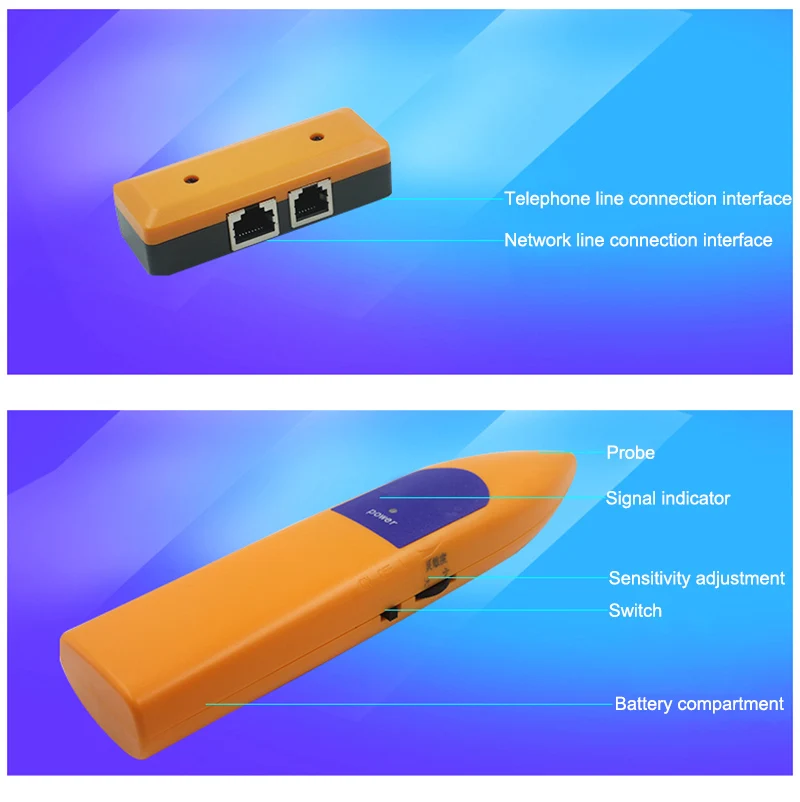

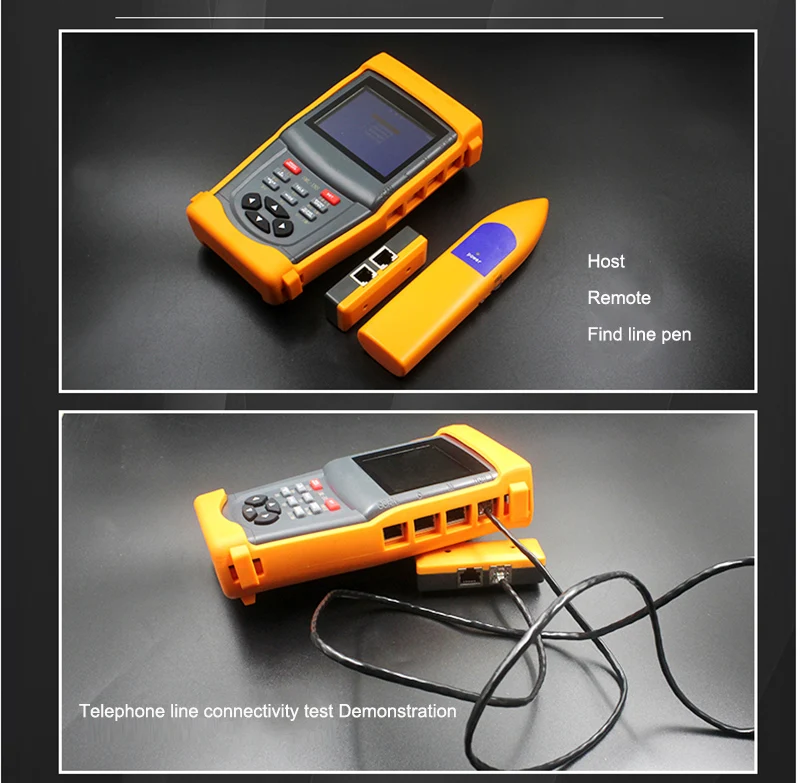

1 x CCTV Tester 1 x Line Finder 1 x Remote Receiver 1 x BNC Video Cable 1 x Crocodile Clip Adapter Line 1 x DC12V Output Cable 1 x USB Cable 1 x RS485 Control Line 1 x Bag

Item Picture

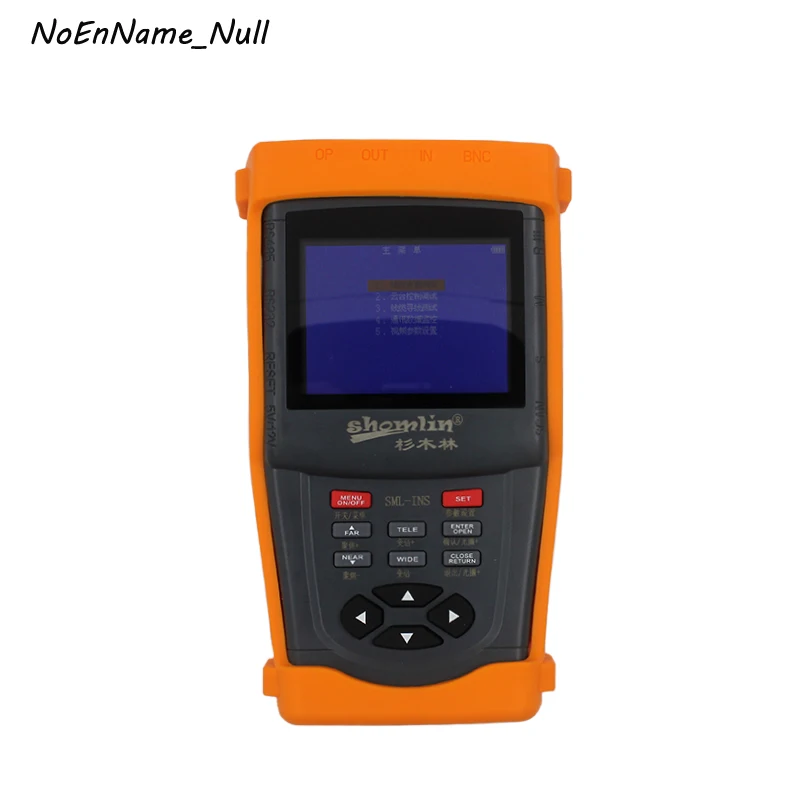

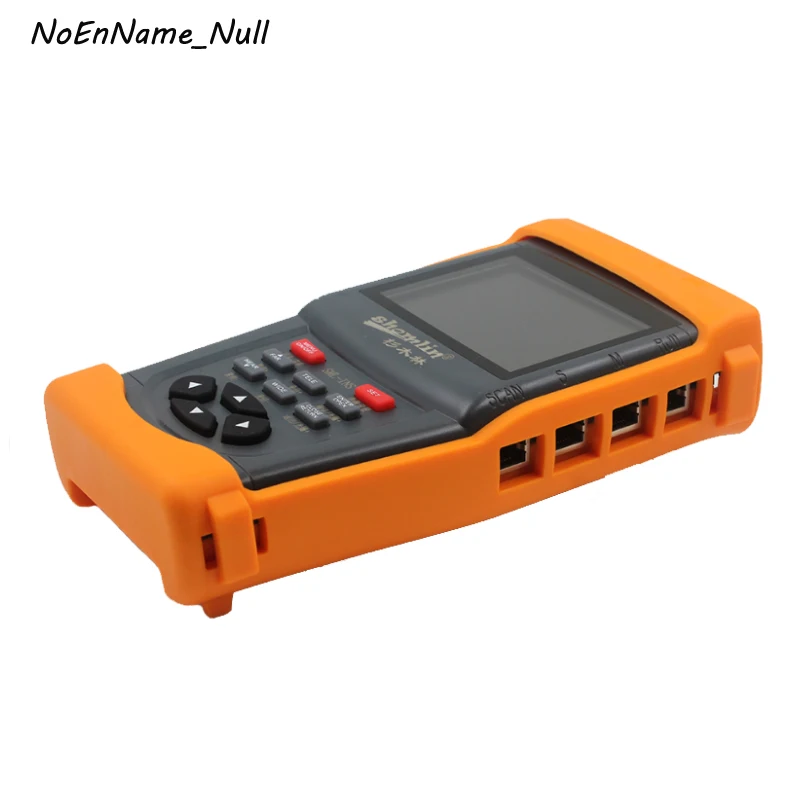

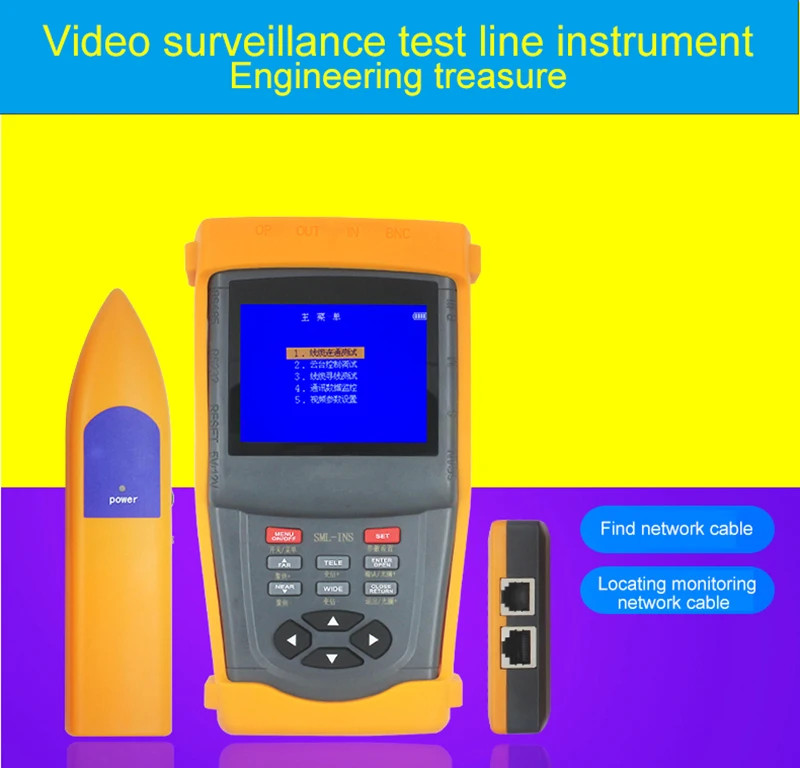

Network Tester SML-VLS 3.5in LCD Display Multifunctional Monitoring Network CCTV Tester Network Analyzers Wire Tracer Chinese

Reminder:

1. All post offices sent to Brazil and Argentina require the consignee to pay customs duties in order to receive the goods. If the goods are not paid beyond the time limit, the goods will be returned. You are required to bear the double freight. Thank you. Please confirm and order. Placing an order means that you agree to cooperate. 2. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.) We can mark the customs cleanrance declaration per your instrution if any.
