Product Description

,

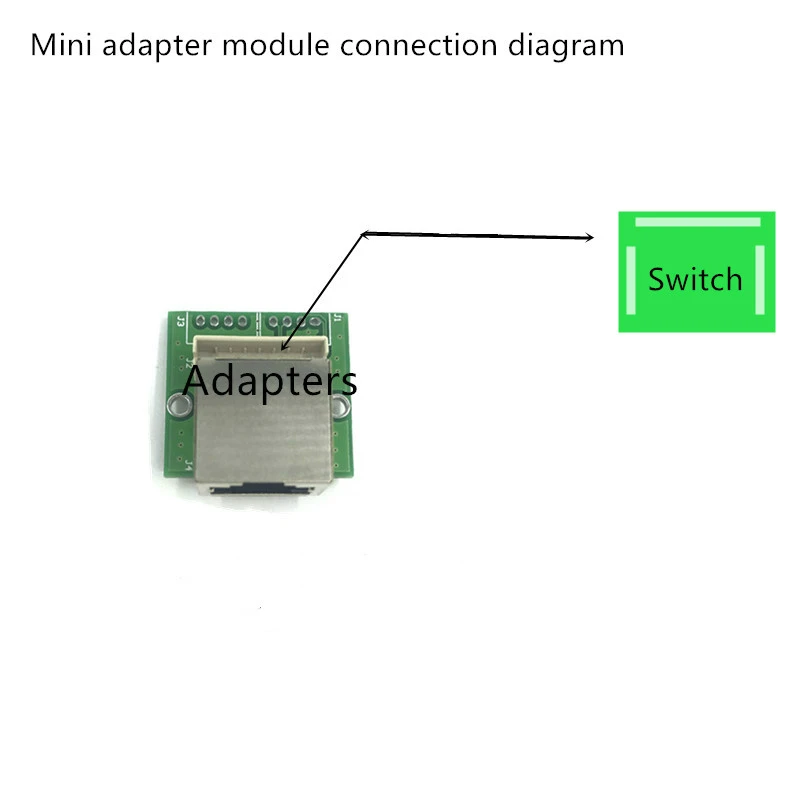

Support increase pin plug, support OEM custom, provide structure diagram, can be customized, 100M, Gigabit switch module, welcome to pay attention to customer service, thank you for your support！

product description:



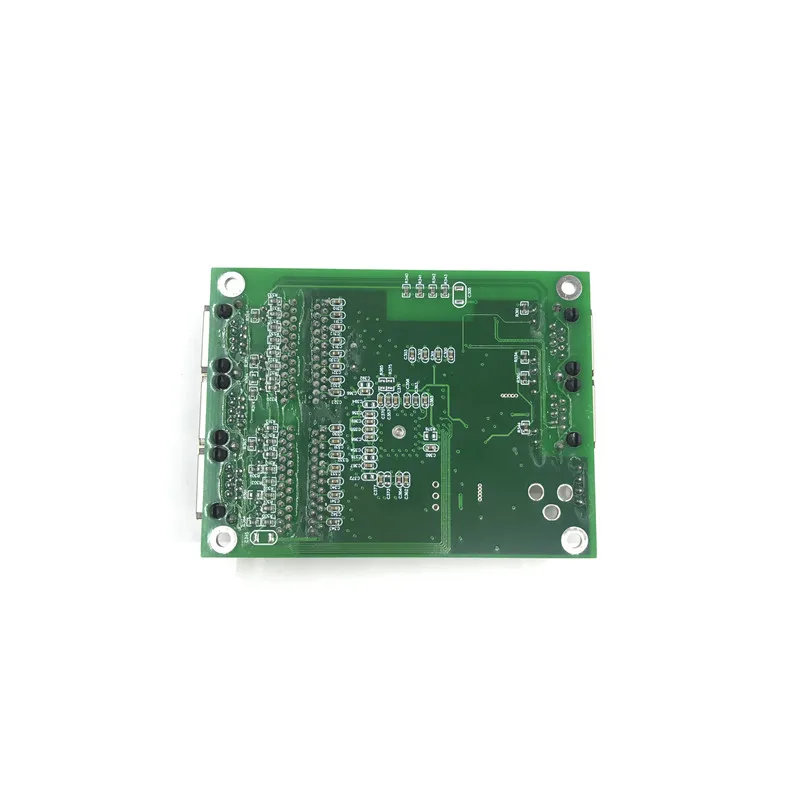

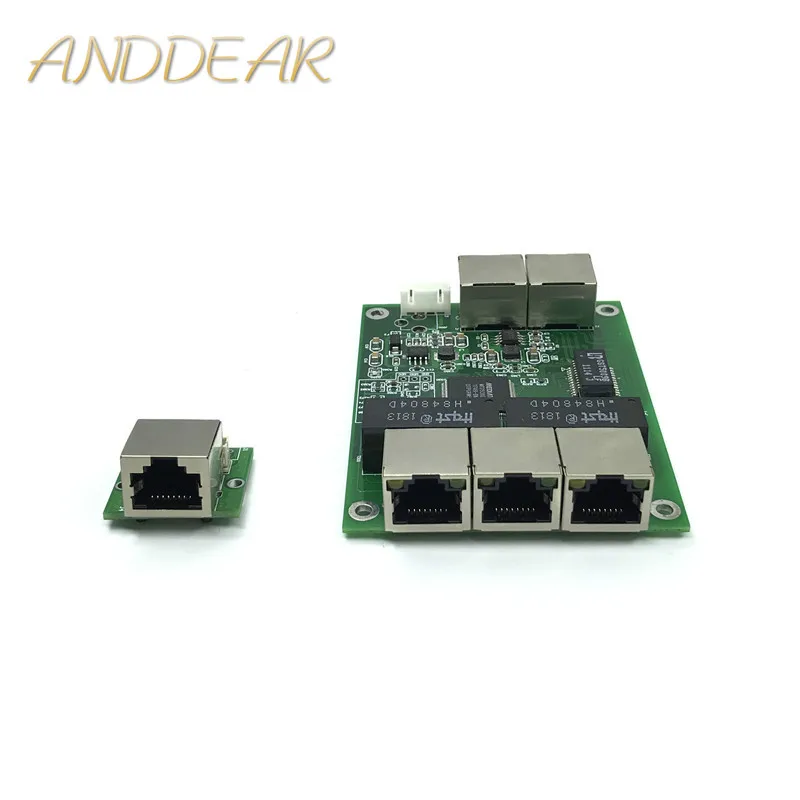

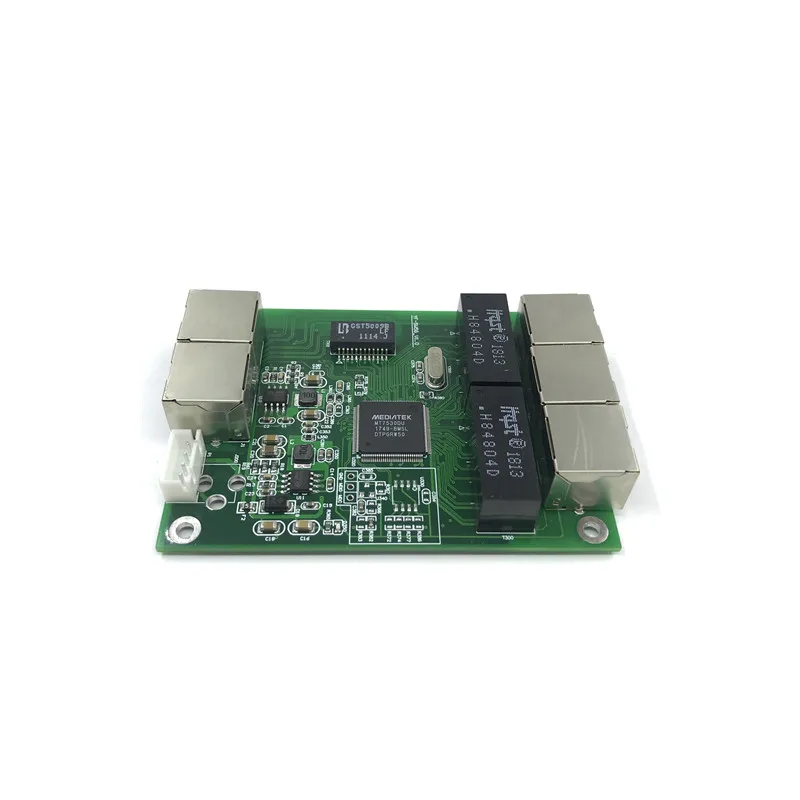

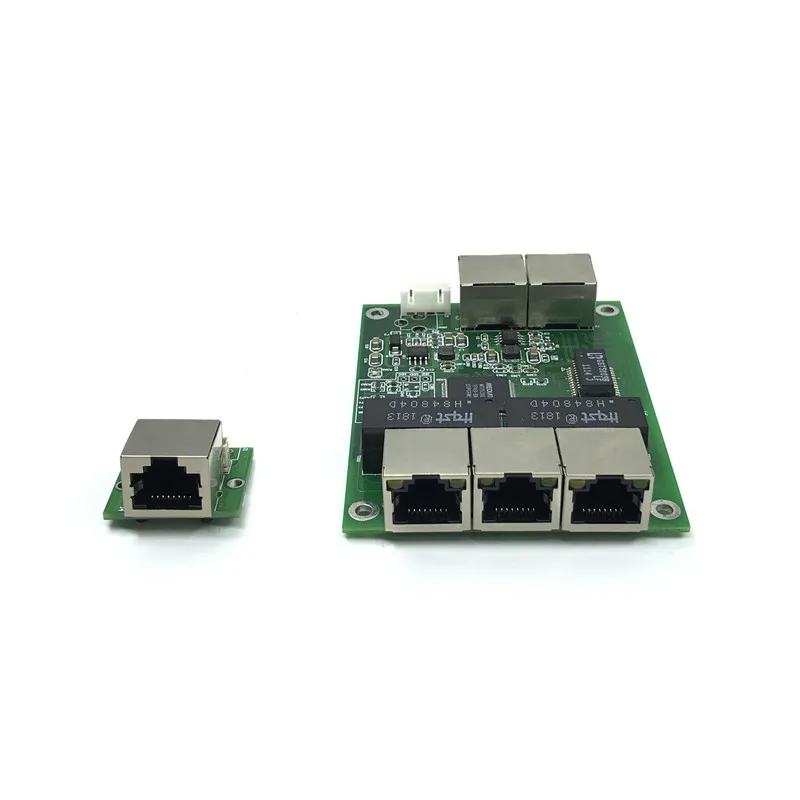

ANDDEAR-009 A high-performance, low-power Fives10/100/1000Mbps Ethernet Gigabit Switch Module. It provides a full line-rate gigabit backbone Gigabit network connection to your workgroup or server for easy plug-and-play. This flexible, non-blocking architecture allows users to use unlimited bandwidth and media networks.



The 5-port 10/100/1000Mbps Gigabit switch supports half-duplex flow control and full-duplex backpressure mode. Each switch port supports the adaptive function. Provides an economical, practical and cost-effective 10/100/1000Mbps sharer for broadband LAN networking, providing a stable, high-throughput, full-line-rate data transmission network for each end user connected to the LAN; The port adopts the store-and-forward mode, which can effectively isolate broadcast storms, reduce packet errors and error packets, avoid network congestion and network conflicts. The LED panel can diagnose the operating status of various ports and the entire system. Supports IPv4 IGMP v1/v2/v3 and IPv6 ML. Dv1/v2 detection



The



application:



This 5-port Gigabit switch is an Ethernet switch dedicated to LED modules, LED industry data conversion, LED data control



The



product features:



Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards



Fives10/100/1000Mbps self-adapting RJ45 ports


8K MAC address learning



Support EEPROM configuration



Support stacking, support QoS



Supports IPv4 IGMP v1/v2/v3 and IPv6 ML Dv1/v2 detection



All ports support IEEE 802.3x half-duplex flow control and full duplex back pressure mode



Non-blocking switching architecture, full wire-rate forwarding and maximum throughput filtering packets



Support MAC address learning, automatically adjust the transmission mode and transmission rate;



Mini Dimensional Design



LED indicates power, link and activity, provides simple working status prompts and troubleshooting;



External Application Power Supply DC5V2A



5-port Gigabit Switch Module



Products have CE and RoHS certification



Chip: RTL8367





Specifications:



standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI/IEEE Standard 802.3 Automatically Adjusts IEEE 802.3x Traffic Control

protocol

CSMA/CD

Filtering and forwarding rates

Ethernet 10Mbps (half duplex) 20Mbps (full duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (Half Duplex), 200Mbps (Full Duplex), 100Mbps: 148800pps

Gigabit Ethernet 2000Mbps (full-duplex), 1000Mbps: 1488000pps

Topological structure

Stars

Network media

10Base-T: UTP of Class 3 or above (≤100m)

100Base-TX: Category 5 UTP (≤100m)

1000Base-T: Category 6 or Category 5 UTP (≤100m)

Number of ports
5 10/100/1000M pin port

cascade

All ports can be used as UP-LINK ports

Forwarding mode

Store and forward

temperature

Working temperature: 0 C~40 C (32 F~104 F)

Storage temperature: -40 C~70 C (-40 F~158 F)

humidity

Operating Humidity: 10%~90% non-condensing

Storage humidity: 5%~95% non-condensing

Backplane bandwidth

16G

LED indication

The

1 power light (power light: red light)

4 data lights (Link/Act: green light)

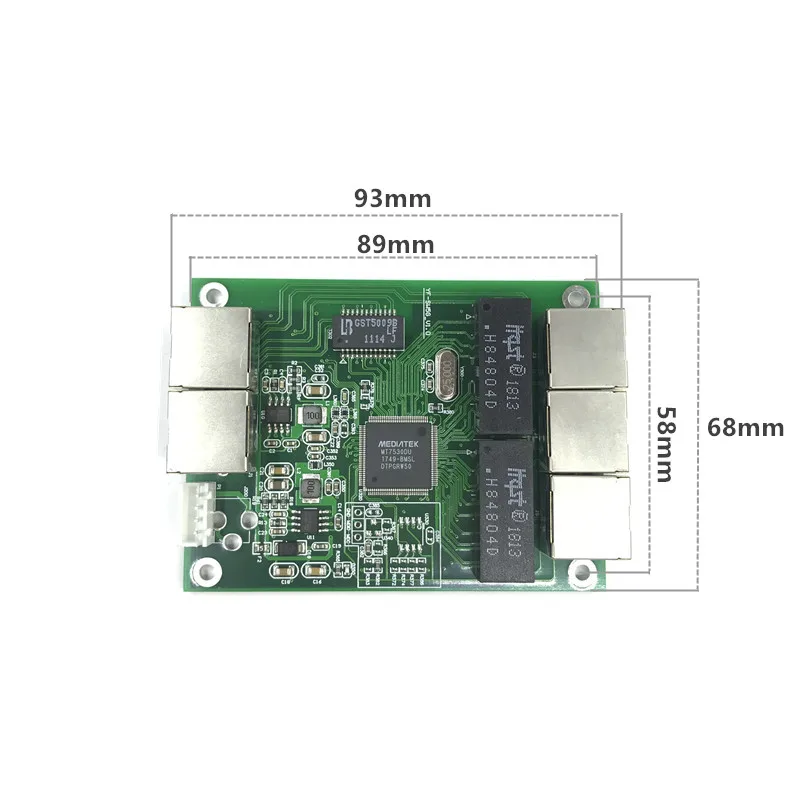

Product Size (W x H x D)

60x 60 mm

Application power

External power supply DC 5V/2A

Housing material

Hardware shell

Certified

CE RoHS
