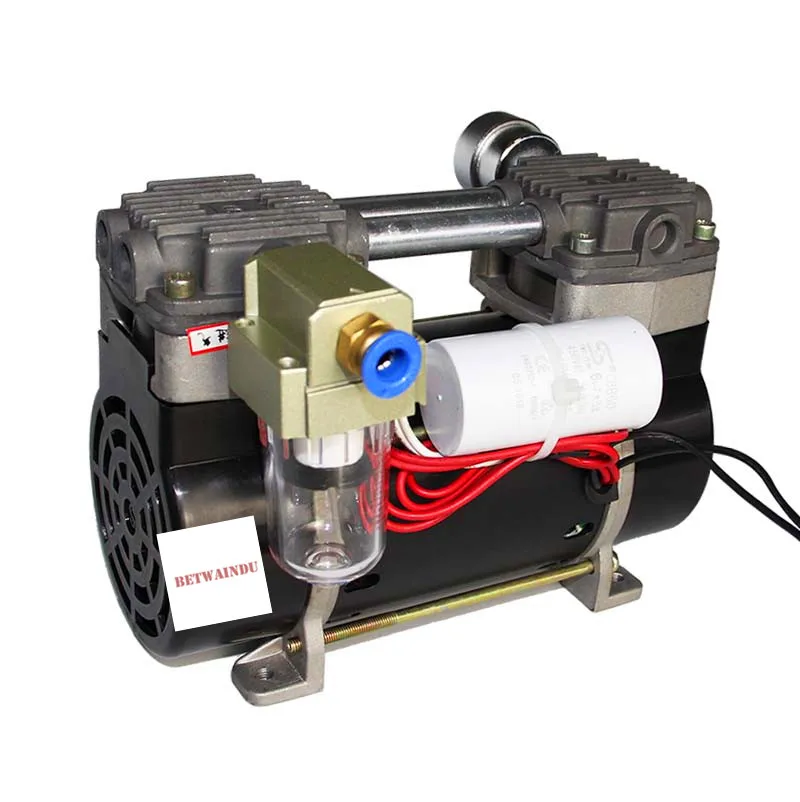

110W Electric Oilless Vacuum Pump 12V/24V /220V/110V with -90KPA Ultimate Pressure 42L/MIN Air Flow | Pumps
16752.3
PM-477431 Seal Set Repair Kits for Putzmeister Concrete Pump | Accessories
8206.49
Автомобильный насос 4500psi 300bar 30mpa 12 110 220 В Pcp Air Rifle Compressor Pumps Compressors.
12099.1
SEAFLO 12V24V DC 4 Cavity Diaphragm Pump Self-Priming Suitable For RV Yacht Family Industrial Boat on. -> Сифло 12V24V постоянного тока 4-х полостная диафрагменная насосная станция самовсасывающаяся подходит для RV, яхт, семейных промышленных судов.
6595.69
HG-750 промышленный вихревой вентилятор поглощения увеличивает кислород/воздушный
Motor drive oil pump diesel special 12v 24v 220v | Pumps
2617.31
Характеристики
12 24 V Volt Mini Brushless DC Diaphragm Air Inflate&Suction Vacuum Pump | Pumps
История изменения цены
*Текущая стоимость 3883.07 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 4931.46 руб. | 5030.77 руб. | 4980.5 руб. |
| Jan-18-2026 | 3999.17 руб. | 4079.83 руб. | 4039 руб. |
| Dec-18-2025 | 4854.36 руб. | 4951.65 руб. | 4902.5 руб. |
| Nov-18-2025 | 4815.31 руб. | 4911.99 руб. | 4863 руб. |
| Oct-18-2025 | 3844.75 руб. | 3921.7 руб. | 3882.5 руб. |
| Sep-18-2025 | 4737.32 руб. | 4832.13 руб. | 4784.5 руб. |
| Aug-18-2025 | 4698.35 руб. | 4792.81 руб. | 4745 руб. |
| Jul-18-2025 | 4660.5 руб. | 4753.87 руб. | 4706.5 руб. |
Описание товара
12 24 V Volt Mini Brushless DC Diaphragm Air Inflate&Suction Vacuum Pump
brushless pump\'s parameter and features
mini pump has the following advantages:
compact structure, maintenance free
oil free,low power consumption, corrosion resistance
high pressure,high flow, low noise
long life and other characteristics

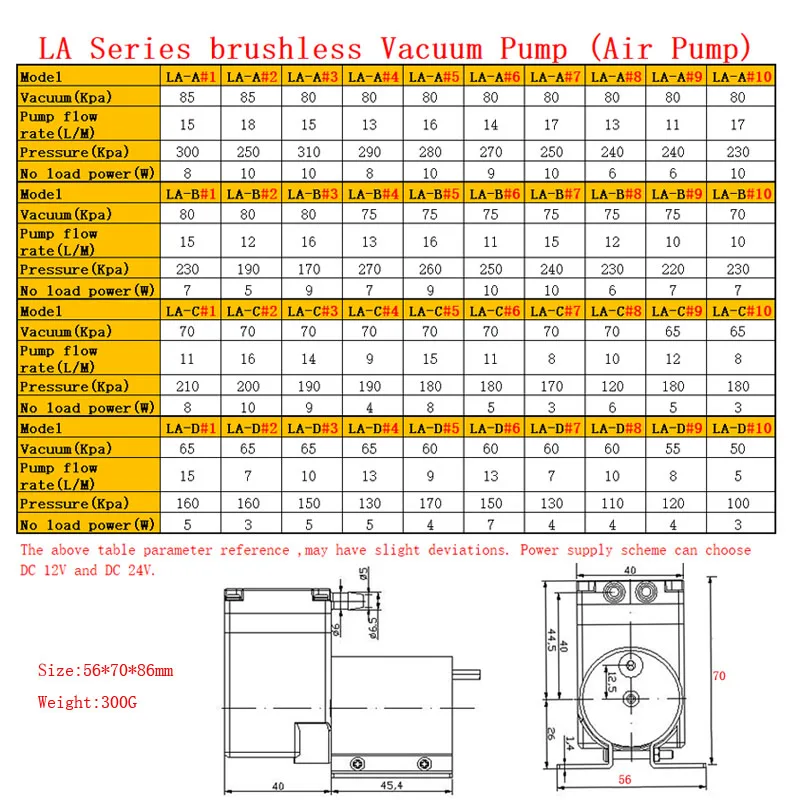

Model | ZXW512-8502-3700 |
Size(mm) | 102.4*70*40 |
Voltage(V/DC) | 6V/9V/12V/24V |
Power(W) | 9 |
Free Flow(L/M) | 13 |
Pressure(Kpa) | 0 |
Vacuum(Kpa) | -85 |
Weight | 300 |
Our company offers multiple component configurations allowing pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow can deliver up to 3 L/min and 18L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .
When you choose pump, you can tell me the pump\'s voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.
environmental testing requirements about brushless pump
| Number | Item | Test conditions and requirements | Remarks |
| 1 | Steady-state heat and wet | 60%rh | High humidity can affect the electrical performance of the motor |
| 2 | Temperature Shock | The pump was placed at -20 ° environment ,after 1h immediately placed at + 70 ° ± 3 ° environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump's body should not be leakage when block pump's outlet. | too high temperature affect pump's parameters, life and electrical performance |
| 3 | High temperature test | Pump is at 70 ° ± 3 ° environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. | |
| 4 | Low temperature test | For 72 hours,pump is at -20 ° environment. Then take it out. Power the pump and test it.( when testing the pump,pump's body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. | In too low temperature,motor cannot be started |
Electrical Performance about brushless pump
| Number | Item | requirements |
| 1 | Insulation resistance
| 10MΩ / between wire and frame measurements , 500VDC / min
|
| 2 | Dielectric strength | 5mA Max/between wire and frame measurements 500 VAC/min |
Environmental Requirements about brushless pump
| Working Environment | Storage Environment
| Transportation Environment
| |
Temperature Range
| -30°~66° | -30°~70° | -30°~70°/Smooth |
Relative humidity range
| 60%rh | 60%rh | 60%rh |
Special requirements for materials about brushless pump
All materials comply with environmental standards.
Motors comply with EMC.
pump material is nonflammable or any fire should be fully extinguish within 30
seconds under 10 seconds of ignition test.
12V compressor's classification
Miniature gas pump is a kind of gas conveying device which is small in volume and take gas as working medium. It is mainly used for gas sampling, gas circulation, vacuum adsorption, vacuum pressure maintaining, pumping, pressurizing and so on. The micro air pump can be divided into micro negative pressure pump, micro vacuum pump, micro gas circulation pump, micro gas sampling pump, micro air pump and air pump according to the working principle. If according to working theory, there are diaphragm type, electromagnetic type, impeller type, piston type, etc. Generally, in medical and health, scientific research, laboratory, environmental protection, instrumentation, chemical industry and other industries, it mainly use micro vacuum pump.
Micro pumps for pumping are divided into two categories: gas sampling pumps and micro vacuum pumps. Although they are usually referred to simply as miniature vacuum pumps without distinction, they are different from each other in a technical point of view and should be chosen with special attention.

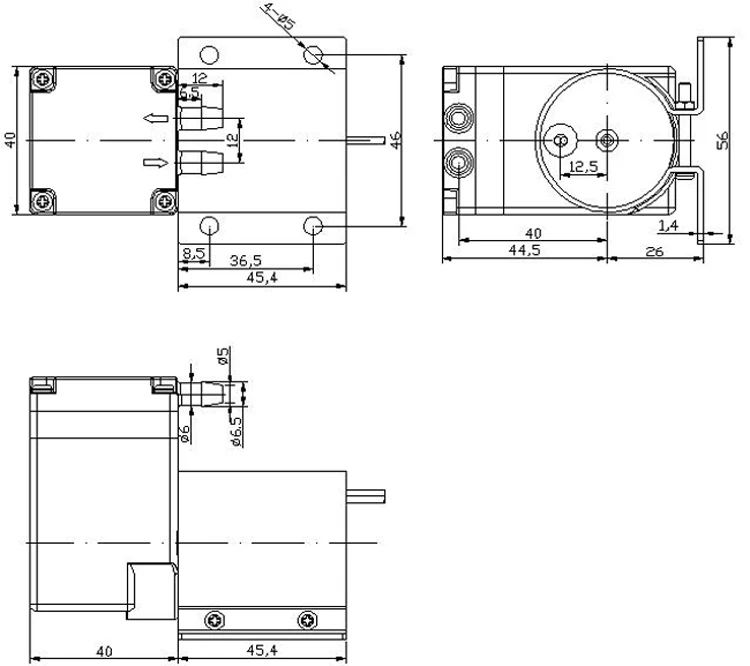

brushless pump\'s dimension
Unlabeled tolerance is ± 0.1mm.
Pump Size:102.4*70*40mm
Pump Weight:300g;
Outlet:OD 5mm, silicone hose suggestion:ID 3.5mm

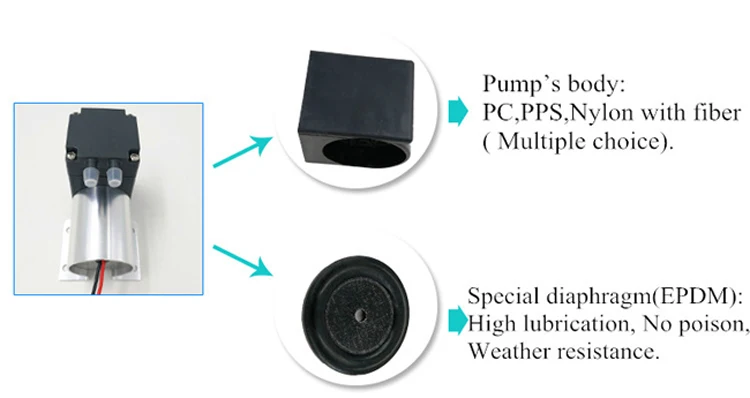

Materials:pump body: PC/PPS, diaphragm: EPDM

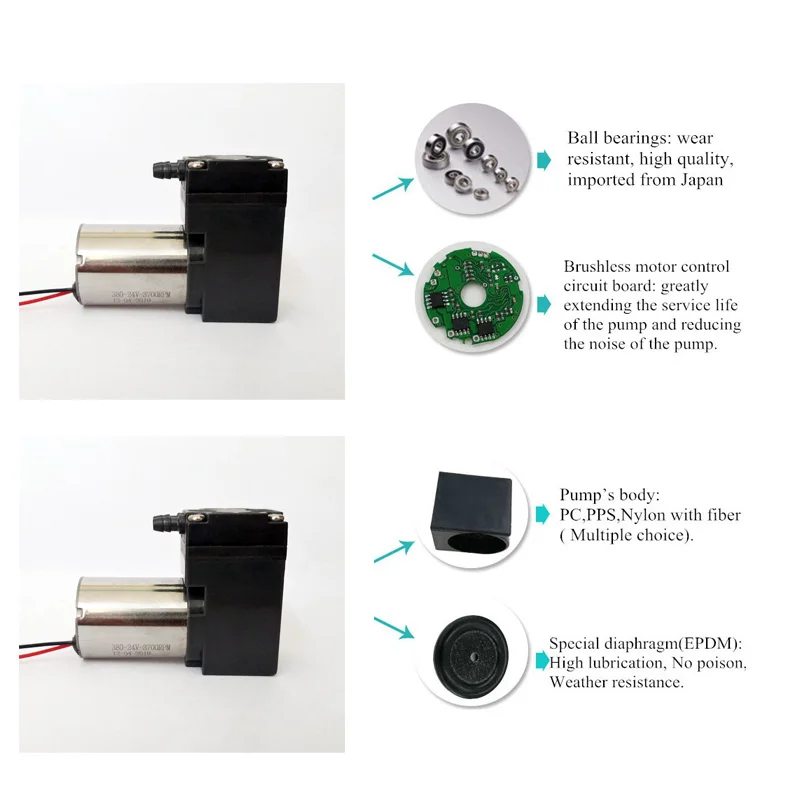

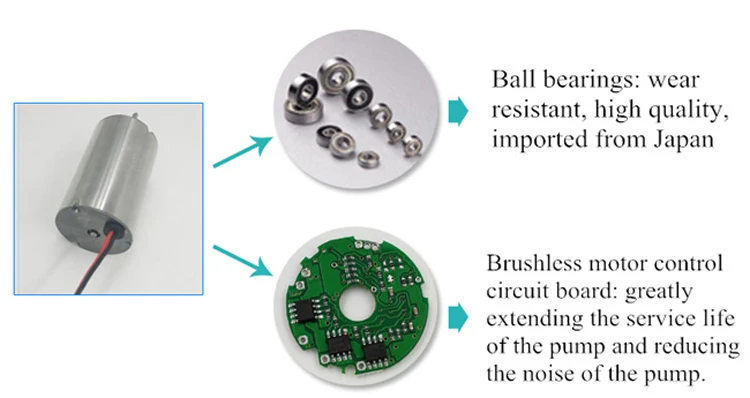

Because we use imported ball bearing,the pump's performance is stable and high.
The membrane is made by EPDM and pump\'s body is made by special PC/PPS which make pump well endurance and strong chemical resistance.
More details about brushless pump

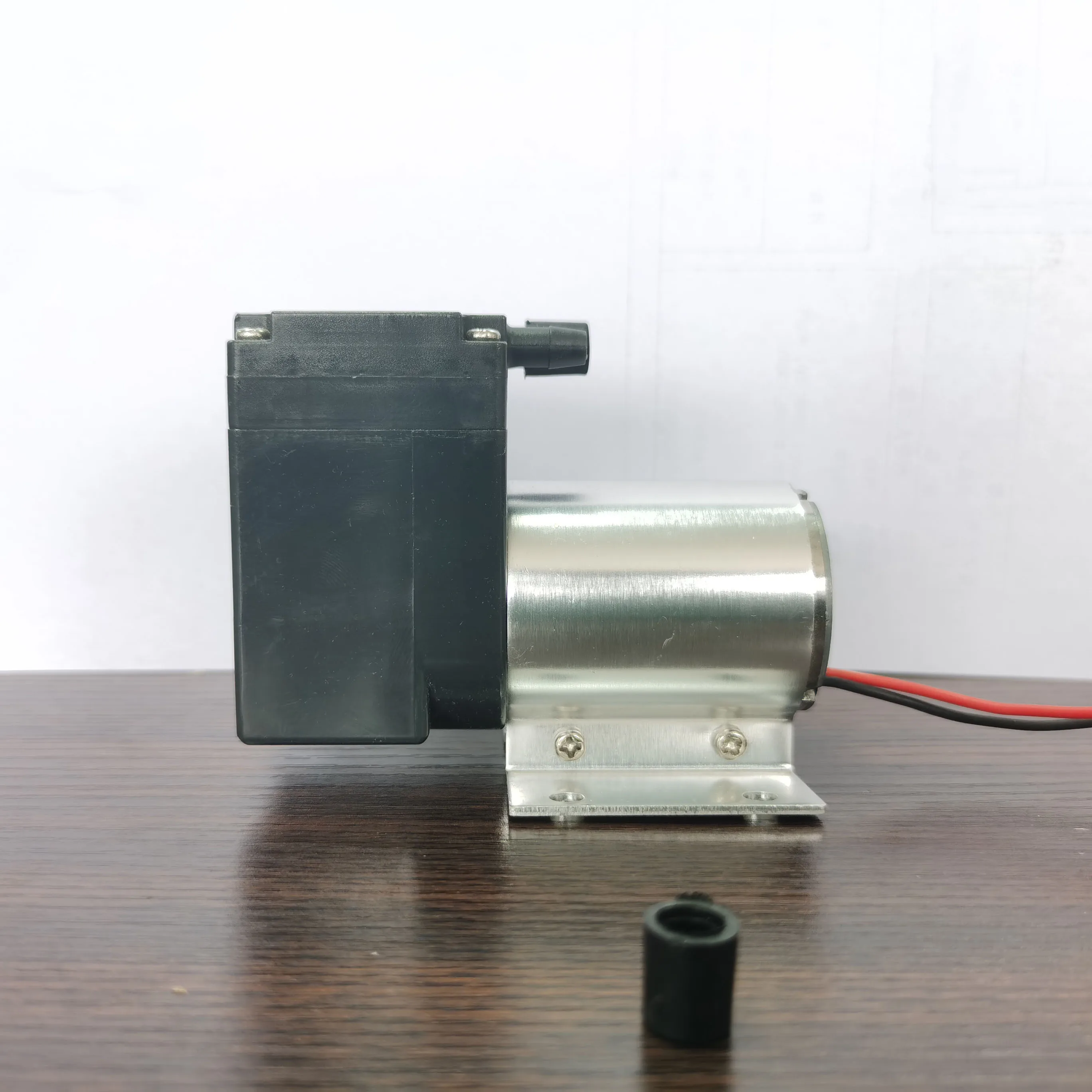

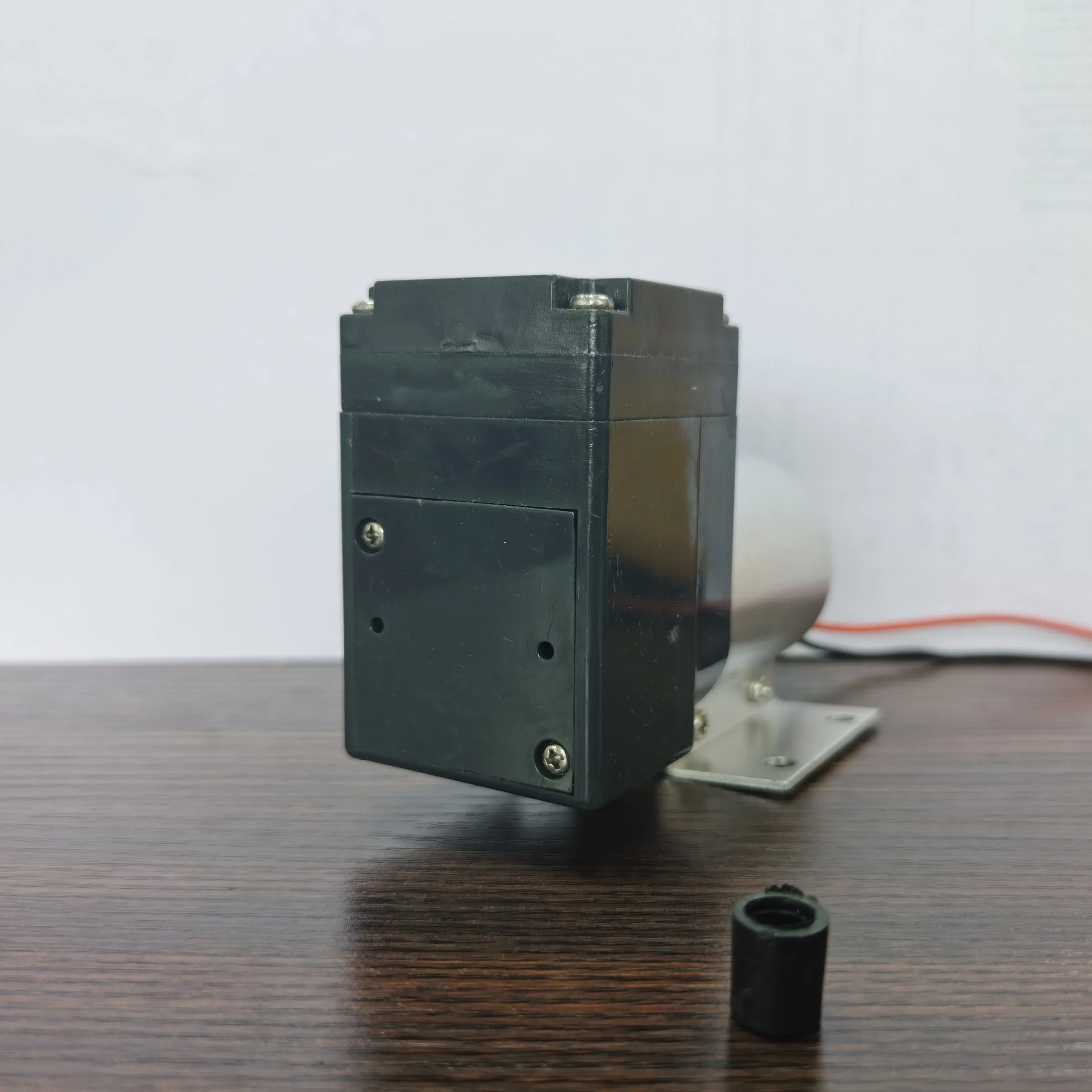

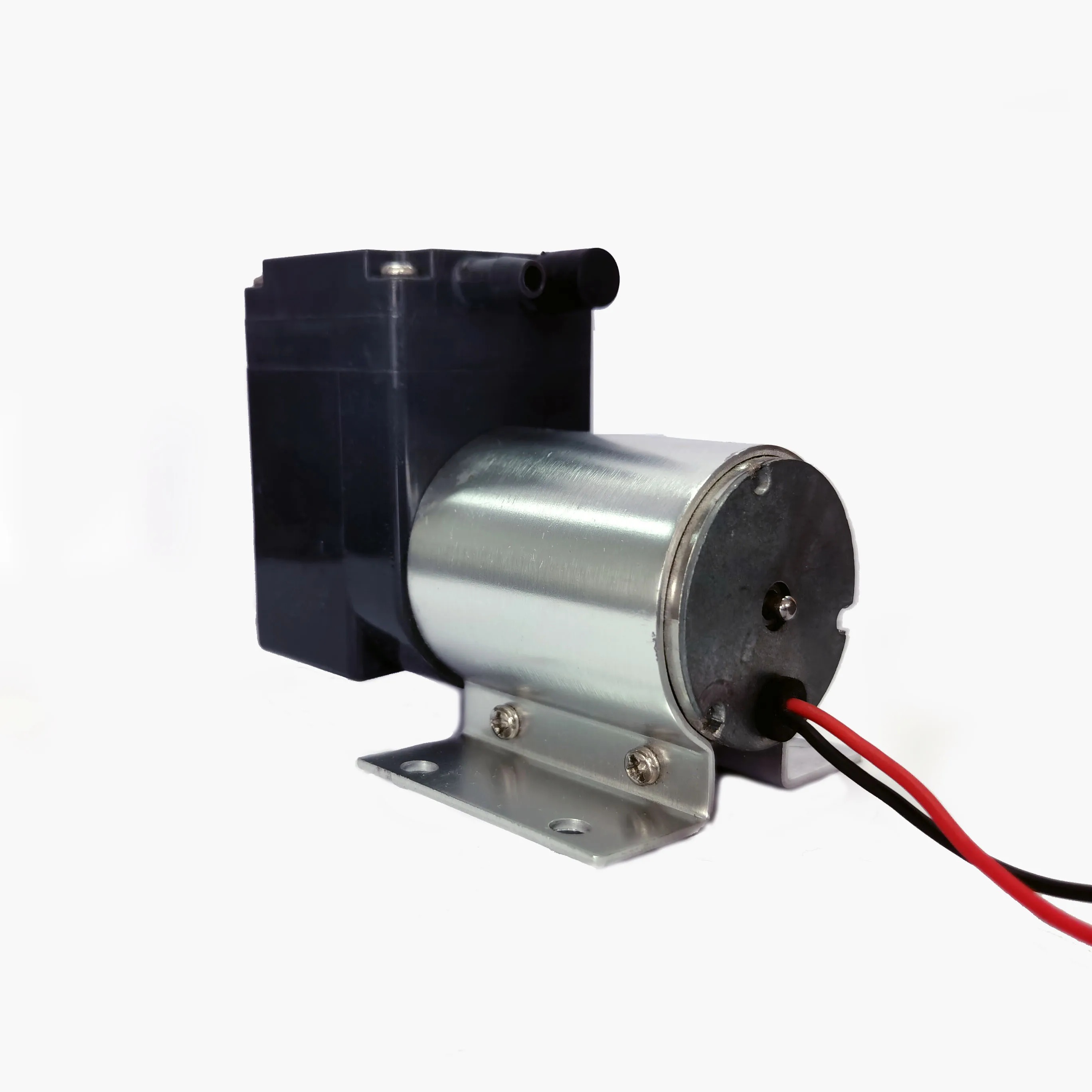

brushless pump\'s photo
Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.
brushless pump\'s packing and shipping
Packaging:
CTN/PCS: 60PCS
G.W. : 19.5 KG
DIMENSION : 47 * 31 * 25 CM
Picture's about the packaging
1.We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.
2.And we will help choose the most cost-effective way for you according to your requirement.
3.The tracking number will be available the next day after shipment,then you can check your goods is on the way.

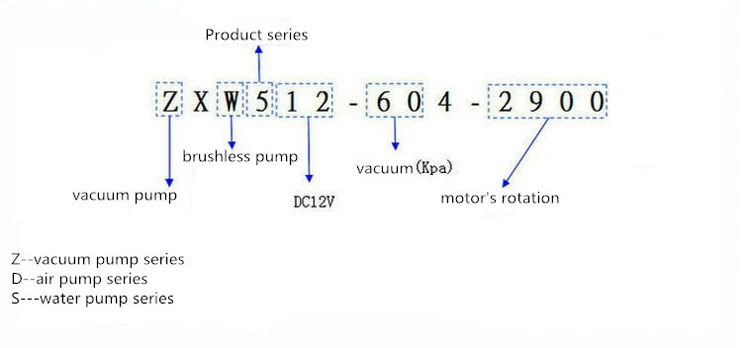

brushless pump\'s model code
According to above picture, you know how our model codes are produced.
You can know our pump more clearly and choose the pump more easily.
Certifications
We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.
Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.
