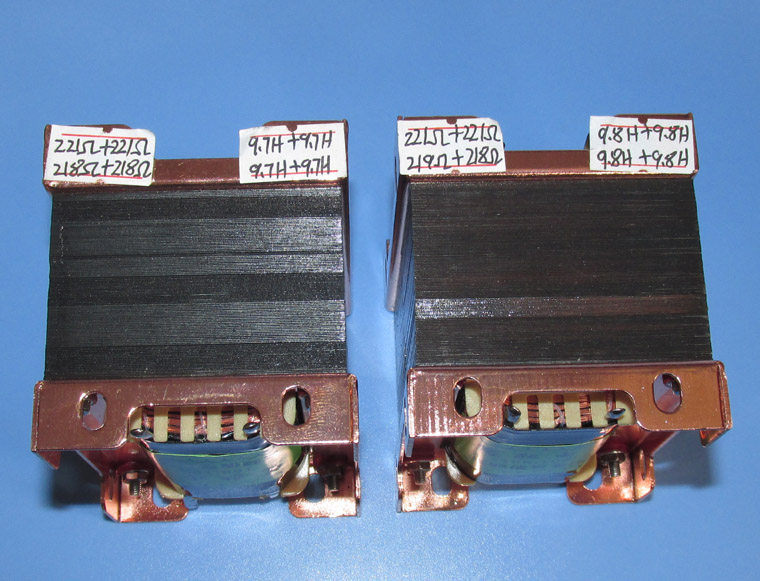

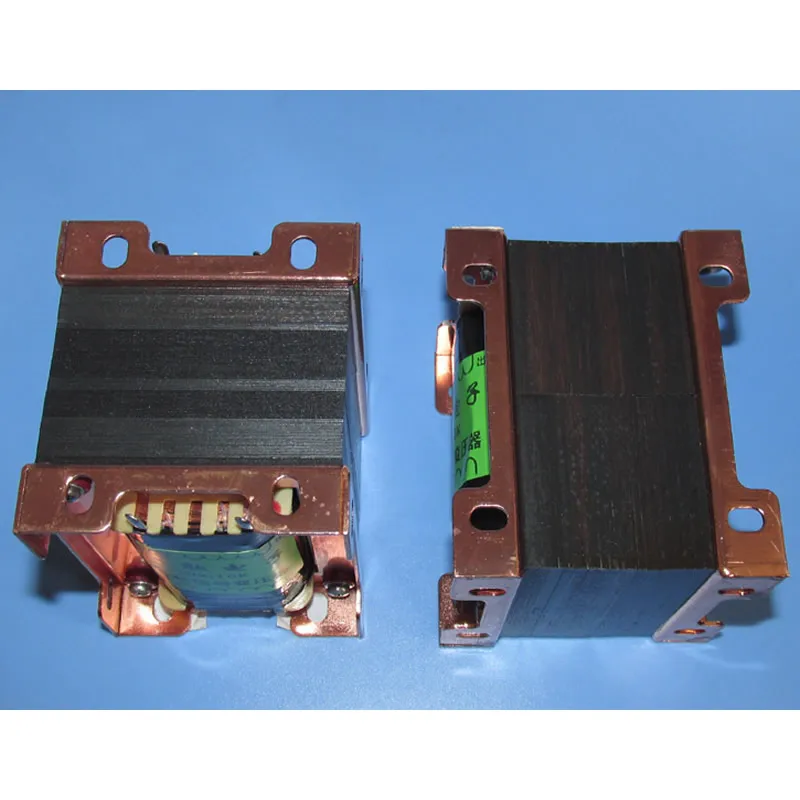

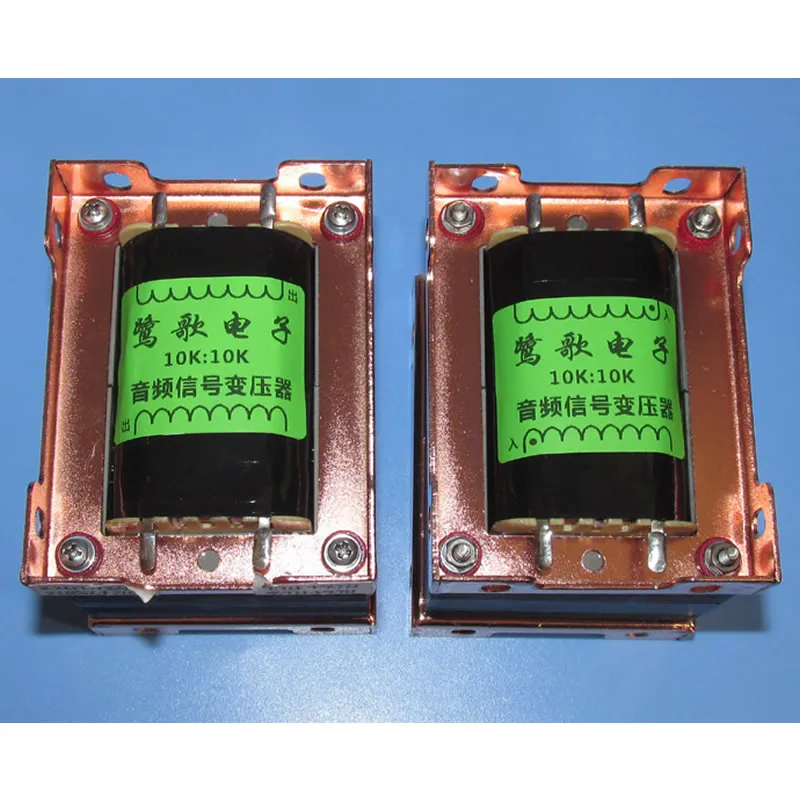

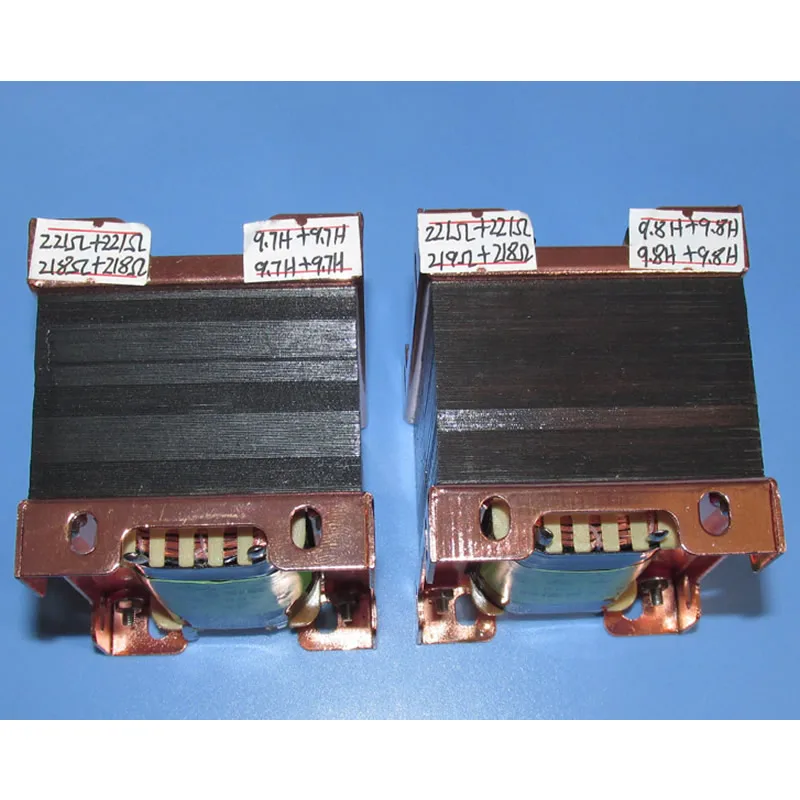

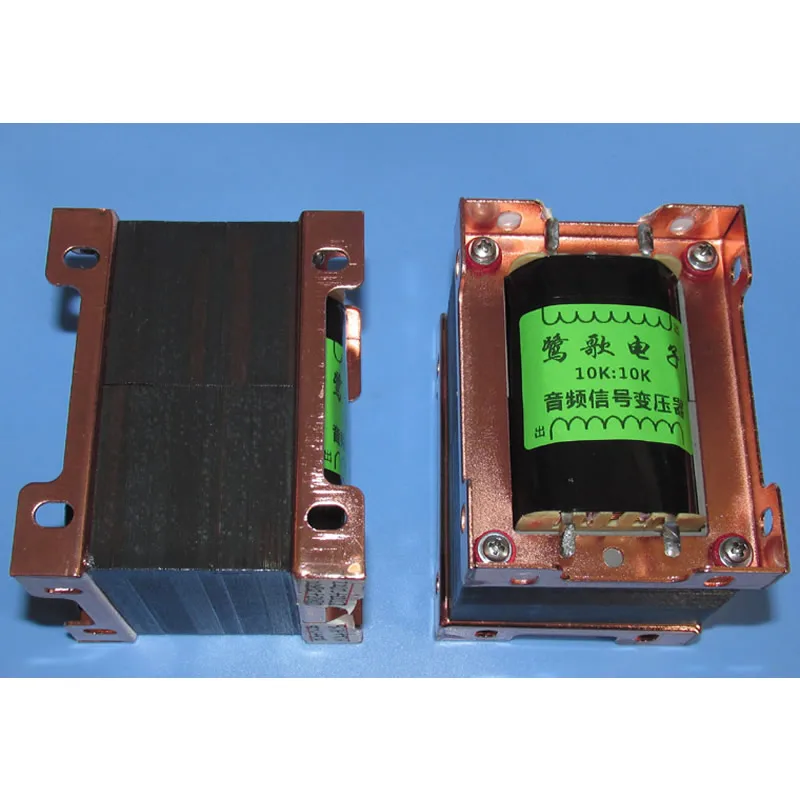

10K+10K than 10K+10K balanced output transformer can pass AC 50mA PT-44 can be single-ended or balanced input and output. Interstage transformer function: used between the pre-stage output and the post-stage power amplifier for voltage conversion, impedance matching and interface conversion, which plays a role of connecting the upper and lower. At the same time, the change of the timbre has obvious retouching effect, eliminating the digital taste and enriching the scent. This transformer uses a 57-long magnetic core, double the window volume and double the tongue length. The advantage is that you can increase the number of turns and increase the inductance. The wire diameter of the enameled wire can be increased to reduce the internal resistance. Improve control, enhance transients, and many benefits. The pad paper has air gap joints. It can work for 50 mA for a long time, and the customized Red Bull bracket is fixed. This cow has made great progress and improvement in the design theory, in the winding process and in the material, subverting the tradition. The transformer adopts complex processes such as multi-layer, multi-stage, multilateral, positive winding and rewinding, and 10 layers of 10 sections are wound in layers, which is time-consuming and labor-intensive. According to the magnetic field distribution of the magnetic circuit of the transformer, the magnetic field sensing space and the displacement are rationally utilized to reduce the leakage inductance and increase the primary and secondary inductance. Imported EI57 four-hole annealed Z11 iron core, each piece thickness is only 0.35mm, high magnetic flux, stack thickness 35mm specifications, high quality oxygen-free copper enameled wire winding, finally iron core vacuum dipping paint, CNC drying, testing finished products, The price/performance ratio is not allowed, and the effect welcomes PK comparison. This transformer can be single-ended to single-ended and can be single-ended to balance. Balanced to balanced can be balanced to single-ended or passive. Can be used for CD balanced output to balanced preamp or balanced amplifier input Can be used to decode balanced output to balanced preamp or balanced amplifier input Can be used for mixer balanced output to balanced amplifier input  Parameters: primary impedance 10K + 10K two independent winding four lines, secondary impedance 10K + 10K two independent winding four lines. The primary inductance is about 10H+10H. The primary copper resistance is about 214 ohms + 214 ohms. Secondary inductance is about 10H+10H secondary copper resistance 211 ohms +211 ohms Core power 4W, output power 1W Appearance size: 80X60X53mm Core size: 76X57X35mm Weight 2.33KG/pair Actual frequency response: 20HZ-38KHZ -2.2DB 30HZ-37KHZ -1.6DB Measured parameters: Due to different measuring instruments, different production batches, and discrete parameters, the data will be different and is for reference only. This department uses the concept and means of fever to make this transformer. I believe that even the most discerning enthusiasts will look at it. Transformer inductance, copper resistance pairing, sound quality effect is far better than the early US WE West Electric WE111 signal transformer, there is a US West Electric WE111 signal transformer friends can compare and listen.
