Bitfunx OSSC HDMI-compatible Converter Kit for Retro Game Consoles

Features:

The Open Source Scan Converter is a low-latency video digitizer and scan converter designed primarily for connecting retro video game consoles and home computers to modern displays. It converts analog RGB or component video signals into a digital format, and doubles (or triples) the scanlines of a single frame if necessary to generate a valid mode for digital TVs or monitors.

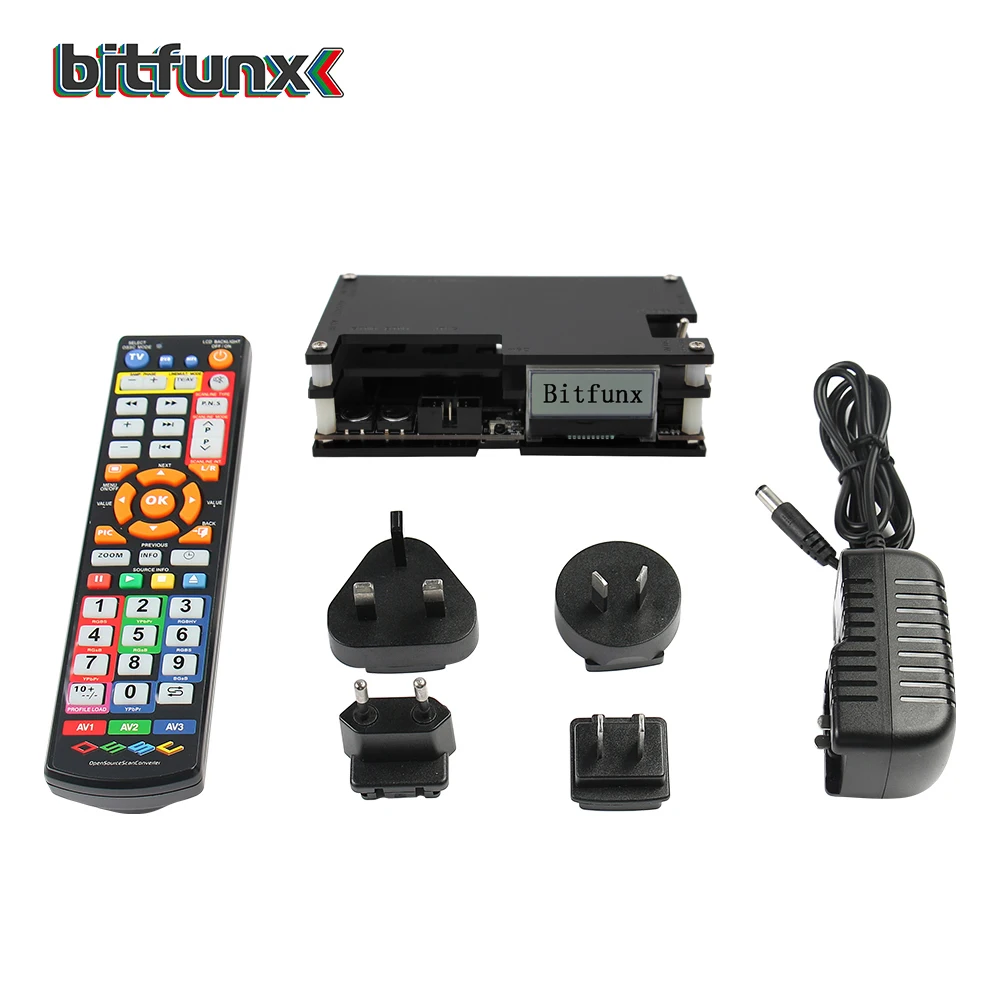

Package Contents

1*HDMI-compatible Converter

1* IR Remoter

1* Power Supply with 4 plug adapters(UK/ EU/ AU/ US)

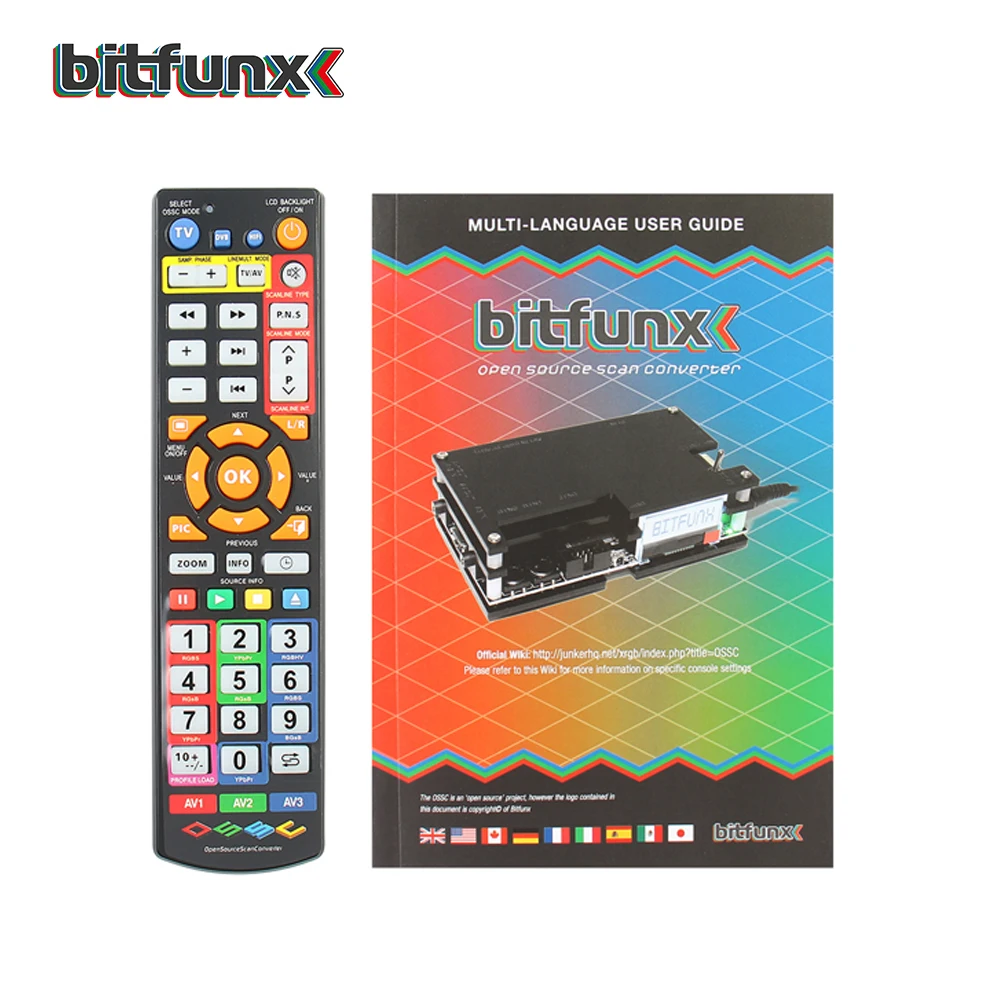

1* Multi Language User Manual

Feature

• Detection and digitization of various analog SDTV/EDTV/HDTV/PC modes

• Line double support for 240p, 480i, 288p, 576i, 384p, 480p, 576p

• Line3x/4x/5x support for 240p/288p with different sampling modes

• Very low latency (less than 2 input scanlines), Don't worry about blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades.

• Fast "deinterlace" for 480i/576i and 960i/1080i

• Fast recover from input video mode change (e.g. 240p<->480i)

• All video processing done in RGB domain - no conversion to YCbCr

• Video and sync LPF for less-than optimal input signals

• Multiple inputs supporting various formats (see below)

• Full-range 24-bit RGB output through DVI/HDMI-compatible

• Emulated scanlines with configurable strength and position

• Configurable mask for overscan area

• Selectable sampling configuration for 480p input: DTV-480p or VGA 640x480

• Selectable CSC configuration for YPbPr source: Rec. 601 or Rec. 709




Excellent picture and sound quality on aHDMI-compatiblePC monitor or TV

-No blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades. Convert VGA to DVI /HDMI-compatible. Connect Dreamcast directly to the unit and enjoyHDMI-compatibleprocessing for all games.

Process (line doubles) retro game with no input delay

-Support for 240p, 480i, 288p, 576i, 384p, 480p, 576p. Unlike other scalers, such as the XRGB Mini, OSSC works on a single scan line instead of one frame at a time, which means there is no input delay. Convert SCART and Component to DVI /HDMI-compatible.

Eliminates ugly deinterlacing artefacts and bad scaling

–When connects retro consoles to your TV, this product converts the image into a 480p or 720p (where compatible) image that is correctly displayed and processed. EVERY special effect, from 240p drop shadows to striped sprites, is rendered correctly.

Converts SCART and Component toHDMI-compatible

–For example, feed in a 480p component video signal from a Wii and get out a perfectly processed 480pHDMI-compatibleor DVI (with a simple adapter) image. The quality is flawless!

Convert VGA toHDMI-compatible

–For example, connect a Dreamcast directly to the unit and enjoyHDMI-compatibleprocessing of all your games, not just those that support 480p.

Convert analogue audio to digitalHDMI-compatible

–Analogue audio from your retro games console will be converted to digital audio and injected into theHDMI-compatible/DVI output (requires compatible TV, processor or AV receiver. Analogue audio output is still available for setups where this is required).

Could be used in almost all over the world

-Voltage AC 110V-220V.Go with plug adapters for USA, UK, Australia and Europe.

Its user manual is in multi language. Includes English, German, French, Italian, Spanish and Japan.

Easy to use

-Plug and play. Go with very detail user manual and we provide technical support and professional customer service. Worry free to buy !

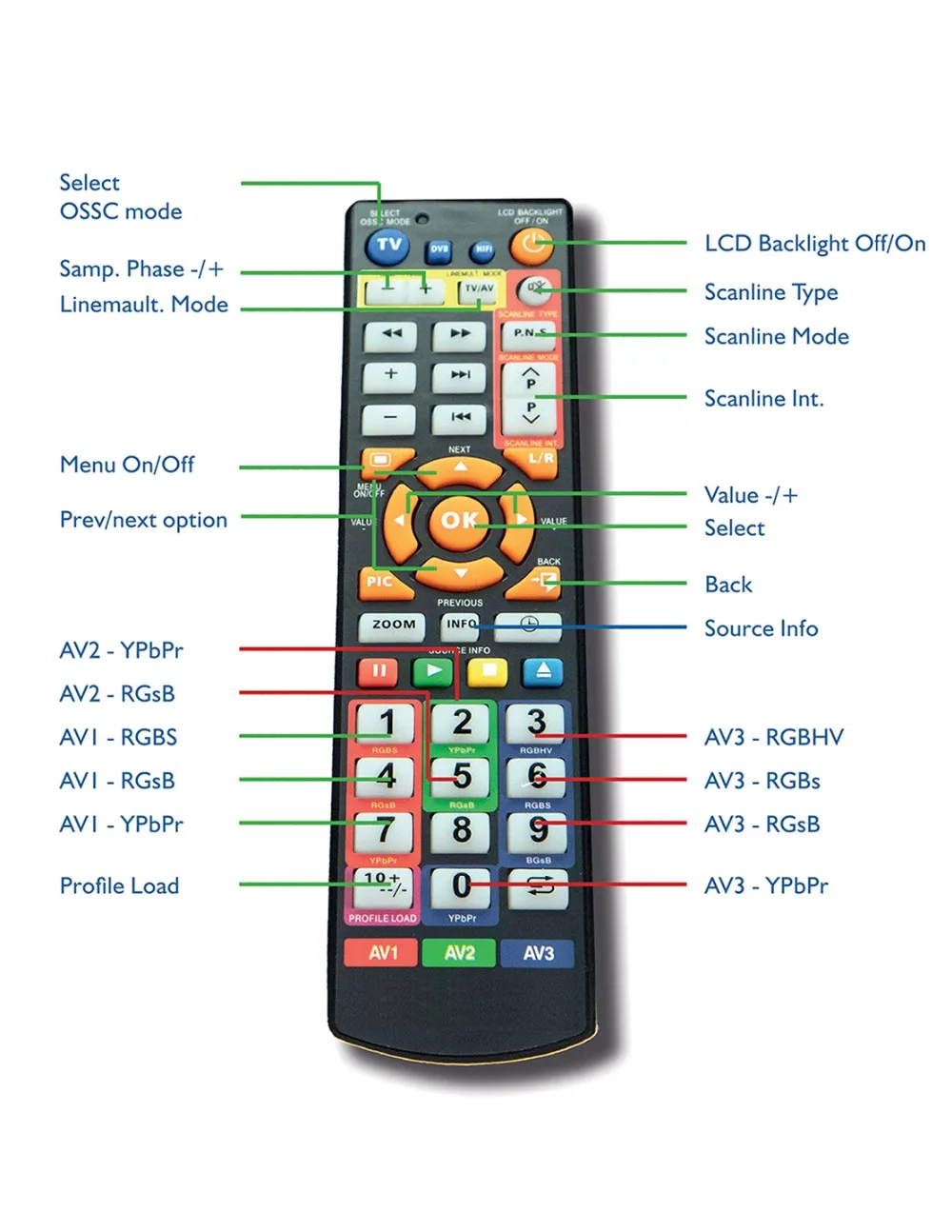

Variety settings available in the remote controller, satisfy need of game players at all levels.

Supported Inputs/Outputs resolutions

240p/288p -> 480p/576p or 720p line triple (compatible displays only)

240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)

25Khz medium-res modes -> 480p

480i/576i -> 480p/576p or pass-through

480p -> pass-through or 960p line-double (compatible displays only)

all other 31khz resolutions passed through

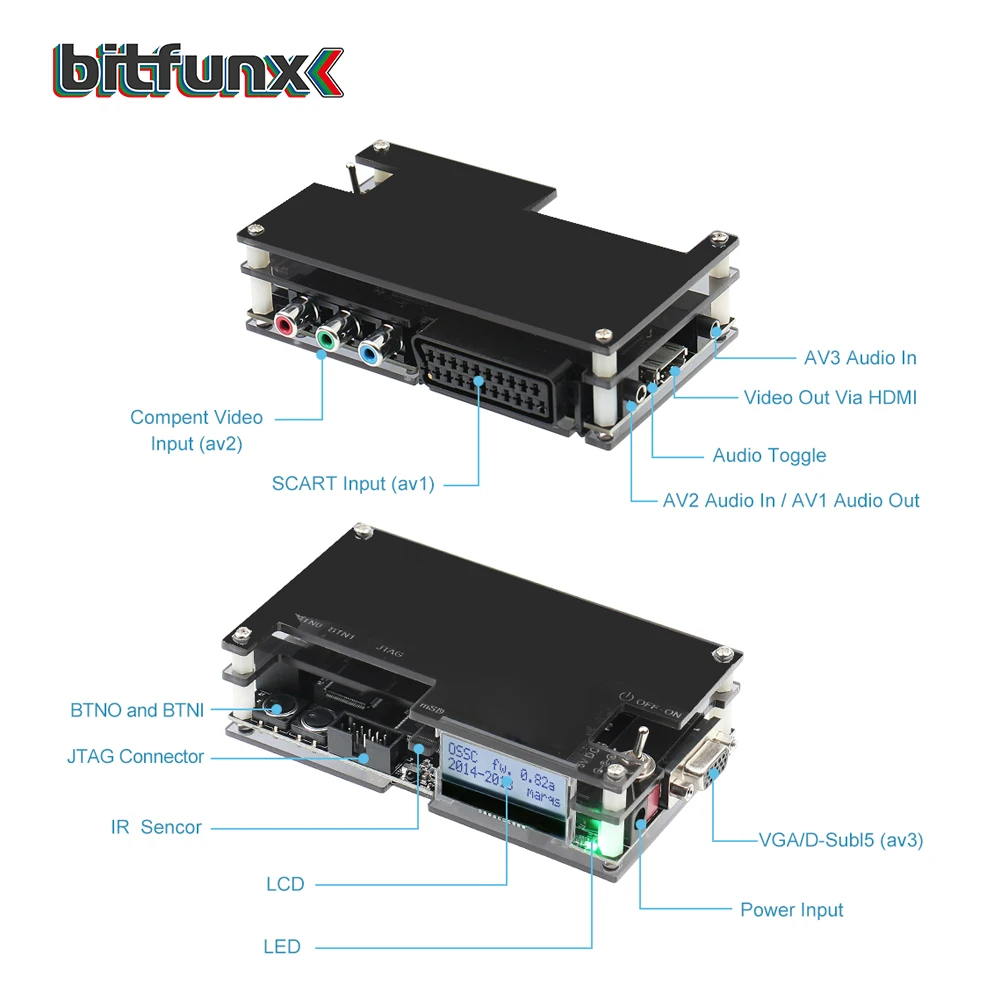

Inputs

1 X SCART – Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr

1 X Component video – Supports Ypbpr and RGsB signals

1 X D-SUB15 (VGA) – Supports RGBHV, RGBs, RGsB, Ypbpr

2 x 3.5mm analogue audio – Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input

Outputs

1 XHDMI-compatibleor DVI-D (with adapter) (digital only,including audio). Full-range 24-bit RGB output through DVI/HDMI-compatible

1 X Analogue audio 3.5mm (input/output toggle)

Support Console

Retro home consoles

Atari 2600

Atari 5200

Atari Jaguar

Microsoft Xbox

Microsoft Xbox 360

NEC PC Engine

Nintendo 64

Nintendo NES / Famicom

Nintendo Gamecube

Nintendo Super NES / Super Famicom

Nintendo Wii

Sega Dreamcast

Sega Genesis / Mega Drive

Sega Master System

Sega Saturn

SNK Neo Geo

Sony PlayStation

Sony PlayStation 2

Sony PlayStation Portable

Computers

Atari 8-bit family

Commodore Amiga

Commodore 64

MGT Sam Coupé

MSX

Sinclair ZX Spectrum

Arcade Boards

Capcom CPS-II

Data East Caveman Ninja Hardware

Irem M92

Nintendo Playchoice 10

Namco Gaplus

Sega Model 2

Seibu SPI

SNK Hal 21

SNK Neo Geo MVS

Sony ZN-1

Taito F2

Taito FX-1B

Taito F3

Toaplan V1

Toaplan V2

Notes:

AV video and S-Video are NOT supported and require an adapter/ transcoder

For more detailed information about which kinds of TV it compatible please visit our official website or you can just contact our sale service, thanks.
