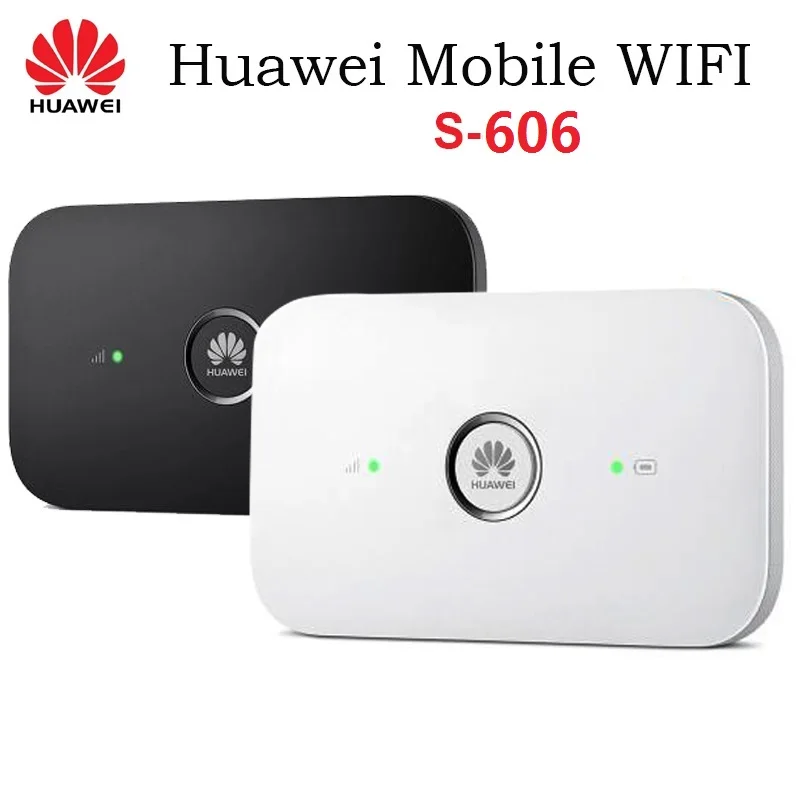

Huawei E5573 E5573s-606 CAT4 150M 4G WiFi Router Wireless Mobile Wi Fi Hotspot | Компьютеры и офис
3 396,77 руб.
Разблокированный мобильный точечный маршрутизатор ZTE MF920A 4G LTE MF920V MF920VS PK MF910 MF90 R216
2 229,73 - 3 017,41 руб.
Wholesale Huawei E5573s-856 4G LTE Mobile Cat4 WIFI Router 150mbps Hotspot pocket Model Dongle Wifi e5573 Unlocked | Компьютеры и офис
HUAWEI E5573s-856 e5573 ключ Wi-Fi маршрутизатор 4G Мобильный LTE Cat4 150 Мбит/с 4g сим-карты с
3 290,12 руб.
Разблокированный Wi-Fi Модем huawei e5573 4g dongle lte роутер быстрая точка доступа
3 309,17 руб.
Разблокированный Мобильный Wi-Fi роутер HUAWEI E5573s-508 e5573 Dongle 4G | Компьютеры и офис
3 808,90 руб.
Wi-Fi-роутер ANDDEAR9341 с чипсетом 9331 Мбит/с ГГц | Компьютеры и офис
1 957,01 - 2 856,67 руб.
TLLALLBLL Store
Магазина TLLALLBLL Store работает с 11.04.2018. его рейтинг составлет 91.35 баллов из 100. В избранное добавили 13243 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 4462 наименований товаров, успешно доставлено 1194 заказов. 520 покупателей оставили отзывы о продавце.
Характеристики
High power 9344 5G router module OEM / ODM serial RS485 wireless communication acquisition data drone camera WIFI remote control |
История изменения цены
*Текущая стоимость 3 133,96 - 6 208,50 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 3979.61 руб. | 4059.71 руб. | 4019 руб. |
| Jan-18-2026 | 3227.68 руб. | 3292.30 руб. | 3259.5 руб. |
| Dec-18-2025 | 3916.76 руб. | 3994.37 руб. | 3955 руб. |
| Nov-18-2025 | 3885.98 руб. | 3963.72 руб. | 3924 руб. |
| Oct-18-2025 | 3102.1 руб. | 3164.90 руб. | 3133 руб. |
| Sep-18-2025 | 3822.20 руб. | 3898.87 руб. | 3860 руб. |
| Aug-18-2025 | 3791.47 руб. | 3867.27 руб. | 3829 руб. |
| Jul-18-2025 | 3760.40 руб. | 3835.29 руб. | 3797.5 руб. |
Описание товара
high power good quality AR9344 WiFi drone Module
Description

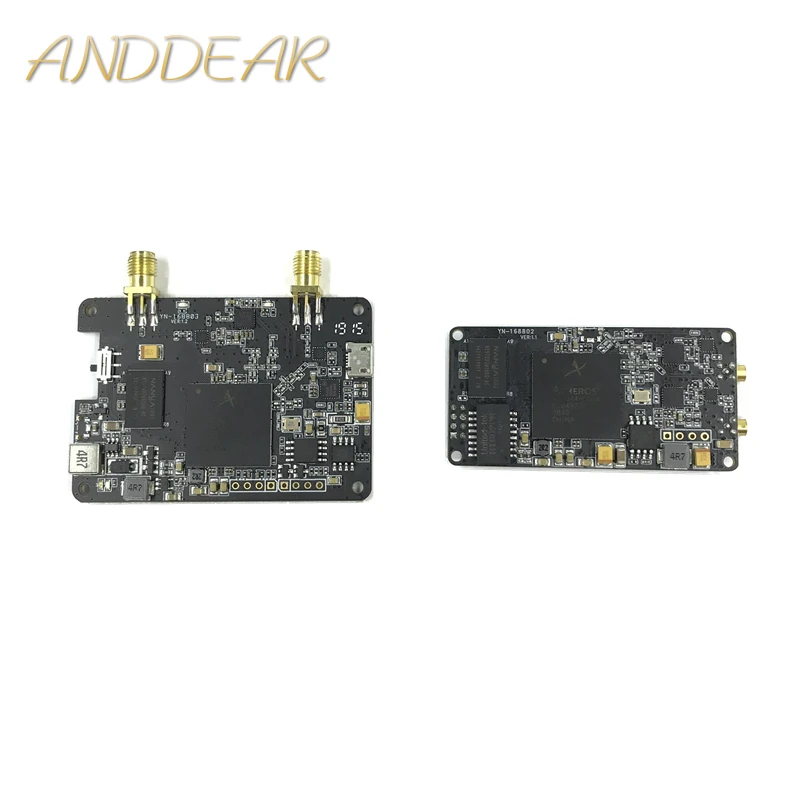

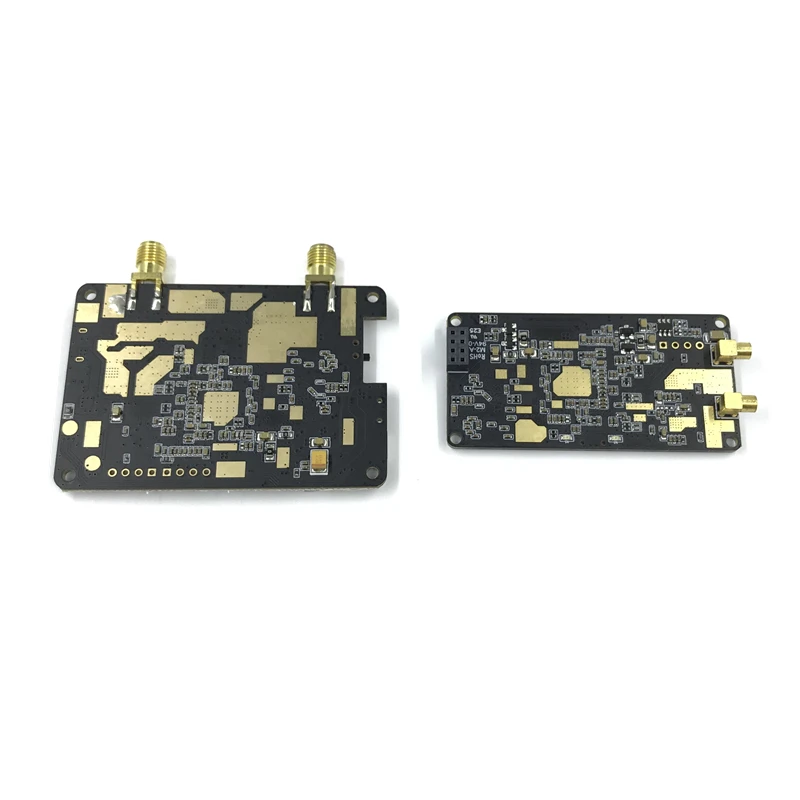

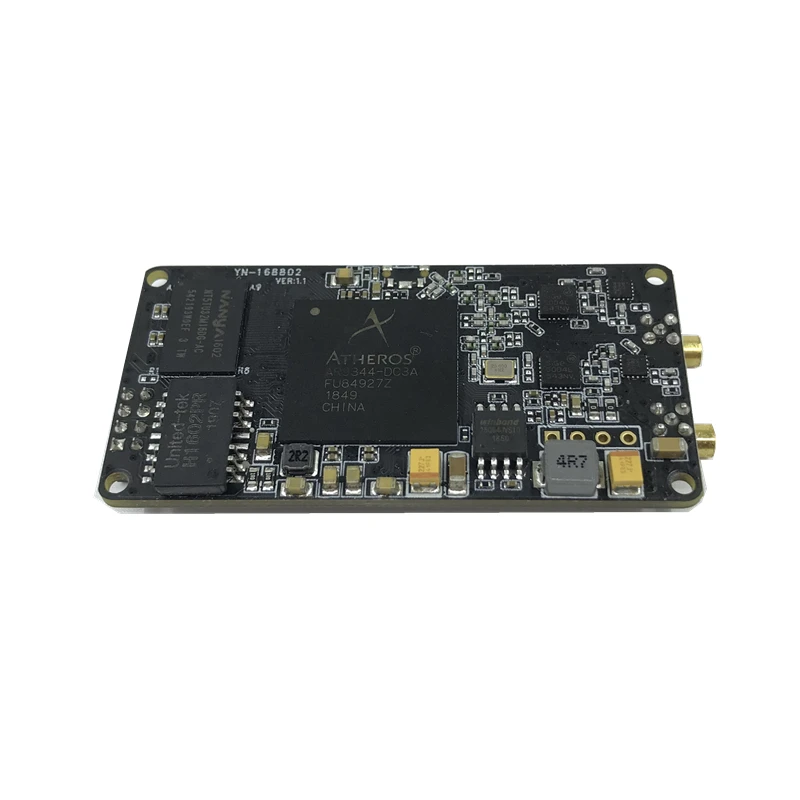

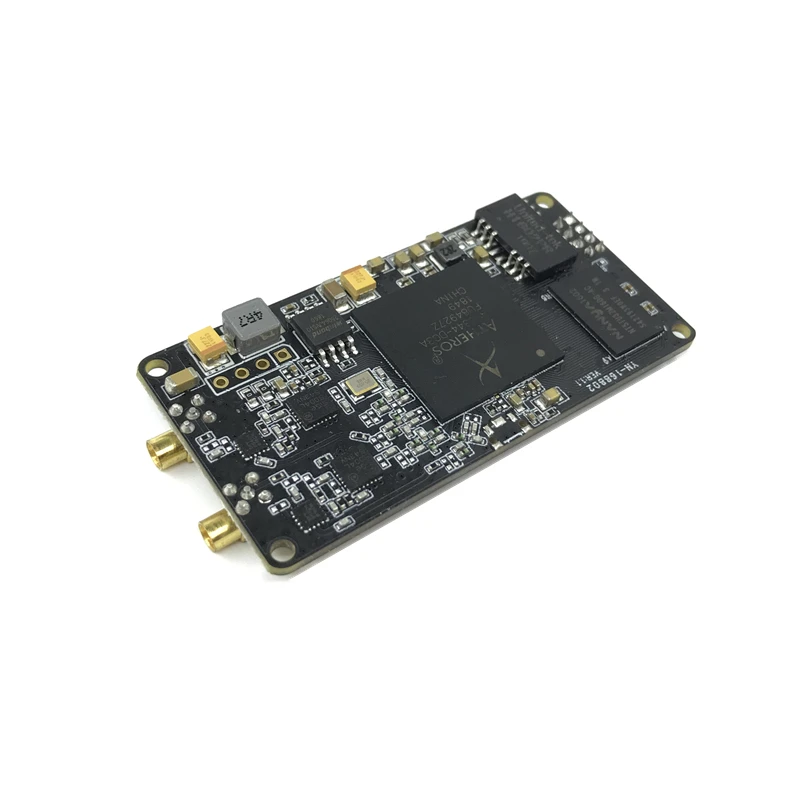

ANDDEAR-FX001 is a mini wireless router based on Qualcomm AR9344 5.8G high power core module from Shenzhen YINUO-LINK Technology Co., Ltd.,Support for large memory DDR and high speed SPI Flash,Excellent performance,Transmission rate up to 300Mbps.Provides 1 10/100M PHY interface,Can be widely used in communication system integration, outdoor HD network video transmission, drones and other products.
Features

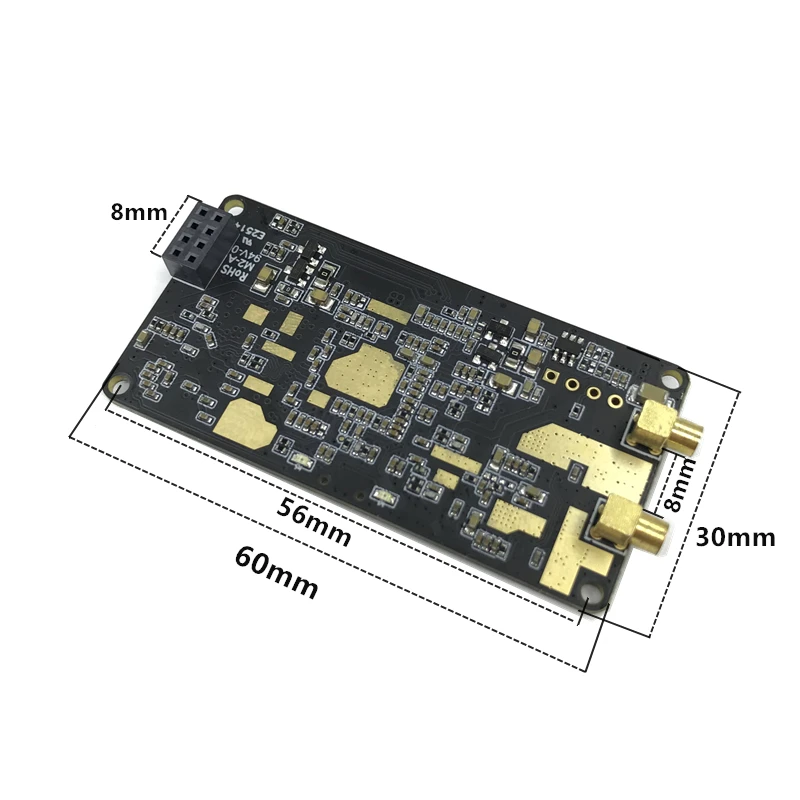

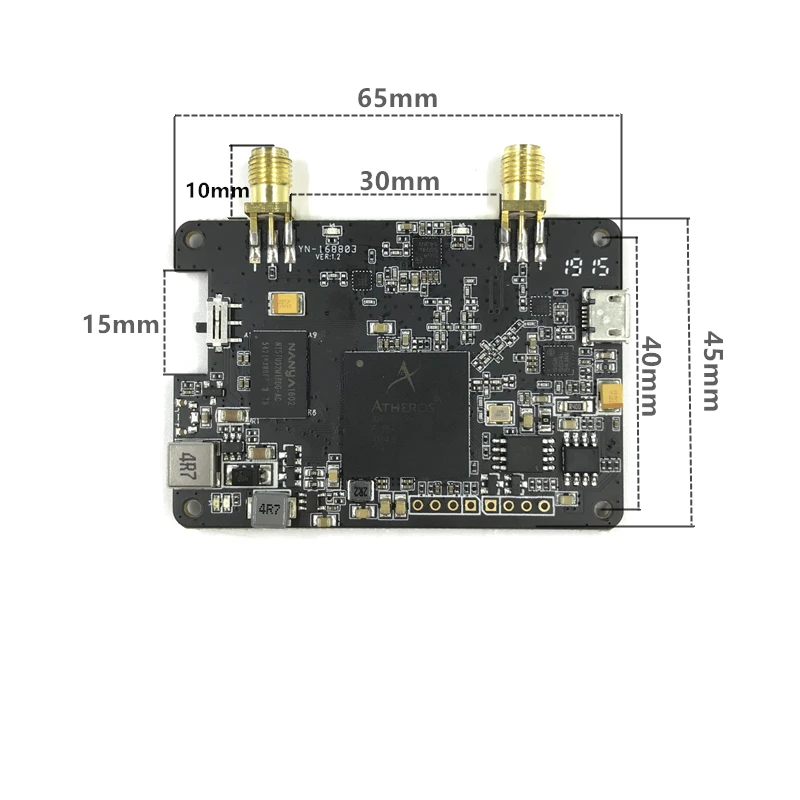

1. 6.5X4.5CM mini size, convenient for WiFi embedded development
2. Stable performance, powerful, and extensible
3. System software can be flexibly customized to meet various application needs;

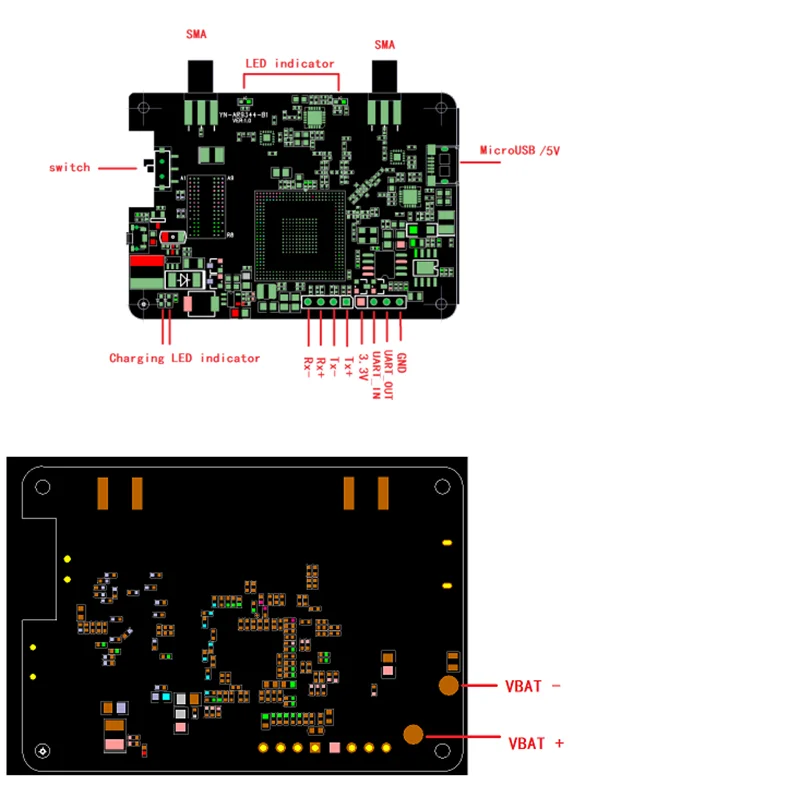

4. Provide a variety of communication interfaces and debug interfaces
5. Power supply and other signal applications are achieved by positioning pin holes and other board positioning hole female connectors.
6. The system supports Open-Wrt, QSDK, and can be used for secondary development and customized services for customers.
7. Using SKYWORKS industrial grade power amplifier chip 5004, the maximum power can reach 500 mW;
8. Support baud rate default 115200bps
9. Support multiple wireless network types: AP mode and route repeater
10. It can realize the conversion between three interfaces of user serial port, Ethernet and wireless network (WIFI).
Specifications
|
Protocol |
IEEE802.11A/N |
||
|
Chip |
AR9344/600MHz |
||
|
Memory |
Default DDR2: 64MB, Max. 64MB |
||
|
FLASH |
Default 8MB, Max. 16MB |
||
|
Wireless Speed |
2T2R:300Mbps |
||
|
Working Frequency |
5.8Ghz |
||
|
Interface |
Supports 1 10/100M adaptive LAN pin interface and supports auto flip (Auto MDI/MDIX) |
||
|
Max. power consumption |
< 8W |
||
|

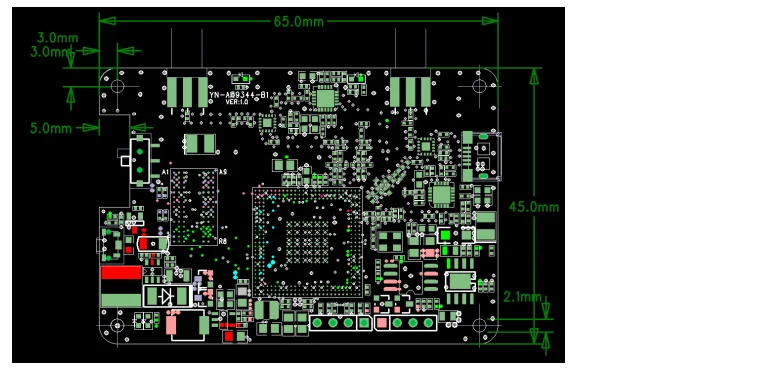

Dimension |
65X45MM |
||
|
Working Environment |
Operating Temperature:-30℃ ~ 75℃; Storage Temperature:-40℃ ~100℃; Working Humidity:10% ~90%RH Non-condensing Storage Humidity:5% ~90%RH Non-condensing |
||
|
RF Output Power(Typical)
|
11A Mode |
11N HT20 |
11N HT40 |
|
OFDM 6Mbps/27±2dB |
MCS0/8 26 dB±2dB |
MCS0/8 26dB±2dB |
|
|
OFDM 9Mbps/27±2dB |
MCS1/9 25dB±2dB |
MCS1/9 25dB±2dB |
|
|
OFDM 12Mbps/27±2dB |
MCS2/10 25dB±2dB |
MCS2/10 25dB±2dB |
|
|
OFDM 18Mbps/27±2dB |
MCS3/11 24dB±2dB |
MCS3/11 24dB±2dB |
|
|
OFDM 24Mbps/27±2dB |
MCS4/12 24dB±2dB |
MCS4/12 24dB±2dB |
|
|
OFDM 36Mbps/26±2dB |
MCS5/13 23dB±2dB |
MCS5/13 23dB±2dB |
|
|
OFDM 48Mbps/26±2dB |
MCS6/14 23dB±2dB |
MCS6/14 23dB±2dB |
|
|
OFDM 54Mbps/25±2dB |
MCS7/15 24dB±2dB |
MCS7/15 24dB±2dB |
|
|
Sensitivity |
11A Mode |
11N HT20 |
11N HT40 |
|
OFDM 6Mbps≤-89 |
MCS0/8≤-83 |
MCS0/8≤-80 |
|
|
OFDM 9Mbps≤-88 |
MCS1/9≤-80 |
MCS1/9≤-77 |
|
|
OFDM 12Mbps≤-85 |
MCS2/10≤-78 |
MCS2/10≤-75 |
|
|
OFDM 18Mbps≤-83 |
MCS3/11≤-75 |
MCS3/11≤-72 |
|
|
OFDM 24Mbps≤-80 |
MCS4/12≤-71 |
MCS4/12≤-68 |
|
|
OFDM 36Mbps≤-75 |
MCS5/13≤-67 |
MCS5/13≤-64 |
|
|
OFDM 48Mbps≤-71 |
MCS6/14≤-66 |
MCS6/14≤-63 |
|
|
OFDM 54Mbps≤-70 |
MCS7/15≤-65 |
MCS7/15≤-62 |
|
|
Wireless Security |
Wireless security function switch; 64/128/152 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism; WPS fast security settings. |
||
|
Software Features |
Support AP, router, repeater, 4G function, etc. Support VPN security tunneling function, Support dynamic routing and static routing Convenient WEB configuration Wireless settings and encryption Support telnet management, easy to use console shell interactive environment Support multiple dialing methods: automatic allocation, specify IP, specify local peer IP, PPOE Support local software upgrade; support configuration guide, import and web online update firmware Support operating system Windows XP/7/8/9/10/Linux |
||

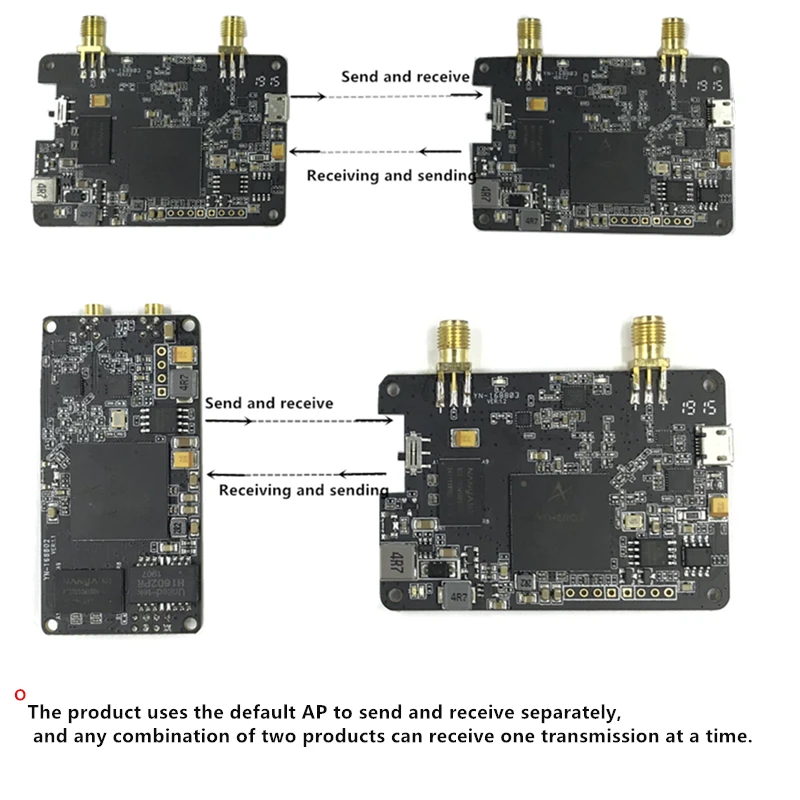

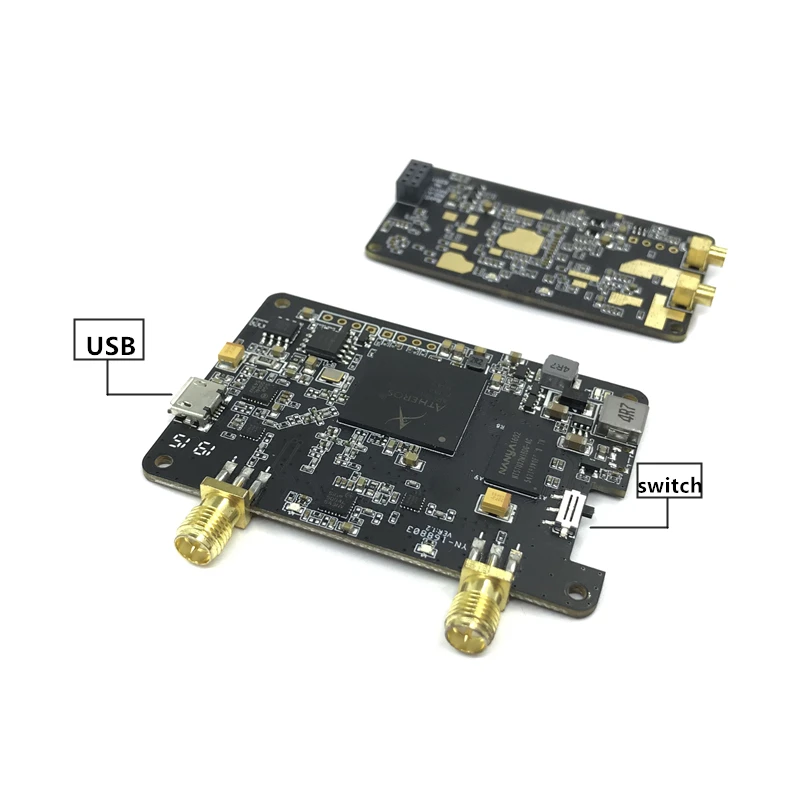

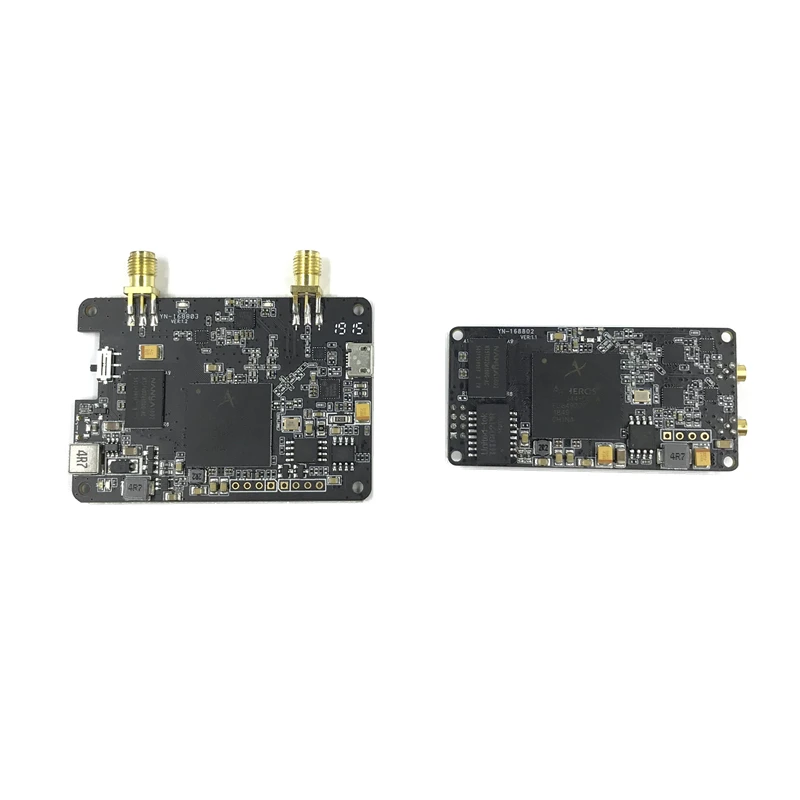

If you buy a single product, the product default AP, if you buy two, you can receive one and send one, our two products have the same performance, non-mini type contains USB port and switch.
Serial port (RS232 / RS485) to WiFi, TTL to WiFi, WiFi remote control / monitoring TTL to WiFi, TCP/IP and Wi-Fi coprocessor, WiFi remote control aircraft, remote control car and other toy fields, WiFi internet radio, Camera, digital photo frame, Medical instruments, data acquisition, handheld devices, WiFi scale,Smart card terminal, Smart Home, instrumentation, equipment parameter monitoring,Wireless POS machine, Smart socket, wireless image transmission, HDMI wireless video conversion, gateway, smart furniture, etc.
