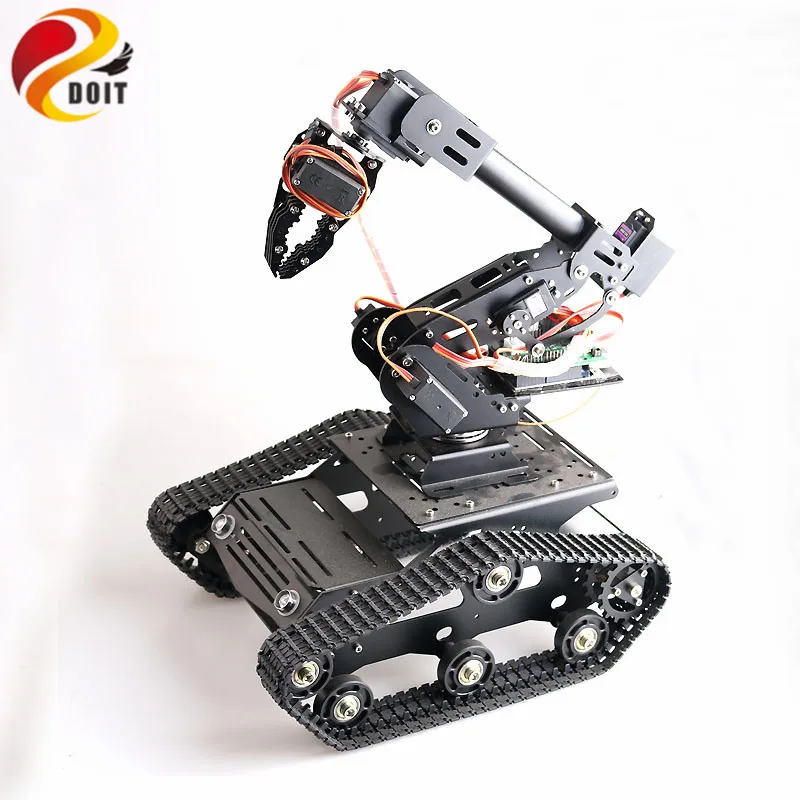

SZDOIT Full Metal 8-axis Mechanical Robot Arm with Gripper + YP100 Tracked Tank Chassis Kit 8DOF Robotic Vehicle DIY for Arduino | Игрушки и
История изменения цены
*Текущая стоимость 14 460,74 - 16 997,39 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 17207.21 руб. | 18067.53 руб. | 17637 руб. |
| Feb-18-2026 | 17063.30 руб. | 17916.95 руб. | 17489.5 руб. |
| Jan-18-2026 | 14315.43 руб. | 15031.3 руб. | 14673 руб. |
| Dec-18-2025 | 16774.76 руб. | 17613.94 руб. | 17193.5 руб. |
| Nov-18-2025 | 14605.1 руб. | 15335.78 руб. | 14970 руб. |
| Oct-18-2025 | 16484.83 руб. | 17308.41 руб. | 16896 руб. |
| Sep-18-2025 | 16340.89 руб. | 17157.51 руб. | 16748.5 руб. |
| Aug-18-2025 | 16195.61 руб. | 17005.63 руб. | 16600 руб. |
| Jul-18-2025 | 16051.10 руб. | 16854.95 руб. | 16452.5 руб. |
Описание товара

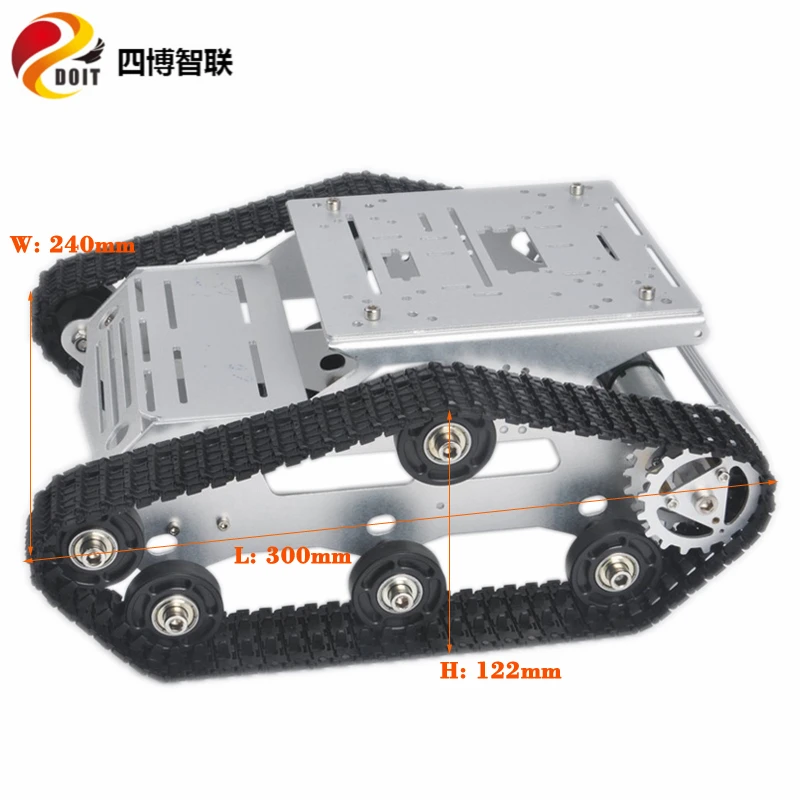

Tank chassis parameters:
- Name: YP100 smart tank chassis
- Color: silver / black
- Material: aluminum alloy
- Surface: sandblasting oxidation
- Size: 300*240*122mm (length * width * height)
- Weight: 1.16kg
- Motor: 9V 150rpm with encoder motor
- Track: engineering plastics
- Bearing wheel: plastic (metal bearing)
- Drive wheel: aluminum alloy

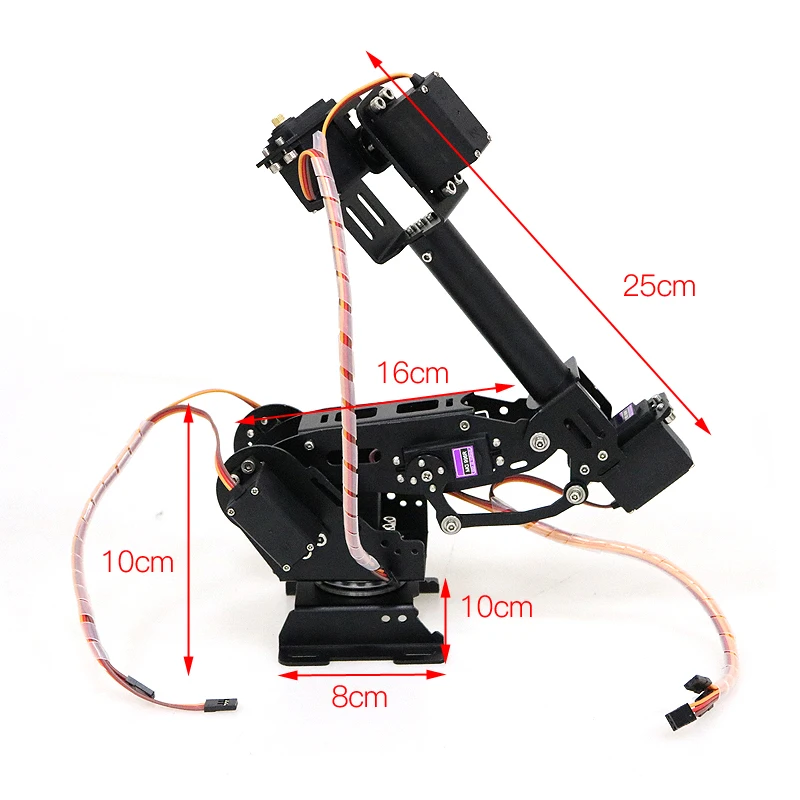

8-axis robot arm parameters:
- Mechanical arm body material: aluminum alloy
- Weight: 0.82kg (including servo weight)
- Color: black, silver
- Servo optional: MG996R, DS3218 metal gear large servo
- Features: The mechanical arm can be equipped with a mechanical gripper, the weight of the grip is about 500g; the base of the robot arm can be rotated 360 degrees.
Metal gripper parameters:
- Material: hard aluminum alloy
- Weight: about 40g
- Maximum angular separation: 86mm
- Overall length: 83mm (the overall longest length when the paw is closed)
- Overall width ①: 150mm (maximum overall width when the paw is open)
- Overall width ②: 55mm (maximum overall width when the paw is closed)
- Overall thickness: 54mm (maximum overall thickness with servo paws)
Servo parameters:
MG996R servo parameters:
- Name: MG996R
- Net weight: 55 g
- Size: 40.7*19.7*42.9 mm
- Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
- Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
- Working voltage: 4.8-7.2 V
- Working temperature: 0°C-55°C
- Gear form: metal gear
- Working dead zone: 5 us (microseconds)

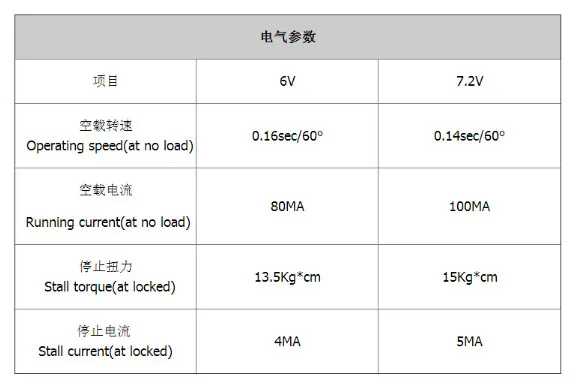

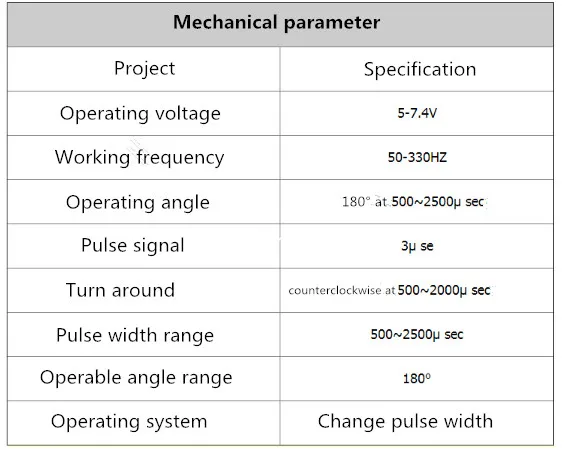

DS3218 servo parameters:
Shipping list:
- 1 × YP100 tank chassis
- 2 × 9V 150rpm with encoder motor
- 1 × 8-axis robot arm bracket kit
- 1 × Gripper
- 8 × MG996R servo/DS3218 servo (optional)
Note:
- This product does not include a battery and control kit;
- In order to facilitate transportation, the product is not assembled.
- More documents can be downloaded at wiki.doit.am.
