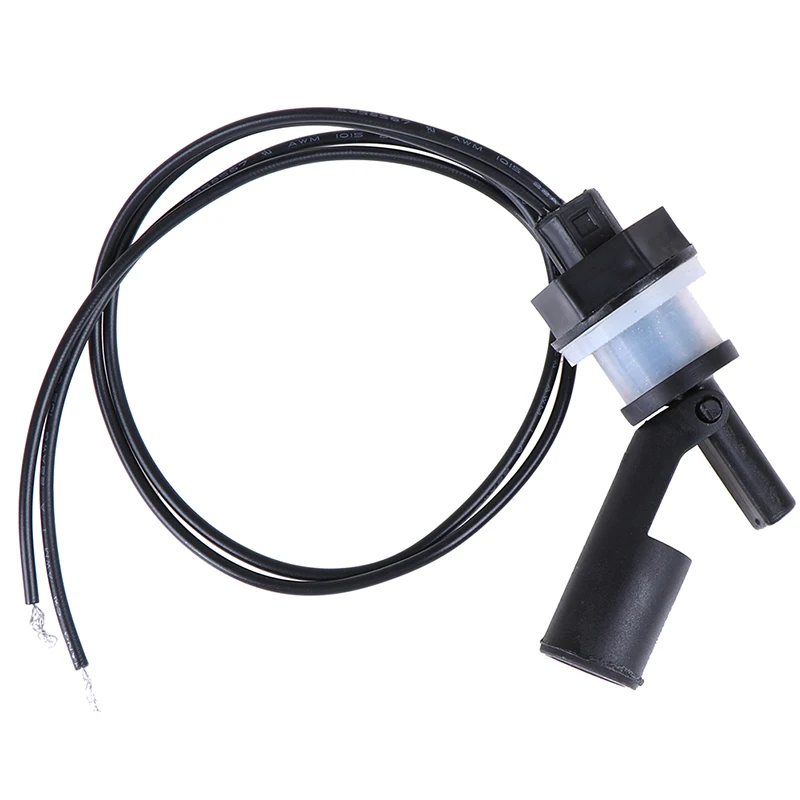

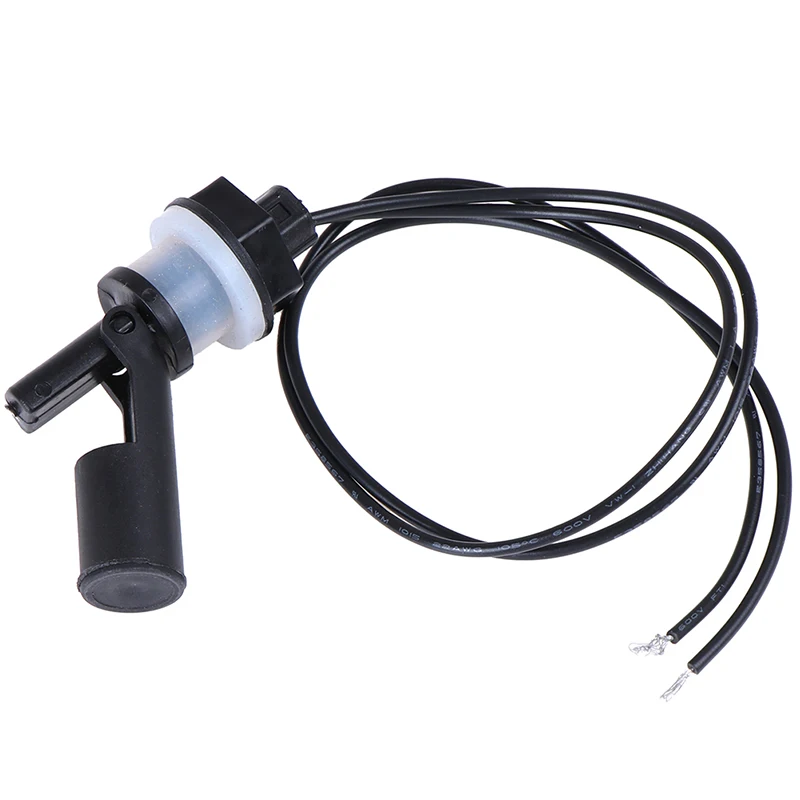

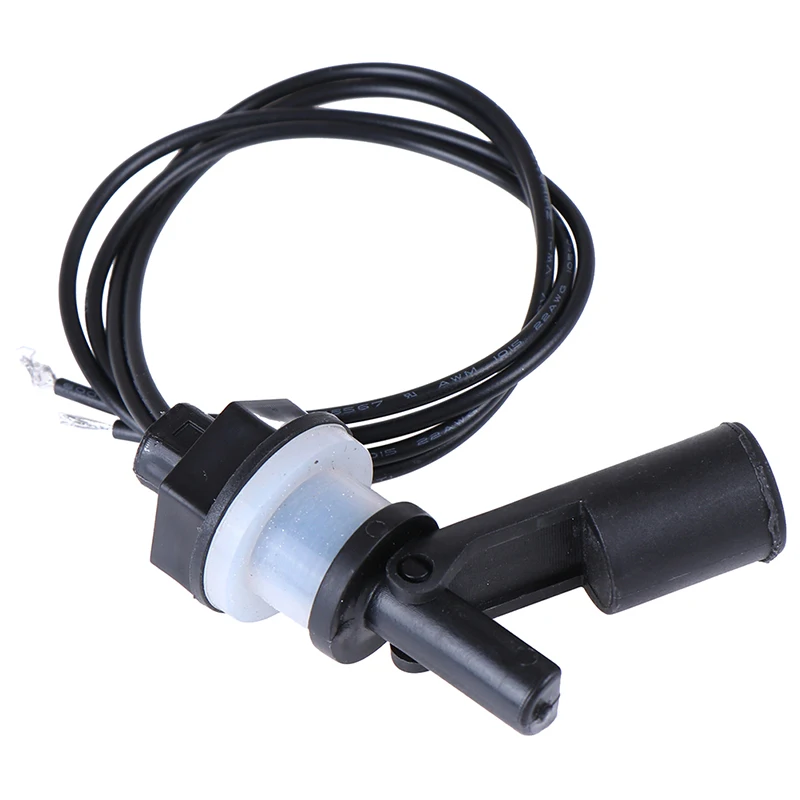

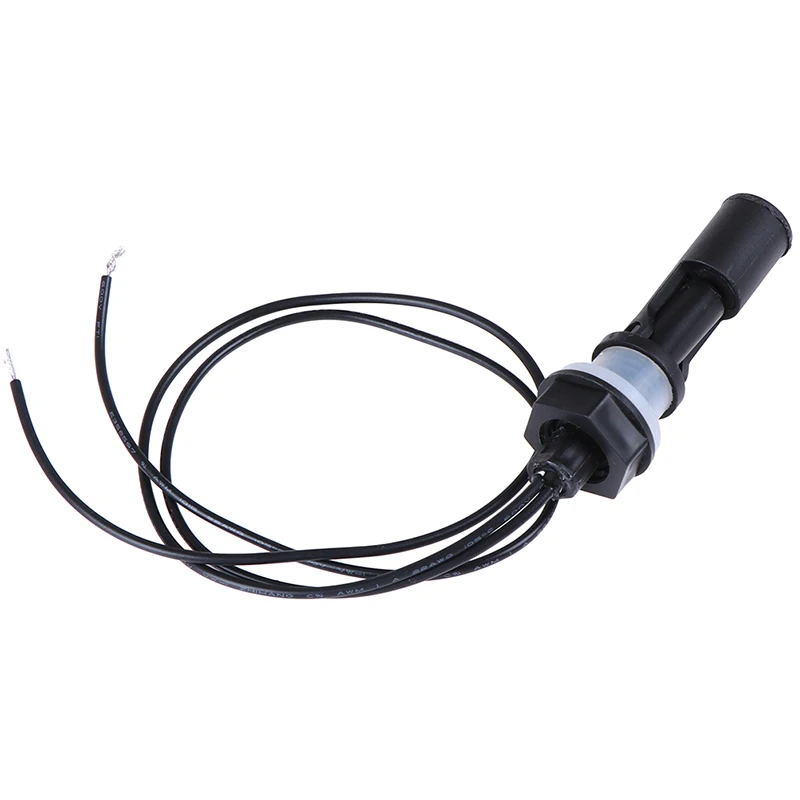

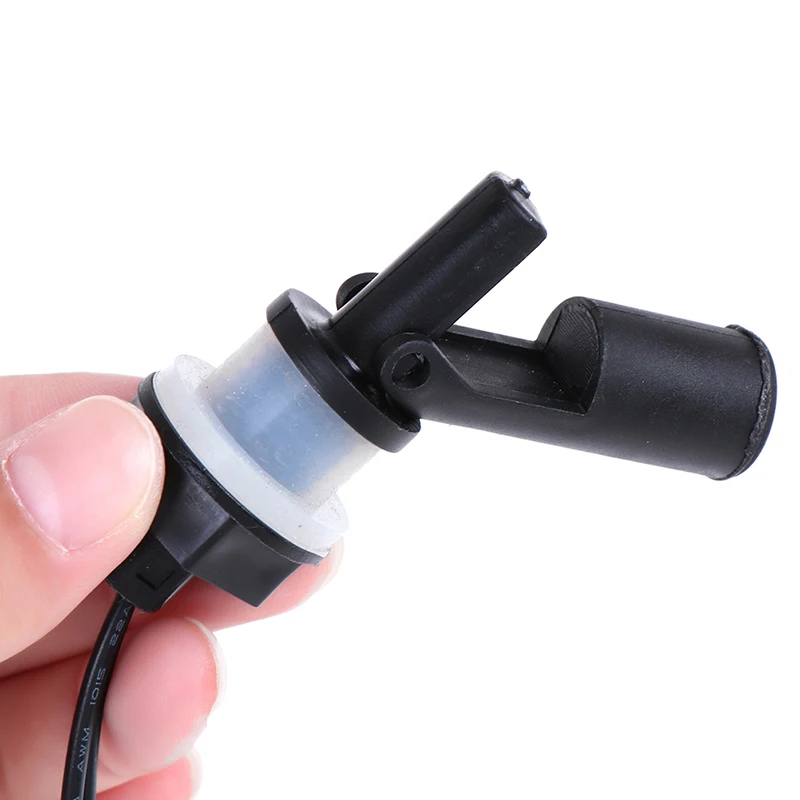

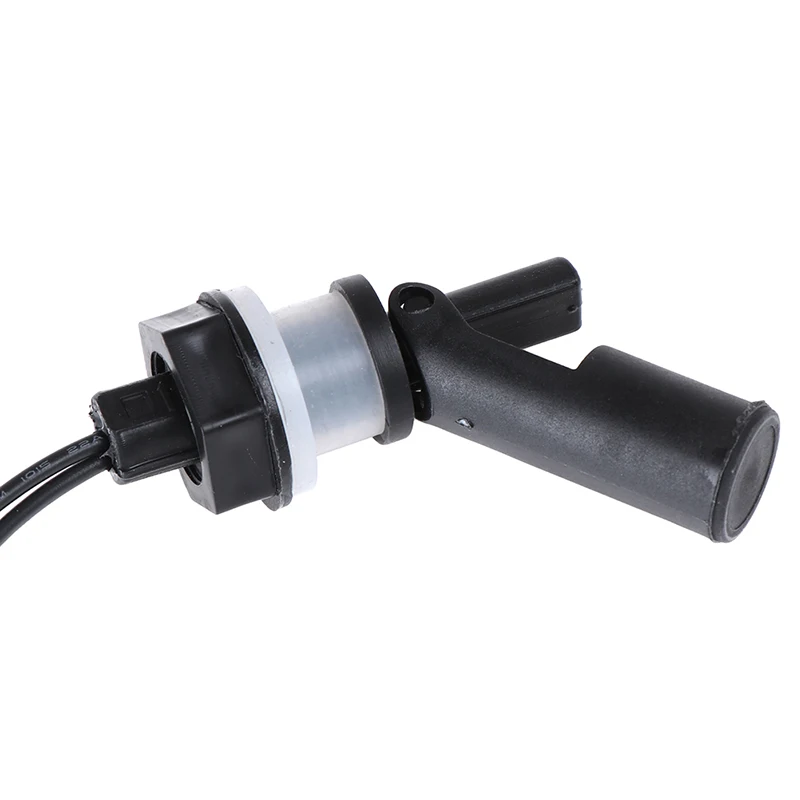

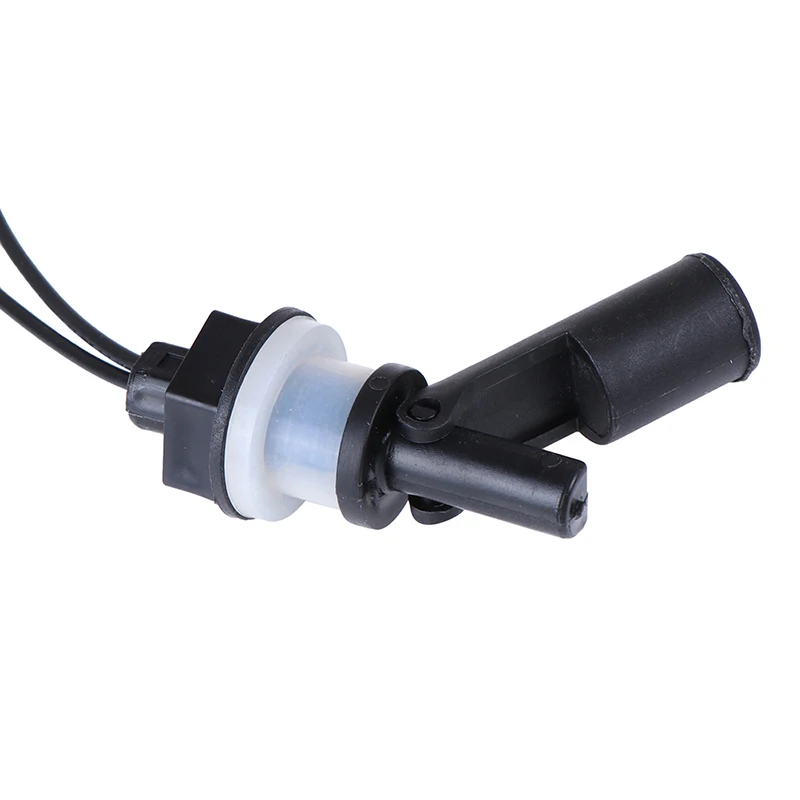

1pcs Tank Pool Horizontal Water Level Switch Liquid Sensor PP Plastic Ball Float | Обустройство дома

1pcs Tank Pool Horizontal Water Level Switch Liquid Sensor PP Plastic Ball Float | Обустройство дома

Specification:

Brand new

Material: plastic

Contract rating (Max): 10W

Switching voltage (Max): 100V DC

Switching current (Max): 0.5A

Breakdown voltage (Max): 220V DC

Carry current (Max): 1A

Contract resistance (Max): 100O OHM

Temperature rating: -30 ~ +125 Celsius degree

Feature:

Simple structure.

Long service life.

Easy to use.

A float switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other device.

Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating etc.

Working theory:

One or more reed tubes are mounted in a closed, non-permeable tube.

Then the tube is passed through one or more of the hollow and internally floating magnets.

The rise or fall of the liquid level causes the floating ball to move together, thereby causing the reed switch in the non-permeable tube to be actuated to open or close and output a switching signal.

Package included:

1 x Water Level Switch
