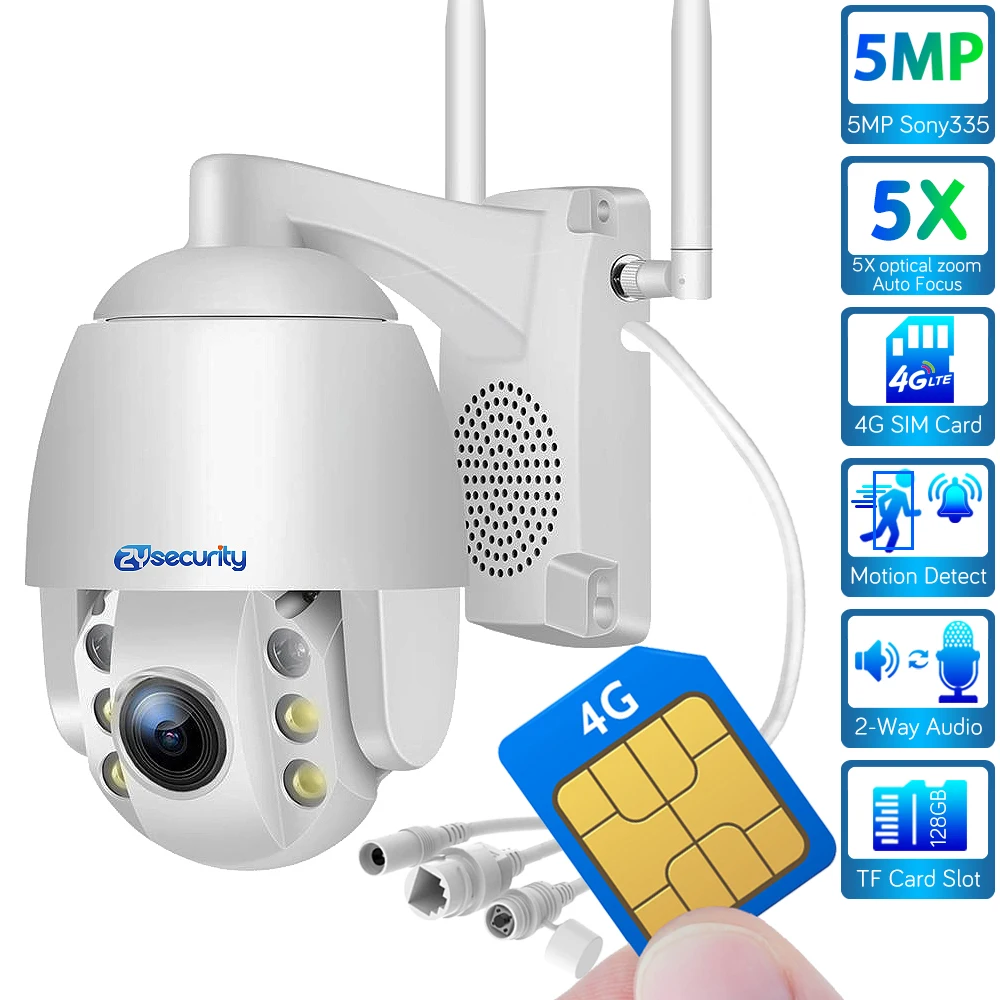

2MP 3G 4G sim-карта мини PTZ камера наружная 1080P 5X оптический зум двухстороннее аудио Onvif

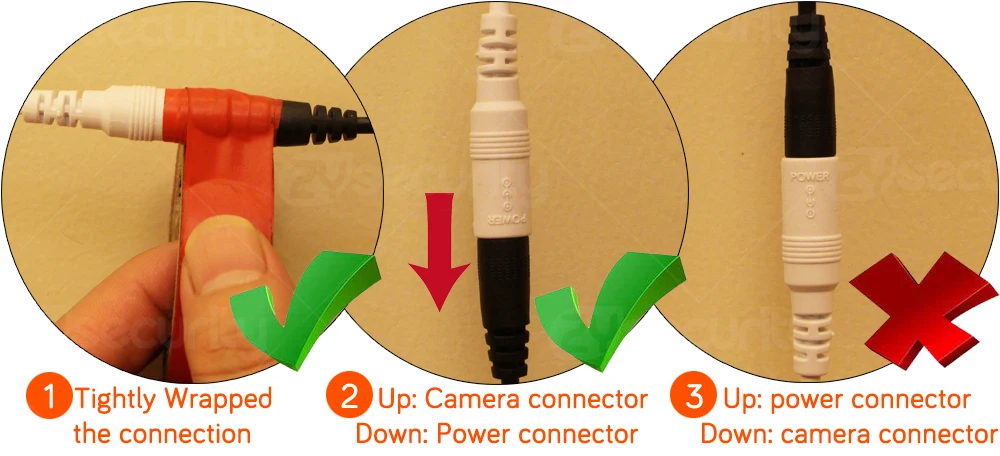

This camera power (Power Adaptor is option order) cable is About 1meter, if you want longer, please go to our shop to buy the DC extension cable.

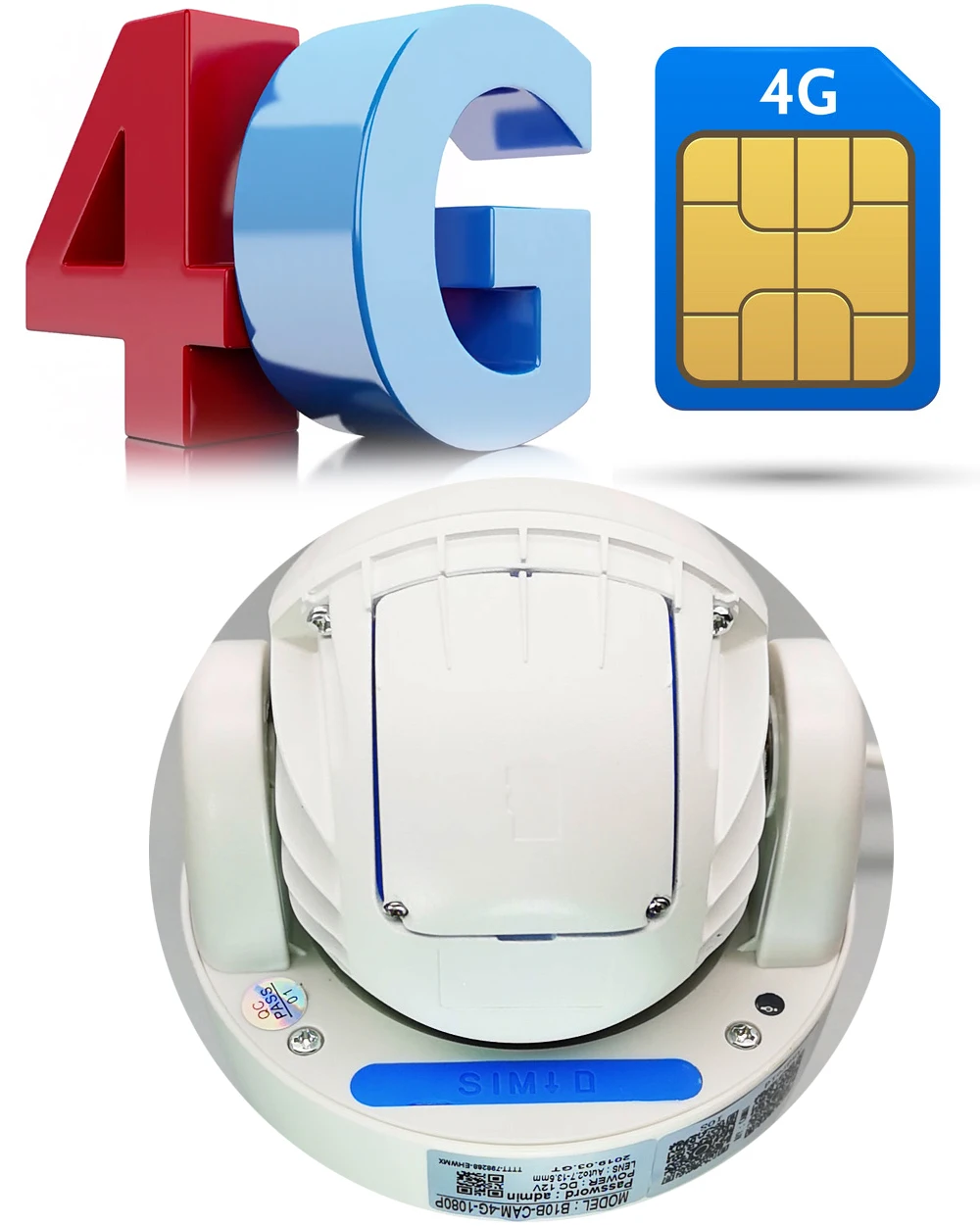

• The 4 Generation mobile　communication technology

• ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 Has external SIM Card Slot.

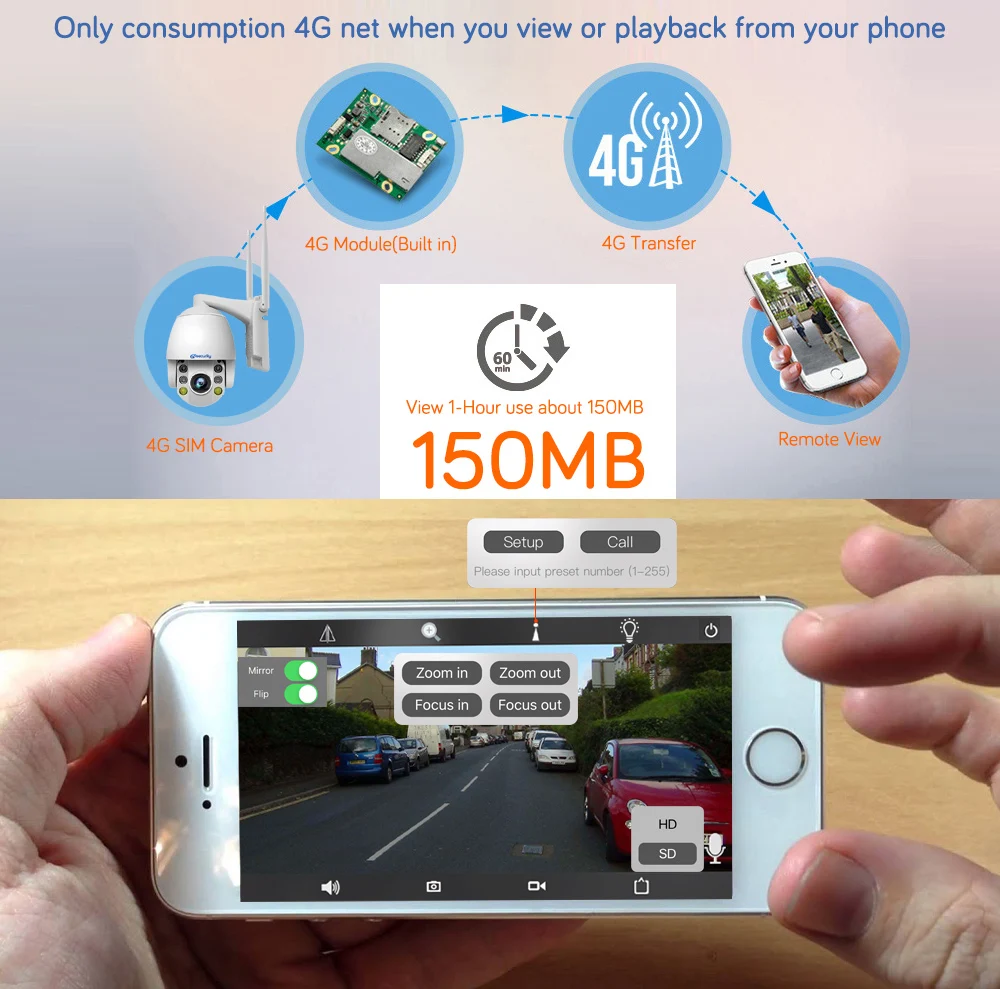

• 4G Camera Use How Much Data ?
• • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 is low net flow, low cost, it only use data about 150MB per hour when you view from your mobile, and if not view, the camera standby sleep mode, only take 2MB per day.
  •

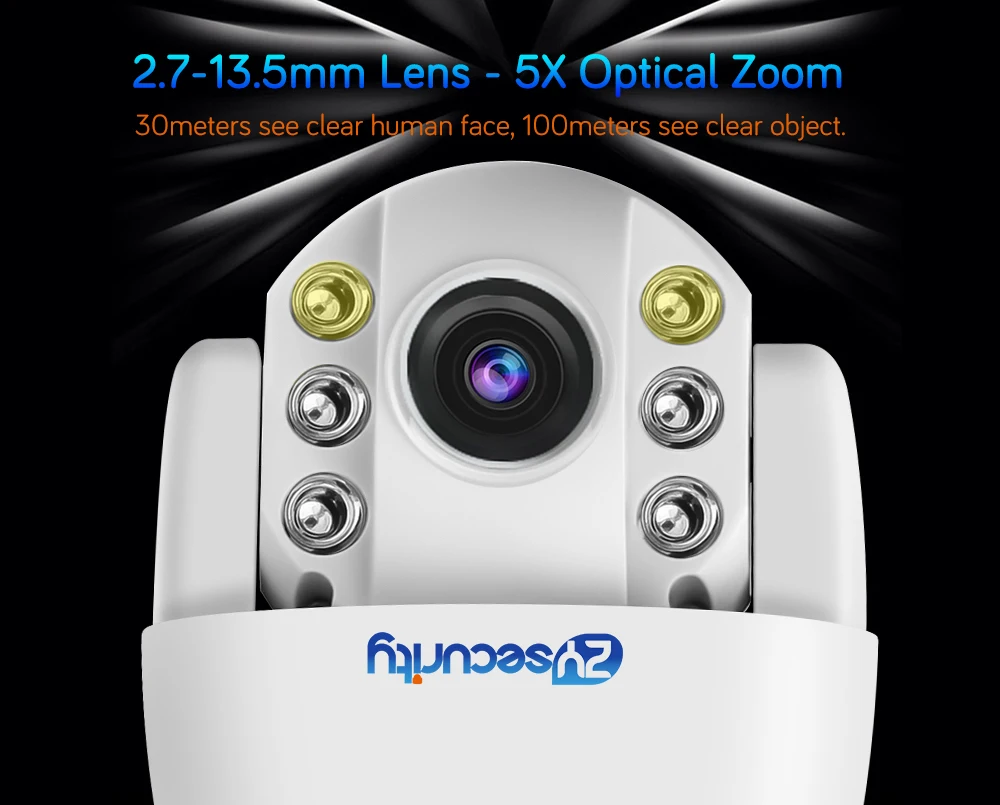

  • • 5X Optical Zoom Lens

    • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 built in 2.7-13.5mm 5X auto zoom auto focus lens, enlarge to see far away details crystal clear.

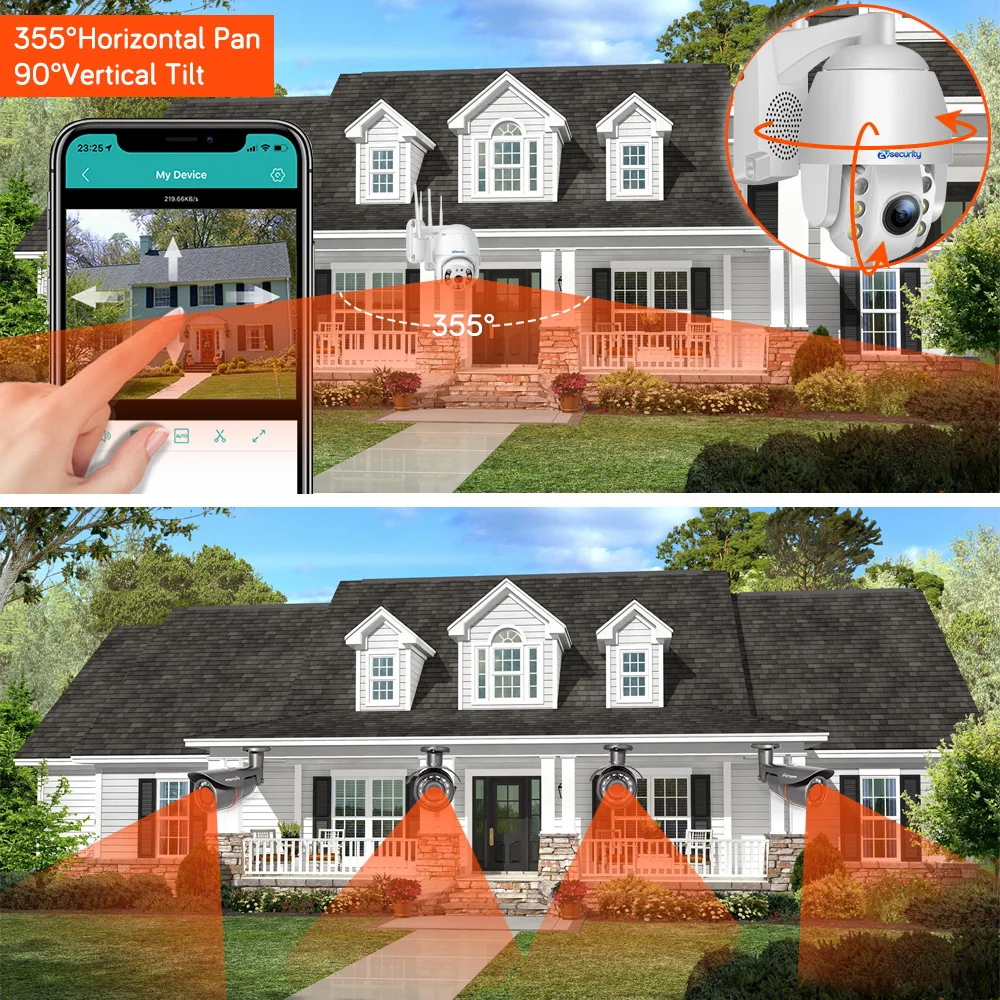

        • PTZ Control

        • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ is rotatable with 355°pan and 90°tilt. You can control it via the app / CMS and get a sweeping view on every inch of your entire house. No details will ever make them pass even if they tried.

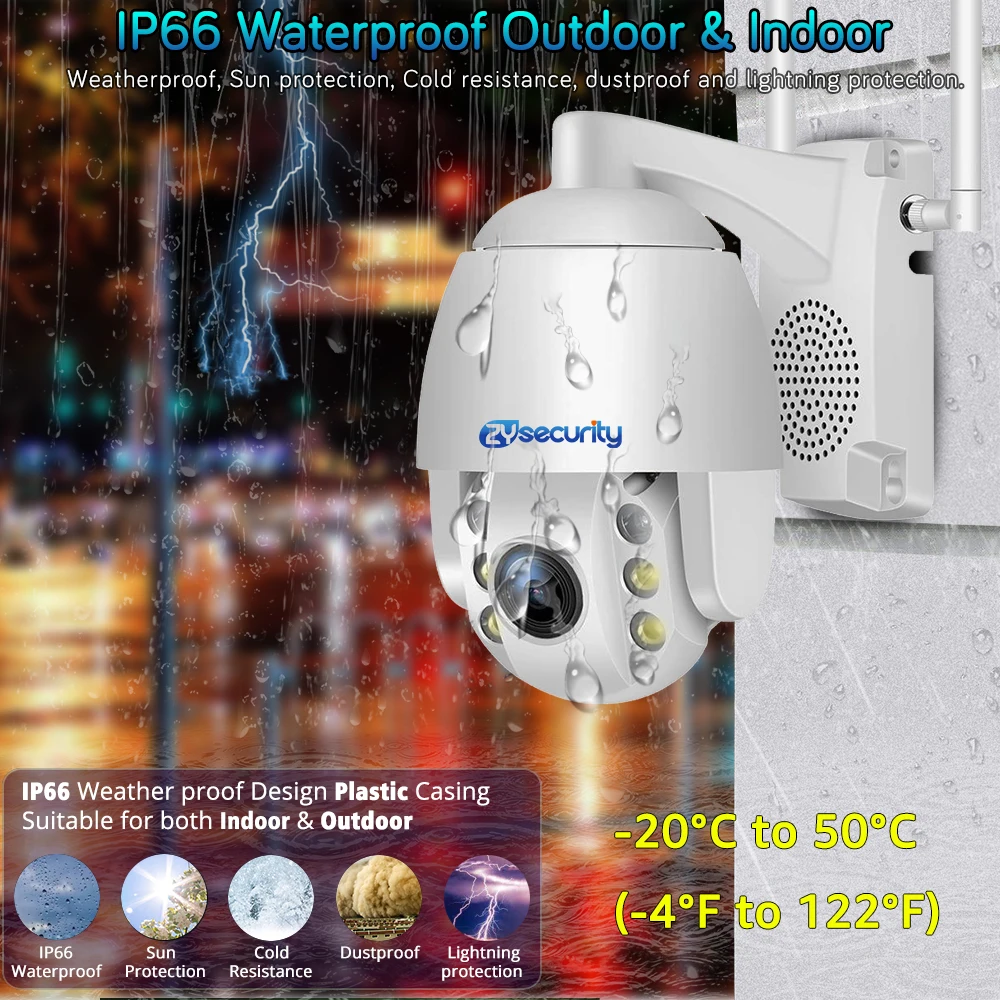

        • Both Outdoor / Indoor Use

        • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ is IP66 level Waterproof, Sun protection, Cold resistance, Dustproof and lightning protection.
        •

      • • • Not Just a Camera,But Also Alarm System

          • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 is not just a camera, but also alarm system, when the thief enter the secure area, the camera turn on white light, night vision change to color, your can use voice alarm bell scare away the thief.

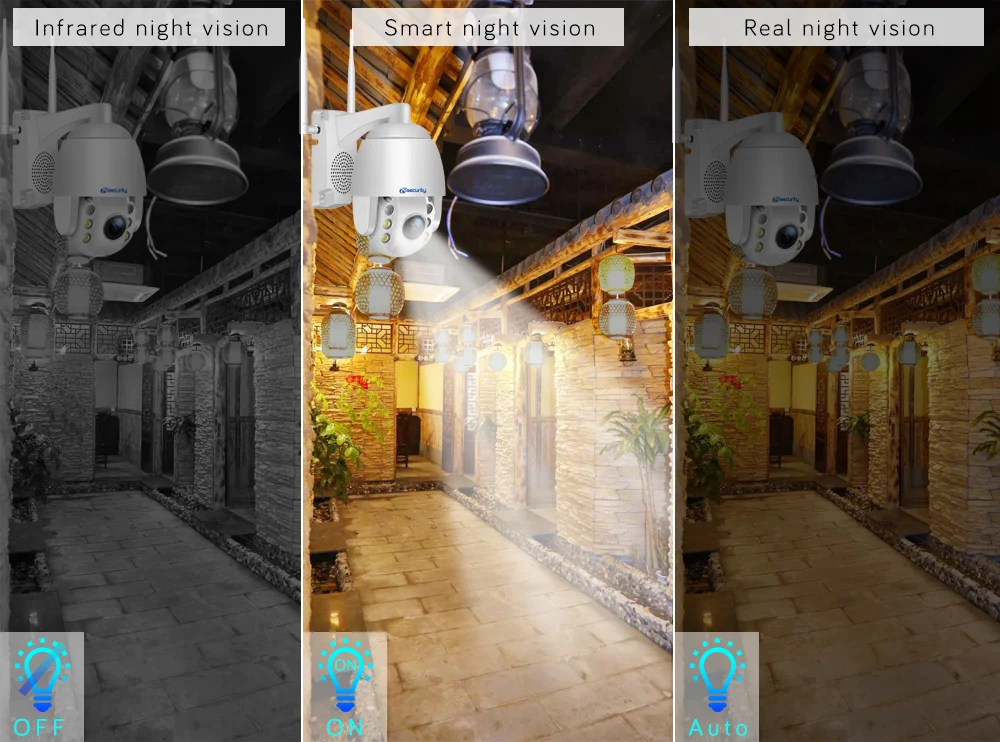

        • • Intelligent dual-light color night vision

          • • • • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 is smart camera with color night vision, has 3 mode night vision can setting in App. when night falls it automatically switches to night vision mode in low light conditions, with a wider range of night vision and better definition. Intelligent dual-light color night vision, IR distance 20Meters, White light distance 80meters.

              •
              • • Crystal Two Way Audio

                • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 built in high quality microphone and speaker, you can speak to your package deliver when you are out,

                    Speak to family lovers, ask baby came home when they play outside:



                    Speak to the thief: What are you doing ! get out now !

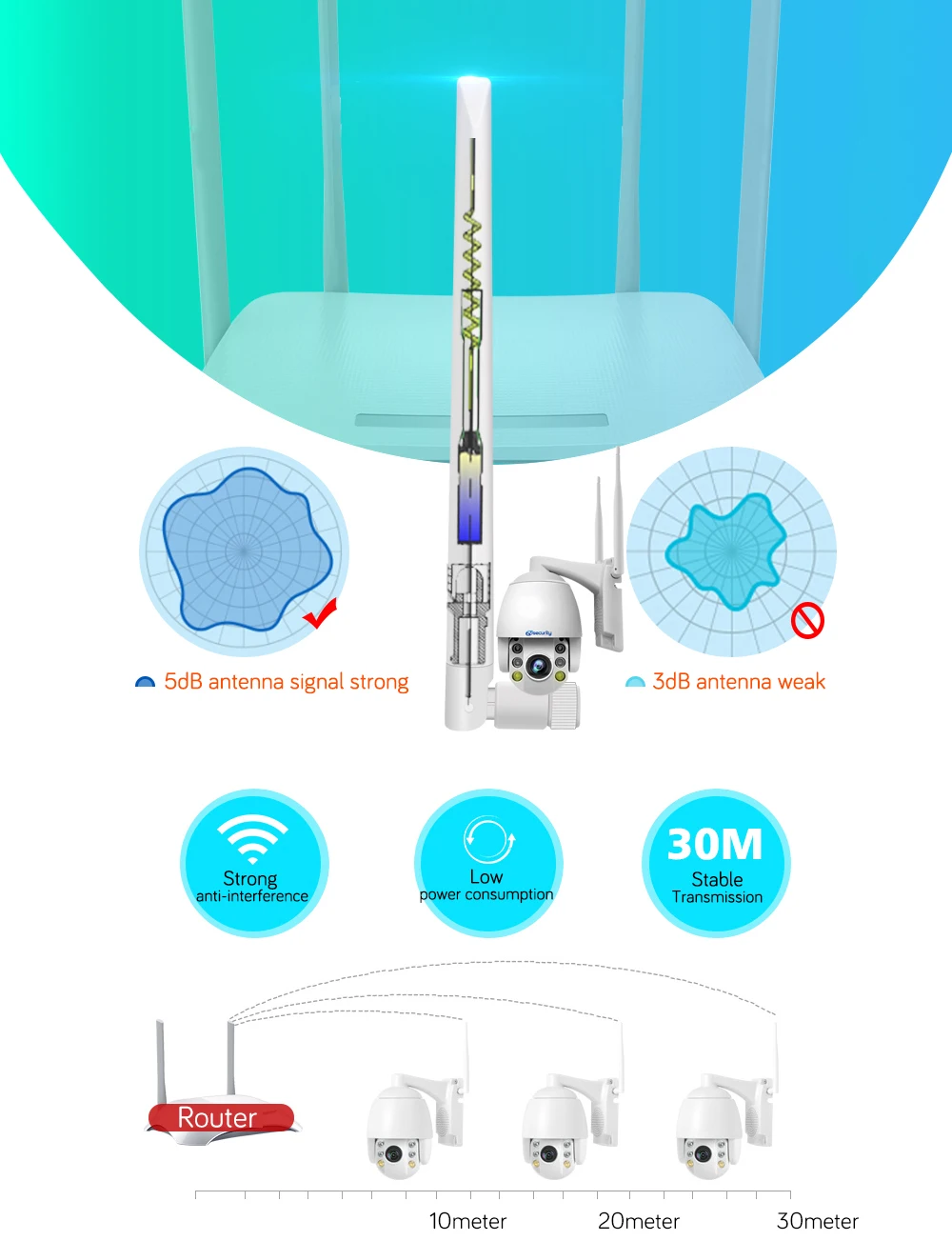

                  • AP Hotspot,Double 5dB Antenna
                  • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 signal stronge in any place.support wifi hotspot, recording and view from your phone without net.

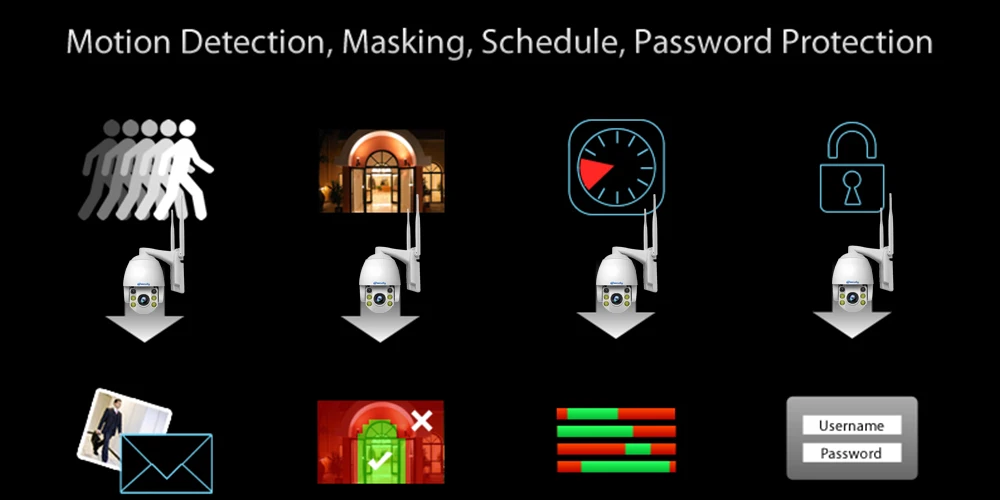

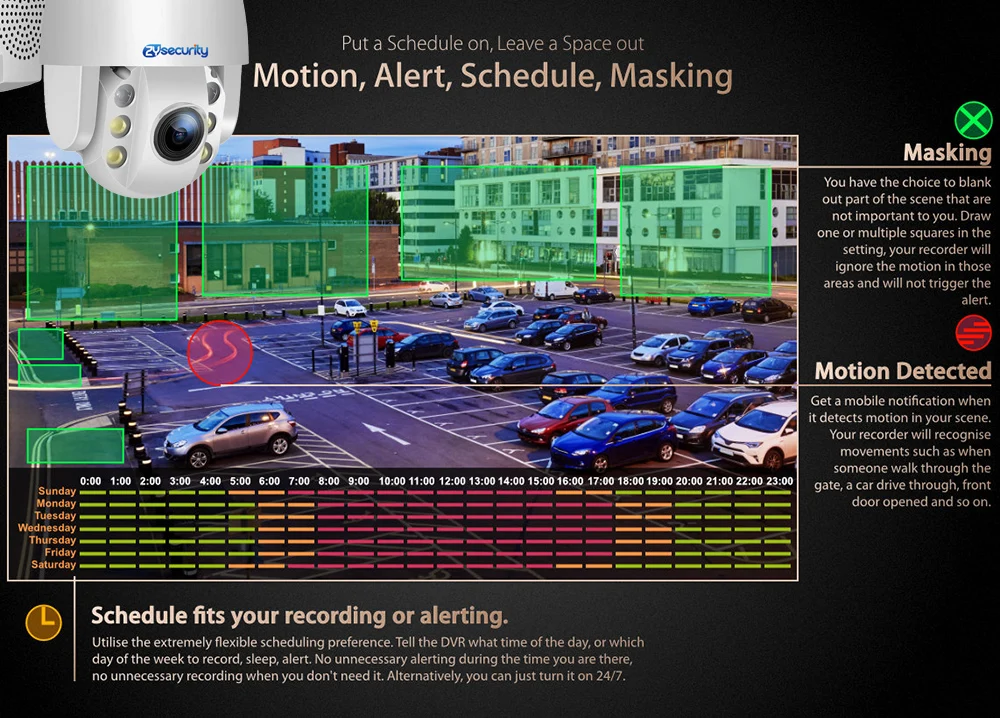

                    • Motion Detect, Masking, Schedule,Alert
                    • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 support motion detect, Alert, Schedule, masking.it can detecte and recorded any suspicious movement thrown into the camera' eye (Open motion detection recording mode can save storage space) , leaving thieves and robbers nowhere to hide. Masking the area that you want, only keep your eyes on the important area.

                      • At the same time, you will receive instant APP alarm pushes on your smart devices wherever you are.

                      •
                      •

                      • Full HD 1080P 2Megapixel resolution

                        ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 See everything in beautiful color and super clarity with this HD camera. All captured by this camera will be presented to you via fluent and stunning videos
                      • •

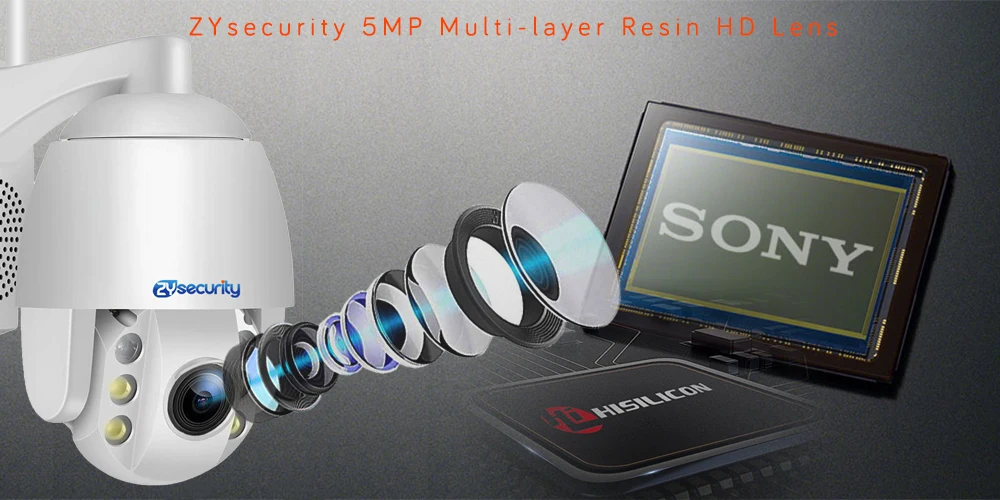

                        • Multi-Layers Resin HD Lens.

                          ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 Built-in multi-layer resin HD lens,and metal HD IR-Cut, Maximum filtered light to get the crystal clear colorful image.

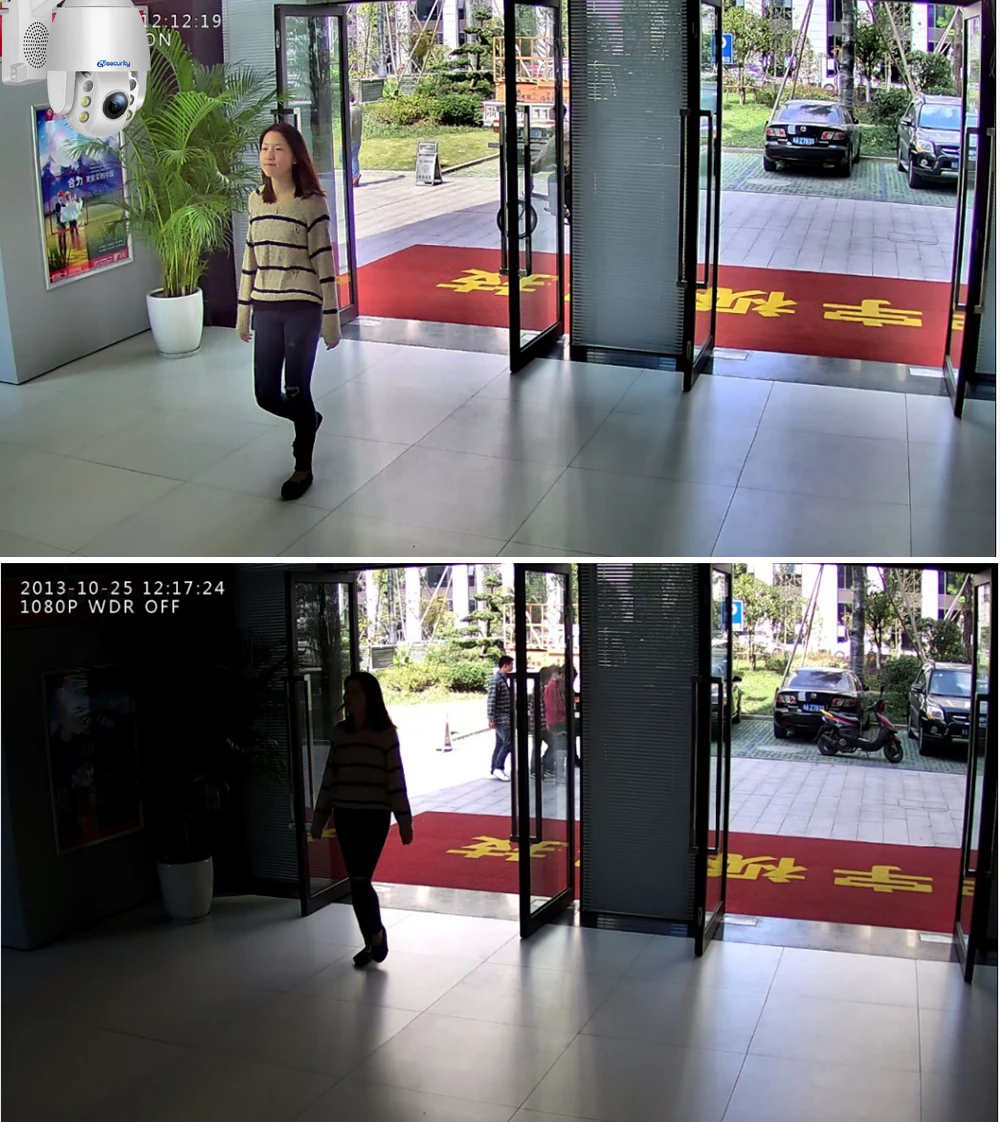

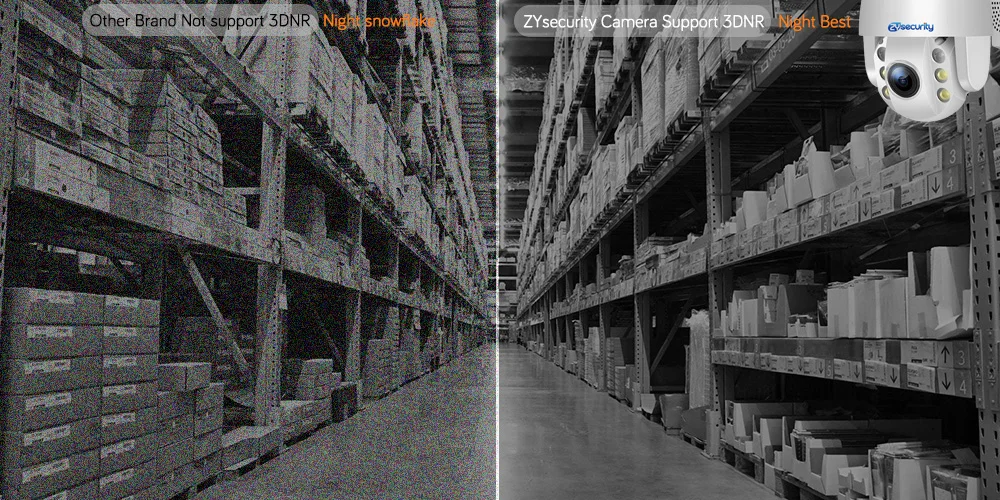

                        • • • • DWDR & 3DNR Technology
                              • • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 Support WDR (Wide Dynamic Range), Support Auto backlight compasation, Suport 3D NR (Noise Reduction), See Clear Every Details even in the backlight and night.
                                  • • •
                                      •

                                      • Real-time viewing, no delay

                                      • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 help you know what happen at the first time, watch over your home anytime and anywhere, Adaptive to any network environment.

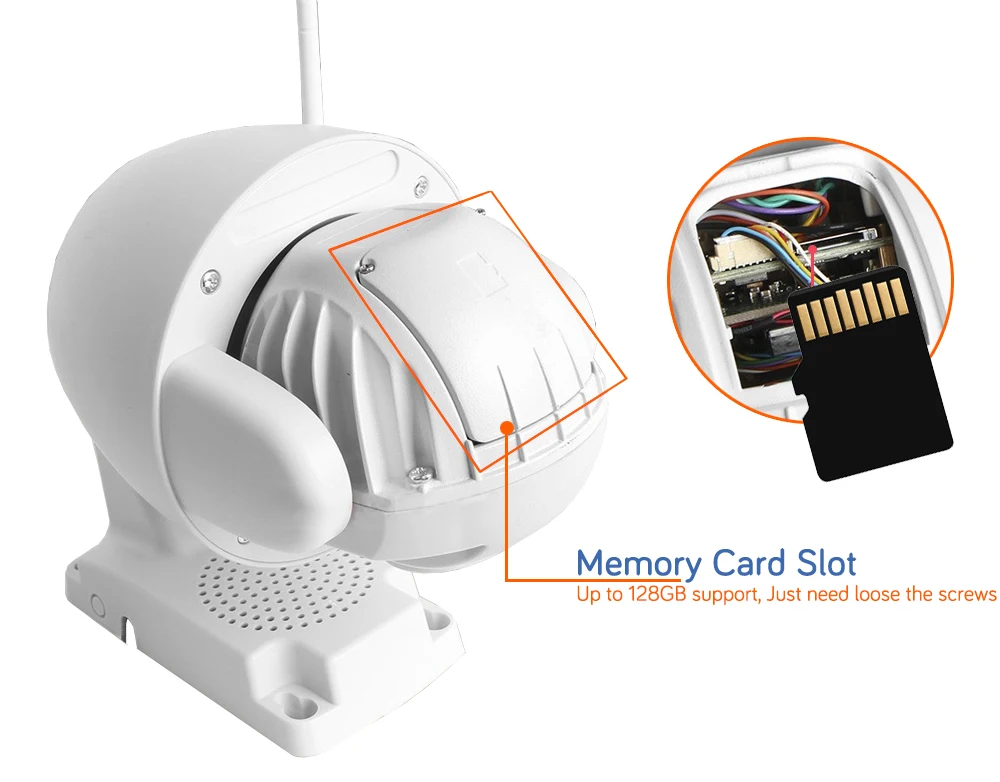

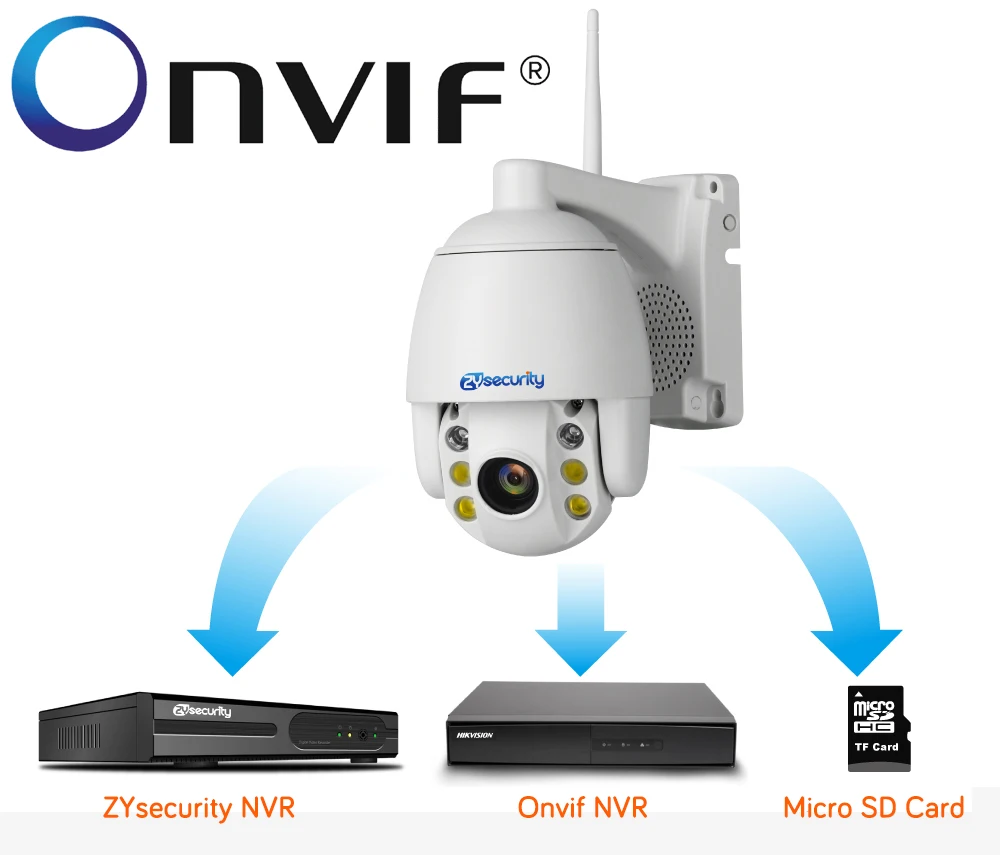

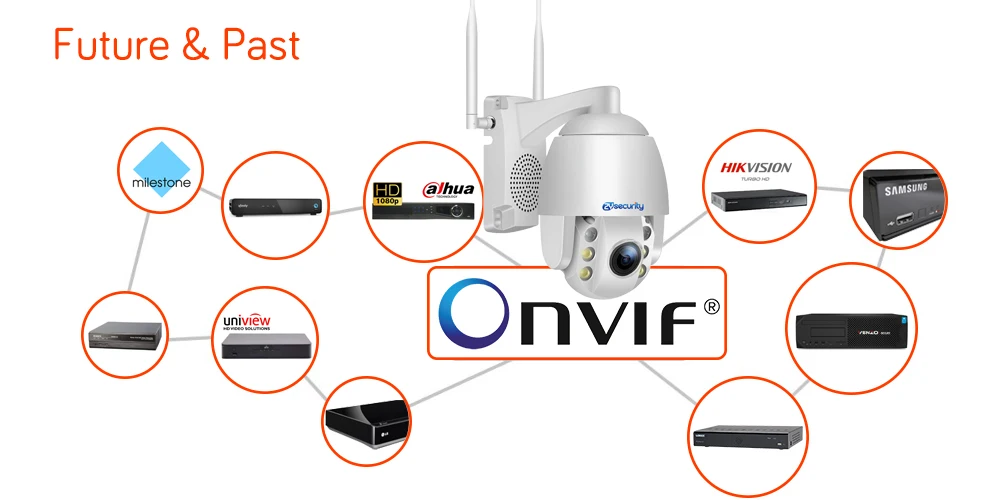

                                        • Support Memory Card,Cloud or Onvif NVR storage
                                        • • • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 allows you to insert a 128GB TF card, which means you can save images and videos for later viewing, meanwhile the large memory allow you to record everything you wanted without missing one moment. Monitoring data is send to the cloud in real time, without fear of theft , without fear of being destroyed, the storage capacity is the size of your choice, cloud encryption, more secure.

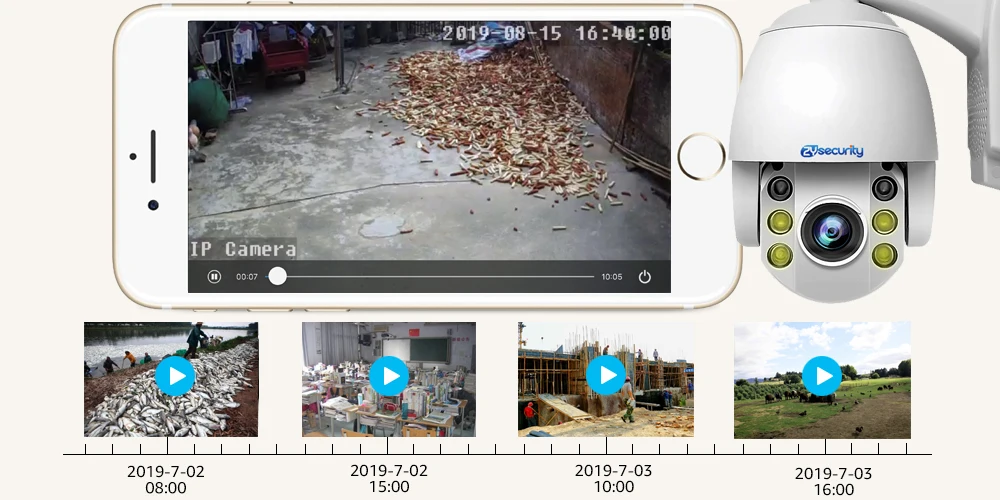

                                              • Loop record, Smart Playback
                                              • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 support loop recording (you can setting in App stop record or overwrite when it storage full), gives you 7/24hours recording, never stop keeping your safe, smart playback from your phone. watch what happen when you are not there anytime anywhere.
                                                •
                                                •

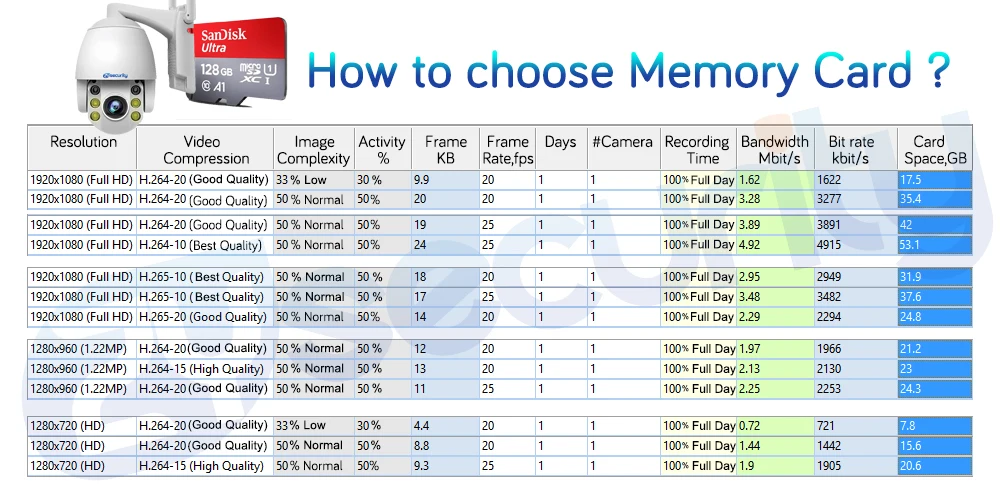

                                                • Professional Data Help You Choose Memory Card

                                                • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 support motion detection and masking zone, open this function in app to record only when the object move, to save the storage space.

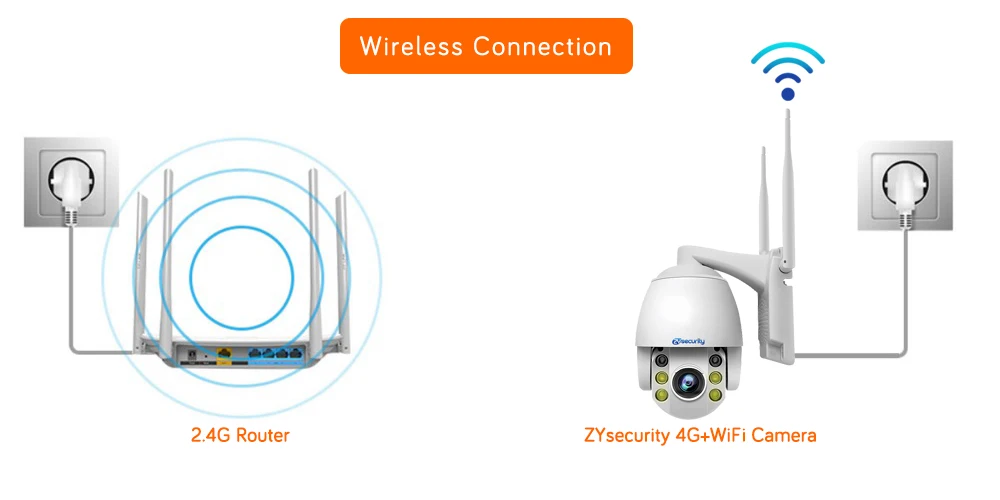

                                                  • • Dual Connection Way
                                                    • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 Support 4G Net connection, also support Wireless WiFi connection.
                                                      •
                                                      •

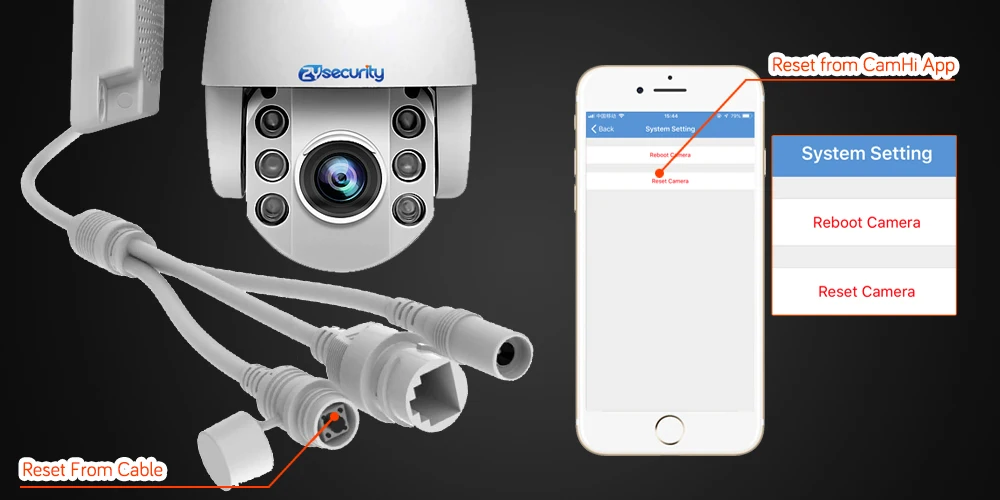

                                                      • Two Way for Reset
                                                      • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 can be reset on camera cable, or on App.
                                                        •
                                                        •

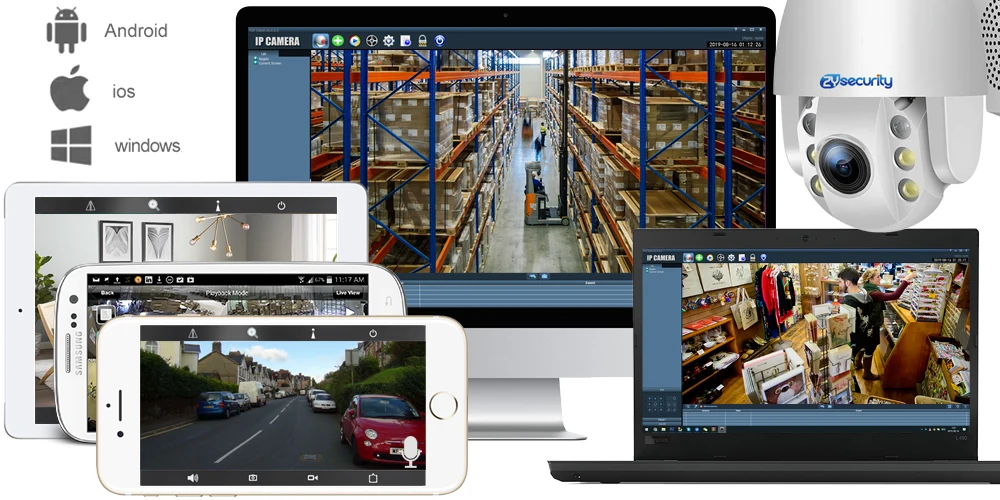

                                                        • • Multiple Access Options

                                                          • • Access Your ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 from multiple smartphones, tablets by login your account. One account can add unlimited cameras and share to unlimited friends, share happy time together. One account can even view up to 10 live cameras on one screen, keep track of what's going on in every room of your house or small business, and feel rest assured that you won't miss any thing.



                                                              Support view from iphone, Android, windows, and browser.

                                                            •
                                                            •
                                                            • Designed for Everyone

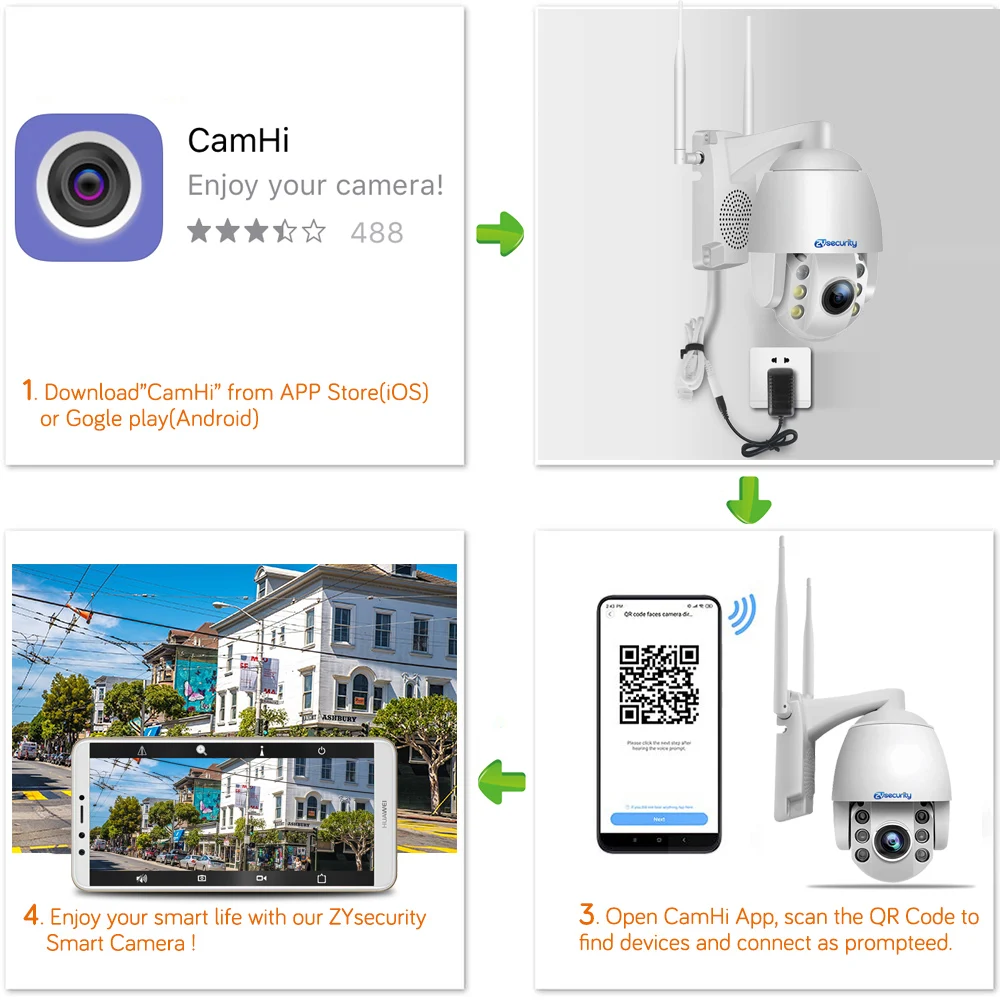

                                                            • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 is easy setup by lady, old man, young man.
                                                              •
                                                              •

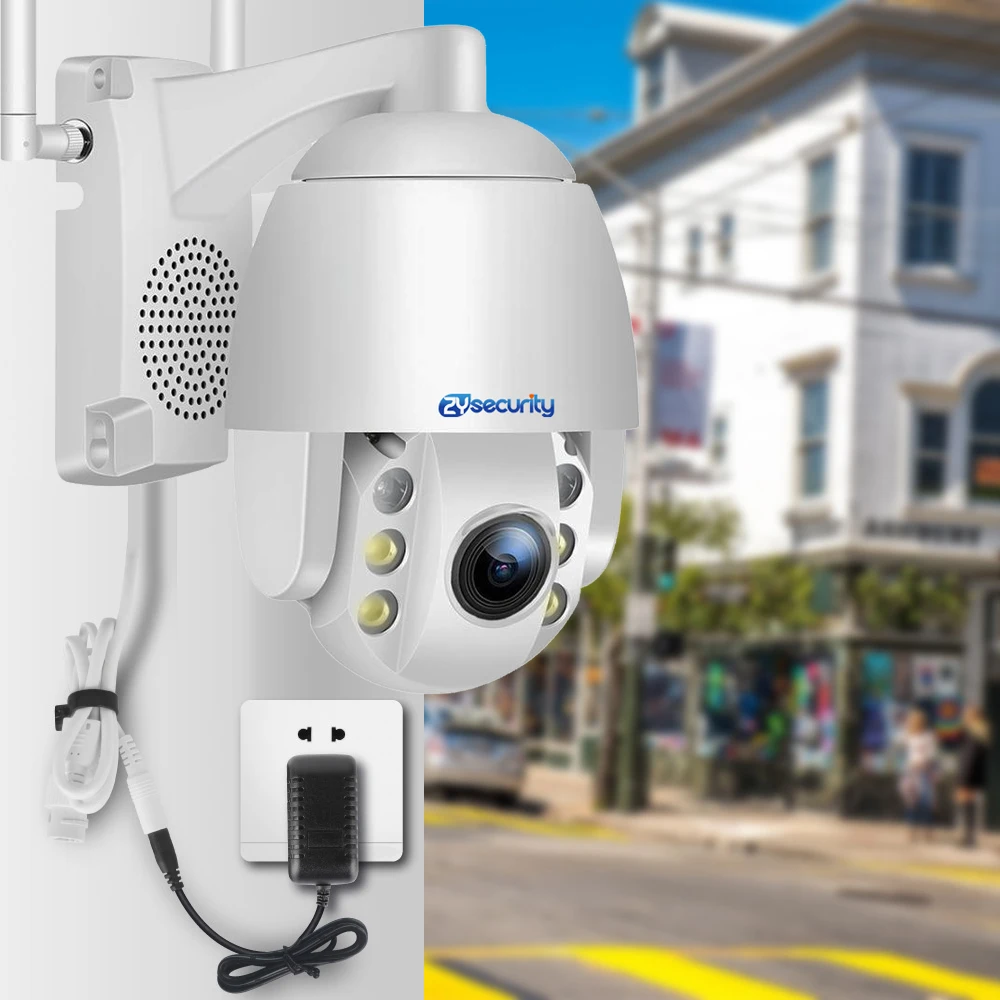

                                                              • Really Plug and Play
                                                              • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 designed with easy setup 1-key WiFi connection feature, for do-it-yourself installation. Even the lady, the old man or young man can use easy.
                                                                •
                                                                •

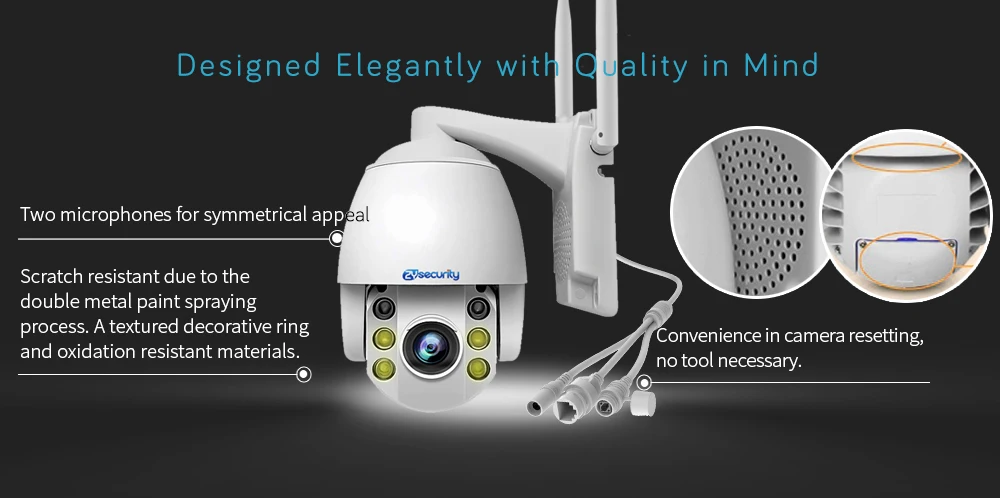

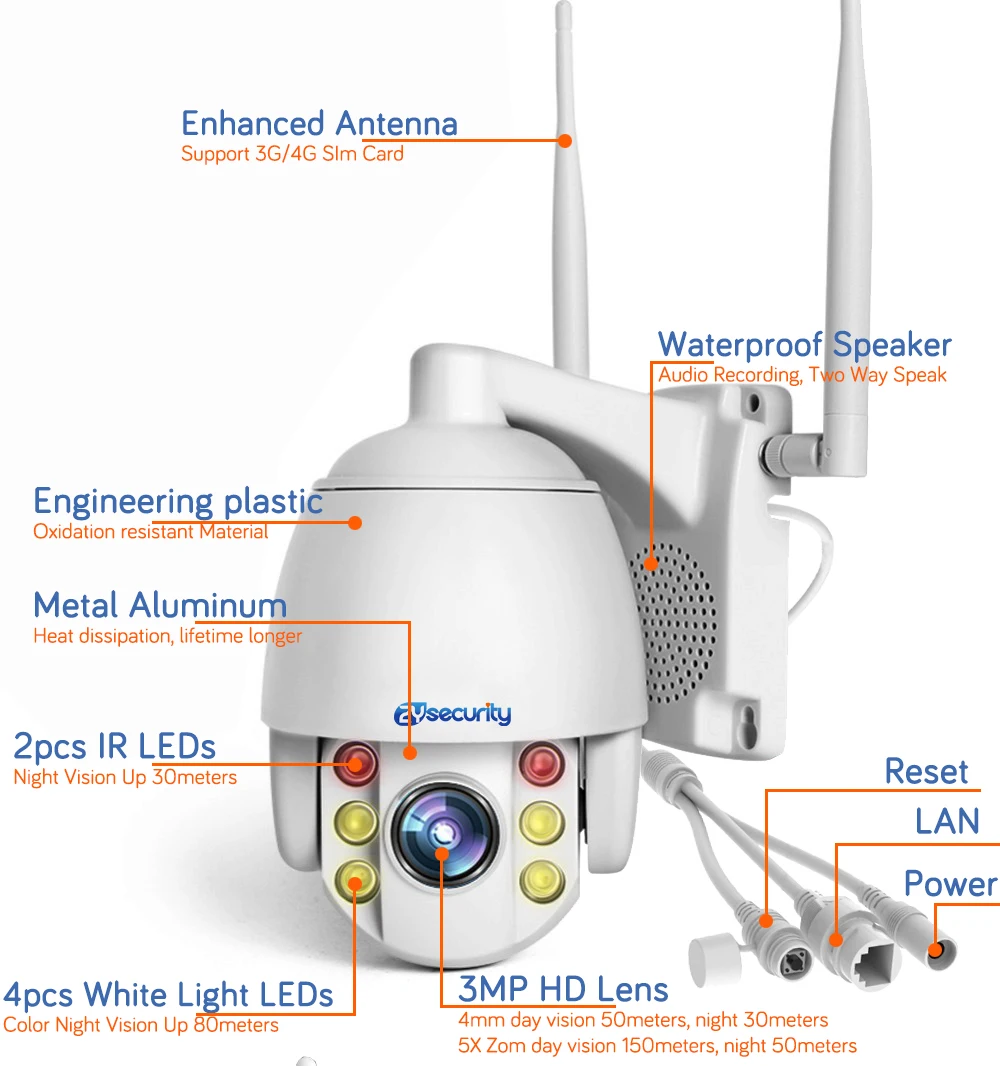

                                                                • Designed Elegantly with Quality in Mind.

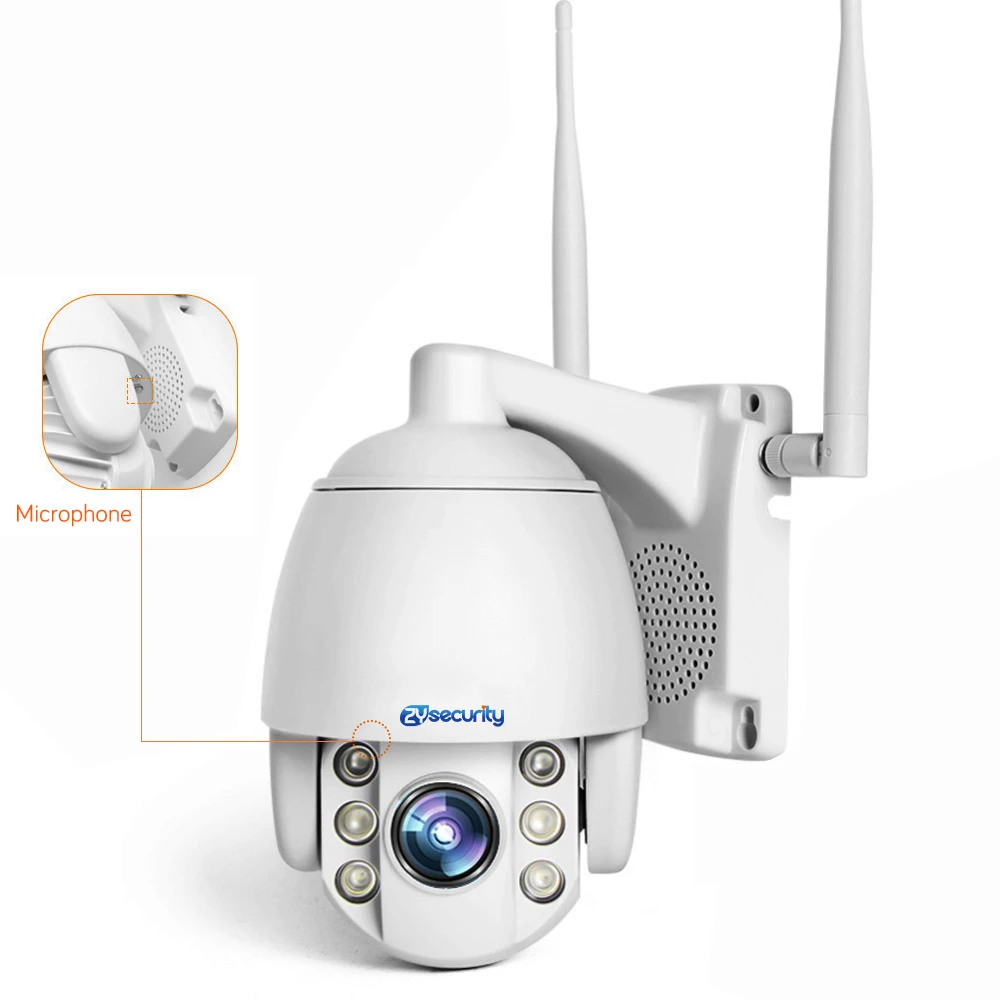

                                                                • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1 built in microphones, speaker, reset, card slot, no need any tools.
                                                                  •
                                                                  • • Aluminum panel for Heat dissipation,longer lifetime
                                                                    • • ZYsecurity outdoor 4G Speed Dome PTZ camera ZY-4GPTZ1's panel is made by aviation alumnum material , best heat dissipation, lifetime much longer than plastic.
                                                                      • Choose the The Correct Adaptor Plug Style That can Use In Your Country:

                                                                      •

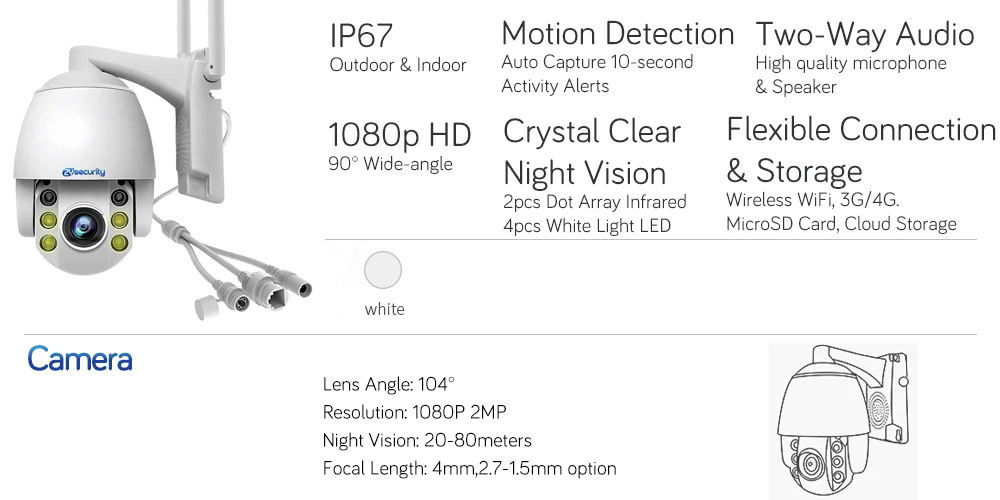

                                                                        Product Overview

                                                                        • I.P. 4G PTZ System with SD Card, Cloud and two-way audio, Audible Alarm, Dual-Light functions.
                                                                        • 2 Megapixel a.k.a 2MP and Real-time Playback
                                                                        • Starlight colour night vision (3 night vision modes to choose in App)
                                                                        • IP66 Waterproofing Housing against Tough Outdoor Weather
                                                                        • 30-80 Metres / 98-262 Feet Night Vision See Clearly in the Night
                                                                        • 360° Flexible Angle Gives No Dead Corner
                                                                        • Remotely Access through Mobile Phone, PC, Tablet
                                                                        • See Footage Sharper and Lighter with　2.7-13.5mm Zoom Lens or 4mm Fixed Lens (option)
                                                                        • Enjoy Peace of Mind 1 Year Warranty (ZYsecurity lifetime tech support)
                                                                        •
                                                                        • Order tips:
                                                                        • 1080p No Card: 1080P 2Megapixel Camera with Adaptor without Memory Car
                                                                        • 1080p - 2A - 16GB: 1080P 2Megapixel Camera with Adaptor DC12V 2A with Memory Card 16GB
                                                                        • 1080p - 2A - 32GB: 1080P 2Megapixel Camera with Adaptor DC12V 2A with Memory Card 32GB
                                                                        • 1080p - 2A - 64GB: 1080P 2Megapixel Camera with Adaptor DC12V 2A with Memory Card 64GB
                                                                        • 1080p - 2A - 128GB: 1080P 2Megapixel Camera with Adaptor DC12V 2A with Memory Card 128GB
                                                                        • 960p No Card: 960P 1.3Megapixel Camera with Adaptor without Memory Car
                                                                        • 960p - 2A - 16GB: 960P 1.3Megapixel Camera with Adaptor DC12V 2A with Memory Card 16GB
                                                                        • 960p - 2A - 32GB: 960P 1.3Megapixel Camera with Adaptor DC12V 2A with Memory Card 32GB
                                                                        • 960p - 2A - 64GB: 960P 1.3Megapixel Camera with Adaptor DC12V 2A with Memory Card 64GB
                                                                        •

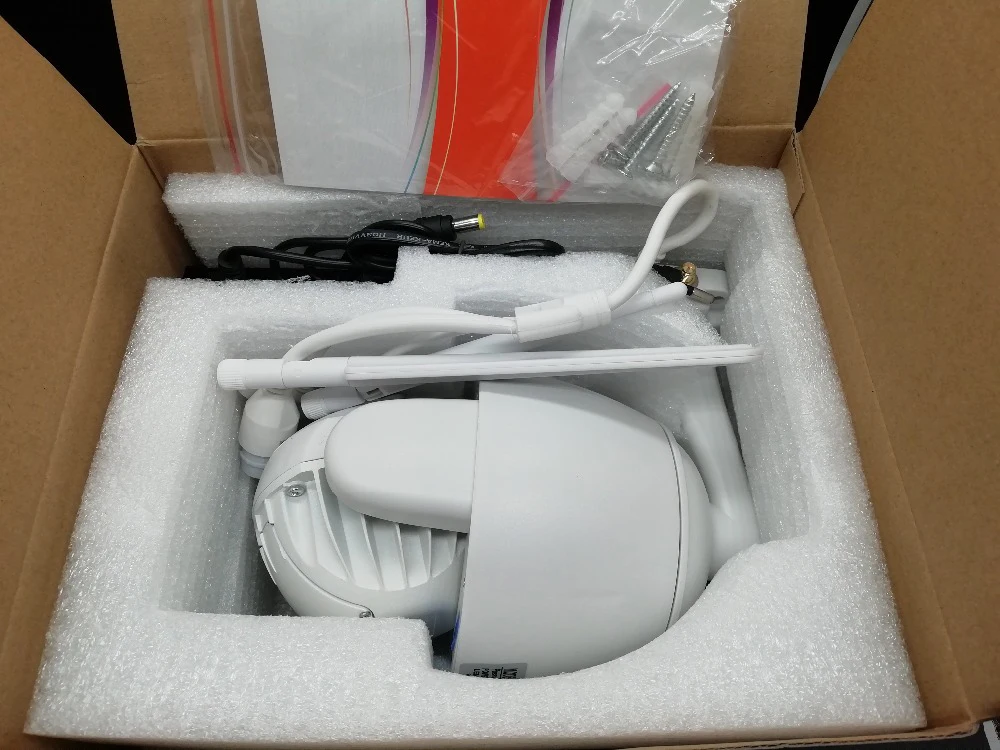

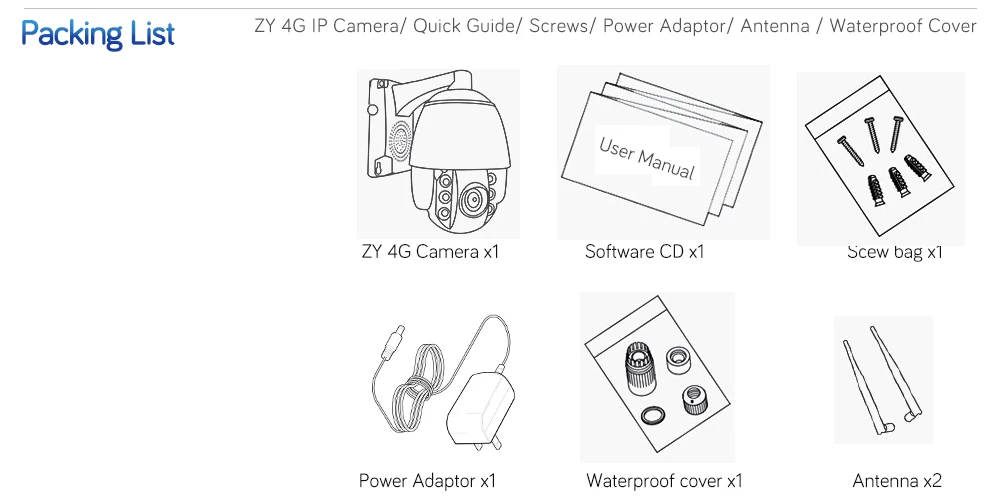

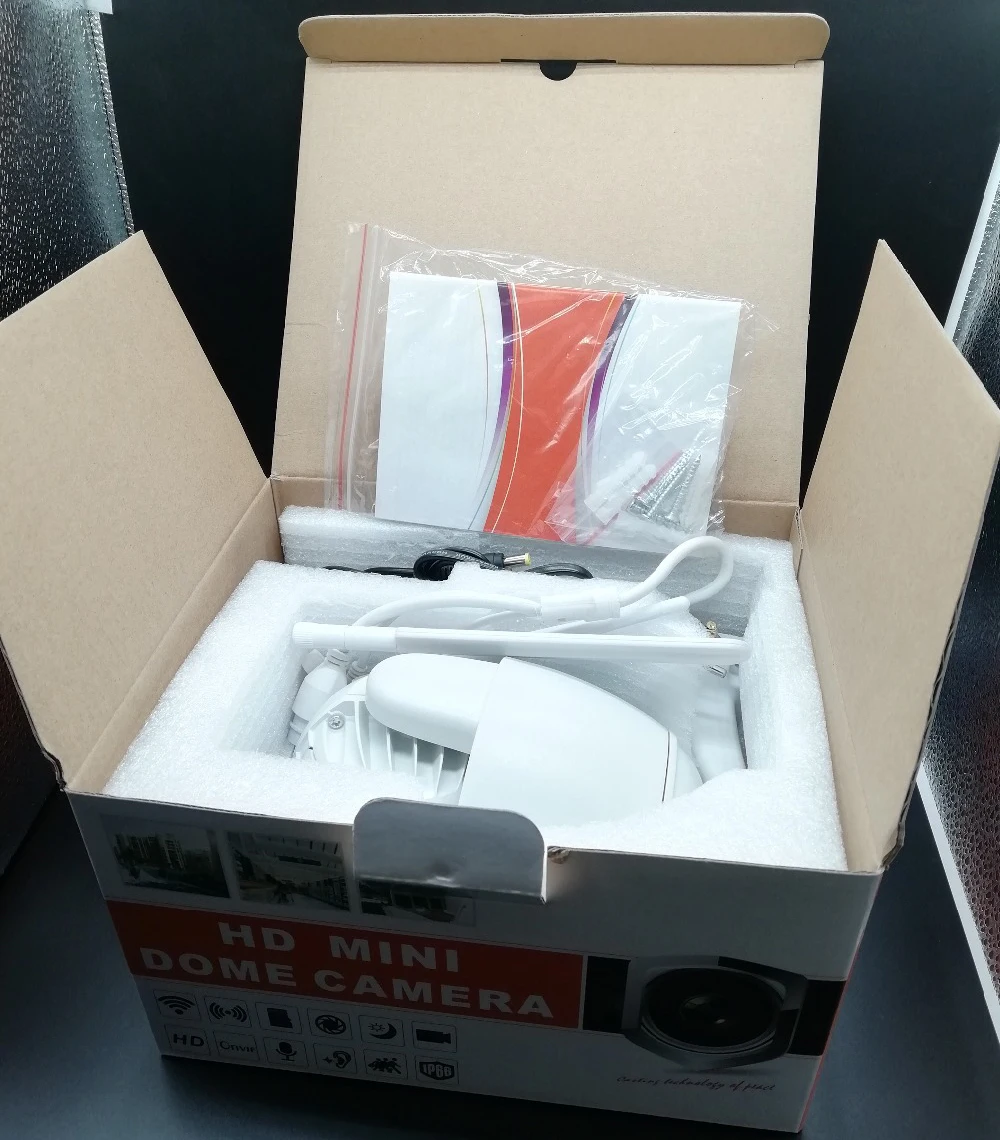

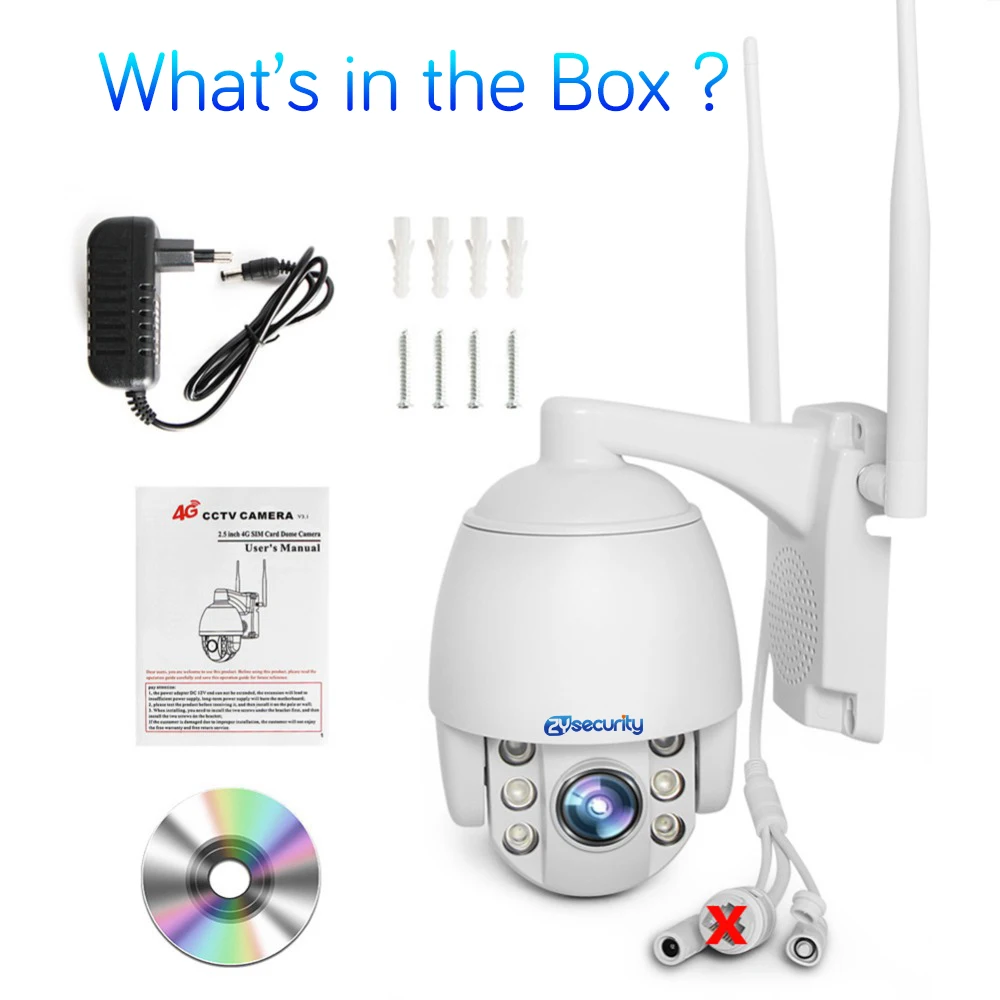

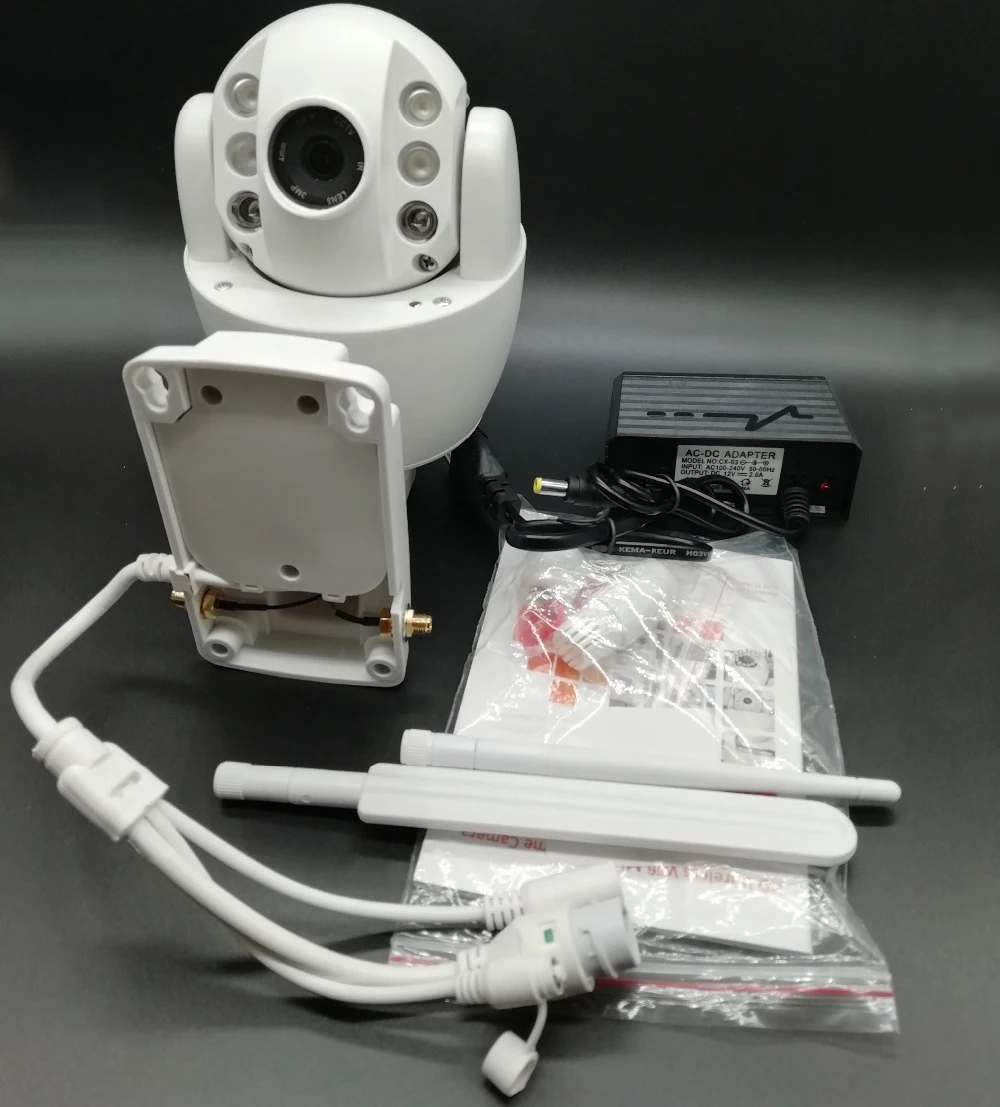

                                                                        What's in the box

                                                                        • ZYsecurity 2MP Outdoor 4G CCTV PTZ Camera
                                                                        • Mounting Screws
                                                                        • Quick User Guide
                                                                        • DC 12V 2A Adaptor
                                                                        • 16GB-128GB SD Card (Option)
                                                                        • 1 Year Warranty

                                                                        Tech Specs

                                                                        •

                                                                          Model		ZY-4GPTZ1-F	ZY-4GPTZ1-AF
                                                                          Camera	Operating system	Embedded Linux OS
                                                                          	Processor Sensor	HI3516E+1/2.9" SONY307
                                                                          	Megapixel	1920*1080
                                                                          	Lens interface type	M12
                                                                          	Lens	4mm Fixed Lens	2.7-13.5mm  5x Optical Zoom Lens
                                                                          	View angle	70°	89.9°-26.2°
                                                                          	Min.illumination	0.05 Lux  / 0 Lux(IR on)
                                                                          	Day&Night mode	Auto IR-CUT
                                                                          	Night vision distance	4pcs Array Infrared LEDs or 2pcs White Supplement LEDs. 60M Night Vision
                                                                          Video	Video compression  standard	H.265/H.264 Main Profile/H.264 Baseline
                                                                          	Video streaming	Dual streaming
                                                                          	Video resolution	First stream: 1080P(1920x1080), 720P(1280x720)
                                                                          		Second stream: Q720P(640x480/640x352),  QQ720P(320x240/320x176)
                                                                          		JPEG stream :(Monitoring for mobile phones),
                                                                          		Q720P(640x352), QQ720P(320x176)
                                                                          	Video code rate	32 to 8192Kbps. supports constant bitrate/variable bitrate
                                                                          	Video frame rate	20fps(PAL 50HZ). 20fps(NTSC 60HZ)
                                                                          	Image settings	Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
                                                                          	Image enhancement	Backlight compensation,Automatic white balance,
                                                                          		Digital WDR, 3D digital noise reduction
                                                                          Audio	Audio compression standard	G.726/G.711
                                                                          	Audio code rate	Rate adaptive
                                                                          	Audio Input	Support, Built-in Microphone
                                                                          	Audio Output	Support Two Way Audio Talk ,  Built-in Loud Speaker
                                                                          Function	Motion detecting	Can set 4 independent detection region (1-100 sensitivity can be set)
                                                                          	Alarm linkage	Alarm send pictures to the specified mailbox,
                                                                          		alarm upload pictures and videos to the FTP server,
                                                                          		alarm write pictures and videos to Micro SD card,  alarm message push
                                                                          	Privacy mask	Maximum support 4 users to simultaneously browse
                                                                          	OSD	Support camera name, date and time information superimposed
                                                                          	User management	Supports user and rights management
                                                                          	Simultaneous viewers	maximum support 12 users to simultaneously browse
                                                                          		(each stream supports 4 users)
                                                                          	Network protocol	TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,
                                                                          		DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
                                                                          	Connection protocol	N/A
                                                                          4G	4G standard	FDD-LTE
                                                                          	Frequency range	B1(2100MHz), B3(1800MHz), B7(2600MHz),  B8(900MHz), B20(800MHz)
                                                                          	Transmission rate	Upload max:50Mbps, download max: 150Mbps
                                                                          	Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
                                                                          PTZ	Rotation angle	Horizon:0° to 355°. Vertical: 0° to 90°
                                                                          	Horizontal speed	1° to 40°/S
                                                                          	Vertical speed	1° to 20°/S
                                                                          	Preset	N/A
                                                                          Interface	Power interface	1*5.5mm power interface
                                                                          	Ethernet	N/A
                                                                          	TF card Slot	1*TF card slot. up to 128G(Don't included TF Card)
                                                                          	Reset button	Support
                                                                          General  Specification	Power supply	DC 12V 2A
                                                                          	power	Day: 3W;  Night: 12W
                                                                          	Operating temperature	-20 to +60 degree
                                                                          	Operating humidity	10% to 95%
                                                                          	Material	ABS Plastic + Metal Housing ,Outdoor Use,Waterproof IP66
                                                                          	Installation	Rack mounting

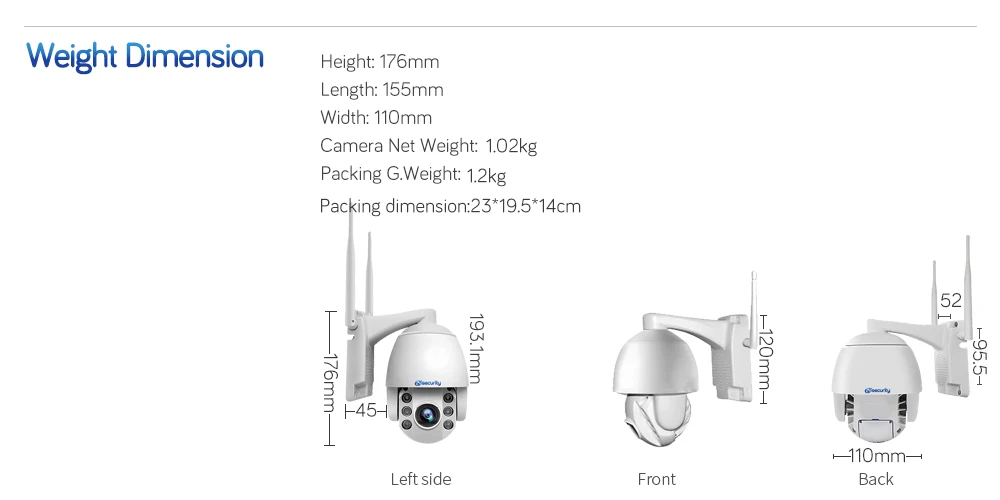

                                                                          	Size(W×D×H)(mm)	175*115*110mm
                                                                          	Weight(kg)	1.02kg
                                                                          	Package Size(W×D×H)(mm)	230*200*140mm
                                                                          	Package Weight(kg)	1.2kg

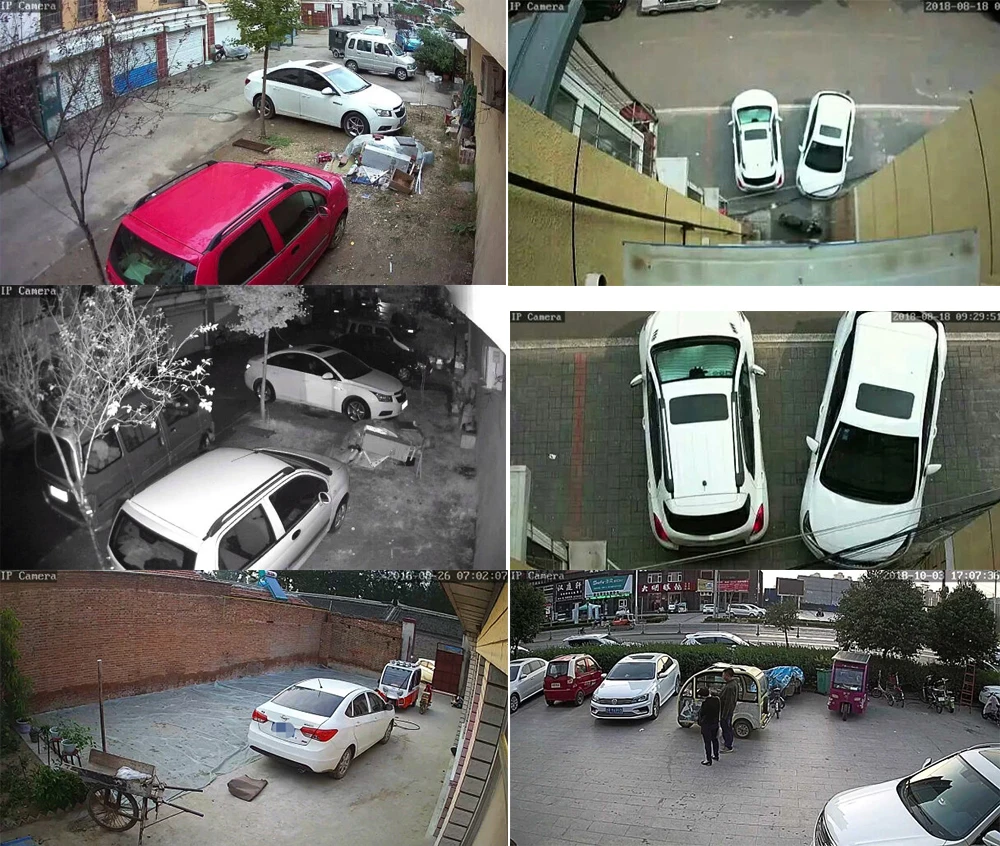

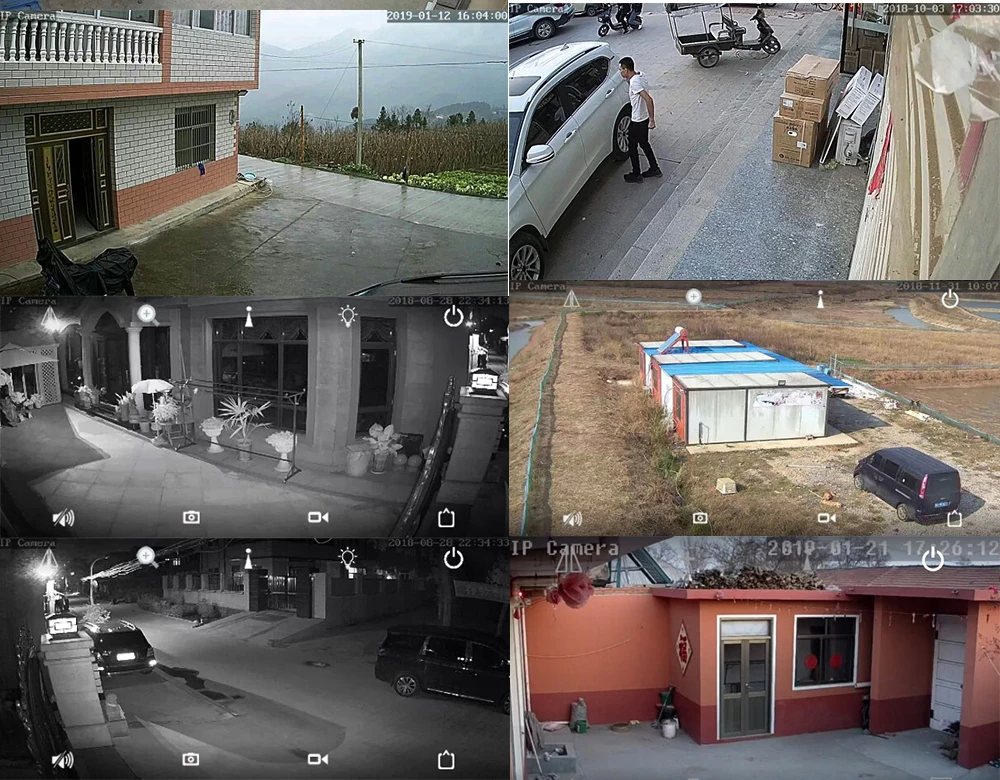

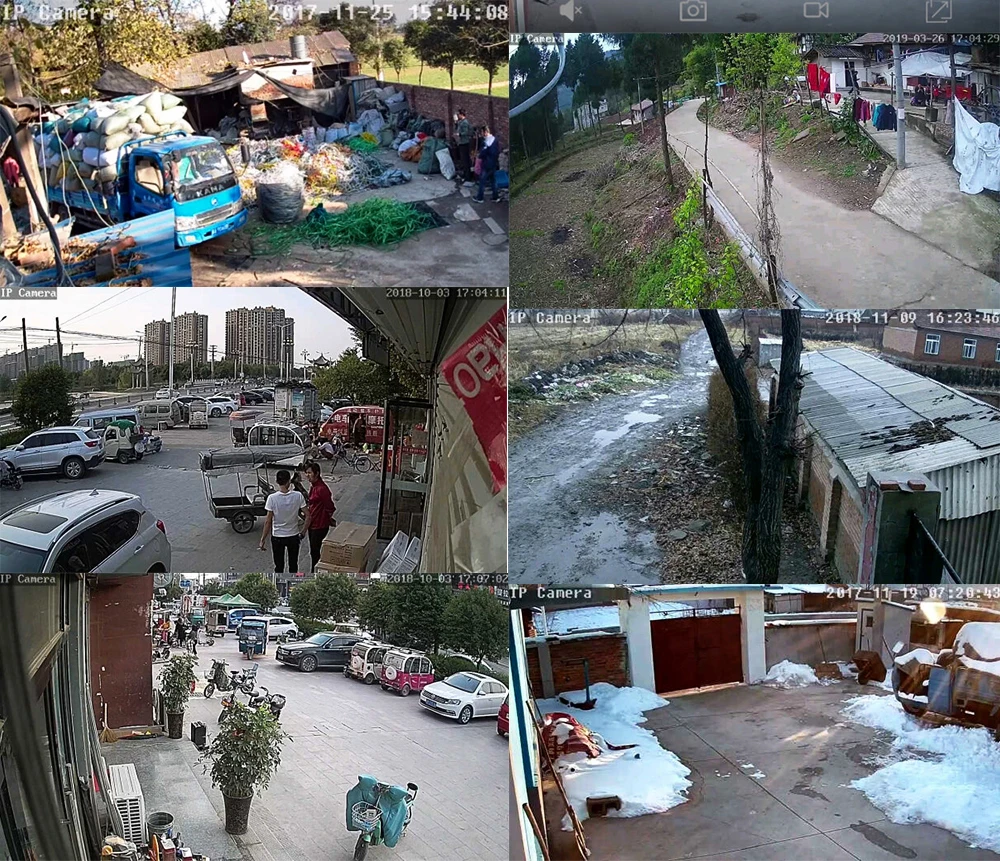

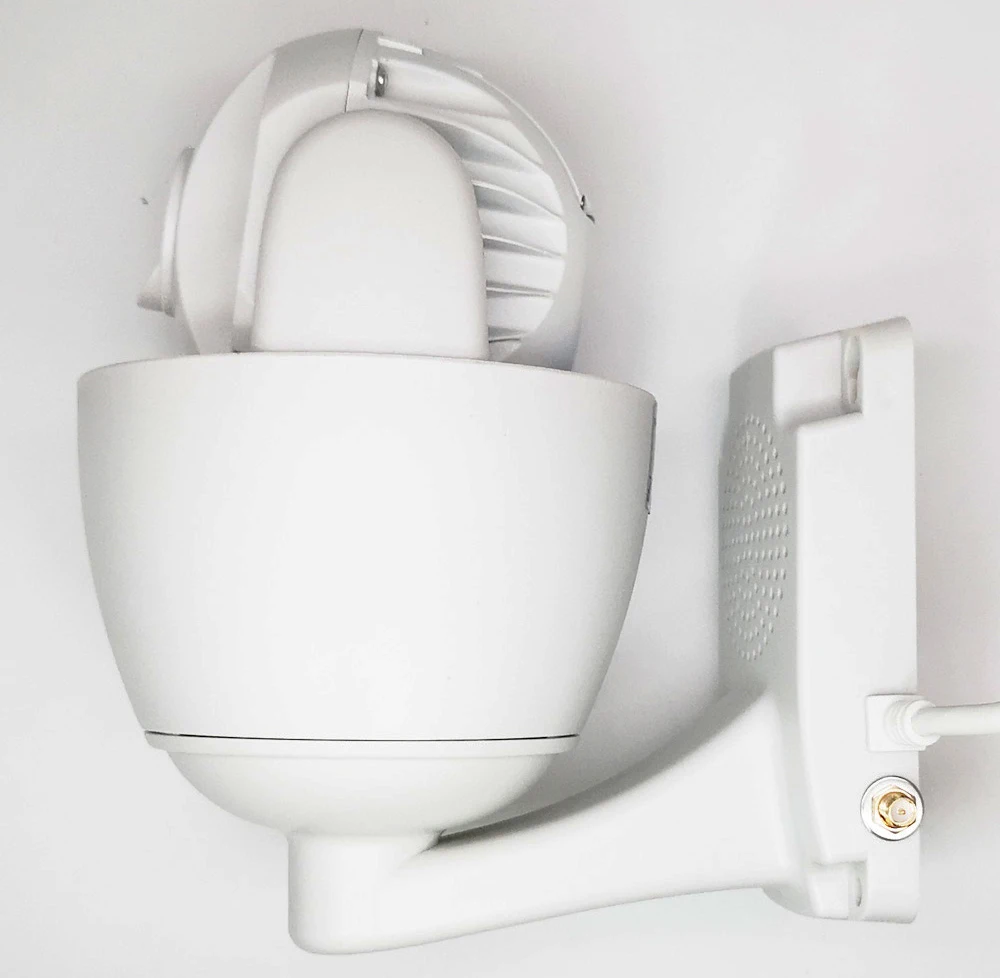

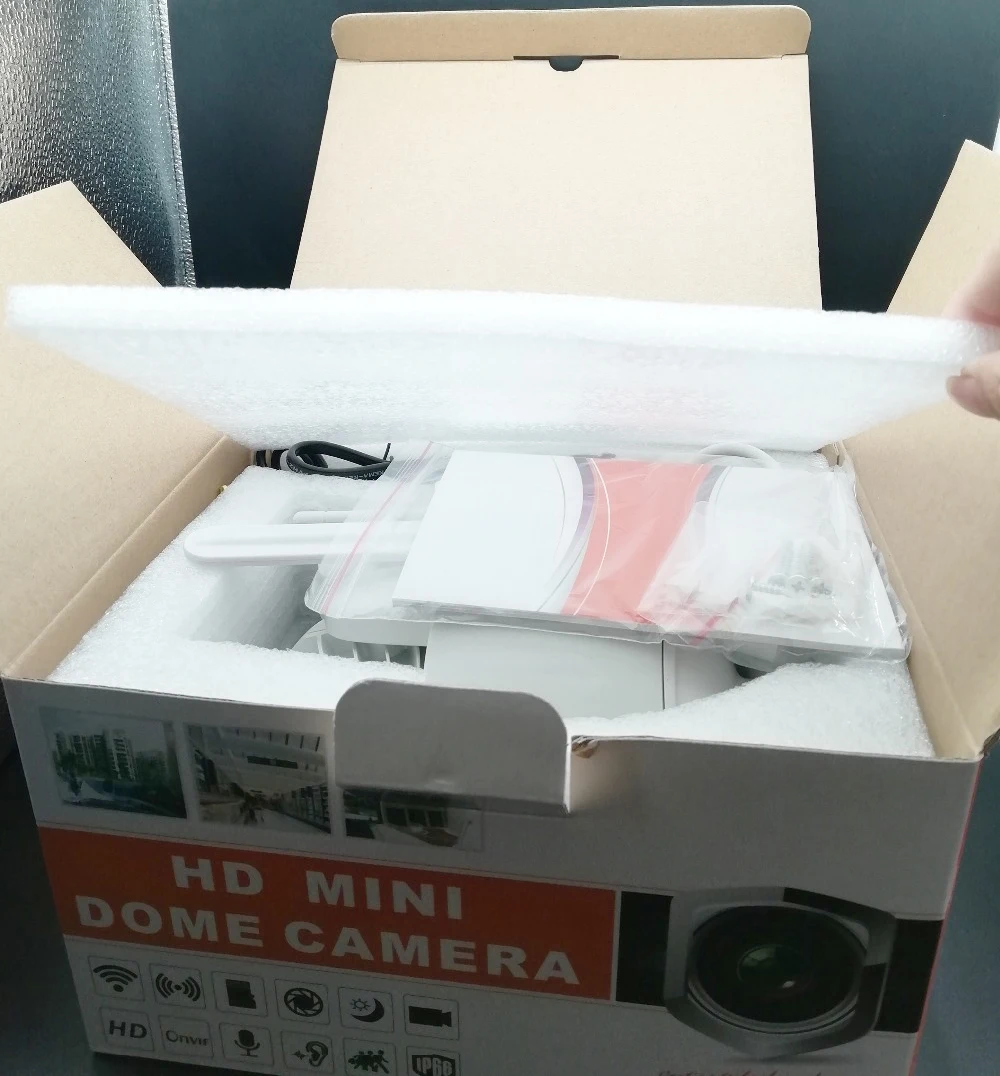

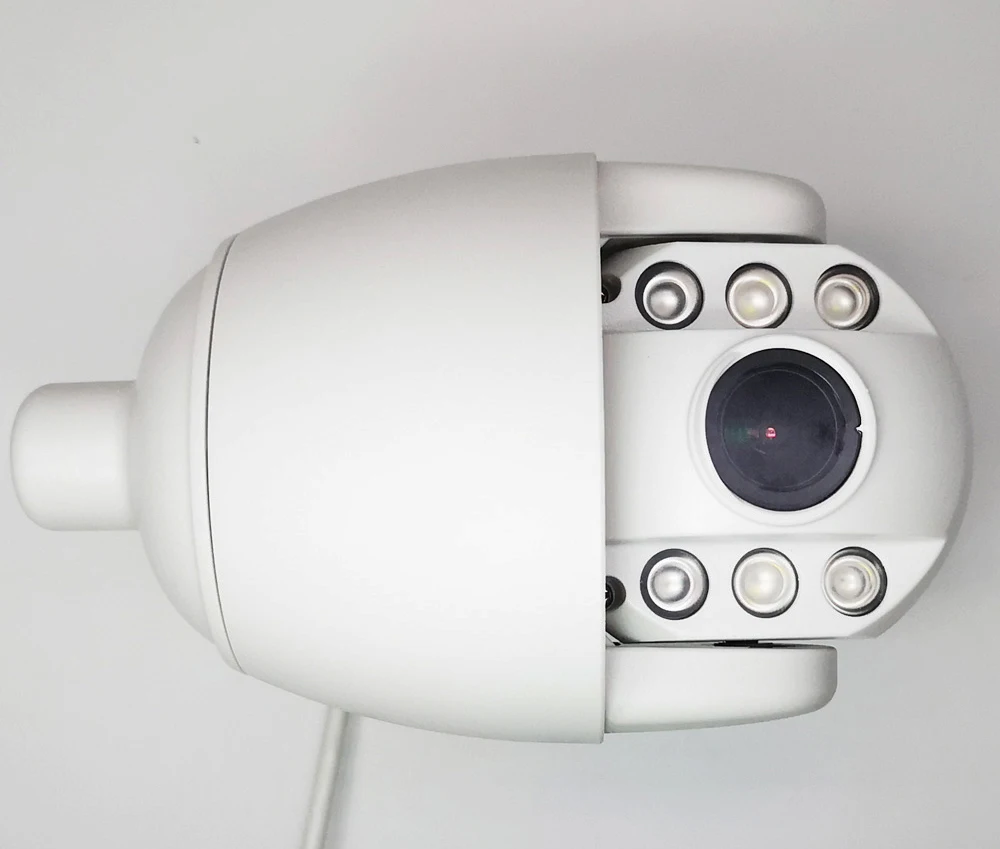

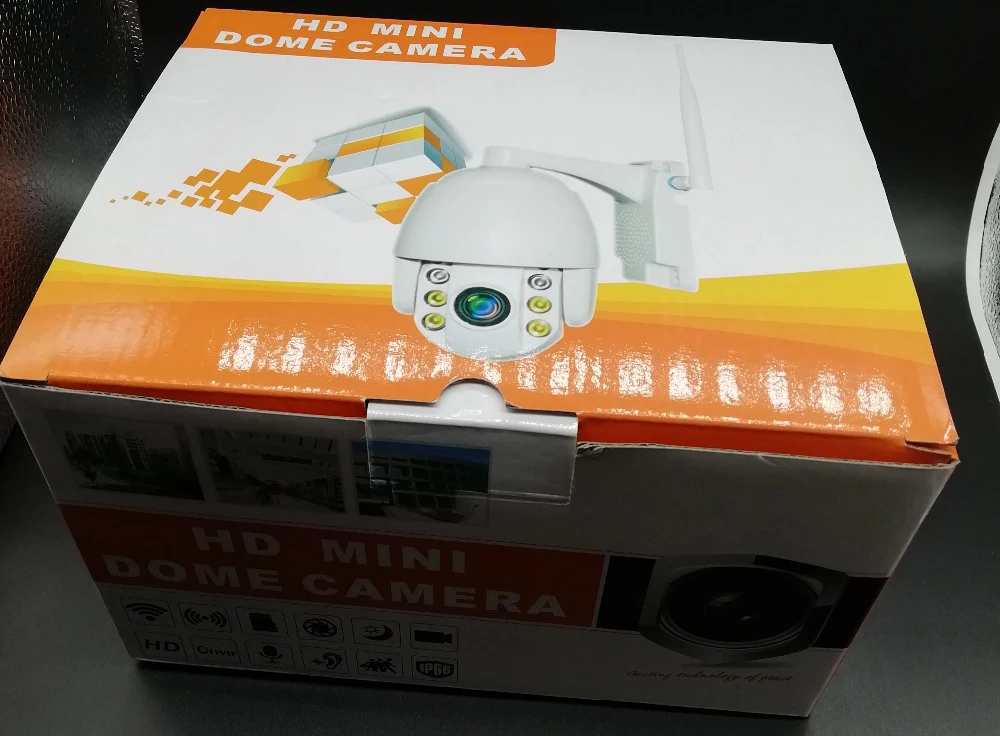

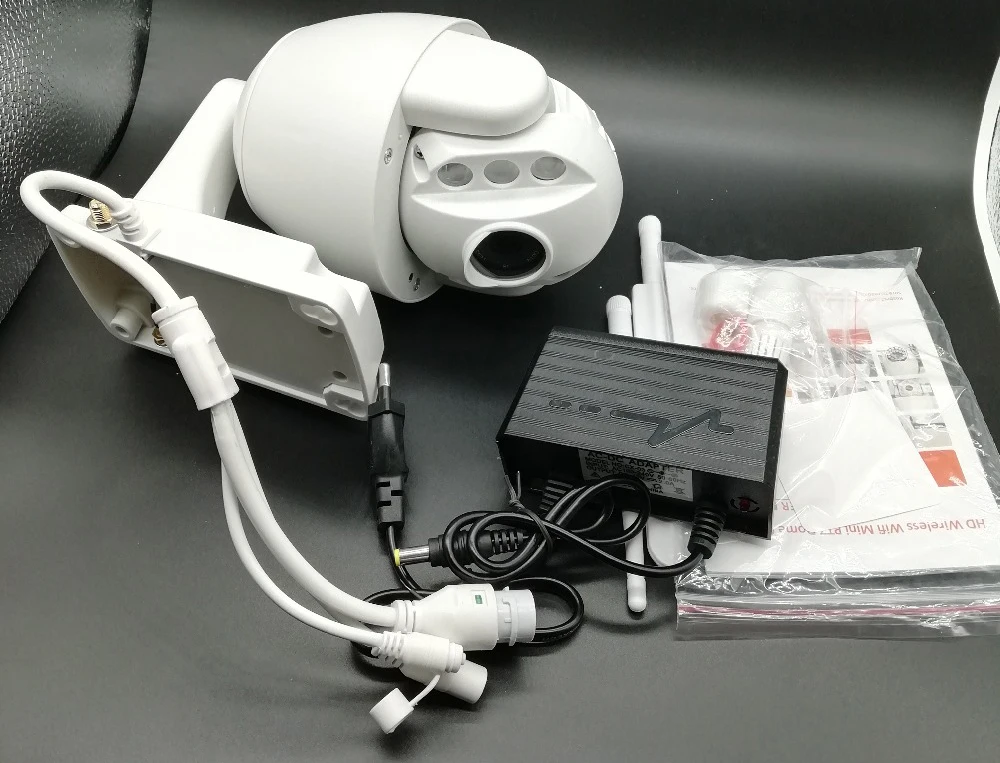

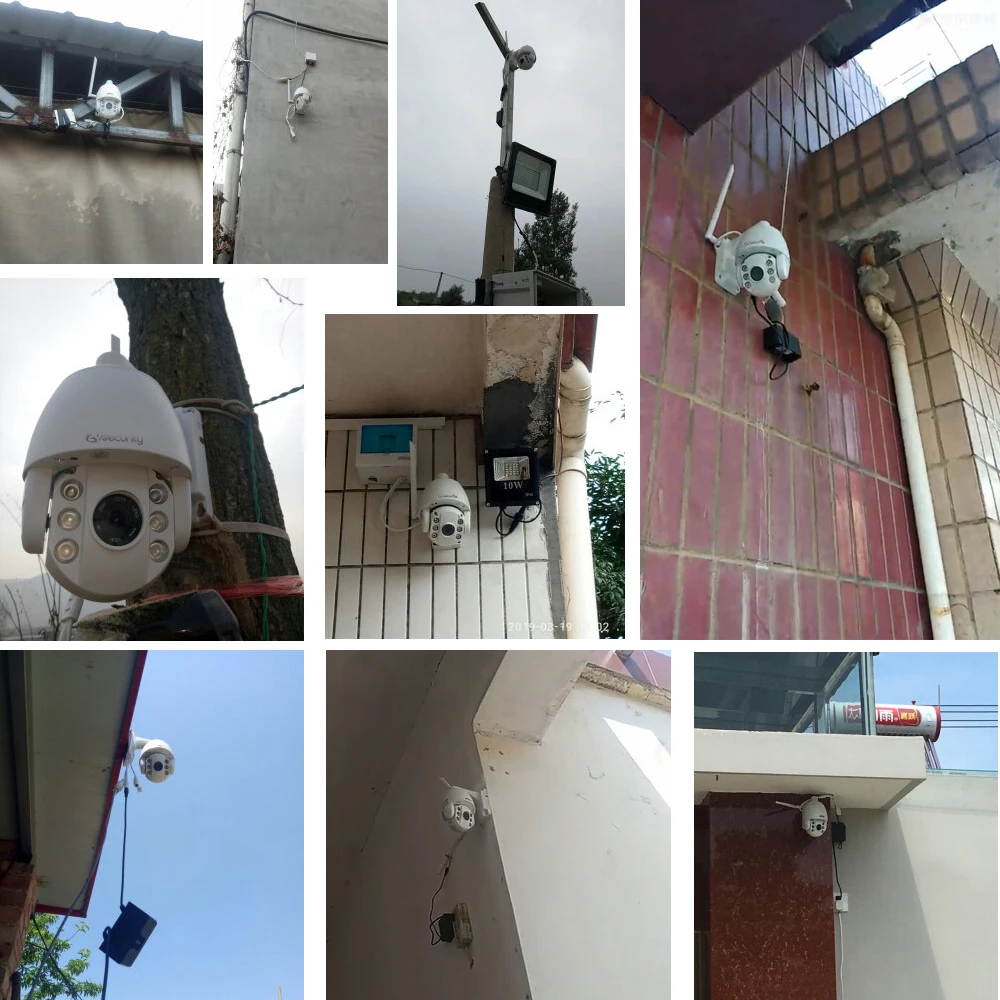

                                                                      • True image picture from customers:



                                                                      •
                                                                      • Related instruction:

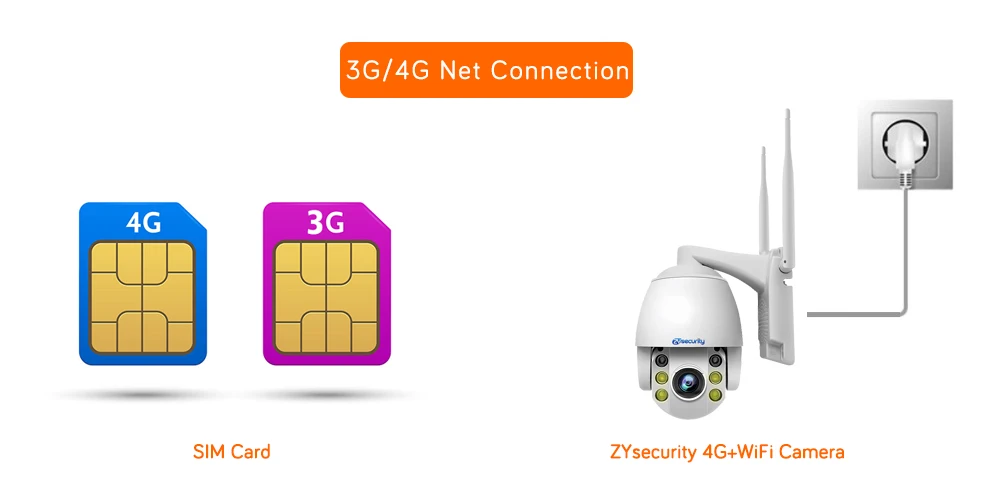

                                                                      • • Three operating modes, Wired, WiFi, 3G/4G

                                                                          If the installation place has no network or Wifi signal, but have SIM mobile signals, you can insert a SIM card to the camera and connect the internet by your SIM card

                                                                          Tips: when using 3G/4G, Do not connect the network cable at the same time, Avoid IP assignment conflicts.

                                                                          1. How to quickly set up 3G/4G.

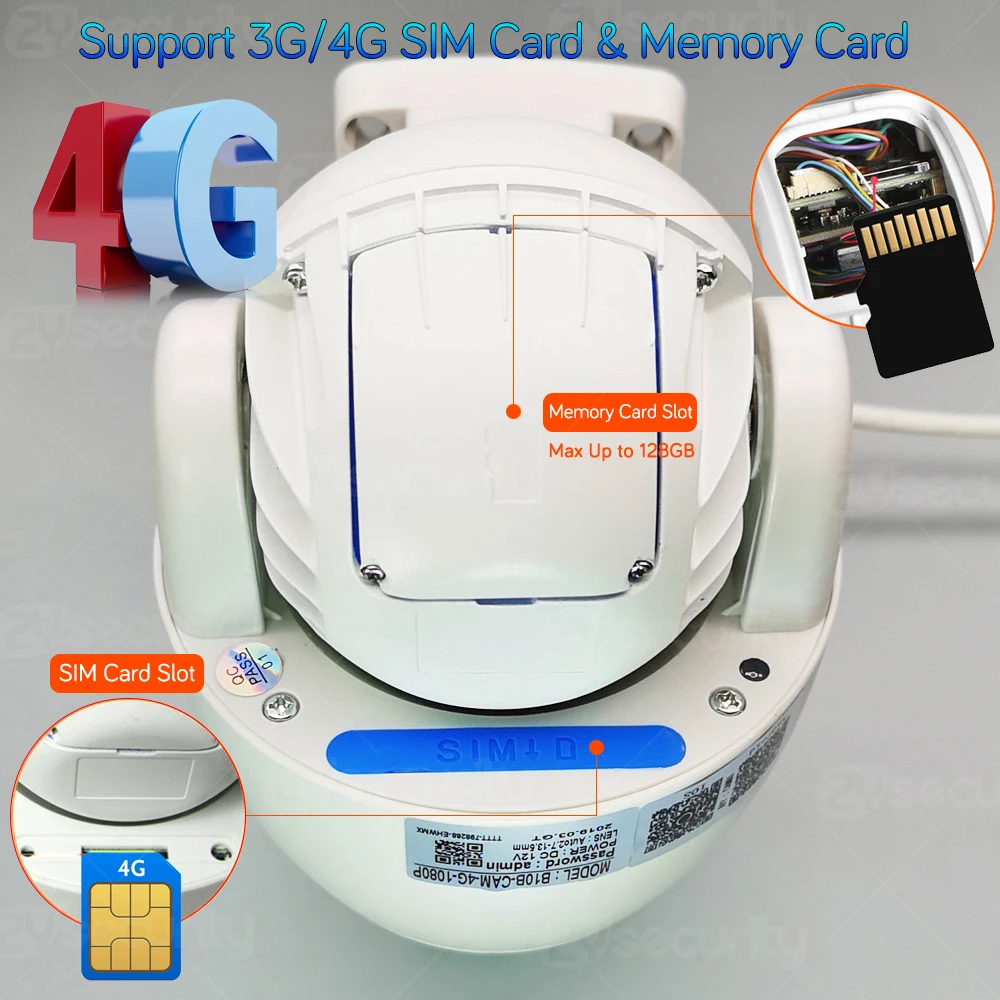

                                                                           (1) Open camera top-housing, and put a 4G SIM Card  /Micro SD card into the camera. (2) Connect power adapter to camera and power on,wait 10-20s, camera will be ready. (Do not connect LAN cable !!! (This LAN port is of no use for 4G camera) (3) Download smart phone app" CamHi". (4) Add your camera UID number(find it on camera label), and user name (default :admin) /password (default:admin), then connect to live view real-time video.

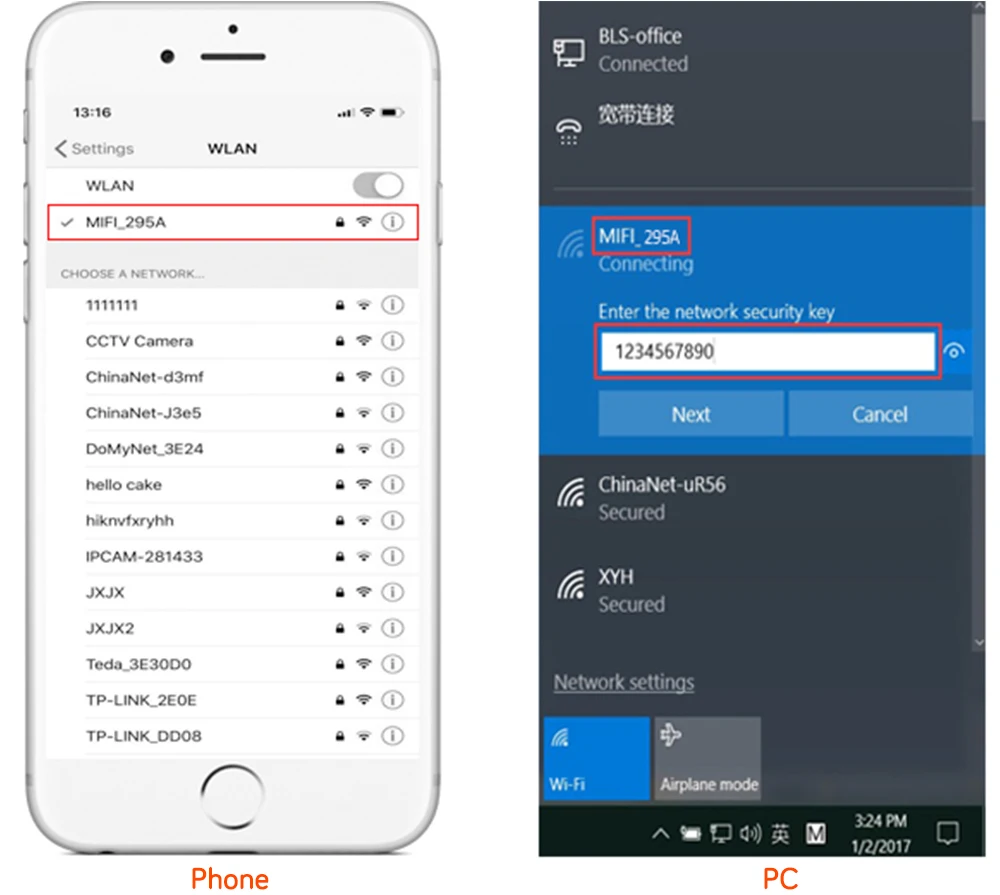

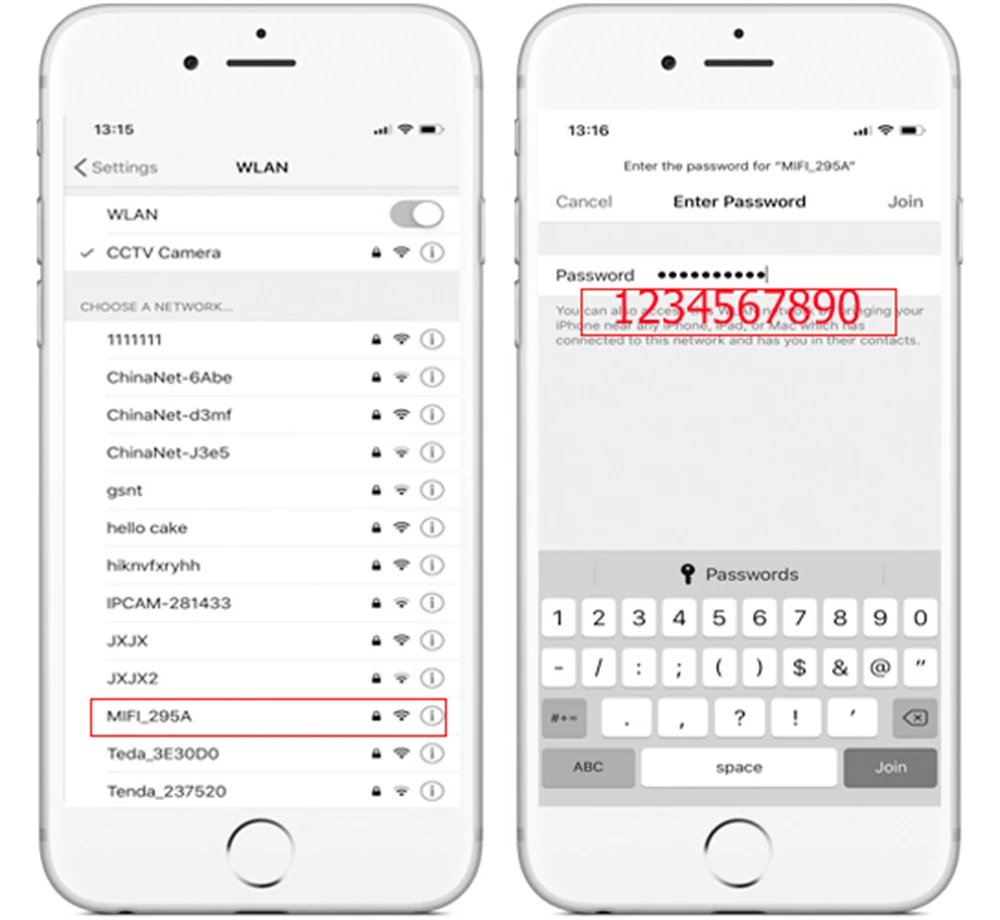

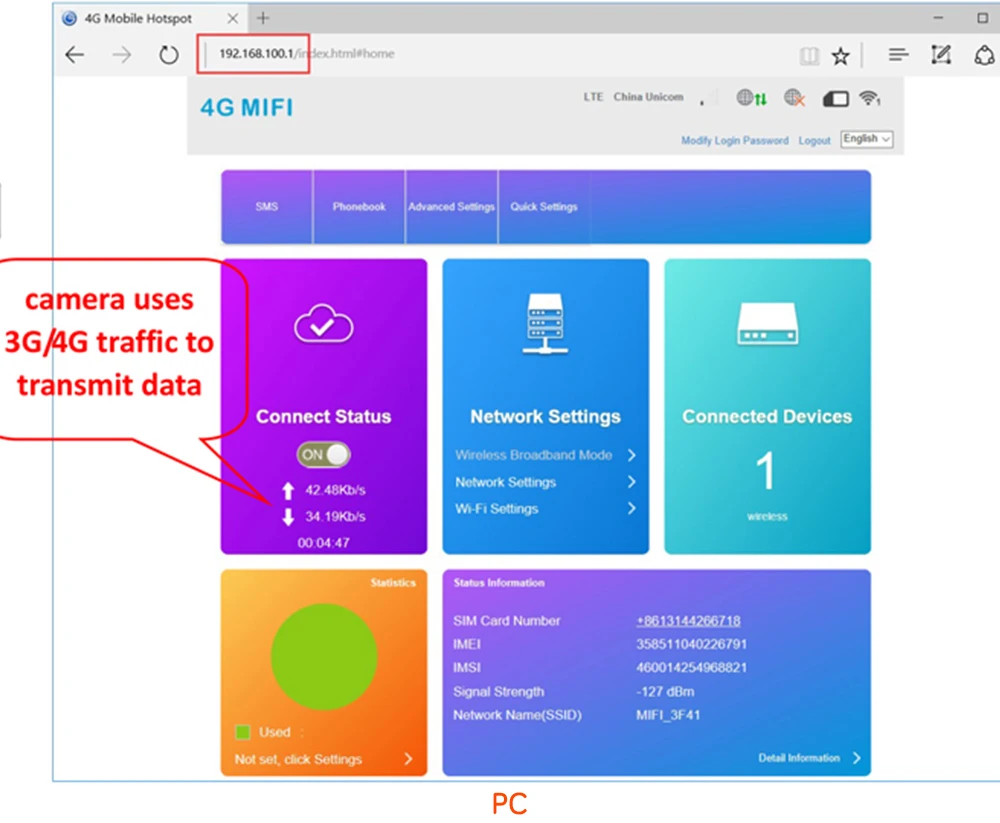

                                                                          (The 4G/3G camera default connection to the 4G/3G module (signal MIFI-XX) has been set in factory)

                                                                      •

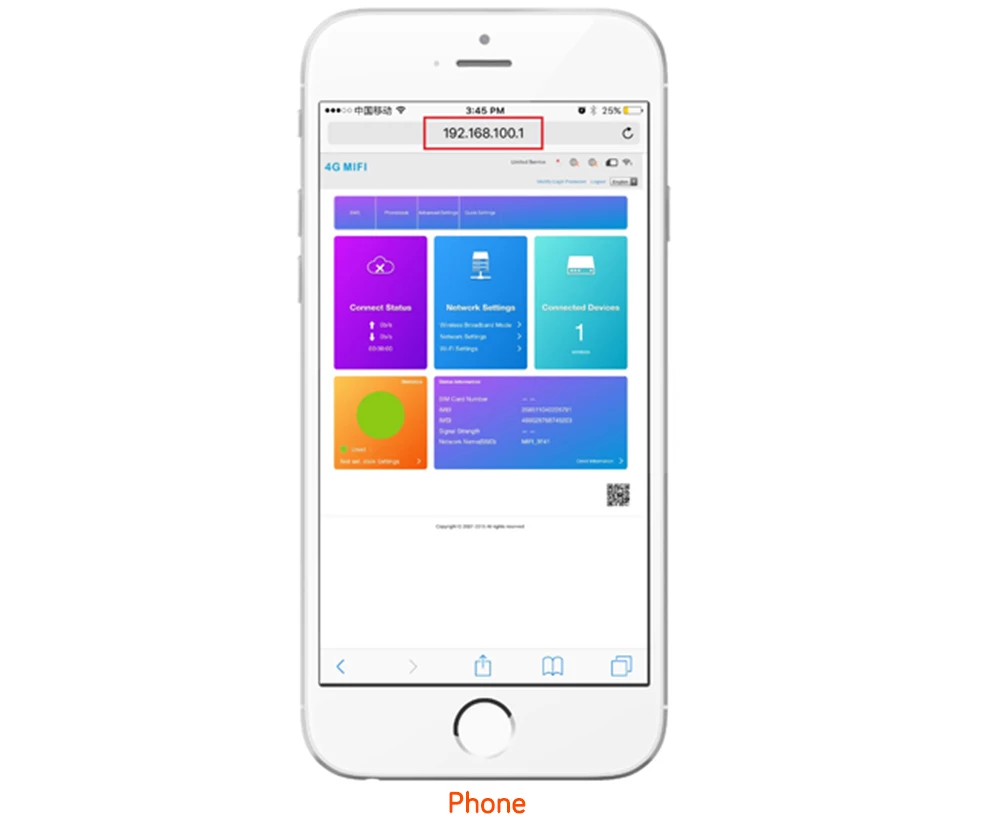

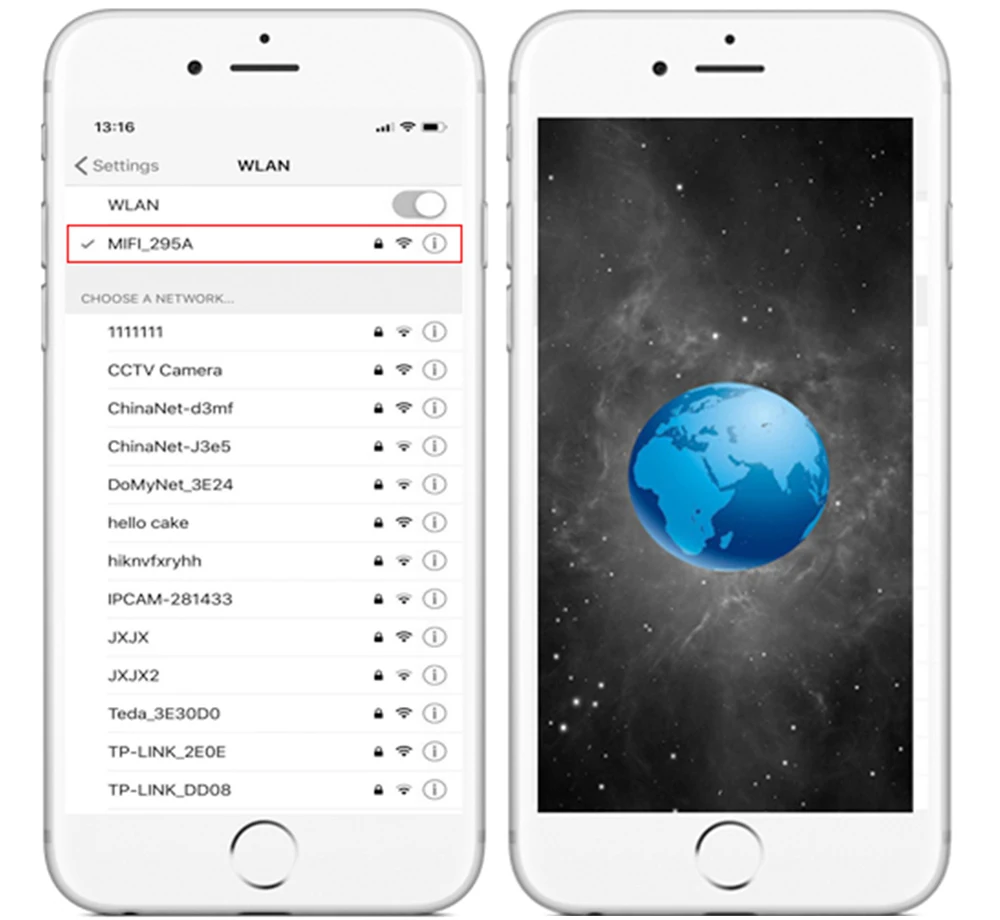

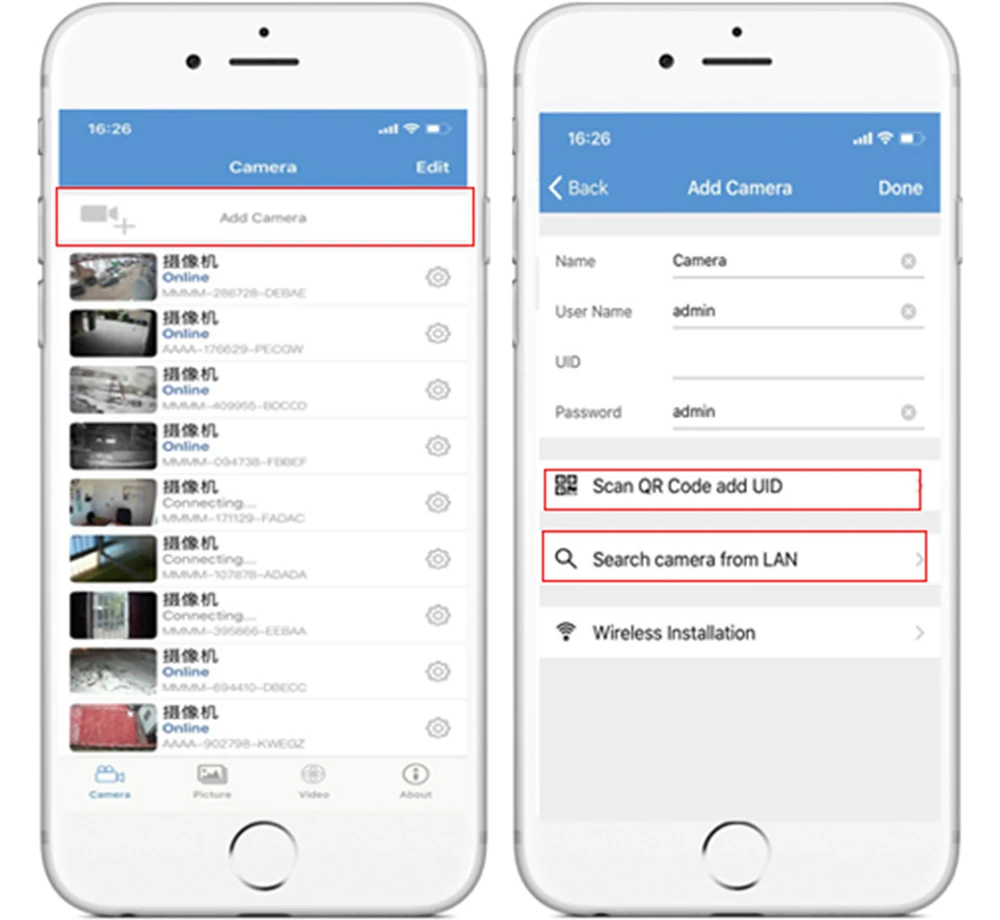

                                                                      • After connect MIFI-XX, Open App to add camera, choose "search camera from LAN" (because your phone is connected to MIFI-XX), or directly scan the QR Code of the camera.
                                                                      •
                                                                      •

                                                                      • Note:

                                                                        If the 3G/4G camera is offline, please check the SIM card. Use the mobile or PC to connect the WIFI"MIFI_3F41", the password is 1234567890, you can find the Wifi when the camera starts working, access camera's IP address "192.168.100.1" through the browser, the page password is "admin", you can check the SIM card information on this page:

                                                                      •

                                                                      • These 3 problems will offline the 4G camera:

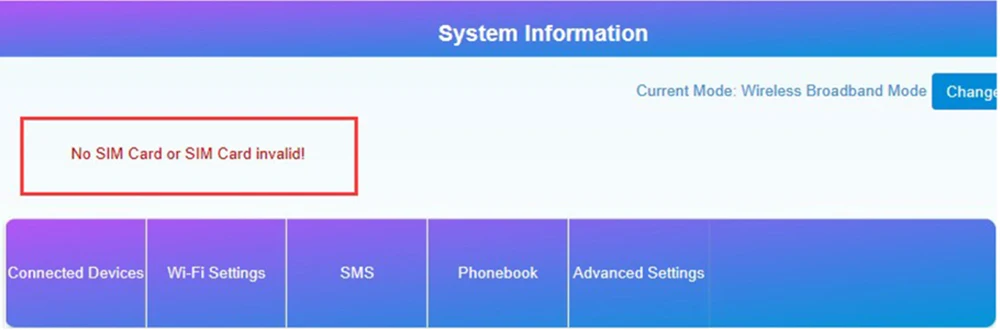

                                                                        1 damaged card or wrong installation direction when prompted"No SIM Card or SIM Card invalid" as shown below:

                                                                      • 2. Frequency not supported or SIM card arrears when prmpted"No Service" or "Limited Service"

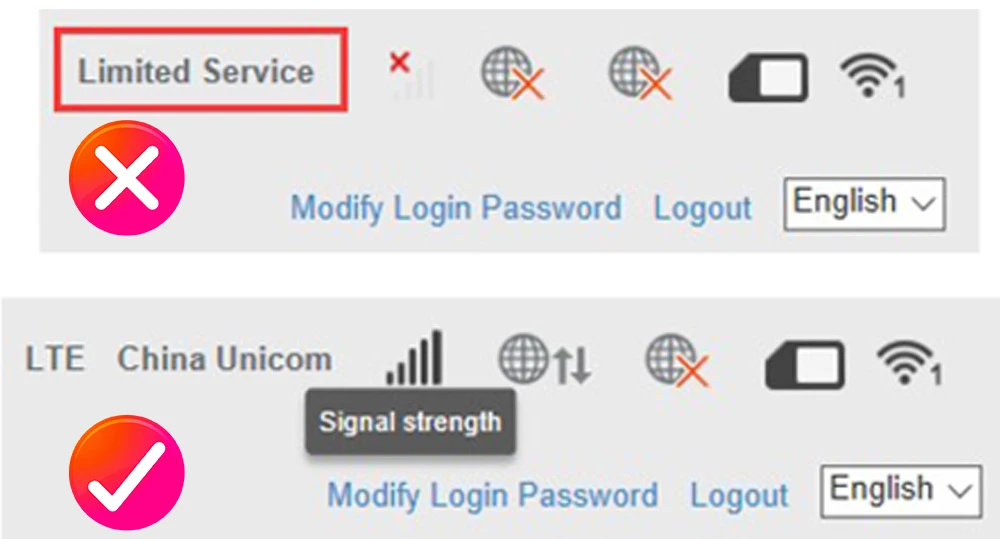

                                                                        3. Makre sure 3G/4G signal strength is enough, as shown below:

                                                                      • • Please read these FAQ carefully to know better about this 4G camera,we will not agree with your dispute if you buy a wrong camera with your careless
                                                                        • • Question: What is the difference of this camera from other ip camera? Answer: This camera is 4G SIM Card camera, the LAN port is of no use, you have to put a 4G SIM Card into camera to get connection with internet. You can not connect this camera to router !   Question: What is this 4G camera working standard and frequency range? Answer: 4G standard: FDD-LTE/TDD-LTE with Frequency range:B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)   Question: What is the use environment of this 4G camera? Answer: This 4G camera mostly can be used at those places where has no internet but has 4G phone signal, such as farm,forest,mountain,seaside...etc   Question: Does this 4G camera support to connect with router?  Answer: No, this 4G camera does not support connecting with router.   Question:Is it possible to see live video to my phone from a different locations? Answer: Yes, your can put camera UID number to your phone app, then watch live video from anywhere in the world remotely.   Question: Does it support AP hotspot WIFI connection? Answer: Yes, this 4G camera has a own AP WI-FI SSID,we called Access Point, SSID format is "MIFI-3F41", the password is "1234567890", you can open the WIFI setting of the phone and find the SSID of the 4G camera's AP. This AP wifi SSID helps you to connect your phone with the 4G camera to live view and check your 4G SIM Card working information when you are near camera.   Question: Can this camera be possible to rotate up and down, left and right?  and zoom? Answer: YES, it is a PTZ camera. you can control camera rotate up down left right via phone app or remote pc cms.   Question: Is it also possible to see video via a phone app? Answer: Sure yes, you can remote view video and playback from your phone app "CamHi"   Question:Can this camera support motion detection and send me email notifications? Answer: Yes, it can.   Question: Does it comes with a mounting bracket? Answer: Yes,  the mounting bracket is in the package.   Question: Does this 4G camera supports local IE broswer and local PC client? Answer: No, it can not support local IE broswer and local PC client. because it can not support router.   Question:Does this 4G camera supports romote PC client? Answer: Yes, you can install remote pc client and add camera UID and password into remote PC client,then watch the live view.   Question: Does this 4G camera suppport FTP cloud upload? Answer: No, it can not, because it can not support local network.   Question: Where can i save the video records? Answer: You can only save the video records into micro sd card, or remotely save video into PC(you must keep remote pc client running always).   Question: Can i use my smartphone and remote playback and watch the video records from sd card? Answer: Yes, you can.   Question: Can I connect this 4G camera to NVR recorder? Answer: No, it does not support connect with nvr.   Question: Is it waterproof? Answer: Yes, it is waterproof   Question: Does it support Day/Night Mode? Answer: Yes, it built in 4pcs array infrared LEDs, Color night vision distance 80m, IR night vision 20m.

                                                                            Question:  Does this IP bullet Camera support audio

                                                                            Answer: Yes



                                                                            Question:Can this camera operate in cold weather, what's the operating temperature range? Answer: The camera's operating temperature is -30 degree Celsius to 60 degrees. It should be able to handle extreme cold weather. I have many customers from cold Russia, camera works great there !   Question: I put my 4G sim card into camera, but camera can not be connected. How to do? Answer: You can connect the camera AP wifi name"MIFI_3f41" from your smartphone WIFI settings, password 1234567890,then access "192.168.100.1" though broswer, you can check your SIM card information on this page and know if your 4G signal is strong or weak.



Access on google chrome browser via Camera IP Address

Manage the cameras on pc client CMS
