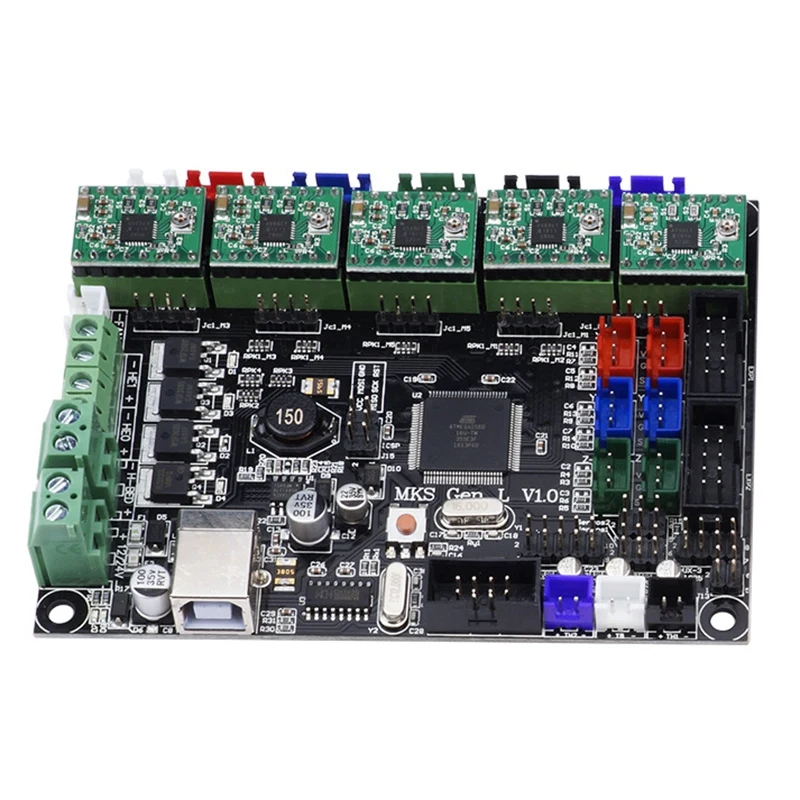

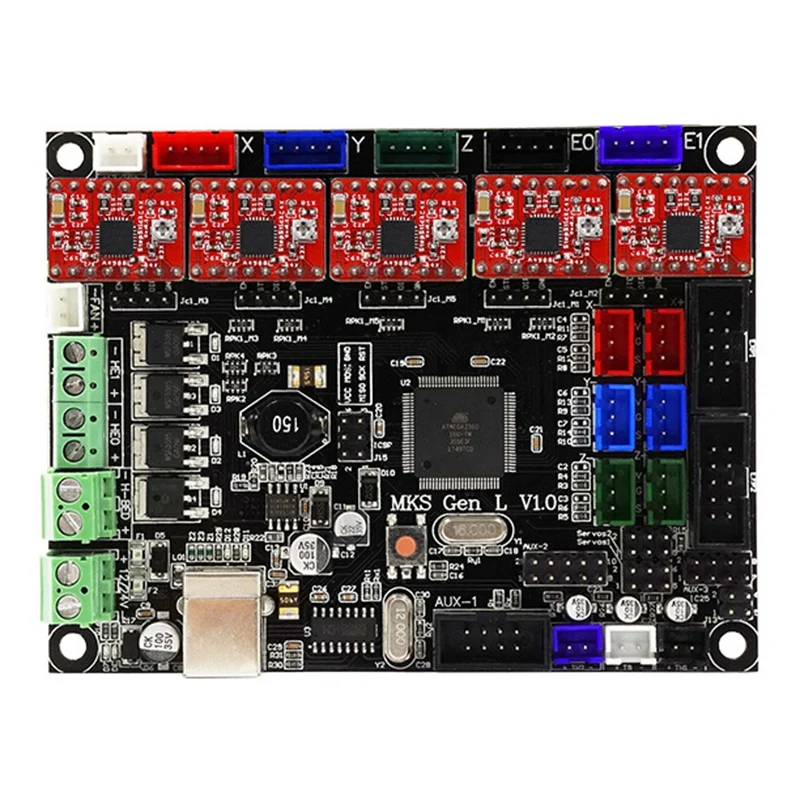

1. Combine 2560 and ramps1.4 on one board, which solves the problem that the Ramps1.4 combination interface is cumbersome and easy to malfunction.2. Users can replace the motor drive by themselves, support 4988 drive and 8825 drive, TMC2100 drive.
3. The external drive signal is reserved, and a large drive can be connected to drive the 57.86 motor.4. Using high-quality MOSFET tube, the heat dissipation effect is better, and the long-term work is stable.
5. Using dedicated power chip, support 12V-24V power input, solve the heat of Ramps voltage conversion chip. Power shortage problem.6. Stable and reliable filter circuit greatly reduces the possibility of interference, and it is most likely to avoid the phenomenon of crashes during the printing process.
7. Adopt CH340 serial port chip to reduce the cost under the premise of ensuring stability and reliability, and solve the problem of 16U2 hard-to-install drive in the past.8. Can accept 24V input, the same system power can reduce the hot bed current to 1/4, effectively solve the hot bed MOS tube heating problem.
9. Using the open source firmware Marlin, the configuration is exactly the same as ramps1.4, which can directly replace Ramps1.4.10. Can directly connect 2004LCD display and 12864LCD display, can support TFT28, TFT32 touches screen.
11. The XYZ axes use different color terminals to correspond to the motor and limit switch for easy wiring.
12. User-friendly design, use different color terminals to distinguish the driving direction, reduce the probability of insertion and reverse, and prevent the motherboard from being damaged due to the drive insertion.

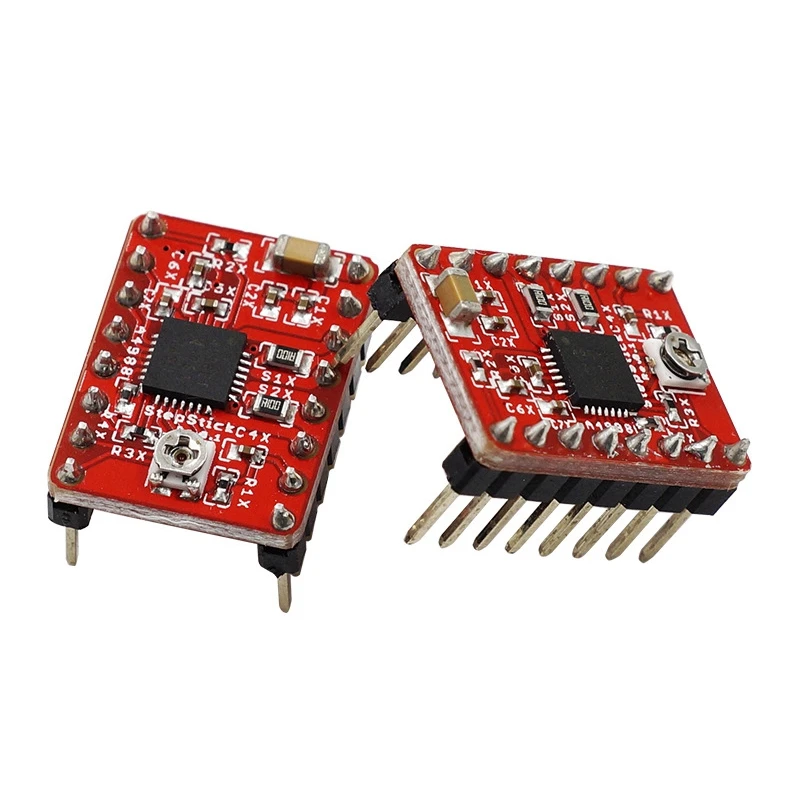

A4988 Driver:
1. Suitable for driving stepper motors up to 8V-35V 2A.
2. Only a simple stepping direction control interface.
3. Five different step modes: full. Half. 1/4. 1/8 and 1/16.
4. The adjustable potentiometer can output the maximum current output for a higher step rate.
5. Automatic current decay mode detection/selection.
6. Overheat shutdown circuit. Undervoltage lockout. Cross current protection.
7. Ground short circuit protection and load short circuit protection.
D-touches is a fully automatic universal 3D printer hot bed leveling probe (automatic leveling probe)
Its advantages are simplicity, compactness, high precision, good compatibility, and compatibility with all bed materials, such as glass, metal, wood, plastic, acrylic, etc.
Material:plastic
colour:Photo Color

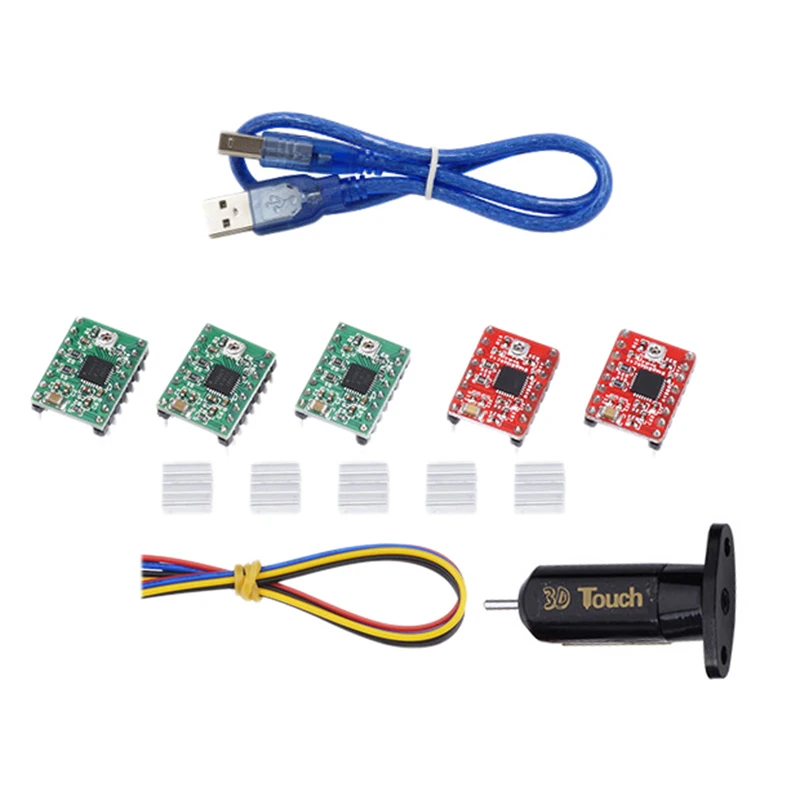

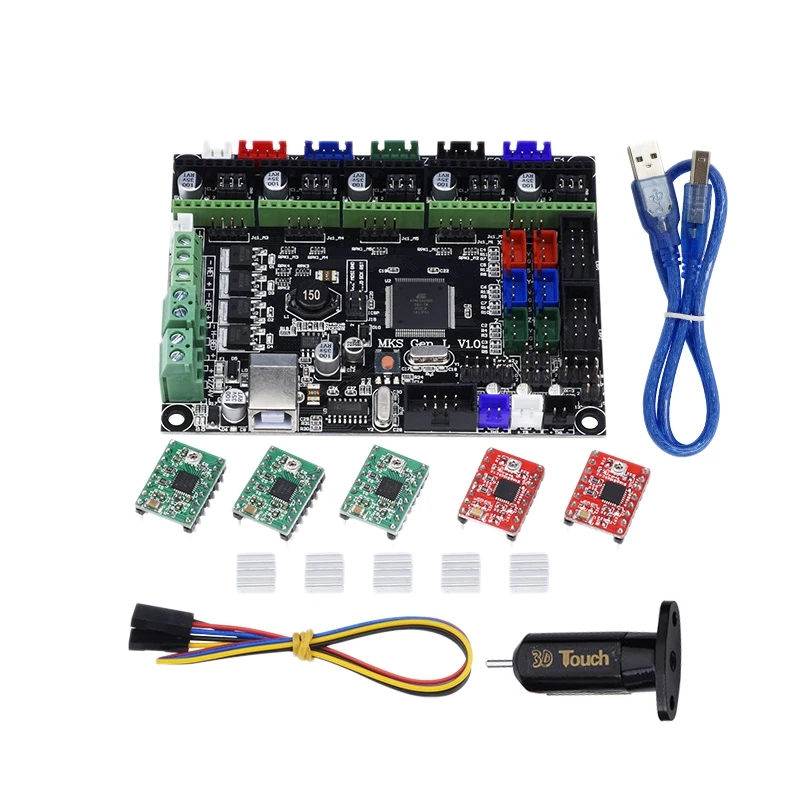

Package Contents:
1 * MKS GEN L Board
1 * USB Cable
5 * A4988 Driver
5 * Heat Sink

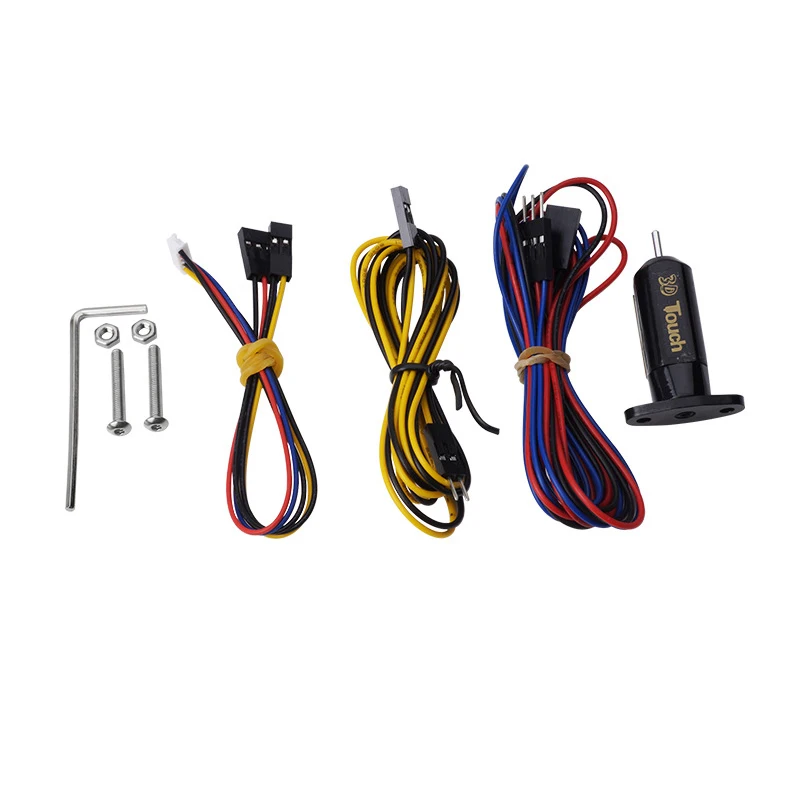

1 * 3D Contact Sensor
1 * 3D Contact Cable
1 * 1M 2Pin Cable
1 * 1M 3Pin Cable
2 * Screws
2 * Nut
1 * Wrench
Only the above package content, other products are not included.
